Mostly SQL Server developers have installed default instances (local) but some developers have used named instances, such as <My Machine>\SQLStd using the same alias on all developer machines.

Suppose we have an application that has specified a database connection but it can't or doesn't need to change. But I want to move the database to a new server. How can I do this simply, without breaking it, using the same connection.

By using an alias, you can use the same database connection. There are the following two simple methods to create an alias:

SQL Server Configuration Manager
SQL Server Client Network Utility

1. SQL Server Configuration Manager

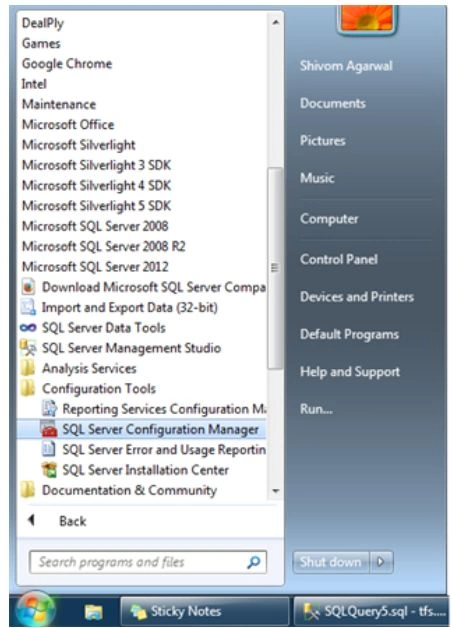

Start -> All Programs -> Microsoft SQL Server2012 -> Configuration tool -> SQL Server Configuration manager.

Now expand the SQL Native Client 11.0 Configuration folder, there is a sub-folder called Aliases, right-click Aliases and choose New Aliases.

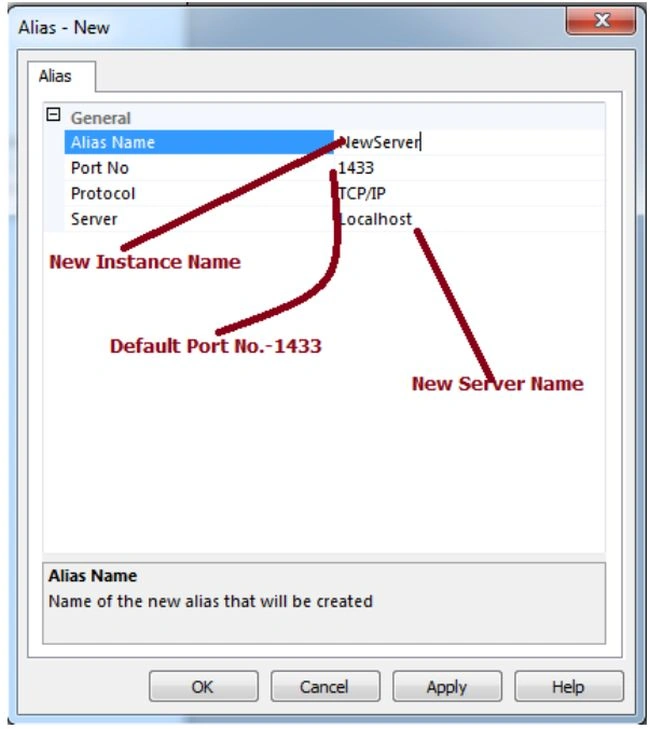

Now you can specify the new instance name that you want for the application.

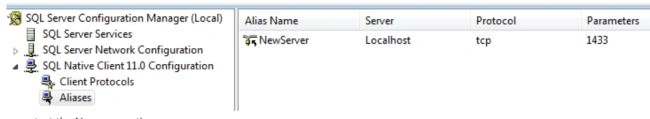

You can see the new alias list in the right pane.

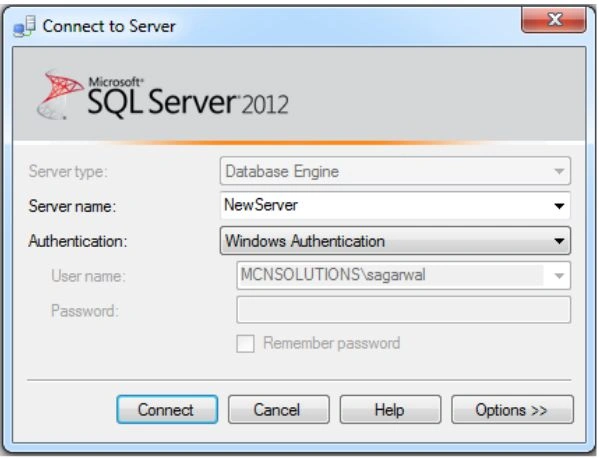

Now test the new connection.

If the alias is pointing correctly to the new location then a successful connection should be established.

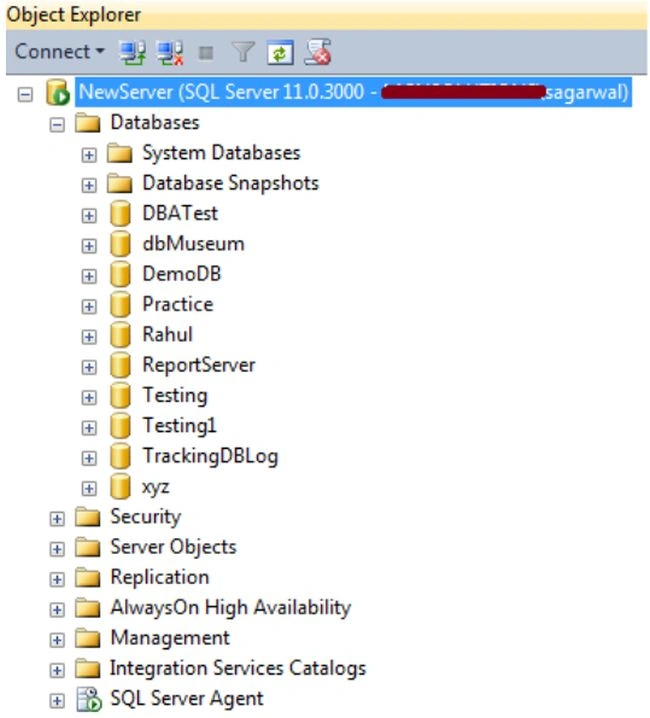

In SSMS, I was opening a new connection for Object Explorer.

2. SQL Server Client Network Utility

If you haven't installed the SQL Server client tools, you can still create an alias using the SQL Server Client Network Utility. This has come installed automatically on every operating system from Windows 2000 on.

Use the following to use the network utility:

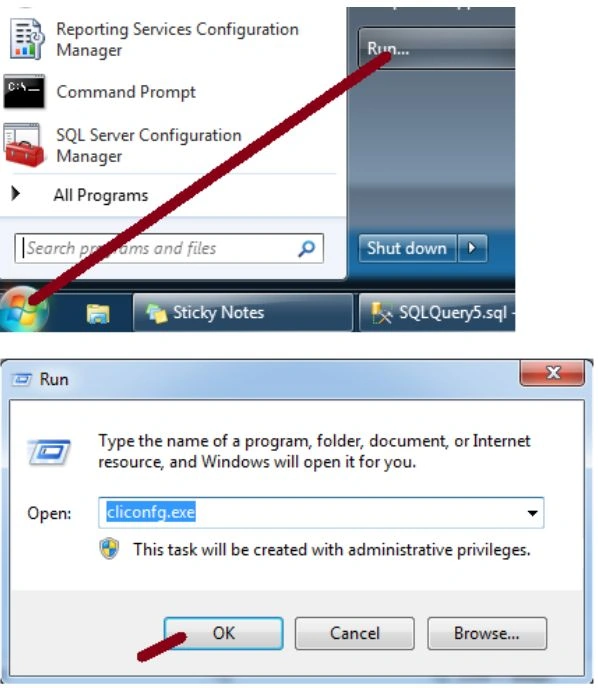

Start -> Run then type "cliconfg.exe" then click OK.

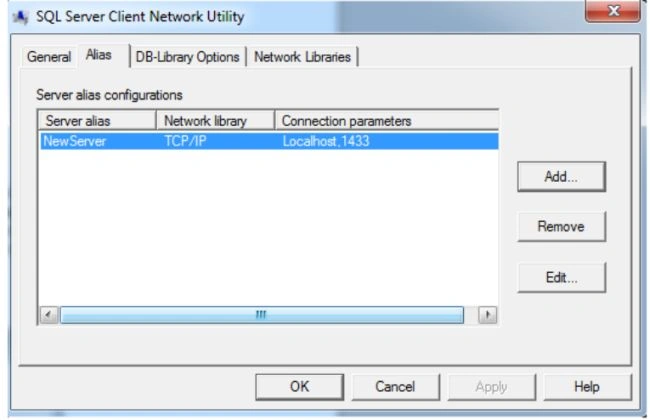

You can see in the following screen that aliases created by the SQL Server Configuration Manager can be seen by the SQL Server Client Network Utility.

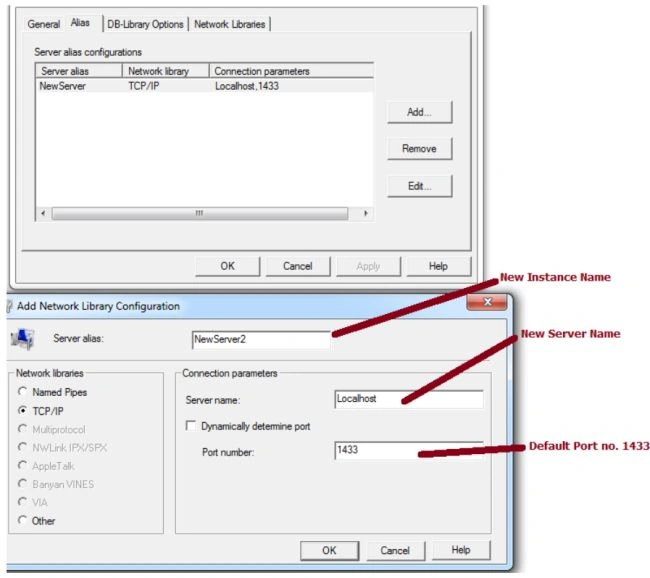

Now create a new alias using the network utility then click on the Add button. This will bring up a new dialog window as you can see in the following screen.

window

Click the OK button to create the new Alias.

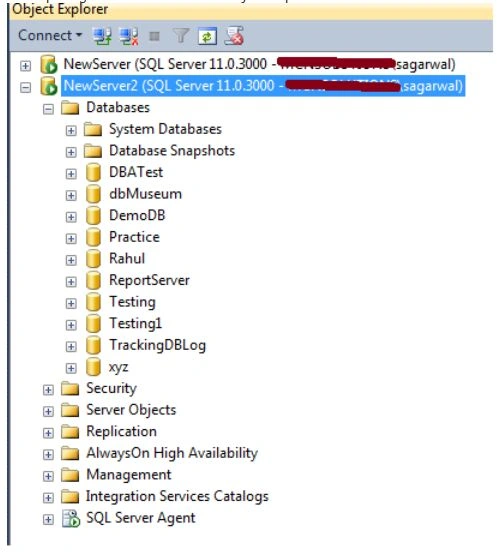

I was opening a new connection for Object Explorer.
