How To Consume Web API In An ASP.NET Gridview Using HttpClient

Background

Integrating Web API and ASP.NET has been the subject in many discussions and for this, I wrote this article to demonstrate an example of how to consume Web API in an ASP.NET website and how to view the information in a GridView.

Prerequisites

If you are not familiar with ASP.NET and Visual Studio and how to setup an environment please refer to the following article.

Now, let's start consuming the Web API in an asp.net website step by step.

Step 1 - Create ASP.NET Website

  1. Search "All Programs" and select "Microsoft Visual Studio 2022".

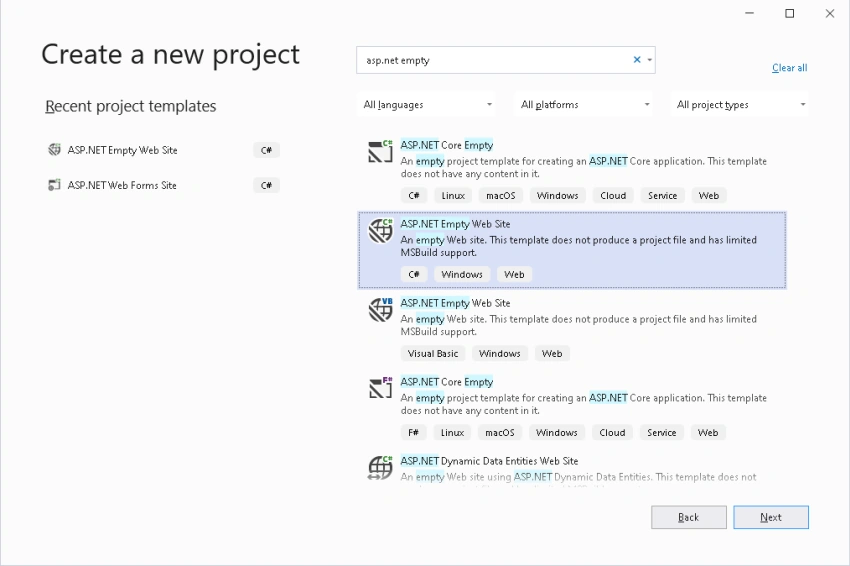

  2. Click "Create a new project". Select "ASP.NET Empty Web Site", click "Next", give the website a name and click ok.
  3. The following window will appear.

How to consume Web API in an ASPNET GridView using HttpClient

The next step creates the empty ASP.NET Web Site without adding the default page, and the project will look like the following.

Step 2 - Install HttpClient library from NuGet

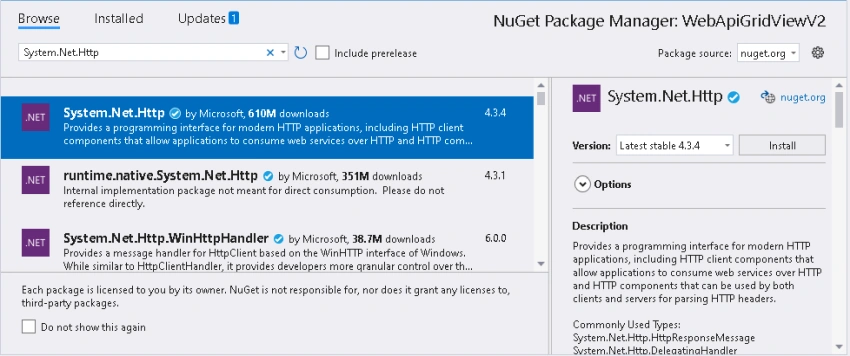

In order to consume HttpClient, this library needs to be installed from package manager as in the following picture.

How to consume Web API in an ASPNET GridView using HttpClient

Step 3 - Install WebAPI.Client library from NuGet

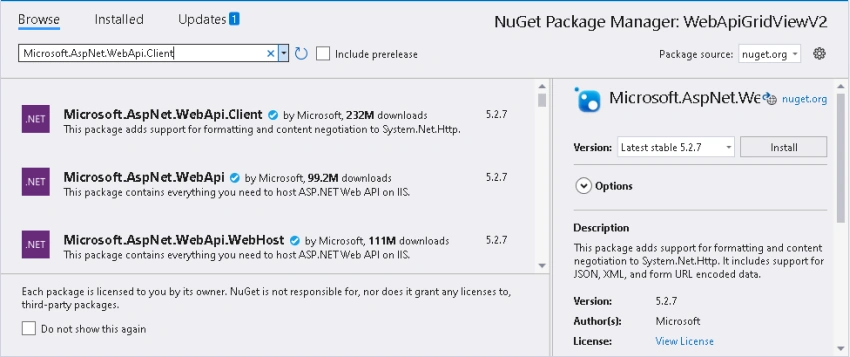

This package adds support for formatting and content negotiation to System.Net.Http, To install, go to package manager and search for "Microsoft.AspNet.WebApi.Client" and click install as in the following image.

How to consume Web API in an ASPNET GridView using HttpClient

Installing the previous two packages will allow us to consume Web API in our project. Now, let's move to the next steps.

Step 4 - Create A New Web Form

Now, right-click on the project node and go to "Add" and then "Add New Item", choose "Web Form" and click add, the solution explorer will look like the following.

Step 5 - Add GridView To Web Form

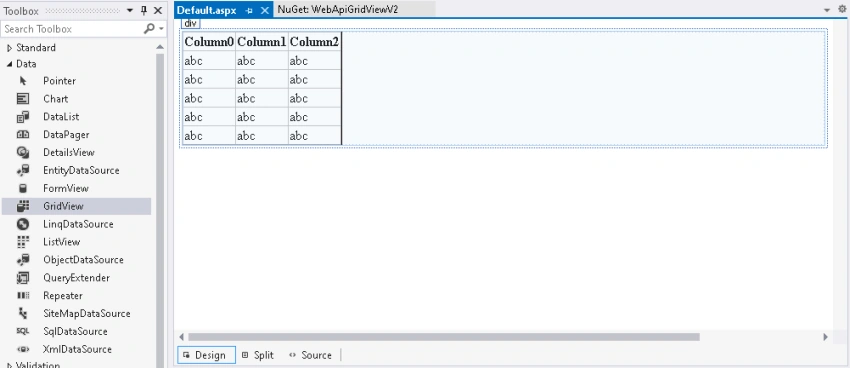

Go to Toolbox on the left hand menu and choose "GridView", drag it to the HTML page, and click save as in the following picture.

How to consume Web API in an ASPNET GridView using HttpClient

Step 6 - Add Class to Web Form Page

Now, let's add the class and code to consume to Web API to Web Form Page.

After modifying the code of Default.aspx.cs class, the code will look like the following.

Default.aspx.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Net.Http;
using System.Net.Http.Headers;
using System.Data;
public partial class _Default: System.Web.UI.Page {
    public class DataObject {
        public string Version {
            get;
            set;
        }
        public string Key {
            get;
            set;
        }
        public string Type {
            get;
            set;
        }
        public string Rank {
            get;
            set;
        }
        public string EnglishName {
            get;
            set;
        }
    }
    protected void Page_Load(object sender, EventArgs e) {
        populateWebApiGridView();
    }
    public void populateWebApiGridView() {
        string URL = "API_URL";
        string urlParameters = "API_KEY";
        DataTable dt = new DataTable();
        dt.Columns.Add("Version", typeof(string));
        dt.Columns.Add("Key", typeof(string));
        dt.Columns.Add("Type", typeof(string));
        dt.Columns.Add("Rank", typeof(string));
        dt.Columns.Add("City", typeof(string));
        HttpClient client = new HttpClient();
        client.BaseAddress = new Uri(URL);
        client.DefaultRequestHeaders.Accept.Add(new MediaTypeWithQualityHeaderValue("application/json"));
        HttpResponseMessage response = client.GetAsync(urlParameters).Result;
        if (response.IsSuccessStatusCode) {
            var dataObjects = response.Content.ReadAsAsync < IEnumerable < DataObject >> ().Result;
            foreach(var d in dataObjects) {
                dt.Rows.Add(d.Version);
                dt.Rows.Add(d.Key);
                dt.Rows.Add(d.Type);
                dt.Rows.Add(d.Rank);
                dt.Rows.Add(d.EnglishName);
            }
        } else {
            System.Diagnostics.Debug.WriteLine("{ 0} ({1})", (int) response.StatusCode, response.ReasonPhrase);
        }
        client.Dispose();
        GridView1.DataSource = dt;
        GridView1.DataBind();
    }
}

Step 7 - Run the Web Site

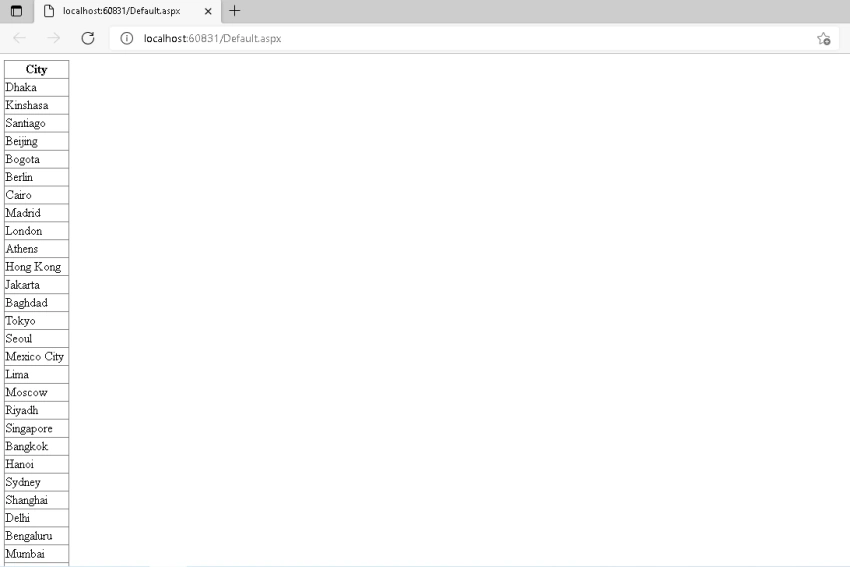

After running the Web Site, the cities list from Web API will look like the following picture.

How to consume Web API in an ASPNET GridView using HttpClient

Note

  • Attached is the Zip file of the Published code.
  • This article describes how to consume Web API in ASP.NET GridView using HttpClient.

Summary

I hope this article is helpful to all readers, please leave a comment if you have any suggestions.
