How to Create Multiview Tab Using MenuControl in ASP.NET

<head runat="server">

<title>MultiView Tab Using Menu Control And Css</title>

<link href="TabDesign.css" rel="stylesheet" type="text/css" />

</head>

<body>

<form id="form1" runat="server">

<asp:ToolkitScriptManager ID="ToolkitScriptManager1" runat="server">

</asp:ToolkitScriptManager>

<div>

<asp:UpdatePanel ID="UpdatePanel" runat="server">

<Triggers>

<asp:AsyncPostBackTrigger ControlID="Menu1" />

</Triggers>

<ContentTemplate>

<asp:Label ID="TimeLabel" runat="server" Text="" />

<asp:Menu ID="Menu1" Orientation="Horizontal" StaticMenuItemStyle-CssClass="tab"

StaticSelectedStyle-CssClass="selectedtab" CssClass="tabs" runat="server"

onmenuitemclick="Menu1_MenuItemClick">

<Items>

<asp:MenuItem Text="Home" Value="0" Selected="true"></asp:MenuItem>

<asp:MenuItem Text="Our Mission" Value="1"></asp:MenuItem>

</Items>

</asp:Menu>

<div class="tabcontents">

<asp:MultiView ID="MultiView1" ActiveViewIndex="0" runat="server">

<asp:View ID="View1" runat="server">

This is a View 1.

</asp:View>

<asp:View ID="View2" runat="server">

This is a View 2.

</asp:View>

</asp:MultiView>

</div>

</ContentTemplate>

</asp:UpdatePanel>

</div>

</form>

</body>

</html>

And your Default.cs file will be like this:

protected void Menu1_MenuItemClick(object sender, MenuEventArgs e)
{

int index = Int32.Parse(e.Item.Value);

MultiView1.ActiveViewIndex = index;

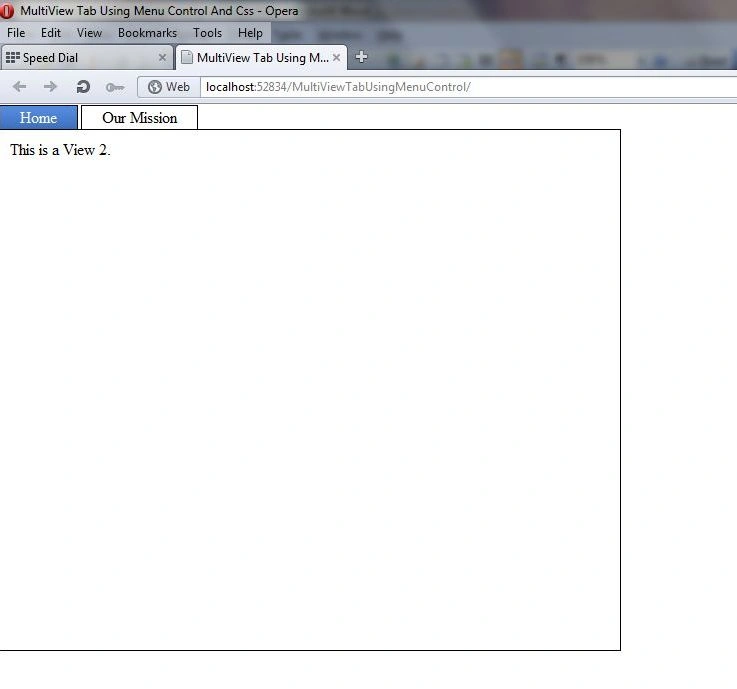

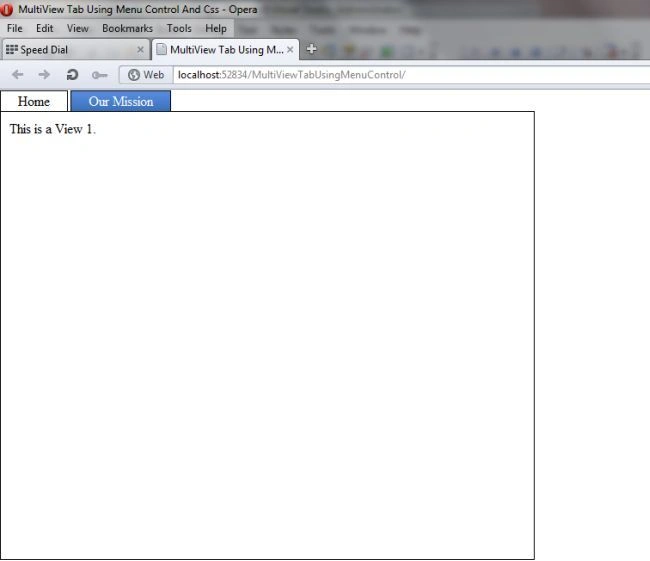

The design of the page will look like this:



And if you select Our Members link then it will be highlighted with the color set to black and the background is the image.


Happy coding, I hope you like my article.
