How To Integrate QuickBooks Desktop Using Web Service (QBXMl)

In this article, I will explain how to Integrate QuickBooks desktop to my web services using QuickBooks connector in ASP.NET.

This sample is a C# ASP.NET web service application that communicates with QuickBooks Point of Sale via QBWebConnector. The sample focuses primarily on demonstrating how to set up all web service web methods to run against QBWebConnector and does not focus on any particular use case.

Step 1

Install QuickBooks desktop from here

Step 2

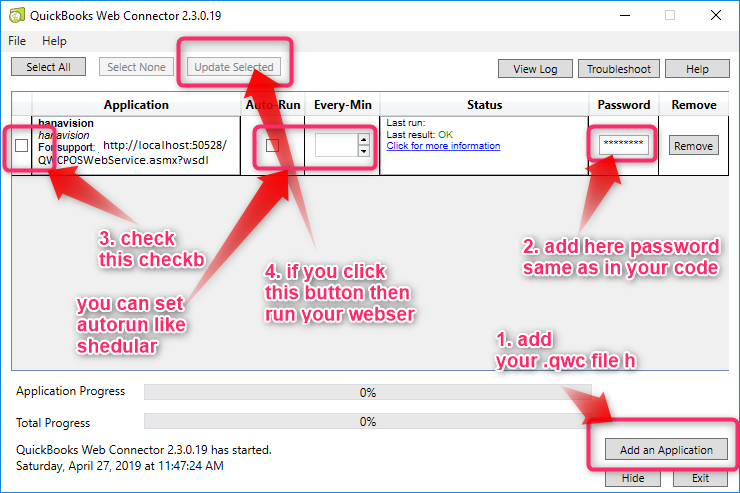

Install QuickBooks Web Connector from here

Step 3

Create a new web service in Visual Studio and give the name of this web service as QWCPOSWebService

Step 4

Open your Service class file and paste the below code into that.
  1. //
  2. // QuickBooks Web Connector Sample: WCWebService
  3. // Copyright (c) 2006-2007 Intuit, Inc
  4. //
  5. // This sample is a C# ASP.NET web service application that
  6. // communicates with QuickBooks Point of Sale via QBWebConnector. The
  7. // sample focuses primarily on demonstrating how to setup all web service
  8. // web methods to run against QBWebConnector and does not focus on any
  9. // particular use case. For simplicity, it sends three request XMLs:
  10. // CustomerQuery, ItenInventoryQuery and PurchaseOrderQuery.
  11. //
  12. // This sample assumes that you have configured IIS with ASP.NET and
  13. // have a functional system to deploy this web service sample. If you have
  14. // not yet configured ASP.NET with IIS, you may need to run the
  15. // following command from c:\windows\Microsoft.NET\Framework\
  16. // your_asp_dot_net_version path: -
  17. // aspnet_regiis /i
  18. // This will help avoid the occasional message from microsoft development
  19. // environment such as "VS.NET has detected that the specified web server
  20. // is not running ASP.NET version 1.1. You will be unable to run ASP.NET
  21. // web applications or services)".
  22.
  23.
  24. /*
  25.  * Useful note about using OwnerID and FileID in a real-world application
  26.  *
  27.  * As part of your QB Web Connector configuration (.QWC) file, you include
  28.  * OwnerID and FileID. Following note on these two parameters may be useful.
  29.  *
  30.  * OwnerID -- this is a GUID that represents your application or suite of
  31.  * applications, if your application needs to store private data in the
  32.  * company file for one reason or another (one of the most common cases
  33.  * being to check if you have communicated with this company file before,
  34.  * and possibly some data about that communication) that private data will
  35.  * be visible to any application that knows the OwnerID.
  36.  *
  37.  * FileID -- this is a GUID we stamp in the file on your behalf
  38.  * (using your OwnerID) as a private data extension to the "Company" object.
  39.  * It allows an application to verify that the company file it is exchanging
  40.  * data with is consistent over time (by doing a CompanyQuery with the field
  41.  * set appropriately and reading the DataExtRet values returned.
  42.  *
  43.  * */
  44.
  45.
  46. using System;
  47. using System.Collections;
  48. using System.ComponentModel;
  49. using System.Data;
  50. using System.Diagnostics;
  51. using System.Web;
  52. using System.Web.Services;
  53. using System.IO;
  54. using System.Security.Cryptography;
  55. using Microsoft.Win32;
  56. using System.Xml;
  57. using System.Text.RegularExpressions;
  58.
  59.
  60. namespace QWCPOSWebService
  61. {
  62.     /// <summary>
  63.     ///  Web Service Namespace="http://developer.intuit.com/",
  64.     ///  Web Service Name="QWCPOSWebService",
  65.     ///  Web Service Description="Sample WebService in ASP.NET to
  66.     ///  demonstrate QBWebConnector with QuickBooks POS
  67.     /// </summary>
  68.     [WebService(
  69.          Namespace = "http://developer.intuit.com/",
  70.          Name = "QWCPOSWebService",
  71.          Description = "Sample WebService in ASP.NET to demonstrate " +
  72.                 "QBWebConnector with QuickBooks POS")]
  73.
  74.
  75.     // Important Note:
  76.     // You should keep the namespace as http://developer.intuit.com/ for all web
  77.     // services that communicates with QuickBooks Web Connector.
  78.     public class QWCPOSWebService : System.Web.Services.WebService
  79.     {
  80.         #region GlobalVariables
  81.         System.Diagnostics.EventLog evLog = new System.Diagnostics.EventLog();
  82.         public int count = 0;
  83.         public ArrayList req = new ArrayList();
  84.         #endregion
  85.
  86.
  87.         #region Constructor
  88.         public QWCPOSWebService()
  89.         {
  90.             //CODEGEN: This call is required by the ASP.NET
  91.             //Web Services Designer
  92.             InitializeComponent();
  93.             // Initializing EventLog for logging
  94.             initEvLog();
  95.         }
  96.         #endregion
  97.
  98.
  99.         #region AutoGeneratedMethods
  100.         //Required by the Web Services Designer
  101.         private IContainer components = null;
  102.
  103.
  104.         /// <summary>
  105.         /// Required method for Designer support - do not modify
  106.         /// the contents of this method with the code editor.
  107.         /// </summary>
  108.         private void InitializeComponent()
  109.         {
  110.         }
  111.
  112.
  113.         /// <summary>
  114.         /// Clean up any resources being used.
  115.         /// </summary>
  116.         protected override void Dispose(bool disposing)
  117.         {
  118.             if (disposing && components != null)
  119.             {
  120.                 components.Dispose();
  121.             }
  122.             base.Dispose(disposing);
  123.         }
  124.
  125.
  126.         #endregion
  127.
  128.
  129.         #region WebMethods
  130.         [WebMethod]
  131.         /// <summary>
  132.         /// WebMethod# 1 - clientVersion()
  133.         /// To enable web service with QBWC version control
  134.         /// Signature: public string clientVersion(string strVersion)
  135.         ///
  136.         /// IN:
  137.         /// string strVersion
  138.         ///
  139.         /// OUT:
  140.         /// string errorOrWarning
  141.         /// Possible values:
  142.         /// string retVal
  143.         /// - NULL or <emptyString> = QBWC will let the web service update
  144.         /// - "E:<any text>" = popup ERROR dialog with <any text>
  145.         /// - abort update and force download of new QBWC.
  146.         /// - "W:<any text>" = popup WARNING dialog with <any text>
  147.         /// - choice to user, continue update or not.
  148.         /// </summary>
  149.         public string clientVersion(string strVersion)
  150.         {
  151.             string evLogTxt = "WebMethod: clientVersion() has been called " +
  152.                 "by QBWebconnector" + "\r\n\r\n";
  153.             evLogTxt = evLogTxt + "Parameters received:\r\n";
  154.             evLogTxt = evLogTxt + "string strVersion = " + strVersion + "\r\n";
  155.             evLogTxt = evLogTxt + "\r\n";
  156.
  157.
  158.             string retVal = null;
  159.             double recommendedVersion = 1.5;
  160.             double supportedMinVersion = 1.0;
  161.             double suppliedVersion = Convert.ToDouble(this.parseForVersion(strVersion));
  162.             evLogTxt = evLogTxt + "QBWebConnector version = " + strVersion + "\r\n";
  163.             evLogTxt = evLogTxt + "Recommended Version = " + recommendedVersion.ToString() + "\r\n";
  164.             evLogTxt = evLogTxt + "Supported Minimum Version = " + supportedMinVersion.ToString() + "\r\n";
  165.             evLogTxt = evLogTxt + "SuppliedVersion = " + suppliedVersion.ToString() + "\r\n";
  166.             if (suppliedVersion < recommendedVersion)
  167.             {
  168.                 retVal = "W:We recommend that you upgrade your QBWebConnector";
  169.             }
  170.             else if (suppliedVersion < supportedMinVersion)
  171.             {
  172.                 retVal = "E:You need to upgrade your QBWebConnector";
  173.             }
  174.             evLogTxt = evLogTxt + "\r\n";
  175.             evLogTxt = evLogTxt + "Return values: " + "\r\n";
  176.             evLogTxt = evLogTxt + "string retVal = " + retVal;
  177.             logEvent(evLogTxt);
  178.             return retVal;
  179.         }
  180.         [WebMethod]
  181.         /// <summary>
  182.         /// WebMethod# 2 - authenticate()
  183.         /// To verify username and password for the web connector that is trying to connect
  184.         /// Signature: public string[] authenticate(string strUserName, string strPassword)
  185.         ///
  186.         /// IN:
  187.         /// string strUserName
  188.         /// string strPassword
  189.         ///
  190.         /// OUT:
  191.         /// string[] authReturn
  192.         /// Possible values:
  193.         /// string[0] = ticket
  194.         /// string[1]
  195.         /// - empty string = use current company file
  196.         /// - "none" = no further request/no further action required
  197.         /// - "nvu" = not valid user
  198.         /// - any other string value = use this company file
  199.         /// </summary>
  200.         public string[] authenticate(string strUserName, string strPassword)
  201.         {
  202.             string evLogTxt = "WebMethod: authenticate() has been called by QBWebconnector" + "\r\n\r\n";
  203.             evLogTxt = evLogTxt + "Parameters received:\r\n";
  204.             evLogTxt = evLogTxt + "string strUserName = " + strUserName + "\r\n";
  205.             evLogTxt = evLogTxt + "string strPassword = " + strPassword + "\r\n";
  206.             evLogTxt = evLogTxt + "\r\n";
  207.             string[] authReturn = new string[2];
  208.             // Code below uses a random GUID to use as session ticket
  209.             // An example of a GUID is {85B41BEE-5CD9-427a-A61B-83964F1EB426}
  210.             authReturn[0] = System.Guid.NewGuid().ToString();
  211.
  212.
  213.             // For simplicity of sample, a hardcoded username/password is used.
  214.             // In real world, you should handle authentication in using a standard way.
  215.             // For example, you could validate the username/password against an LDAP
  216.             // or a directory server
  217.             string pwd = "password";
  218.             evLogTxt = evLogTxt + "Password locally stored = " + pwd + "\r\n";
  219.             if (strUserName.ToUpper().Trim().Equals("USERNAME") && strPassword.ToUpper().Trim().Equals(pwd.ToUpper()))
  220.             {
  221.                 // An empty string for authReturn[1] means asking QBWebConnector
  222.                 // to connect to the company file that is currently openned in QB
  223.                 authReturn[1] = "Company Data=IqbalStore";
  224.             }
  225.             else
  226.             {
  227.                 authReturn[1] = "nvu";
  228.             }
  229.             // You could also return "none" to indicate there is no work to do
  230.             // or a company filename in the format C:\full\path\to\company.qbw
  231.             // based on your program logic and requirements.
  232.
  233.
  234.             evLogTxt = evLogTxt + "\r\n";
  235.             evLogTxt = evLogTxt + "Return values: " + "\r\n";
  236.             evLogTxt = evLogTxt + "string[] authReturn[0] = " + authReturn[0].ToString() + "\r\n";
  237.             evLogTxt = evLogTxt + "string[] authReturn[1] = " + authReturn[1].ToString();
  238.             logEvent(evLogTxt);
  239.             return authReturn;
  240.         }
  241.         [WebMethod(Description = "This web method facilitates web service to handle connection errors between QuickBooks and QBWebConnector", EnableSession = true)]
  242.         /// <summary>
  243.         /// WebMethod# 3 - connectionError()
  244.         /// To facilitate capturing of QuickBooks error and notifying it to web services
  245.         /// Signature: public string connectionError (string ticket, string hresult, string message)
  246.         ///
  247.         /// IN:
  248.         /// string ticket = A GUID based ticket string to maintain identity of QBWebConnector
  249.         /// string hresult = An HRESULT value thrown by QuickBooks when trying to make connection
  250.         /// string message = An error message corresponding to the HRESULT
  251.         ///
  252.         /// OUT:
  253.         /// string retVal
  254.         /// Possible values:
  255.         /// - “done” = no further action required from QBWebConnector
  256.         /// - any other string value = use this name for company file
  257.         /// </summary>
  258.         public string connectionError(string ticket, string hresult, string message)
  259.         {
  260.             if (Session["ce_counter"] == null)
  261.             {
  262.                 Session["ce_counter"] = 0;
  263.             }
  264.
  265.
  266.             string evLogTxt = "WebMethod: connectionError() has been called by QBWebconnector" + "\r\n\r\n";
  267.             evLogTxt = evLogTxt + "Parameters received:\r\n";
  268.             evLogTxt = evLogTxt + "string ticket = " + ticket + "\r\n";
  269.             evLogTxt = evLogTxt + "string hresult = " + hresult + "\r\n";
  270.             evLogTxt = evLogTxt + "string message = " + message + "\r\n";
  271.             evLogTxt = evLogTxt + "\r\n";
  272.
  273.
  274.             string retVal = null;
  275.             //-2147418113 = Can't connect to the database
  276.             const string CANT_CONNECT_TO_DB = "0x8000FFFF";
  277.             // Add more as you need...
  278.
  279.
  280.             if (hresult.Trim().Equals(CANT_CONNECT_TO_DB))
  281.             {
  282.                 evLogTxt = evLogTxt + "HRESULT = " + hresult + "\r\n";
  283.                 evLogTxt = evLogTxt + "Message = " + message + "\r\n";
  284.                 retVal = "DONE";
  285.             }
  286.             else
  287.             {
  288.                 // Depending on various hresults return different value
  289.                 if ((int)Session["ce_counter"] == 0)
  290.                 {
  291.                     // Try again with this company file
  292.                     evLogTxt = evLogTxt + "HRESULT = " + hresult + "\r\n";
  293.                     evLogTxt = evLogTxt + "Message = " + message + "\r\n";
  294.                     evLogTxt = evLogTxt + "Sending connection string as \"Company Data=\" to QBWebConnector.";
  295.                     retVal = "Company Data=";
  296.                 }
  297.                 else
  298.                 {
  299.                     evLogTxt = evLogTxt + "HRESULT = " + hresult + "\r\n";
  300.                     evLogTxt = evLogTxt + "Message = " + message + "\r\n";
  301.                     evLogTxt = evLogTxt + "Sending DONE to stop.";
  302.                     retVal = "DONE";
  303.                 }
  304.             }
  305.             evLogTxt = evLogTxt + "\r\n";
  306.             evLogTxt = evLogTxt + "Return values: " + "\r\n";
  307.             evLogTxt = evLogTxt + "string retVal = " + retVal + "\r\n";
  308.             logEvent(evLogTxt);
  309.             Session["ce_counter"] = ((int)Session["ce_counter"]) + 1;
  310.             return retVal;
  311.         }
  312.         [WebMethod(Description = "This web method facilitates web service to send request XML to QuickBooks via QBWebConnector", EnableSession = true)]
  313.         /// <summary>
  314.         /// WebMethod# 4 - sendRequestXML()
  315.         /// Signature: public string sendRequestXML(string ticket, string strHCPResponse, string strCompanyFileName,
  316.         /// string Country, int qbXMLMajorVers, int qbXMLMinorVers)
  317.         ///
  318.         /// IN:
  319.         /// int qbXMLMajorVers
  320.         /// int qbXMLMinorVers
  321.         /// string ticket
  322.         /// string strHCPResponse
  323.         /// string strCompanyFileName
  324.         /// string Country
  325.         /// int qbXMLMajorVers
  326.         /// int qbXMLMinorVers
  327.         ///
  328.         /// OUT:
  329.         /// string request
  330.         /// Possible values:
  331.         /// - “any_string” = Request XML for QBWebConnector to process
  332.         /// - "" = No more request XML
  333.         /// </summary>
  334.         public string sendRequestXML(string ticket, string strHCPResponse, string strCompanyFileName,
  335.             string qbXMLCountry, int qbXMLMajorVers, int qbXMLMinorVers)
  336.         {
  337.             if (Session["counter"] == null)
  338.             {
  339.                 Session["counter"] = 0;
  340.             }
  341.             string evLogTxt = "WebMethod: sendRequestXML() has been called by QBWebconnector" + "\r\n\r\n";
  342.             evLogTxt = evLogTxt + "Parameters received:\r\n";
  343.             evLogTxt = evLogTxt + "string ticket = " + ticket + "\r\n";
  344.             evLogTxt = evLogTxt + "string strHCPResponse = " + strHCPResponse + "\r\n";
  345.             evLogTxt = evLogTxt + "string strCompanyFileName = " + strCompanyFileName + "\r\n";
  346.             evLogTxt = evLogTxt + "string qbXMLCountry = " + qbXMLCountry + "\r\n";
  347.             evLogTxt = evLogTxt + "int qbXMLMajorVers = " + qbXMLMajorVers.ToString() + "\r\n";
  348.             evLogTxt = evLogTxt + "int qbXMLMinorVers = " + qbXMLMinorVers.ToString() + "\r\n";
  349.             evLogTxt = evLogTxt + "\r\n";
  350.
  351.
  352.             ArrayList req = buildRequest();
  353.             string request = "";
  354.             int total = req.Count;
  355.             count = Convert.ToInt32(Session["counter"]);
  356.
  357.
  358.             if (count < total)
  359.             {
  360.                 request = req[count].ToString();
  361.                 evLogTxt = evLogTxt + "sending request no = " + (count + 1) + "\r\n";
  362.                 Session["counter"] = ((int)Session["counter"]) + 1;
  363.             }
  364.             else
  365.             {
  366.                 count = 0;
  367.                 Session["counter"] = 0;
  368.                 request = "";
  369.             }
  370.             evLogTxt = evLogTxt + "\r\n";
  371.             evLogTxt = evLogTxt + "Return values: " + "\r\n";
  372.             evLogTxt = evLogTxt + "string request = " + request + "\r\n";
  373.             logEvent(evLogTxt);
  374.             return request;
  375.         }
  376.         [WebMethod(Description = "This web method facilitates web service to receive response XML from QuickBooks via QBWebConnector", EnableSession = true)]
  377.         /// <summary>
  378.         /// WebMethod# 5 - receiveResponseXML()
  379.         /// Signature: public int receiveResponseXML(string ticket, string response, string hresult, string message)
  380.         ///
  381.         /// IN:
  382.         /// string ticket
  383.         /// string response
  384.         /// string hresult
  385.         /// string message
  386.         ///
  387.         /// OUT:
  388.         /// int retVal
  389.         /// Greater than zero  = There are more request to send
  390.         /// 100 = Done. no more request to send
  391.         /// Less than zero  = Custom Error codes
  392.         /// </summary>
  393.         public int receiveResponseXML(string ticket, string response, string hresult, string message)
  394.         {
  395.             string evLogTxt = "WebMethod: receiveResponseXML() has been called by QBWebconnector" + "\r\n\r\n";
  396.             evLogTxt = evLogTxt + "Parameters received:\r\n";
  397.             evLogTxt = evLogTxt + "string ticket = " + ticket + "\r\n";
  398.             evLogTxt = evLogTxt + "string response = " + response + "\r\n";
  399.             evLogTxt = evLogTxt + "string hresult = " + hresult + "\r\n";
  400.             evLogTxt = evLogTxt + "string message = " + message + "\r\n";
  401.             evLogTxt = evLogTxt + "\r\n";
  402.
  403.
  404.             int retVal = 0;
  405.             if (!hresult.ToString().Equals(""))
  406.             {
  407.                 // if there is an error with the response received, web service could also return a -ve int
  408.
  409.                 evLogTxt = evLogTxt + "HRESULT = " + hresult + "\r\n";
  410.                 evLogTxt = evLogTxt + "Message = " + message + "\r\n";
  411.                 retVal = -101;
  412.             }
  413.             else
  414.             {
  415.                 evLogTxt = evLogTxt + "Length of response received = " + response.Length + "\r\n";
  416.
  417.
  418.                 ArrayList req = buildRequest();
  419.                 int total = req.Count;
  420.                 int count = Convert.ToInt32(Session["counter"]);
  421.
  422.
  423.                 int percentage = (count * 100) / total;
  424.                 if (percentage >= 100)
  425.                 {
  426.                     count = 0;
  427.                     Session["counter"] = 0;
  428.                 }
  429.                 retVal = percentage;
  430.             }
  431.             evLogTxt = evLogTxt + "\r\n";
  432.             evLogTxt = evLogTxt + "Return values: " + "\r\n";
  433.             evLogTxt = evLogTxt + "int retVal= " + retVal.ToString() + "\r\n";
  434.             logEvent(evLogTxt);
  435.             return retVal;
  436.         }
  437.
  438.
  439.         [WebMethod]
  440.         /// <summary>
  441.         /// WebMethod# 6 - getLastError()
  442.         /// Signature: public string getLastError(string ticket)
  443.         ///
  444.         /// IN:
  445.         /// string ticket
  446.         ///
  447.         /// OUT:
  448.         /// string retVal
  449.         /// Possible Values:
  450.         /// Error message describing last web service error
  451.         /// </summary>
  452.         public string getLastError(string ticket)
  453.         {
  454.             string evLogTxt = "WebMethod: getLastError() has been called by QBWebconnector" + "\r\n\r\n";
  455.             evLogTxt = evLogTxt + "Parameters received:\r\n";
  456.             evLogTxt = evLogTxt + "string ticket = " + ticket + "\r\n";
  457.             evLogTxt = evLogTxt + "\r\n";
  458.
  459.
  460.             int errorCode = 0;
  461.             string retVal = null;
  462.             if (errorCode == -101)
  463.             {
  464.                 retVal = "QuickBooks was not running!"// This is just an example of custom user errors
  465.             }
  466.             else
  467.             {
  468.                 retVal = "Error!";
  469.             }
  470.             evLogTxt = evLogTxt + "\r\n";
  471.             evLogTxt = evLogTxt + "Return values: " + "\r\n";
  472.             evLogTxt = evLogTxt + "string retVal= " + retVal + "\r\n";
  473.             logEvent(evLogTxt);
  474.             return retVal;
  475.         }
  476.         [WebMethod]
  477.         /// <summary>
  478.         /// WebMethod# 7 - closeConnection()
  479.         /// At the end of a successful update session, QBWebConnector will call this web method.
  480.         /// Signature: public string closeConnection(string ticket)
  481.         ///
  482.         /// IN:
  483.         /// string ticket
  484.         ///
  485.         /// OUT:
  486.         /// string closeConnection result
  487.         /// </summary>
  488.         public string closeConnection(string ticket)
  489.         {
  490.             string evLogTxt = "WebMethod: closeConnection() has been called by QBWebconnector" + "\r\n\r\n";
  491.             evLogTxt = evLogTxt + "Parameters received:\r\n";
  492.             evLogTxt = evLogTxt + "string ticket = " + ticket + "\r\n";
  493.             evLogTxt = evLogTxt + "\r\n";
  494.             string retVal = null;
  495.
  496.
  497.             retVal = "OK";
  498.
  499.
  500.             evLogTxt = evLogTxt + "\r\n";
  501.             evLogTxt = evLogTxt + "Return values: " + "\r\n";
  502.             evLogTxt = evLogTxt + "string retVal= " + retVal + "\r\n";
  503.             logEvent(evLogTxt);
  504.             return retVal;
  505.         }
  506.
  507.
  508.         #endregion
  509.
  510.
  511.         #region UtilityMethods
  512.         private void initEvLog()
  513.         {
  514.             try
  515.             {
  516.                 string source = "WCWebService";
  517.                 if (!System.Diagnostics.EventLog.SourceExists(source))
  518.                     System.Diagnostics.EventLog.CreateEventSource(source, "Application");
  519.                 evLog.Source = source;
  520.             }
  521.             catch { };
  522.             return;
  523.         }
  524.
  525.
  526.         private void logEvent(string logText)
  527.         {
  528.             try
  529.             {
  530.                 evLog.WriteEntry(logText);
  531.             }
  532.             catch { };
  533.             return;
  534.         }
  535.
  536.
  537.         public ArrayList buildRequest()
  538.         {
  539.             string strRequestXML = "";
  540.             XmlDocument inputXMLDoc = null;
  541.
  542.
  543.             // CustomerQuery
  544.             inputXMLDoc = new XmlDocument();
  545.             inputXMLDoc.AppendChild(inputXMLDoc.CreateXmlDeclaration("1.0"nullnull));
  546.             inputXMLDoc.AppendChild(inputXMLDoc.CreateProcessingInstruction("qbposxml""version=\"1.0\""));
  547.
  548.
  549.             XmlElement qbposXML = inputXMLDoc.CreateElement("QBPOSXML");
  550.             inputXMLDoc.AppendChild(qbposXML);
  551.             XmlElement qbposXMLMsgsRq = inputXMLDoc.CreateElement("QBPOSXMLMsgsRq");
  552.             qbposXML.AppendChild(qbposXMLMsgsRq);
  553.             qbposXMLMsgsRq.SetAttribute("onError""stopOnError");
  554.             XmlElement customerQueryRq = inputXMLDoc.CreateElement("CustomerQueryRq");
  555.             qbposXMLMsgsRq.AppendChild(customerQueryRq);
  556.             customerQueryRq.SetAttribute("requestID""1");
  557.             XmlElement maxReturned = inputXMLDoc.CreateElement("MaxReturned");
  558.             customerQueryRq.AppendChild(maxReturned).InnerText = "1";
  559.
  560.
  561.             strRequestXML = inputXMLDoc.OuterXml;
  562.             req.Add(strRequestXML);
  563.
  564.
  565.             // Clean up
  566.             strRequestXML = "";
  567.             inputXMLDoc = null;
  568.             qbposXML = null;
  569.             qbposXMLMsgsRq = null;
  570.             maxReturned = null;
  571.
  572.
  573.             // ItemInventoryQuery
  574.             inputXMLDoc = new XmlDocument();
  575.             inputXMLDoc.AppendChild(inputXMLDoc.CreateXmlDeclaration("1.0"nullnull));
  576.             inputXMLDoc.AppendChild(inputXMLDoc.CreateProcessingInstruction("qbposxml""version=\"1.0\""));
  577.
  578.
  579.             qbposXML = inputXMLDoc.CreateElement("QBPOSXML");
  580.             inputXMLDoc.AppendChild(qbposXML);
  581.             qbposXMLMsgsRq = inputXMLDoc.CreateElement("QBPOSXMLMsgsRq");
  582.             qbposXML.AppendChild(qbposXMLMsgsRq);
  583.             qbposXMLMsgsRq.SetAttribute("onError""stopOnError");
  584.             XmlElement itemInventoryQueryRq = inputXMLDoc.CreateElement("ItemInventoryQueryRq");
  585.             qbposXMLMsgsRq.AppendChild(itemInventoryQueryRq);
  586.             itemInventoryQueryRq.SetAttribute("requestID""2");
  587.             maxReturned = inputXMLDoc.CreateElement("MaxReturned");
  588.             itemInventoryQueryRq.AppendChild(maxReturned).InnerText = "1";
  589.
  590.
  591.             strRequestXML = inputXMLDoc.OuterXml;
  592.             req.Add(strRequestXML);
  593.
  594.
  595.             // Clean up
  596.             strRequestXML = "";
  597.             inputXMLDoc = null;
  598.             qbposXML = null;
  599.             qbposXMLMsgsRq = null;
  600.             maxReturned = null;
  601.
  602.
  603.             // PurchaseOrderQuery
  604.             inputXMLDoc = new XmlDocument();
  605.             inputXMLDoc.AppendChild(inputXMLDoc.CreateXmlDeclaration("1.0"nullnull));
  606.             inputXMLDoc.AppendChild(inputXMLDoc.CreateProcessingInstruction("qbposxml""version=\"1.0\""));
  607.
  608.
  609.             qbposXML = inputXMLDoc.CreateElement("QBPOSXML");
  610.             inputXMLDoc.AppendChild(qbposXML);
  611.             qbposXMLMsgsRq = inputXMLDoc.CreateElement("QBPOSXMLMsgsRq");
  612.             qbposXML.AppendChild(qbposXMLMsgsRq);
  613.             qbposXMLMsgsRq.SetAttribute("onError""stopOnError");
  614.             XmlElement purchaseOrderQueryRq = inputXMLDoc.CreateElement("PurchaseOrderQueryRq");
  615.             qbposXMLMsgsRq.AppendChild(purchaseOrderQueryRq);
  616.             purchaseOrderQueryRq.SetAttribute("requestID""3");
  617.             maxReturned = inputXMLDoc.CreateElement("MaxReturned");
  618.             purchaseOrderQueryRq.AppendChild(maxReturned).InnerText = "1";
  619.
  620.
  621.             strRequestXML = inputXMLDoc.OuterXml;
  622.             req.Add(strRequestXML);
  623.
  624.
  625. // InvoiceQuery
  626. //inputXMLDoc = new XmlDocument();
  627. //inputXMLDoc.AppendChild(inputXMLDoc.CreateXmlDeclaration("1.0",null, null));
  628. //          inputXMLDoc.AppendChild(inputXMLDoc.CreateProcessingInstruction("qbxml", "version=\"4.0\""));
  629.
  630. //          qbXML = inputXMLDoc.CreateElement("QBXML");
  631. //          inputXMLDoc.AppendChild(qbXML);
  632. //          qbXMLMsgsRq = inputXMLDoc.CreateElement("QBXMLMsgsRq");
  633. //          qbXML.AppendChild(qbXMLMsgsRq);
  634. //          qbXMLMsgsRq.SetAttribute("onError", "stopOnError");
  635. //          XmlElement invoiceQueryRq = inputXMLDoc.CreateElement("InvoiceQueryRq");
  636. //qbXMLMsgsRq.AppendChild(invoiceQueryRq);
  637. //          invoiceQueryRq.SetAttribute("requestID", "2");
  638. //          maxReturned=inputXMLDoc.CreateElement("MaxReturned");
  639. //          invoiceQueryRq.AppendChild(maxReturned).InnerText="1";
  640.
  641. //          strRequestXML = inputXMLDoc.OuterXml;
  642. //          req.Add(strRequestXML);
  643.
  644.
  645.             return req;
  646.         }
  647.         private string parseForVersion(string input)
  648.         {
  649.             // This method is created just to parse the first two version components
  650.             // out of the standard four component version number:
  651.             // <Major>.<Minor>.<Release>.<Build>
  652.             //
  653.             // As long as you get the version in right format, you could use
  654.             // any algorithm here.
  655.             string retVal = "";
  656.             string major = "";
  657.             string minor = "";
  658.             Regex version = new Regex(@"^(?\d+)\.(?\d+)(\.\w+){0,2}$", RegexOptions.Compiled);
  659.             Match versionMatch = version.Match(input);
  660.             if (versionMatch.Success)
  661.             {
  662.                 major = versionMatch.Result("${major}");
  663.                 minor = versionMatch.Result("${minor}");
  664.                 retVal = major + "." + minor;
  665.             }
  666.             else
  667.             {
  668.                 retVal = input;
  669.             }
  670.             return retVal;
  671.         }
  672.         #endregion
  673.     }
  674. }

Step 5

Now, create the QuickBooks file for making the connection between QuickBooks desktop and your web service.

As part of your QB Web Connector configuration (.QWC) file, you include OwnerID and FileID. The following note on these two parameters may be useful.

OwnerID

This is a GUID that represents your application or suite of applications if your application needs to store private data in the company file. Another reason (one of the most common cases being to check if you have communicated with this company file before, and possibly some data about that communication) is that private data will be visible to any application that knows the OwnerID.

FileID

This is a GUID we stamp in the file on your behalf (using your OwnerID) as a private data extension to the "Company" object. It allows an application to verify that the company file it is exchanging data with is consistent over time (by doing a Company Query with the field).

An example of GUID is {85B41BEE-5CD9-427a-A61B-83964F1EB426}

Given below is the code for them.QWC file.

  1. <?xml version="1.0"?><QBWCXML>
  2.    <AppName>hanavision</AppName>
  3.    <AppID>1</AppID>
  4.       <AppURL>http://localhost:50528/QWCPOSWebService.asmx</AppURL>
  5.          <AppDescription>A short description for QWCPOSWebService</AppDescription>
  6.             <AppSupport>http://localhost:50528/QWCPOSWebService.asmx?wsdl</AppSupport>
  7.                <OwnerID>{87EDAAF8-0000-1111-2222-4BA79C2F8998}</OwnerID>
  8.                <FileID>{CA1C3EB8-0000-1111-2222-8D5B438B83AC}</FileID>
  9.                <UserName>Bhavdip</UserName>
  10.             <QBType>QBFS</QBType>
  11.          <Style>Document</Style>
  12.    <AuthFlags>0xF</AuthFlags>
  13. </QBWCXML>

Note
Don’t forget to change the localhost path.

Step 6

Now, open your web connector and add this file into your web connector. After successfully adding this, now add your file to a web connector.

How To Integrate Quickbook Desktop Using Web Service (QBXMl)
  1. Add your file using the "Add an Application" button; then choose your QBC file.

  2. Add password which is similar to the one in your code of web services.

  3. Select this web service in web connector using the checkbox.

  4. Click the "Update selected" button for running your code of web service.

If you want to run like scheduler, then you can set autorun and give the timing in every Min text box. So now, your QuickBooks desktop and your web service are connected using this web connector.

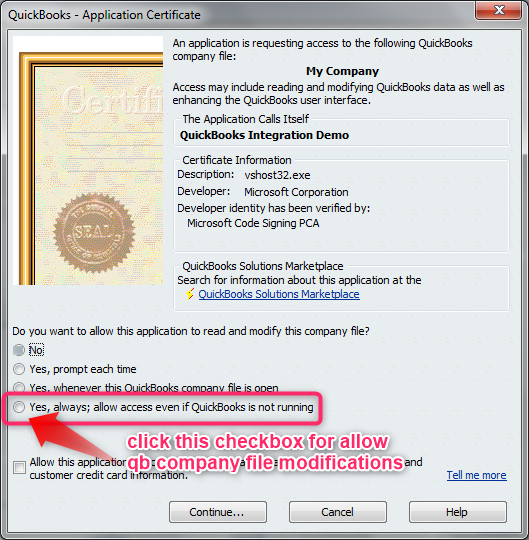

Authorizing the Application

On the first time that an application connects to a QuickBooks company file, QuickBooks should be opened and a user must be there to authorize the access. When we try to save a customer again and QuickBooks is running this time, a dialog will appear in QuickBooks, as shown in the figure below. We should take note that this will block the current thread so if we used the UI thread, then the UI will become unresponsive.

How To Integrate Quickbook Desktop Using Web Service (QBXMl)

Example qbXML Request to "Add Customer".
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <?qbxml version="2.0"?>
  3. <QBXML>
  4.     <QBXMLMsgsRq onError="stopOnError">
  5.         <CustomerAddRq requestID="15">
  6.             <CustomerAdd>
  7.                 <Name>20706 - Eastern XYZ University</Name>
  8.                 <CompanyName>Eastern XYZ University</CompanyName>
  9.                 <FirstName>Keith</FirstName>
  10.                 <LastName>Palmer</LastName>
  11.                 <BillAddress>
  12.                     <Addr1>Eastern XYZ University</Addr1>
  13.                     <Addr2>College of Engineering</Addr2>
  14.                     <Addr3>123 XYZ Road</Addr3>
  15.                     <City>Storrs-Mansfield</City>
  16.                     <State>CT</State>
  17.                     <PostalCode>06268</PostalCode>
  18.                     <Country>United States</Country>
  19.                 </BillAddress>
  20.                 <Phone>860-634-1602</Phone>
  21.                 <AltPhone>860-429-0021</AltPhone>
  22.                 <Fax>860-429-5183</Fax>
  23.                 <Email>keith@consolibyte.com</Email>
  24.                 <Contact>Keith Palmer</Contact>
  25.             </CustomerAdd>
  26.         </CustomerAddRq>
  27.     </QBXMLMsgsRq>
  28. </QBXML>

Example qbXML Response to "Add Customer".

  1. <?xml version="1.0" ?>
  2. <QBXML>
  3.     <QBXMLMsgsRs>
  4.         <CustomerAddRs requestID="15" statusCode="0" statusSeverity="Info" statusMessage="Status OK">
  5.             <CustomerRet>
  6.                 <ListID>F540000-1197683154</ListID>
  7.                 <TimeCreated>2007-12-14T20:45:54-05:00</TimeCreated>
  8.                 <TimeModified>2007-12-14T20:45:54-05:00</TimeModified>
  9.                 <EditSequence>1197683154</EditSequence>
  10.                 <Name>20706 - Eastern XYZ University</Name>
  11.                 <FullName>20706 - Eastern XYZ University</FullName>
  12.                 <IsActive>true</IsActive>
  13.                 <Sublevel>0</Sublevel>
  14.                 <CompanyName>Eastern XYZ University</CompanyName>
  15.                 <FirstName>Keith</FirstName>
  16.                 <LastName>Palmer</LastName>
  17.                 <BillAddress>
  18.                     <Addr1>Eastern XYZ University</Addr1>
  19.                     <Addr2>College of Engineering</Addr2>
  20.                     <Addr3>123 XYZ Road</Addr3>
  21.                     <City>Storrs-Mansfield</City>
  22.                     <State>CT</State>
  23.                     <PostalCode>88130</PostalCode>
  24.                     <Country>USA</Country>
  25.                 </BillAddress>
  26.                 <Phone>860-634-1602</Phone>
  27.                 <AltPhone>860-429-0021</AltPhone>
  28.                 <Fax>860-429-5183</Fax>
  29.                 <Email>keith@consolibyte.com</Email>
  30.                 <Contact>Keith Palmer</Contact>
  31.                 <Balance>0.00</Balance>
  32.                 <TotalBalance>0.00</TotalBalance>
  33.                 <JobStatus>None</JobStatus>
  34.             </CustomerRet>
  35.         </CustomerAddRs>
  36.     </QBXMLMsgsRs>
  37. </QBXML>

Example qbXML to "Add an Invoice".

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <?qbxml version="2.0"?>
  3. <QBXML>
  4.     <QBXMLMsgsRq onError="stopOnError">
  5.         <InvoiceAddRq requestID="2">
  6.             <InvoiceAdd>
  7.                 <CustomerRef>
  8.                     <ListID>F560000-1197683156</ListID>  <!-- or
  9.                     <Name>Bhavdip</Name> -->
  10.                 </CustomerRef>
  11.                 <TxnDate>2007-12-14</TxnDate>
  12.                 <RefNumber>9668</RefNumber>
  13.                 <BillAddress>
  14.                     <Addr1>56 Cowles Road</Addr1>
  15.                     <City>Willington</City>
  16.                     <State>CT</State>
  17.                     <PostalCode>06279</PostalCode>
  18.                     <Country>United States</Country>
  19.                 </BillAddress>
  20.                 <PONumber></PONumber>
  21.                 <Memo></Memo>
  22.
  23.                 <InvoiceLineAdd>
  24.                     <ItemRef>
  25.                         <FullName>Downloaded Invoice</FullName>
  26.                     </ItemRef>
  27.                     <Desc>Item 1 Description Goes Here</Desc>
  28.                     <Quantity>1</Quantity>
  29.                     <Rate>295</Rate>
  30.                 </InvoiceLineAdd>
  31.
  32.                 <InvoiceLineAdd>
  33.                     <ItemRef>
  34.                         <FullName>Downloaded Invoice</FullName>
  35.                     </ItemRef>
  36.                     <Desc>Item 2 Description Goes Here</Desc>
  37.                     <Quantity>3</Quantity>
  38.                     <Rate>25</Rate>
  39.                 </InvoiceLineAdd>
  40.
  41.             </InvoiceAdd>
  42.         </InvoiceAddRq>
  43.     </QBXMLMsgsRq>
  44. </QBXML>
Note
Make sure of the Ref like below,
  1. <CustomerRef>
  2.    <ListID>F560000-1197683156</ListID> <!-- or
  3. <Name>Bhavdip</Name> -->
  4. </CustomerRef>

If your customer "Bhavdip" is already added in your QuickBooks desktop, then your invoice will be added. Otherwise, it will return an error.

Thus, first add a customer, item etc. which is required for the invoice. Then and only then make an invoice.
