How To Bring Internet Connectivity To Xamarin.Forms Application

Introduction

This article demonstrates how to bring internet connectivity to Xamarin.Forms.

Let’s start.

Step 1

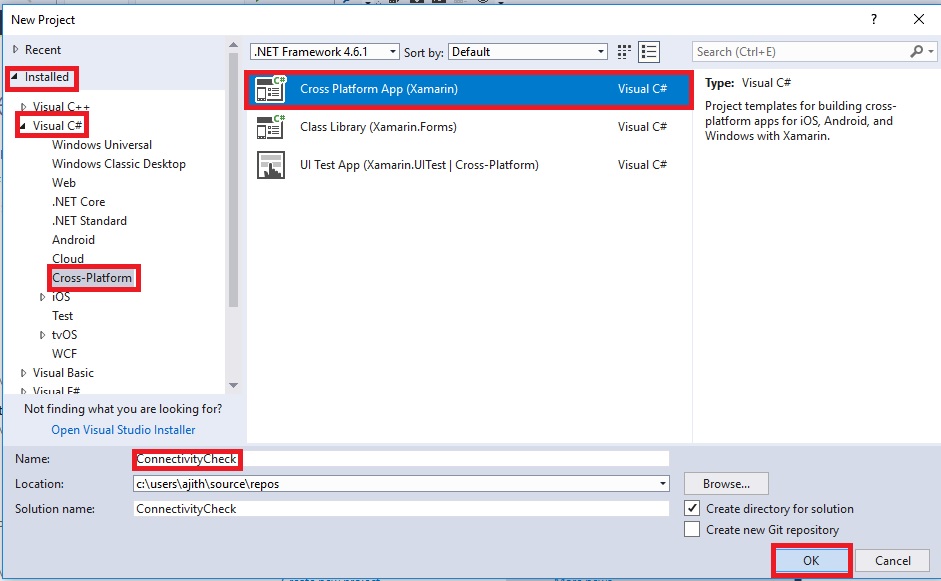

Open Visual Studio and go to New Project >> Installed >> Visual C# >> Cross-Platform.

Select Cross-Platform app, then give your project a Name and Location.



Step 2

Add the following NuGet Packages to your project.
  • Xam.Plugin.Connectivity
  • Xamarin.Forms

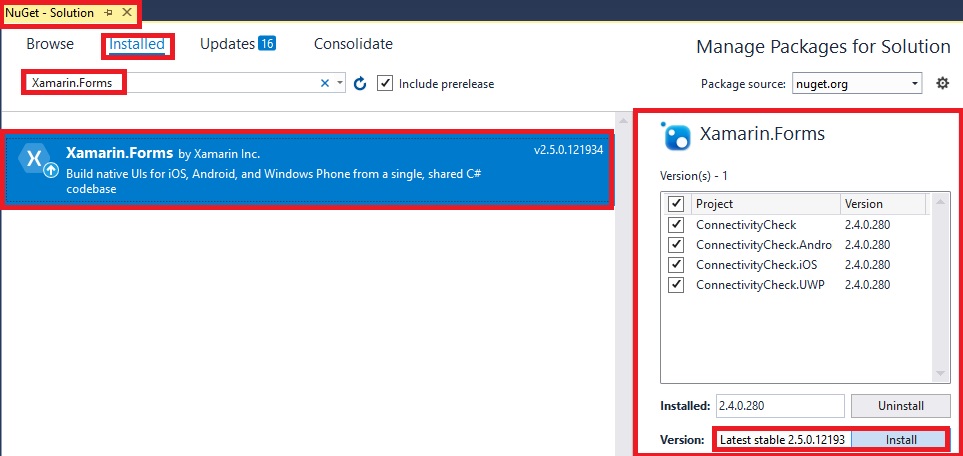

Go to Solution Explorer and select your solution. Right-click and select "Manage NuGet Packages for Solution".



Now, select the following NuGet Package and select your project to install it.



Similarly, add the Xamarin.Forms Nuget.



Step 3

Open Solution Explorer >> Project Name >> Mainpage.xaml. Open the Design View of this page.



The code is given below.

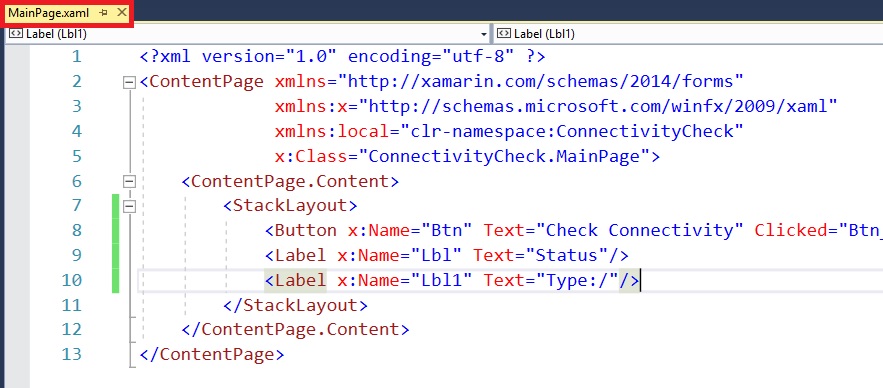

XAML Code

  1. <Button x:Name="Btn" Text="Check Connectivity" Clicked="Btn_Clicked"/>
  2.           <Label x:Name="Lbl" Text="Status"/>
  3.           <Label x:Name="Lbl1" Text="Type:/"/>
Step 4

Open Solution Explorer >> Project Name >> Mainpage.xaml.cs  Open the Design View of this page.

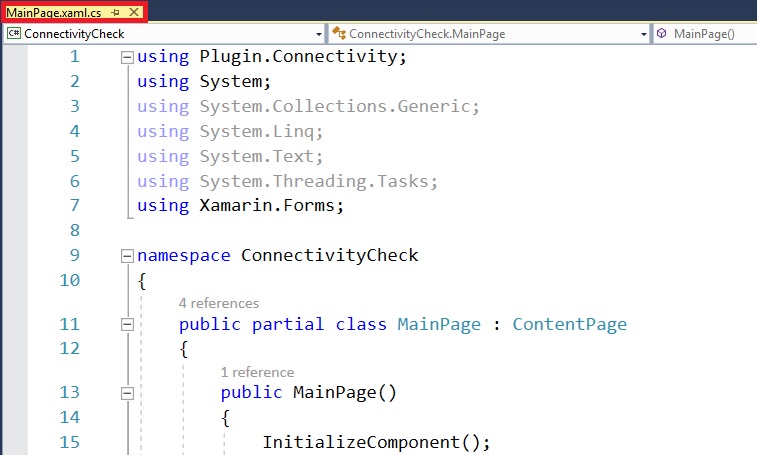

C# Code
  1. namespace ConnectivityCheck
  2. {
  3.     public partial class MainPage : ContentPage
  4.     {
  5.         public MainPage()
  6.         {
  7.             InitializeComponent();
  8.         }
  9.         private void Btn_Clicked(object sender, EventArgs e)
  10.         {
  11.             var Status = CrossConnectivity.Current.IsConnected ? "Is Connected" : "Not Connected";
  12.             Lbl.Text = $"Status :{Status}";
  13.             Lbl1.Text = $"Type:{CrossConnectivity.Current.ConnectionTypes.ToString() }";
  14.         }
  15.     }
  16. }
Step 5

Press F5 or Build and Run the application.

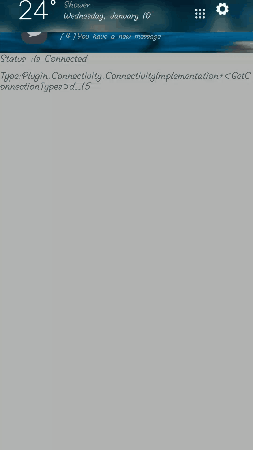

OutPut 1

Mobile Data On will result in "Connected" status.



Output 2

Mobile Data Off will result in NotConnected status.



Finally, we have successfully created a Xamarin.Forms InternetConnectivity app.
