How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

Introduction


In this article, we are going to discuss about Service Bus Queue Trigger in Azure Functions. We are also going to create a simple Azure function to send and read messages from Service bus queues. So we are going to create a HTTP trigger function to send messages to the queue and a Service bus queue trigger function to read messages from the queue.

If you are new to Azure Functions then check out the below articles,

What is Azure Service Bus?


Azure Service Bus is a message broker service that is hosted on the Azure platform and it provides functionality to publish messages to various applications and also decouple the applications. Azure service bus has two different flavors; i.e. Queues and Topics. Azure Service Bus Queues follows a First-In-First-Out (FIFO) pattern. Queues provide one-way transport like the sender is going to send messages in the queue and the receiver would collect messages from the queue. In queues, there is a 1:1 relationship between the sender and receiver. Messages are present in the queue until the receiver processes and complete the messages.


Creating simple Azure Functions to send and read messages from the queue

Prerequisites

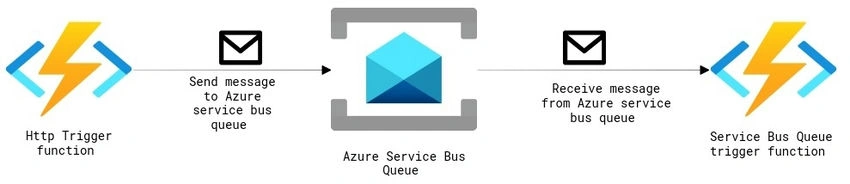

Overview of application


We are creating a simple Azure function application that consists of 3 parts,
  1. Create Azure Service Bus Queue using Azure Portal
  2. Create HTTP trigger Azure Function to send the message into Queue
  3. Create a Service Bus Queue trigger Azure function to read a message from Queue
How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions


Create Azure Service Bus Queue using Azure Portal


Follow the below steps to creating a new Service Bus and Queue into Azure.
  • Login to Azure and click on Create a resource button.

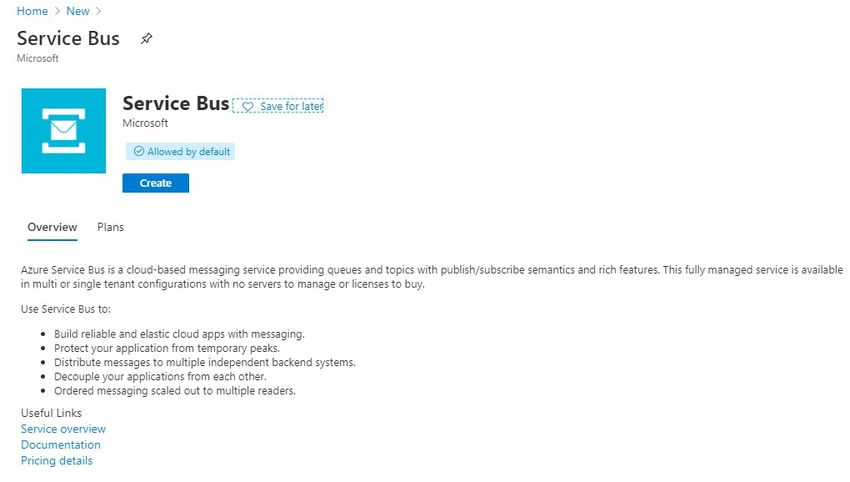

  • In the search box type service bus and select it.

    How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

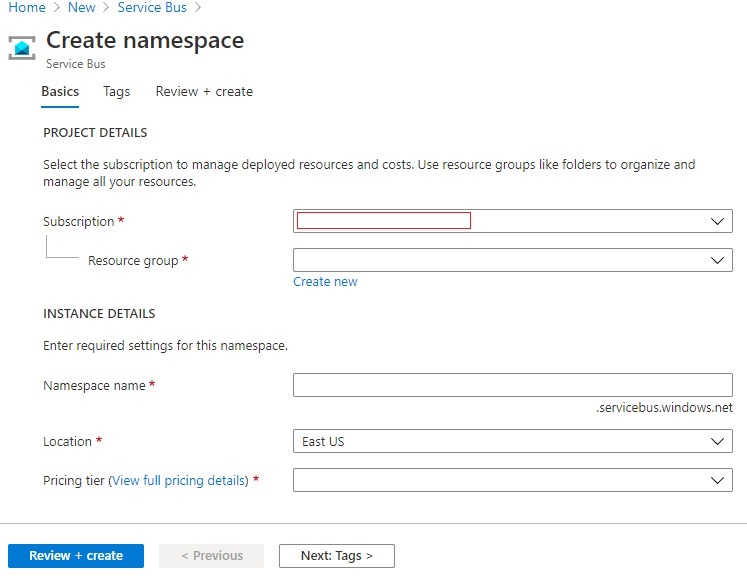

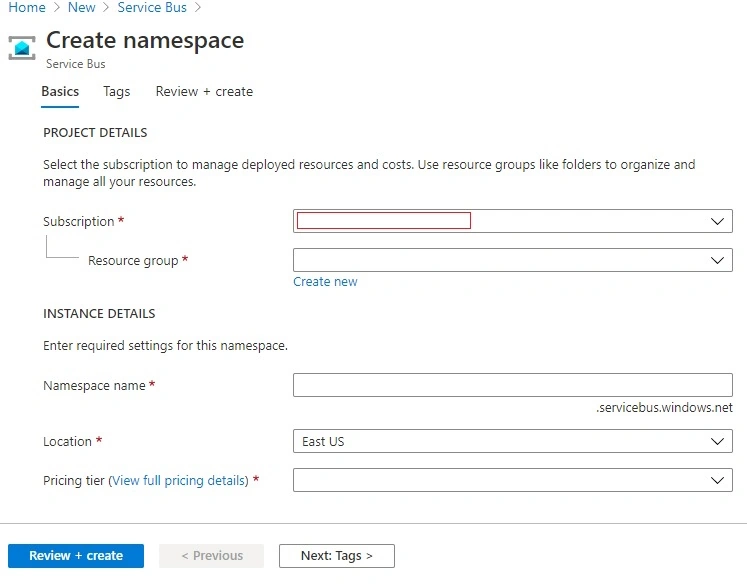

  • Click on Create button. You will see the Create Namespace page.

    How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

    Resource Group are nothing but a container to hold your resources in Azure. Service Bus is one of the resource so if you have already created Resource Group then select that or if haven't created it yet the click on Create button and give it a name.

    Namespace holds the multiple queues or topics resides under Service Bus. Specify a unique name for namespace.

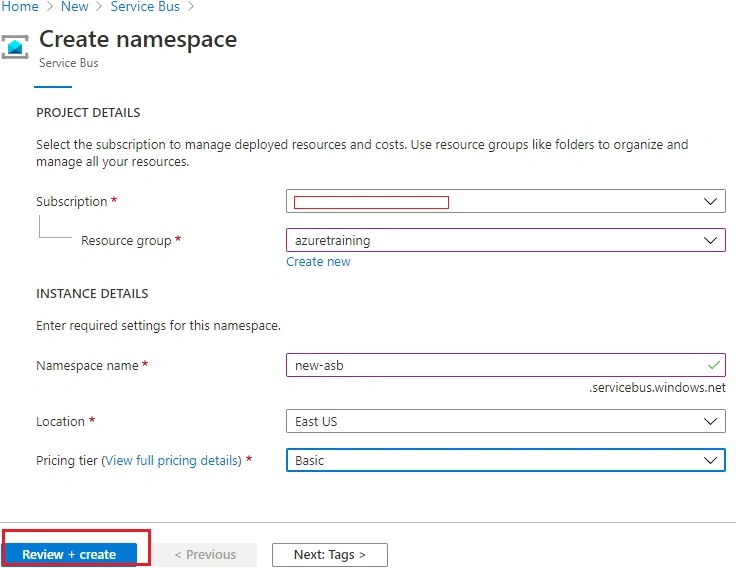

  • Fill out all the required details and click on Review + Create button

    How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

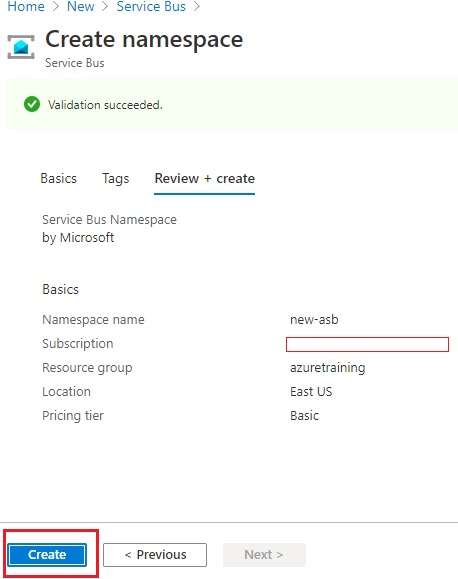

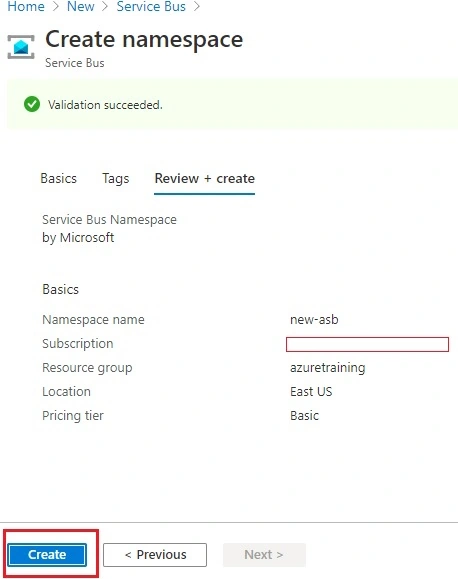

  • Review that everything is added properly and finally click on the Create button.

    How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

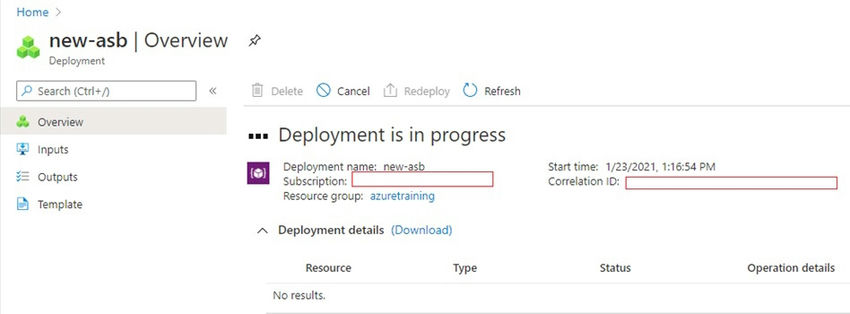

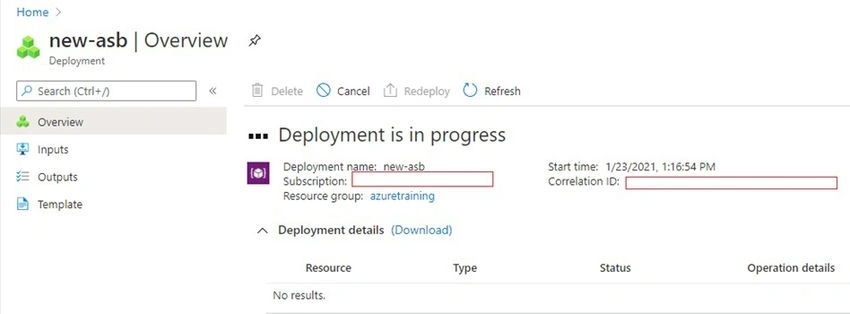

  • Creating resources will take time so wait for some time to finish the deployment.

    How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

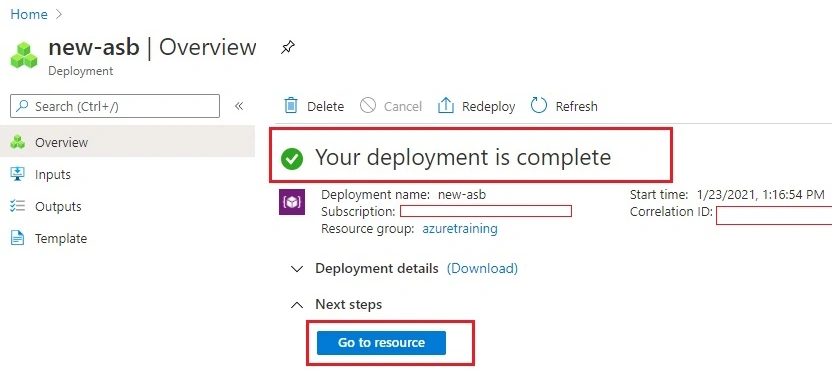

  • Once the deployment is completed you will see the Go to resource button.

    How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

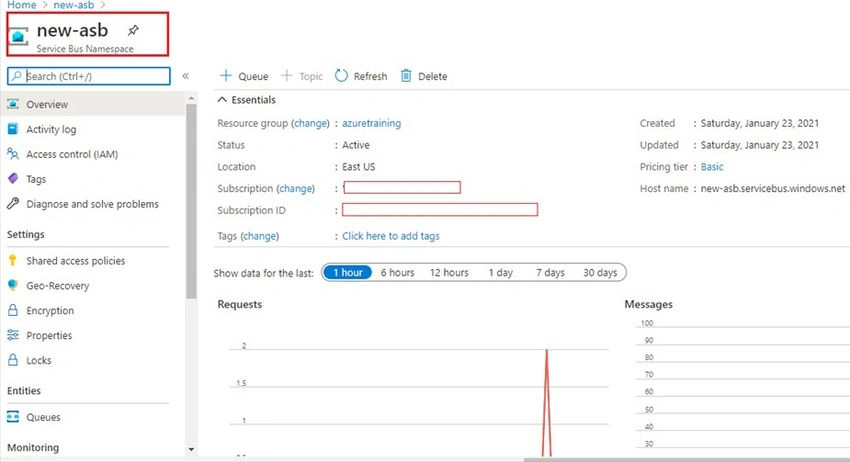

  • Click on Go to resource button to see our Service Bus resource.

    How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

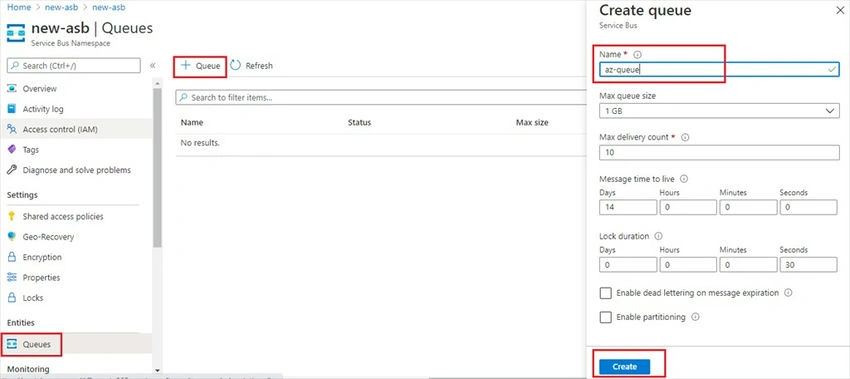

  • So we have successfully created a new Service Bus. Now next step is to create a Queue. Go to the Queues section in the left panel and click on Queue and give a unique name for queue and click on the Create button.

    How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

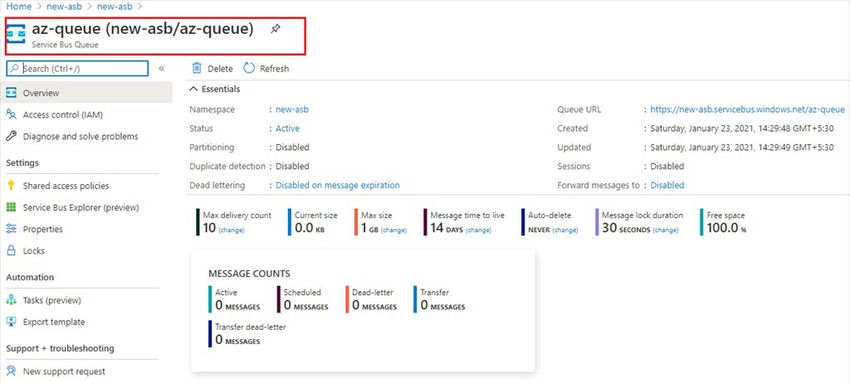

  • That's it. We have created our first queue.

    How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

Create HTTP trigger Azure Function to send the message into Queue


Prerequisites
  • Visual Studio 19 with Azure Development workload installed

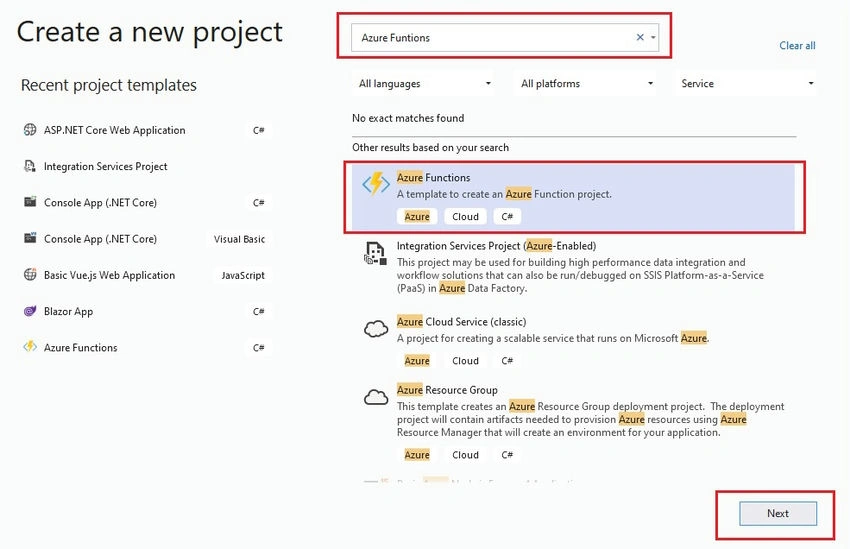

So open Visual Studio and Go to File -> New -> Project. Search "Azure Functions" in the search box and select the Azure function template and click on Next.

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

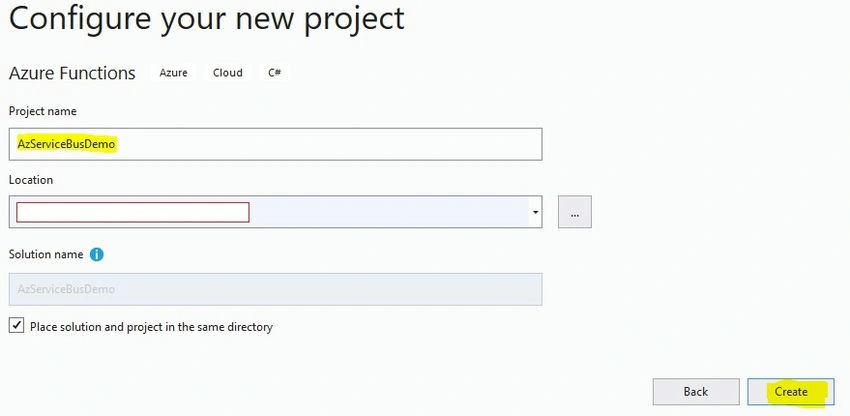

Give a name to the function project and click on Create.

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

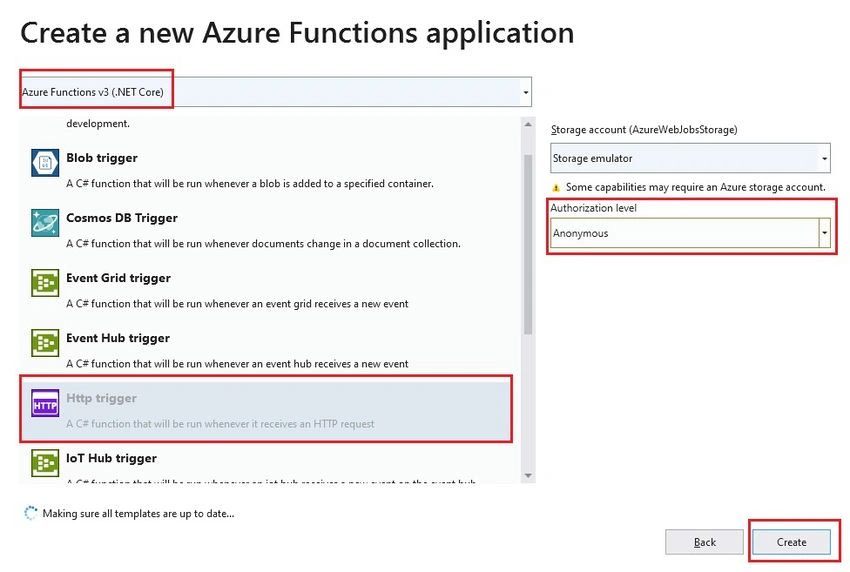

Select the HTTP trigger template and set the Authorization level as Anonymous and click on Create.

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

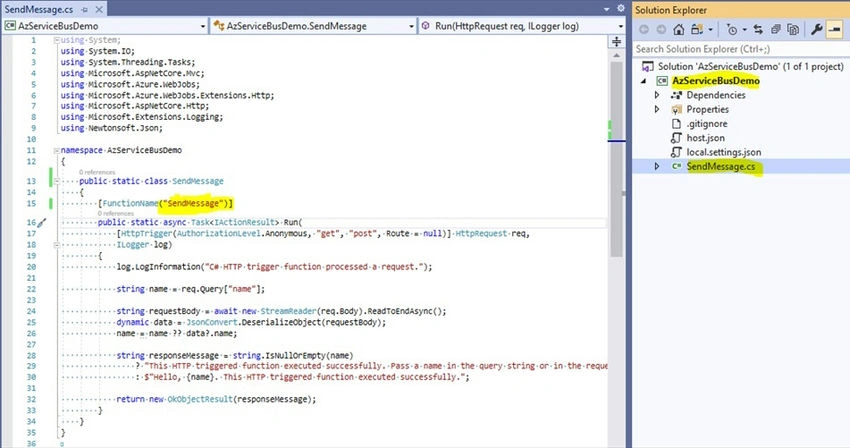

That's it. We have created our first Azure function. By default the name of the function is Function1.cs so now change it to "SendMessage".

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

Azure Functions has Triggers and Bindings. Triggers are the ones due to which function code start executing forex. In the case of HTTP trigger whenever you make HTTP request by hitting the function URL the specific function will start its execution. The Azure function must have only one trigger. Bindings are the direction of data coming in or going out from the function. We have In, out, and both types of bindings.

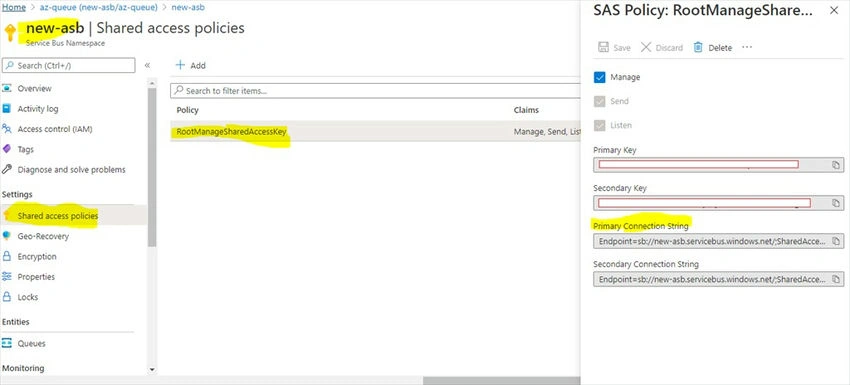

So for our application, we are creating HTTP Trigger function which takes data and sends it into the Queue. So to send data to the queue we are using an Output binding. To connect with the queue we need a connection string. So let's open the Service bus resource in portal -> Shared Access Policy -> Copy the Primary Connection String under RootManagedSharedAccessKey

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

First, install the below NuGet package,

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

Open the local.settings.json file in our function app and add a key called "AzureWebJobsServiceBus" and paste the connection string of our Service bus resource.
  1. {
  2.     "IsEncrypted"false,
  3.   "Values": {
  4.     "AzureWebJobsStorage""UseDevelopmentStorage=true",
  5.     "FUNCTIONS_WORKER_RUNTIME""dotnet",
  6.     "AzureWebJobsServiceBus""<replace your RootManageSharedAccessKey here>"
  7.   }
  8. }
Now add the below code to send a message to the queue using output bindings.
  1. using System.IO;
  2. using System.Text;
  3. using System.Threading.Tasks;
  4. using Microsoft.AspNetCore.Http;
  5. using Microsoft.Azure.WebJobs;
  6. using Microsoft.Azure.WebJobs.Extensions.Http;
  7. using Microsoft.Azure.WebJobs.ServiceBus;
  8. using Microsoft.Extensions.Logging;
  9.
  10. namespace AzServiceBusDemo
  11. {
  12.     public static class SendMessage
  13.     {
  14.         [FunctionName("SendMessage")]
  15.         [return: ServiceBus("az-queue", EntityType.Queue)]
  16.         public static async Task<string> Run(
  17.             [HttpTrigger(AuthorizationLevel.Anonymous, "post", Route = null)] HttpRequest req,
  18.             ILogger log)
  19.         {
  20.             log.LogInformation("SendMessage function requested");
  21.             string body = string.Empty;
  22.             using (var reader = new StreamReader(req.Body, Encoding.UTF8))
  23.             {
  24.                 body = await reader.ReadToEndAsync();
  25.                 log.LogInformation($"Message body : {body}");
  26.             }
  27.             log.LogInformation($"SendMessage processed.");
  28.             return body;
  29.         }
  30.     }
  31. }
  • From lines 21-28, we are just getting data from the request body & assigned it to a local variable. After that, we are just returning it from function.
  • In line 15, since we are using C# for creating function, we can use ServiceBusAttribute to specify the output bindings. For the attribute constructor i.e. ServiceBus() we just need to pass queue name and type of entity to bind.

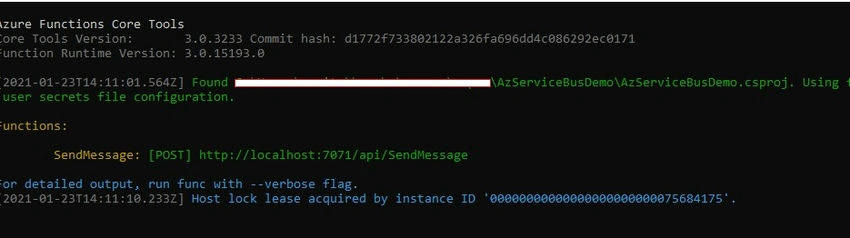

Now run the SendMessage function.

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

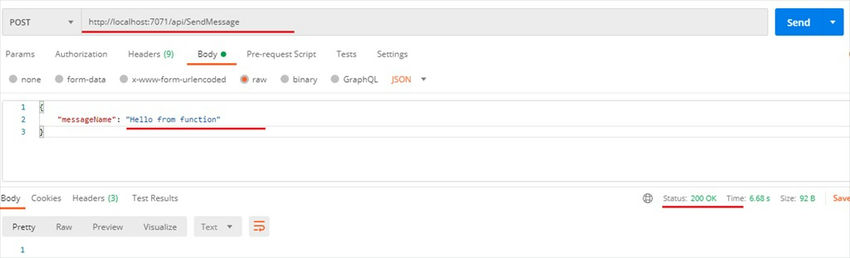

For testing the function open postman and hit the about function URL.

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

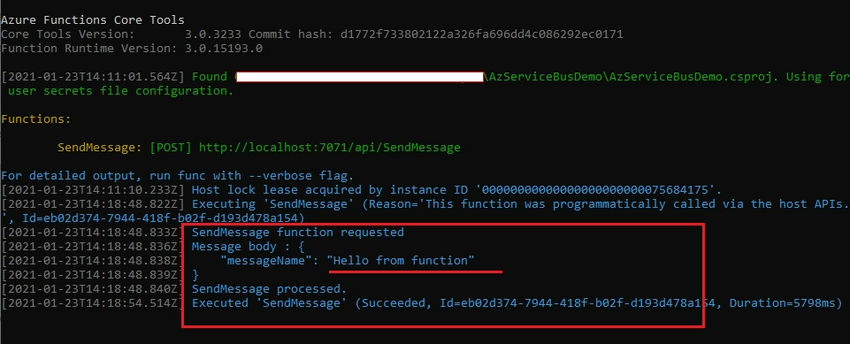

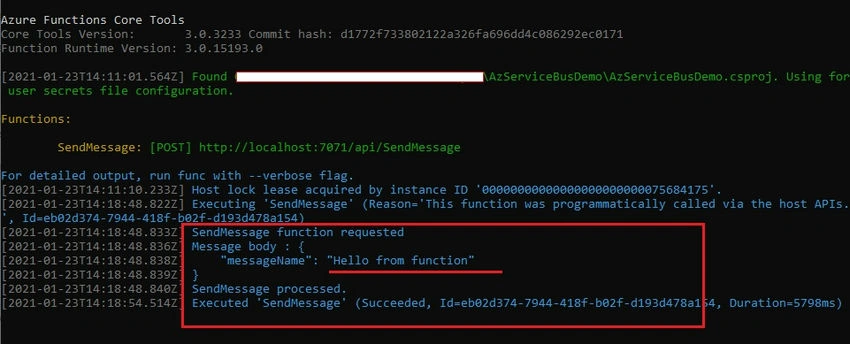

Since we logged our request body, we can see the content.

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

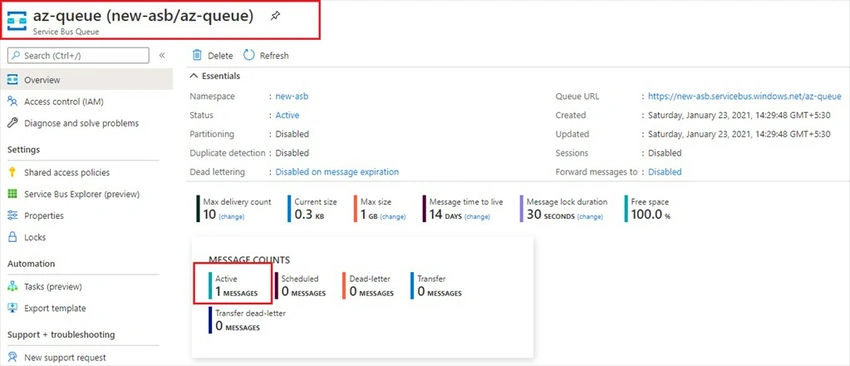

Open queue "az-queue" and we can see the Active message count is now showing as 1.

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

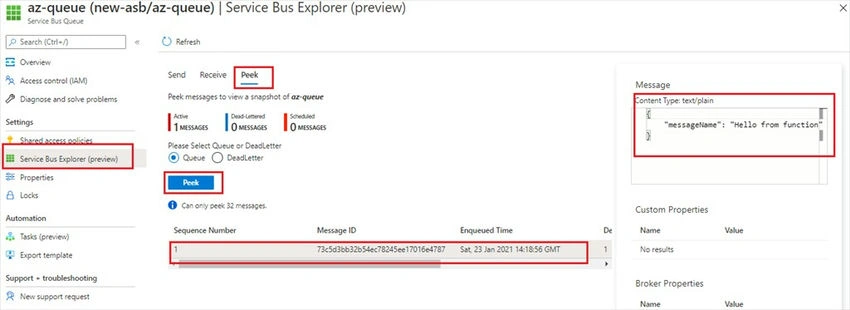

To check the message content in the queue you can click on Service Bus Explorer(preview) in the left sidebar and then click on Peek and finally click on the message to see the content.

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions


Create a Service Bus Queue trigger Azure function to read a message from Queue

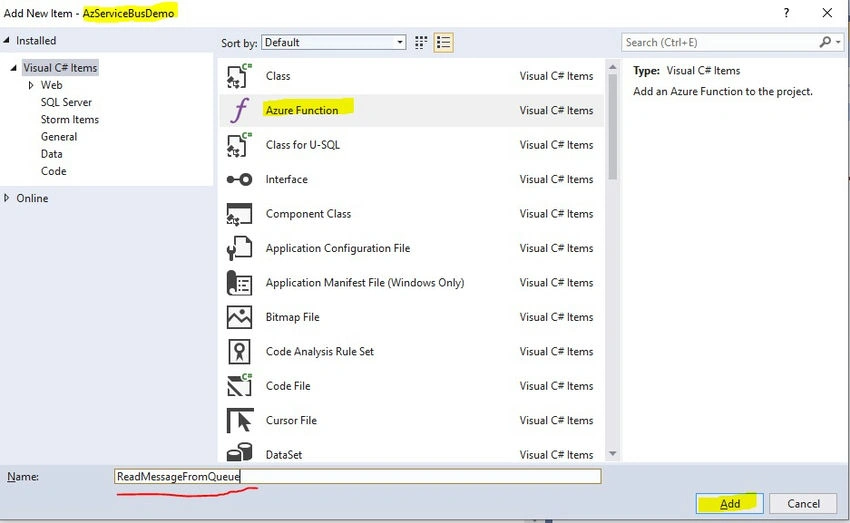

Now the final step is to read a message from the queue i.e. "az-queue". Right-click on the project and click on project -> Click on Add -> Select New Azure Function. Select Azure function and give it a name and click on Add button.

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

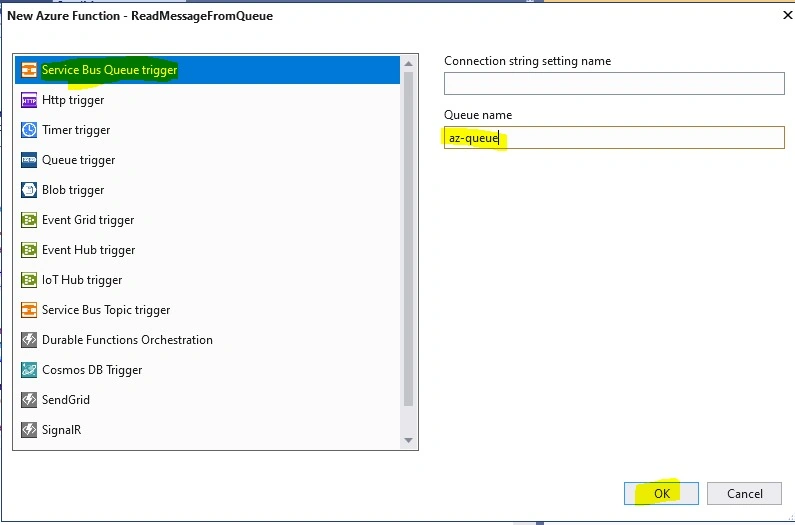

Now select Service Bus Queue Trigger and specify queue name and click on Add button.

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

That's it -- our Service Bus trigger function is created.
  1. using Microsoft.Azure.WebJobs;
  2. using Microsoft.Extensions.Logging;
  3.
  4. namespace AzServiceBusDemo
  5. {
  6.     public static class ReadMessageFromQueue
  7.     {
  8.         [FunctionName("ReadMessageFromQueue")]
  9.         public static void Run([ServiceBusTrigger("az-queue")]string myQueueItem, ILogger log)
  10.         {
  11.             log.LogInformation($"C# ServiceBus queue trigger function processed message: {myQueueItem}");
  12.         }
  13.     }
  14. }

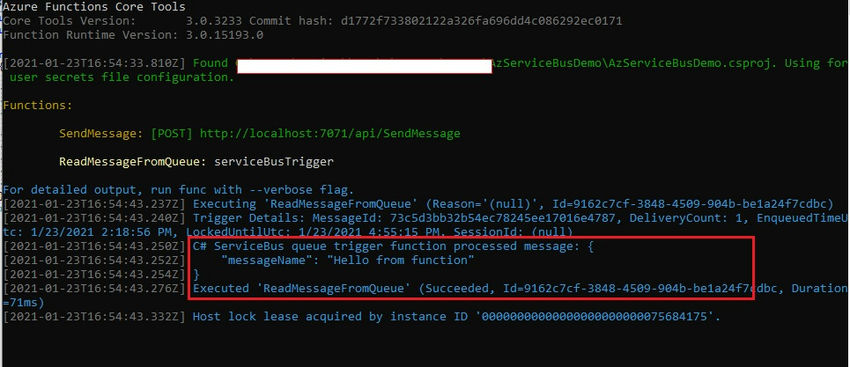

Now run our function app. Since we already have one active message in our queue, as soon as the function starts it will read a message from the queue as shown below,

How To Send And Read Messages From Azure Service Bus Queues Using Azure Functions

So in this way, we can use Azure functions to send and read messages from Azure Service Bus Queues.


Conclusion


In this article, we have created a new Azure Service Bus instance and added a new queue from the portal. Also, we have created the HTTP trigger Azure function to send messages into the Queue and Service Bus Queue trigger function to read messages from a queue. I really hope that you enjoyed this article, share it with friends and please do not hesitate to send me your thoughts or comments.

Stay tuned for more articles on Azure Functions.

You can follow me on Twitter @sumitkharche01 and LinkedIn

Happy Coding!!
