How To Use Constraint Layout In Xamarin.Android

What is Constraint Layout?

Constraint helps to reduce the hierarchy of Views and increase the layout performance and flexibility of Views. It helps to design based on positing, size, dimension, and alignment of different Views. Constraint Layout has different attributes to set Views in the layout. You can set the View of any position of the layout easily rather than that in Relative Layout. It supports Android and iOS platforms. Constraint layout comes under ViewGroup.

Advantages of Constraint Layout

Flat View Hierarchy and no nested view.
Better performance and high responsiveness.
Align position, size, and alignment of the screen.
Support Android (API 9) and iOS Platform.

Some Important Constraint Layout Properties and Attributes

These attributes take only id or parent. Align view from any side of the target view.,

layout_constraintLeft_toLeftOf - align left of the desired view is left of the target view.
layout_constraintLeft_toRightOf - align left of the desired view is right of the target view.
layout_constraintRight_toLeftOf - align-right of the desired view is left of the target view.
layout_constraintRight_toRightOf - align-right of the desired view is right of the target view.
layout_constraintTop_toTopOf - align the top of the desired view is top of the target view.
layout_constraintTop_toBottomOf - align the top of the desired view is the bottom of the target view.
layout_constraintBottom_toTopOf - align the bottom of the desired view is top of the target view.
layout_constraintBottom_toBottomOf - align the bottom of the desired view is the bottom of the target view.
layout_constraintBaseline_toBaselineOf - align the baseline of the desired view is the baseline of the target view.
layout_constraintStart_toEndOf - align the start of the desired view is the end of the target view.
layout_constraintStart_toStartOf - align the start of the desired view is the start of the target view.
layout_constraintEnd_toStartOf - align the end of the desired view is the start of the target view.
layout_constraintEnd_toEndOf - align the end of the desired view is the end of the target view.

Margin Attributes - These attributes take only positive values.

layout_marginStart - Margin from start side of the desired view.
layout_marginEnd - Margin from the end side of the desired view.
layout_marginLeft - Margin from the left side of the desired view.
layout_marginTop - Margin from the top side of the desired view.
layout_marginRight - Margin from the right side of the desired view.
layout_marginBottom - Margin from the bottom side of the desired view.

Let's see how to use Constraint Layout to design or align views in Xamarin.Android.

Android output

How To Use Constraint Layout InXamarin.Android

There is no default package for constraint layout in Xamarin.Android. So, we need to install a plugin for this.

Follow these steps to archive the above view using Constraint Layout.

Let’s start.

Step 1 - Create a new project

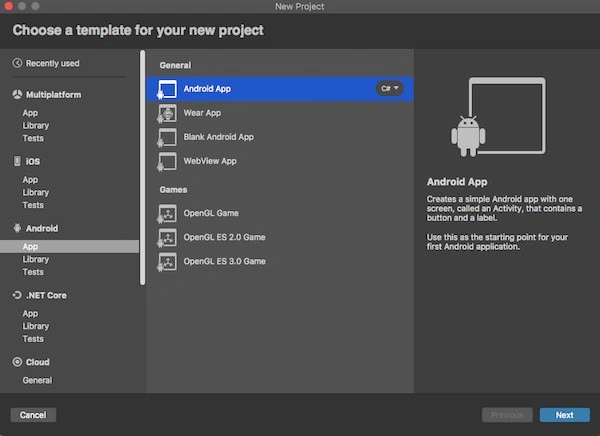

You can create a Xamarin Android app by going to File >> New >> Android under select App. In the General section, select Android App then, click "Next".

In the new window, enter and select your application name, theme and compatibility followed by click "Create project".

Step 2 - Add Constraint Layout Plugin

After project creation add the following NuGet package to your project

Xamarin.Android.Support.Constraint.Layout
Material Design.

For that, Right-click packages and select "Add packages". A new dialog appears. At the right-top corner, search for “Xamarin.Android.Support.Constraint.Layout” and click the "Add Packages" button.

Step 3 - Design Instruction

Now, design the Signup page. For that, go to Solution Explorer >> Resource >> layout >> double click to open content_main.xml. First, we need to set the root of the layout as a Constraint layout and declare the app namespace.

<android.support.constraint.ConstraintLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/container"
android:background="@drawable/gradientcolor_rose"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
android:hapticFeedbackEnabled="false">
</android.support.constraint.ConstraintLayout >

Now, start your design. Set the image button in the left top corner of the page. The below Constraint attribute is used to set the image button based on parent view.

app:layout_constraintLeft_toLeftOf = “parent”
app:layout_constraintTop_toTopOf = “parent”

Logo Image

This view is set by the right of the image button and center of the parent. The top, end, start attribute of image is set based on parent view and another one attribute is set based on another view id.

app:layout_constraintTop_toTopOf="parent"
app:layout_constraintStart_toEndOf="@+id/imageView2"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintEnd_toEndOf="parent"

Text View

This view is set below the image and to the left side of the parent. The below constraint attributes are used to set the text in the correct position. The first left attribute is set based on the parent but other attributes are set by different id.

app:layout_constraintLeft_toLeftOf="parent"
app:layout_constraintTop_toBottomOf="@+id/imageView"
app:layout_constraintBottom_toTopOf="@+id/txtFirstName"

As well as, you can set other child views using different attributes.

Step 4 - Login Page Design

Now, let us design the Login Page. For that, go to Solution Explorer >> Resource >> layout >> double-click to open login_activity.xml. This page code given below,

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/container"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="@drawable/BackgroundImagegradient"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
android:hapticFeedbackEnabled="false">
<ImageView
android:layout_width="60dp"
android:layout_height="120dp"
app:srcCompat="@drawable/water64"
android:id="@+id/imageView"
android:layout_marginBottom="8dp"
app:layout_constraintEnd_toEndOf="parent"
android:layout_marginEnd="8dp"
android:layout_marginRight="8dp"
app:layout_constraintStart_toStartOf="parent"
android:layout_marginLeft="8dp"
android:layout_marginStart="8dp"
android:layout_marginTop="8dp"
app:layout_constraintTop_toTopOf="parent"/>
<TextView
android:text="LOGIN"
android:id="@+id/txtlogin"
android:textColor="@color/colorWhite"
android:layout_width="108dp"
android:layout_height="47dp"
app:layout_constraintTop_toBottomOf="@id/imageView"
android:layout_marginEnd="8dp"
android:layout_marginRight="8dp"
app:layout_constraintStart_toStartOf="parent"
android:layout_marginLeft="8dp"
android:layout_marginStart="8dp"
android:layout_marginBottom="8dp"
android:textSize="20dp"
android:gravity="center_vertical"
android:textStyle="bold"
android:paddingLeft="3dp"/>
<android.support.design.widget.TextInputLayout
android:id="@+id/etPasswordLayout1"
android:layout_width="363dp"
android:layout_height="70dp"
android:layout_marginBottom="8dp"
app:layout_constraintTop_toBottomOf="@id/txtlogin"
app:layout_constraintStart_toStartOf="parent"
android:layout_marginLeft="8dp"
android:layout_marginStart="8dp"
app:layout_constraintEnd_toEndOf="parent"
android:layout_marginEnd="8dp"
android:layout_marginRight="8dp">
<android.support.design.widget.TextInputEditText
android:id="@+id/etPassword1"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:textColor="@color/colorWhite"
android:hint="User Mail Id"
android:inputType="textEmailAddress"/>
</android.support.design.widget.TextInputLayout>
<android.support.design.widget.TextInputLayout
android:id="@+id/etPasswordLayout"
android:layout_width="363dp"
android:layout_height="wrap_content"
app:passwordToggleEnabled="true"
android:layout_marginTop="8dp"
app:layout_constraintTop_toBottomOf="@id/etPasswordLayout1"
android:layout_marginBottom="8dp"
app:layout_constraintStart_toStartOf="parent"
android:layout_marginLeft="8dp"
android:layout_marginStart="8dp"
app:layout_constraintEnd_toEndOf="parent"
android:layout_marginEnd="8dp"
android:layout_marginRight="8dp">
<android.support.design.widget.TextInputEditText
android:id="@+id/etPassword"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:textColor="@color/colorWhite"
android:hint="Password"
android:inputType="textPassword"/>
</android.support.design.widget.TextInputLayout>
<TextView
android:text="Forget Password ? "
android:layout_width="wrap_content"
android:textColor="@color/colorWhite"
android:layout_height="29dp"
android:id="@+id/textView2"
android:layout_marginBottom="8dp"
app:layout_constraintTop_toBottomOf="@+id/etPasswordLayout"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintRight_toRightOf="parent"
android:layout_marginEnd="8dp"
android:layout_marginRight="20dp"
android:layout_marginLeft="8dp"
android:layout_marginStart="8dp"/>
<Button
android:text="LOGIN"
android:layout_width="wrap_content"
android:layout_height="40dp"
android:id="@+id/button"
android:textColor="@color/colorWhite"
android:background="@drawable/border_button"
app:layout_constraintEnd_toEndOf="parent"
android:layout_marginEnd="8dp"
android:layout_marginRight="8dp"
app:layout_constraintStart_toStartOf="parent"
android:layout_marginLeft="8dp"
android:layout_marginStart="8dp"
android:layout_marginTop="8dp"
app:layout_constraintTop_toBottomOf="@+id/textView2"
android:layout_marginBottom="8dp"/>
<android.support.design.widget.FloatingActionButton
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:clickable="true"
app:srcCompat="@drawable/plus16"
android:id="@+id/floatingActionButton"
android:layout_marginTop="178dp"
app:backgroundTint="#FF007F"
android:layout_marginBottom="8dp"
app:layout_constraintTop_toBottomOf="@+id/textView2"
app:layout_constraintEnd_toEndOf="parent"
android:layout_marginEnd="8dp"
android:layout_marginRight="35dp"
android:layout_marginStart="8dp"
android:layout_marginLeft="50dp"
app:fabSize="normal"/>
</android.support.constraint.ConstraintLayout>

Step 5 - Signup Page Design

Now, create a background color of Signup page named as grandientcolor_rose.xml. Add new XML page by right-clicking the drawable folder >> Add new File >> Left bar select Android >> next followed by select XML file >> give the name as grandientcolor_rose.xml. Copy and paste the below code.

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/container"
android:background="@drawable/gradientcolor_rose"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
android:hapticFeedbackEnabled="false">
<ImageButton
android:layout_width="20dp"
android:layout_height="20dp"
android:background = "@null"
android:src="@drawable/xmark16"
android:id="@+id/imageView2"
android:layout_marginTop="8dp"
app:layout_constraintTop_toTopOf="parent"
app:layout_constraintLeft_toLeftOf="parent"
android:layout_marginEnd="8dp"
android:layout_marginRight="8dp"
app:layout_constraintStart_toStartOf="parent"
android:layout_marginLeft="8dp"
android:layout_marginStart="8dp"
android:layout_marginBottom="8dp"/>
<ImageView
android:layout_width="60dp"
android:layout_height="120dp"
app:layout_constraintStart_toStartOf="parent"
android:src="@drawable/water64"
android:id="@+id/imageView"
app:layout_constraintEnd_toEndOf="parent"
android:layout_marginEnd="8dp"
android:layout_marginRight="20dp"
android:layout_marginLeft="8dp"
android:layout_marginStart="8dp"
app:layout_constraintTop_toTopOf="parent"
app:layout_constraintStart_toEndOf="@+id/imageView2"/>
<TextView
android:text="SIGN UP"
android:layout_width="108dp"
android:layout_height="47dp"
android:layout_marginTop="2dp"
android:layout_marginBottom="8dp"
android:textSize="20dp"
android:textColor="@color/colorWhite"
android:gravity="center_vertical"
android:textStyle="bold"
android:paddingLeft="2dp"
app:layout_constraintLeft_toLeftOf="parent"
app:layout_constraintTop_toBottomOf="@+id/imageView"
app:layout_constraintBottom_toTopOf="@+id/txtFirstName"
tools:layout_editor_absoluteX="24dp"
android:id="@+id/textView"/>
<android.support.design.widget.TextInputLayout
android:id="@+id/txtFirstName"
android:layout_width="361dp"
android:layout_height="69dp"
app:layout_constraintStart_toStartOf="parent"
android:layout_marginLeft="8dp"
android:layout_marginStart="8dp"
app:layout_constraintEnd_toEndOf="parent"
android:layout_marginEnd="8dp"
android:layout_marginRight="8dp"
app:layout_constraintBottom_toTopOf="@+id/txtLastName"
android:layout_marginBottom="84dp"
android:layout_marginTop="13dp"
app:layout_constraintTop_toBottomOf="@+id/imageView">
<android.support.design.widget.TextInputEditText
android:id="@+id/etPassword132"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:textColor="@color/colorWhite"
android:hint="First Name"
android:inputType="textEmailAddress"/>
</android.support.design.widget.TextInputLayout>
<android.support.design.widget.TextInputLayout
android:id="@+id/txtLastName"
android:layout_width="363dp"
android:layout_height="70dp"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintEnd_toEndOf="parent"
android:layout_marginLeft="8dp"
android:layout_marginStart="8dp"
android:layout_marginEnd="8dp"
android:layout_marginRight="8dp"
app:layout_constraintTop_toBottomOf="@id/txtFirstName"
app:layout_constraintBottom_toTopOf="@+id/txtEmail">
<android.support.design.widget.TextInputEditText
android:id="@+id/txtLastName1"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:textColor="@color/colorWhite"
android:hint="Mail Id"
android:inputType="text"/>
</android.support.design.widget.TextInputLayout>
<android.support.design.widget.TextInputLayout
android:id="@+id/txtEmail"
android:layout_width="363dp"
android:layout_height="70dp"
app:layout_constraintStart_toStartOf="parent"
android:layout_marginLeft="8dp"
android:layout_marginStart="8dp"
app:layout_constraintEnd_toEndOf="parent"
android:layout_marginEnd="8dp"
android:layout_marginRight="8dp"
android:layout_marginBottom="8dp"
app:layout_constraintBottom_toTopOf="@+id/txtLastName"
android:layout_marginTop="118dp"
app:layout_constraintTop_toBottomOf="@+id/txtPassword">
<android.support.design.widget.TextInputEditText
android:id="@+id/txtEmail1"
android:layout_width="match_parent"
android:textColor="@color/colorWhite"
android:layout_height="wrap_content"
android:hint="Last Name"
android:inputType="text"/>
</android.support.design.widget.TextInputLayout>
<android.support.design.widget.TextInputLayout
android:id="@+id/etPasswordLayout"
android:layout_width="363dp"
android:layout_height="70dp"
android:layout_marginLeft="0dp"
android:layout_marginStart="0dp"
app:passwordToggleEnabled="true"
app:layout_constraintBottom_toTopOf="@+id/button"
app:layout_constraintTop_toBottomOf="@id/txtEmail"
android:layout_marginTop="-10dp"
android:layout_marginRight="12dp"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent">
<android.support.design.widget.TextInputEditText
android:id="@+id/etPassword"
android:layout_width="match_parent"
android:layout_height="59dp"
android:textColor="@color/colorWhite"
android:hint="Password"
android:inputType="textPassword"/>
</android.support.design.widget.TextInputLayout>
<Button
android:text="CREATE ACCOUNT"
android:layout_width="wrap_content"
android:textColor="@color/colorWhite"
android:background="@drawable/border_button"
android:layout_height="45dp"
android:id="@+id/button"
app:layout_constraintTop_toBottomOf="@id/etPasswordLayout"
android:layout_marginEnd="8dp"
android:layout_marginRight="8dp"
app:layout_constraintStart_toStartOf="parent"
android:layout_marginLeft="8dp"
android:layout_marginStart="8dp"
android:layout_marginTop="8dp"
android:layout_marginBottom="8dp"
app:layout_constraintBottom_toBottomOf="parent"
android:paddingLeft="10dp"
android:paddingRight="10dp"
app:layout_constraintEnd_toEndOf="parent"/>
</android.support.constraint.ConstraintLayout>

Step 6 - MainActivity.cs Code

Next, open MainActivity.cs (Login Activity) and add the following code to validate the user input. When you click login, it will validate and check the user is available or not. If credentials are correct, it goes to the main page. If you want to sign up click a floating button.

using System;
using Android.App;
using Android.OS;
using Android.Runtime;
using Android.Support.Design.Widget;
using Android.Support.V7.App;
using Android.Views;
using Android.Widget;
using SignLoginScreen.Resources.activitys;
namespace SignLoginScreen
{
[Activity(Label = "@string/app_name", Theme = "@style/AppTheme.NoActionBar", MainLauncher = true)]
public class MainActivity : AppCompatActivity
{
protected override void OnCreate(Bundle savedInstanceState)
{
base.OnCreate(savedInstanceState);
Xamarin.Essentials.Platform.Init(this, savedInstanceState);
SetContentView(Resource.Layout.activity_login
);
var clickLogin = FindViewById<Button>(Resource.Id.button);
var userMail = FindViewById<EditText>(Resource.Id.etPassword1);
var userPWD = FindViewById<EditText>(Resource.Id.etPassword);
clickLogin.Click += delegate {
var emailText = Intent.GetStringExtra("eMail");
var pwdText = Intent.GetStringExtra("pwd");
if (emailText.ToString() == userMail.Text.ToString())
{
if(pwdText.ToString() == userPWD.Text.ToString())
{
Android.App.AlertDialog.Builder dialog1 = new Android.App.AlertDialog.Builder(this);
Android.App.AlertDialog alert1 = dialog1.Create();
alert1.SetTitle("Login Sucess");
var userNameIntent = Intent.GetStringExtra("userName");
alert1.SetMessage($"Hi {userNameIntent} Good Day");
alert1.SetButton("OK", (c, ev) =>
{
StartActivity(typeof(HomeActivity));
});
alert1.Show();
}
else
{
Android.App.AlertDialog.Builder dialog = new Android.App.AlertDialog.Builder(this);
Android.App.AlertDialog alert = dialog.Create();
alert.SetTitle("Failed");
alert.SetMessage($"Password Incorrect");
alert.SetButton("OK", (c, ev) =>
{
// StartActivity(i);
});
alert.Show();
}
}
else
{
Android.App.AlertDialog.Builder dialog = new Android.App.AlertDialog.Builder(this);
Android.App.AlertDialog alert = dialog.Create();
alert.SetTitle("Login Failed");
alert.SetMessage("Enter Valid Credentials");
alert.SetButton("OK", (c, ev) =>
{
// StartActivity(i);
});
alert.Show();
}
};
var fabClick = FindViewById<FloatingActionButton>(Resource.Id.floatingActionButton);
fabClick.Click += FabClick_Click;
}
private void FabClick_Click(object sender, EventArgs e)
{
StartActivity(typeof(signupActivity));
}
public override bool OnCreateOptionsMenu(IMenu menu)
{
MenuInflater.Inflate(Resource.Menu.menu_main, menu);
return false;
}
public override bool OnOptionsItemSelected(IMenuItem item)
{
int id = item.ItemId;
if (id == Resource.Id.action_settings)
{
return true;
}
return base.OnOptionsItemSelected(item);
}
public override void OnRequestPermissionsResult(int requestCode, string[] permissions, [GeneratedEnum] Android.Content.PM.Permission[] grantResults)
{
Xamarin.Essentials.Platform.OnRequestPermissionsResult(requestCode, permissions, grantResults);
base.OnRequestPermissionsResult(requestCode, permissions, grantResults);
}
}
}

Step 7 - SignupActivity.cs Code

Add another activity for the sign-up page. For that, Go to Solution Explorer >> Resources >> activities >> Add a new activity named as signup_activity.cs. Full source code is given below. Entered data will be validated and stored in Intent.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Android.App;
using Android.Content;
using Android.OS;
using Android.Runtime;
using Android.Views;
using Android.Widget;
namespace SignLoginScreen.Resources.activitys
{
[Activity(Label = "signupActivity")]
public class signupActivity : Activity
{
protected override void OnCreate(Bundle savedInstanceState)
{
base.OnCreate(savedInstanceState);
// Create your application here
SetContentView(Resource.Layout.layout2);
var imageButton = FindViewById<ImageButton>(Resource.Id.imageView2);
var firstName = FindViewById<TextView>(Resource.Id.etPassword132);
var lastName = FindViewById<TextView>(Resource.Id.txtLastName1);
var emailText = FindViewById<TextView>(Resource.Id.txtEmail1);
var pwdText = FindViewById<TextView>(Resource.Id.etPassword);
var submitButton = FindViewById<Button>(Resource.Id.button);
var displayalartText = new StringBuilder();
displayalartText.Append(" inVaild this filed of");
submitButton.Click += delegate
{
string inputemail = lastName.Text.ToString();
if (inputemail == null)
{
displayalartText.Append(" Enter Email Id");
}
else
{
var emailValue = isValidEmail(inputemail);
if (emailValue != true)
{
displayalartText.Append(" Enter Email Id");
}
}
if (firstName == null)
{
displayalartText.Append(" Enter First Name");
}
if (pwdText == null)
{
displayalartText.Append(" Enter Last Name");
}
if (displayalartText.ToString() == " inVaild this filed of")
{
Intent i = new Intent(this, typeof(MainActivity));
//Add PutExtra method data to intent.
i.PutExtra("eMail", inputemail.ToString());
i.PutExtra("pwd", pwdText.Text.ToString());
i.PutExtra("userName", firstName.Text.ToString());
//StartActivity
Android.App.AlertDialog.Builder dialog = new AlertDialog.Builder(this);
AlertDialog alert = dialog.Create();
alert.SetTitle("Sucess");
alert.SetMessage("Sign Up Success");
alert.SetButton("OK", (c, ev) =>
{
StartActivity(i);
});
alert.Show();
#region WithIcon Alert
//Android.App.AlertDialog.Builder dialog = new AlertDialog.Builder(this);
//AlertDialog alert = dialog.Create();
//alert.SetTitle("Title");
//alert.SetMessage("Complex Alert");
//alert.SetIcon(Resource.Drawable.alert);
//alert.SetButton("OK", (c, ev) =>
//{
// // Ok button click task
//});
//alert.SetButton2("CANCEL", (c, ev) => { });
//alert.Show();
#endregion
}
else
{
Android.App.AlertDialog.Builder dialog = new AlertDialog.Builder(this);
AlertDialog alert = dialog.Create();
alert.SetTitle("Failed");
alert.SetMessage("Sign Up Failed");
alert.SetButton("OK", (c, ev) =>
{
// Ok button click task
});
alert.Show();
}
};
imageButton.Click += ImageButton_Click;
}
private void ImageButton_Click(object sender, EventArgs e)
{
StartActivity(typeof(MainActivity));
}
public bool isValidEmail(string email)
{
return Android.Util.Patterns.EmailAddress.Matcher(email).Matches();
}
}
}

Step 8 - Output

Now, Rebuild and run your application. You will have the result like below.

Android Output

Note
Import images, string, color, theme.

Full Source Code Source

Thank for reading and if you have any suggestions comment below.

Reference Android Guide.
