Introduction To Serverless Computing Using Azure Function

Serverless Computing

  • Serverless Computing is driven by performing some action as a response to specific event or trigger.
  • While building serverless apps you don’t need to provision server or infrastructure.
  • Billing is based on resources consumed or actual time code is running.
  • No need to build the app to run the code, no need to set up infrastructure, no need to setup deployment infrastructure. Just focus on code.

Azure Function

  • Azure Function is a small piece of code that gets executed when some event occurs.
  • Just focus on code without worrying about application and infrastructure to run it.
  • This is also called as “function-as-a-service”
  • You can choose your favorite language to write Azure Function, such as C#, F#, Node.js, Java or PHP.
  • Azure function helps you to build fully serverless applications

When to Use Azure Functions

  • Azure Functions can be a great solution while building small microservices or building simple APIs.
  • This can be helpful in scenarios like order processing, image processing, logging, file processing etc.
  • You can also perform sheduling or batch processing tasks using Azure Functions.

Azure Function Trigger Templates

Azure Functions provide templates for key scenarios.

  • HTTPTrigger – Triggers some code when HTTP request received.
  • TimerTrigger – Performs a scheduled task like resources clean-up activities.
  • GitHub Webhook – Performs an action when something happened to GitHub repository.
  • Generic Webhook – Processes HTTP requests from services that support webhooks.
  • CosmosDBTrigger – Processes Cosmos DB documents when they get added or updated.
  • BlobTrigger – Processes Azure Blobs when they get added to containers.
  • QueueTrigger – Responds messages when they get added to Storage Queue
  • EventHubTrigger – Responds to Event Hub events
  • ServiceBusQueueTrigger – Responds to message when get added in Azure Service bus queue
  • ServiceBusTopicTrigger – Subscribes to Service Bus topics and respond to topic events.

Azure Function Apps

  • Function apps are containers of Azure Function.
  • All Functions serving the same business value can be grouped together under a single Function App.

Create Your First Azure Function App

  • Login to Azure Portal and click "New".
  • In search text box, write "Function App".

    Azure Function
  • Give a unique name to the Function app, select Subscription, Resource Group, and OS.
  • Select Hosting Plan

    • Consumption Plan – When the function runs, Azure sets up all necessary resources for you and you pay for the time that your code runs.
    • App Service Plan - Run Azure Function as a part of already existing App Service with no additional cost.

      Azure Function
  • Once the app gets created, you can view the newly created app under Function apps.

    Azure Function

Creating First Azure Function

  • Click on Functions tab available under Function App.
  • Click on "New Function".

    Azure Function

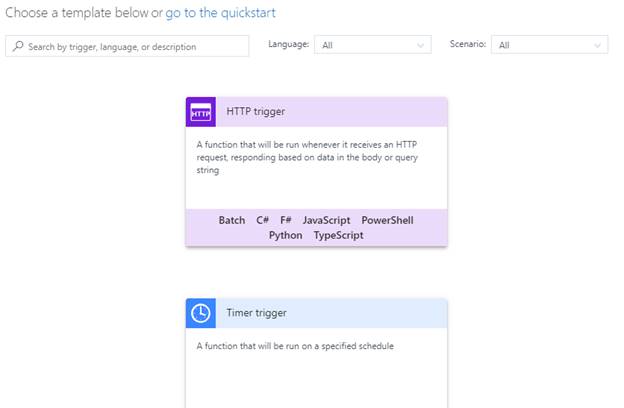

  • Select HTTP Trigger Template.

    Azure Function

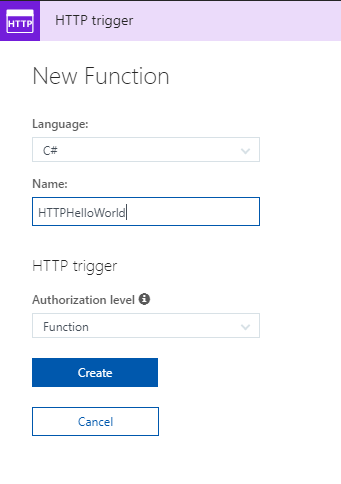

  • Select language as C# and give some name to the Function and click "Create".

    Azure Function

Test Function Using Portal

  • You can test the newly created function using Azure Portal.
  • Click on the "Test" tab available at the right-hand side of portal.

    Azure Function

  • Click on "Run".

    Azure Function

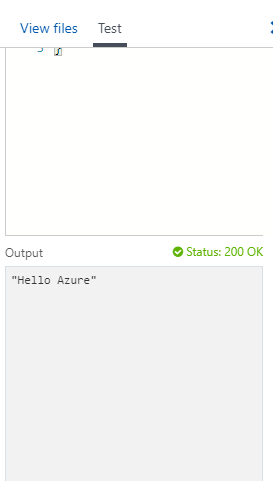

  • Observe the "Output".

    Azure Function

Test Function using Postman

You can test the Azure function using Postman.

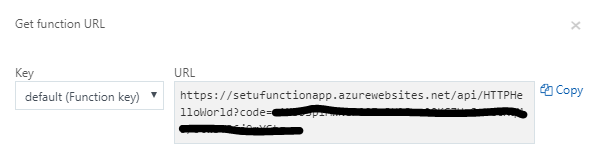

  • On Azure Portal, click on ‘Get function URL’ option.

    Azure Function
  • Copy the URL.
    Azure Function
  • Open Postman tool.
  • Paste the URL and set HTTP method as POST.
  • Click "Body" tab and select the raw option.
  • Select "Body Type" as application/JSON.
  • Add the following body.
    1. {
    2.    "name":"Mangesh"
    3. }
  • Click on "Send".

    Azure Function

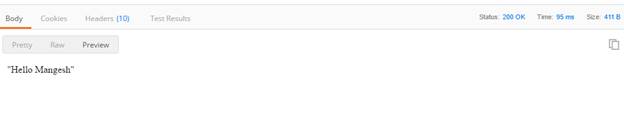

  • Observe the output.

    Azure Function
