Introduction to Task Flows in Microsoft Fabric: Making Sense of the Bigger Picture
When people first start using Microsoft Fabric, they often get excited about the obvious tools — pipelines, notebooks, lakehouses, warehouses, and reports.
And rightly so.
But somewhere along the way, something important gets overlooked:
How do all these pieces actually work together?
That’s where Task Flows come in.

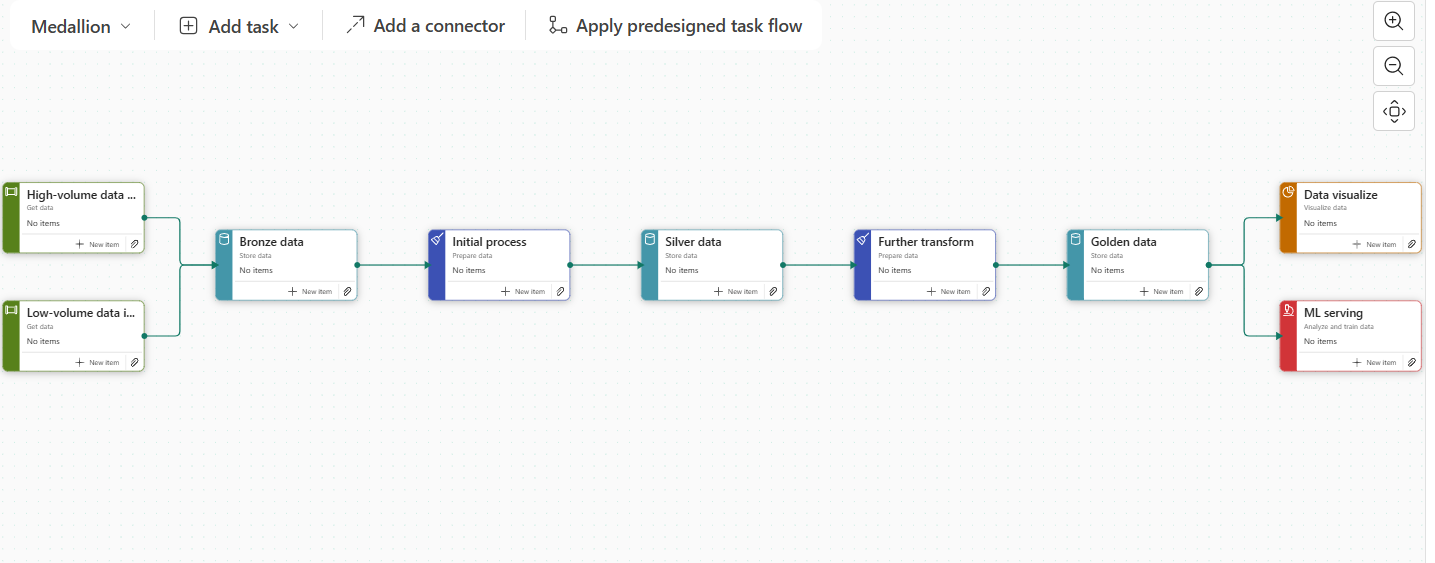

![1]()
So, What Exactly Is a Task Flow?
At its core, a Task Flow in Microsoft Fabric is a visual way to organise and connect your work.
Think of it like a blueprint.
Not the building itself — but the plan that shows:
Instead of jumping between different tools and guessing the sequence, Task Flow gives you a clear, structured view of your entire process.
Why Task Flow Matters More Than You Think
Let’s be honest — most data projects don’t fail because of lack of tools.
They fail because of lack of structure.
You might have:
A pipeline that ingests data
A notebook that transforms it
A report that visualises it
But without a clear flow:
Task Flow solves this by helping you design your workflow before (or alongside) building it.
A Simple Way to Think About It
Imagine you’re cooking a meal.
You wouldn’t:
There’s a natural order.
Task Flow brings that same logic into your data work.
It helps you answer:
“What should happen first, next, and last?”
What Can You Do with Task Flow?
Task Flow allows you to visually organise your Fabric items, such as:
You can map out:
The sequence of activities
Dependencies between tasks
The overall lifecycle of your data solution
It’s not just about execution — it’s about clarity.
The Real Benefit: Clarity Over Complexity
One of the biggest advantages of Task Flow is that it reduces mental overload.
Instead of holding everything in your head, you can:
See the full workflow at a glance
Identify gaps or inefficiencies
Communicate your design to others بسهولة
Whether you’re working solo or in a team, that visibility is powerful.
When Should You Use Task Flow?
Short answer: Earlier than you think.
Most people try to organise things after building them.
A better approach:
Start with a rough Task Flow
Build based on that structure
Refine as your solution evolves
It doesn’t need to be perfect from the beginning — it just needs to exist.
A Practical Example
Let’s say you’re building a sales analytics solution.
Your Task Flow might look like:
Ingest raw sales data
Clean and transform data
Store in a structured layer
Build semantic model
Create reports
Now, instead of guessing what connects where, everything is clearly mapped.
Creating Tasks in Task Flows in Fabric Warehouse

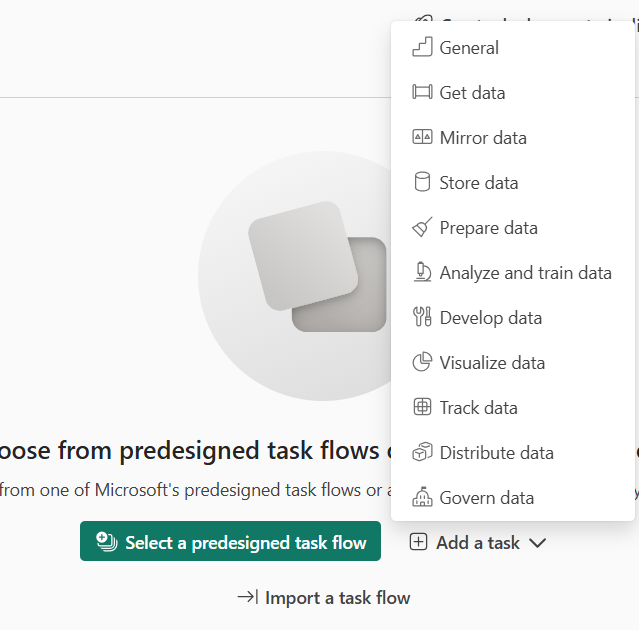

Add a Task: Start by clicking “Add Task” and choose the type of task you want to add, such as General, Get Data, Mirror Data etc.
Customize Tasks: You can name and describe each task, and associate it with new or existing items in your workspace.
Organize Tasks: Drag and drop tasks on the canvas, create connections between them, and adjust their positions to make your workflow clear and efficient.

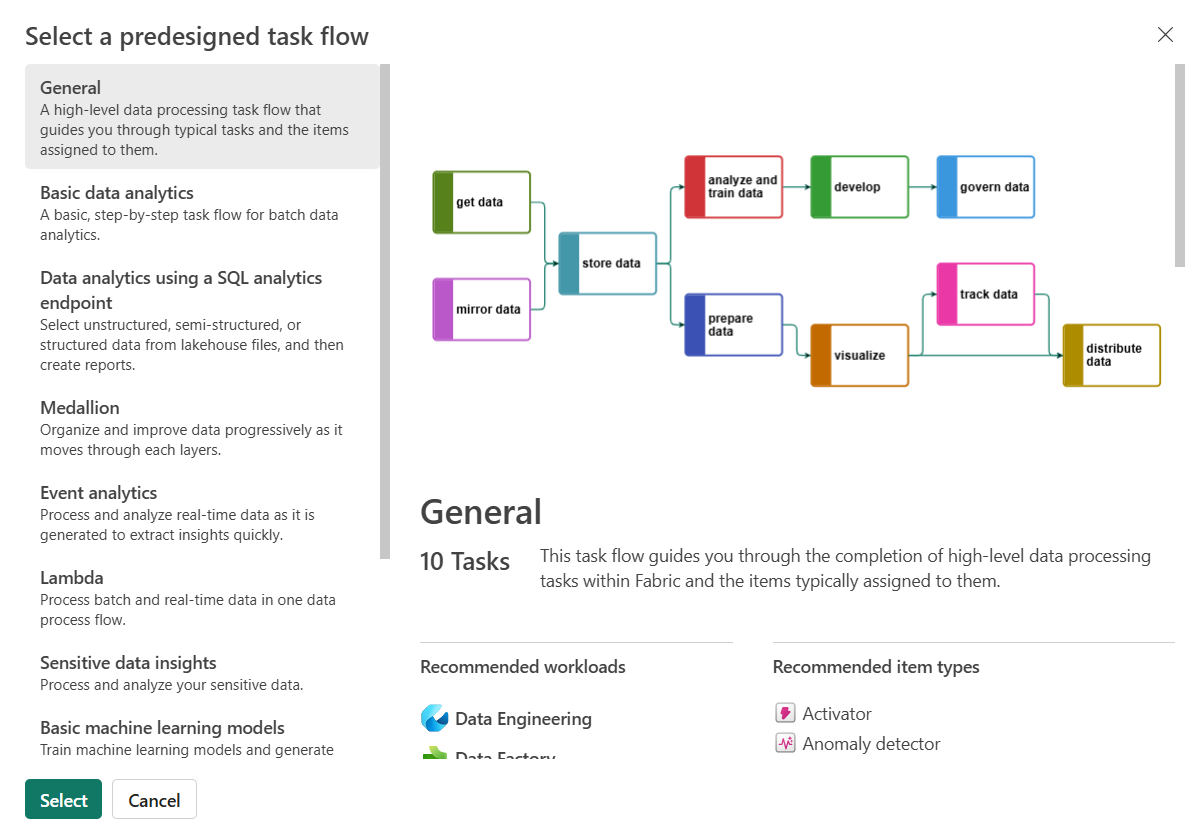

Predesigned Task Flow: Alternatively, you can selected from the predesigned task flow and modify it to suit your project.
![2]()
![3]()

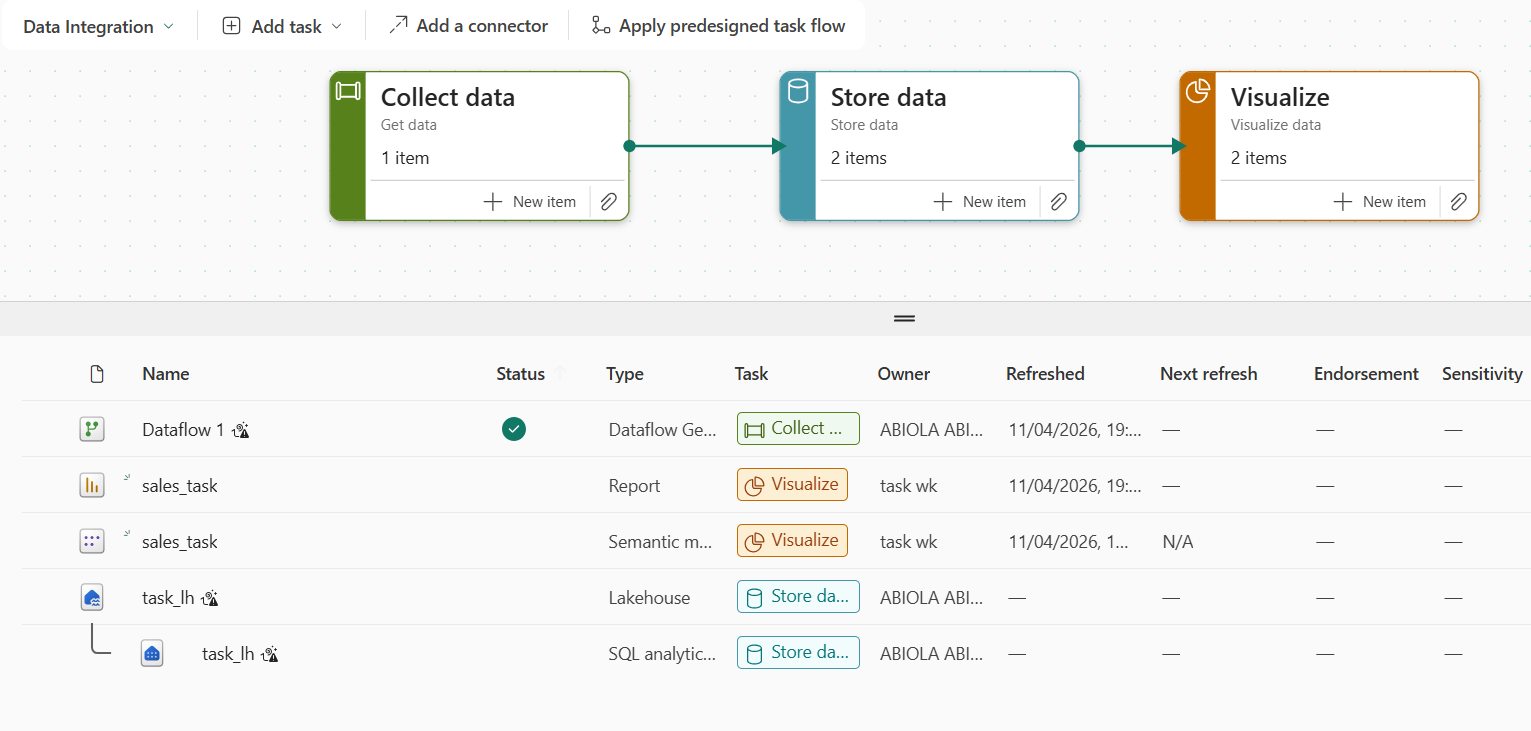

In this project, we have a basic data analytics task flow consisting of three task: Collect Data, Store Data, Visualize.
The Collect Data has Dataflow Gen2 item attached.
The Store data stores the ingested data into Lakehouse which also include the SQL analytics endpoint
The Visualize consist of the sales_task report and its semantical model
![5]()
In conclusion, Task Flow in Microsoft Fabric is one of those features that doesn’t shout for attention — but quietly improves everything.
It brings structure to your work. It reduces confusion. It helps you think before you build.
