Investigating and Fixing Swagger Error- Failed to Load API Definition

Swagger

Introduction

Swagger is a powerful and widely used API development toolset. It provides a framework for designing, building, documenting, and consuming RESTful web services. Here are some of the key aspects and use cases of Swagger for developers.

API design: Swagger allows developers to design APIs using a standard specification. You can define endpoints, HTTP methods, request/response formats, and more using YAML or JSON.
API documentation: One of the outstanding features of Swagger is its ability to generate interactive API documentation. This documentation is not only human readable but also interactive, allowing developers and stakeholders to test API endpoints directly from the documentation interface.
Code Generation: Swagger can generate client SDKs and server stubs in various programming languages based on the API specification. This can significantly speed development by providing a solid foundation and reducing the amount of boilerplate code developers need to write.
API testing: Swagger’s interactive documentation includes a “try it out” feature that allows developers to test API endpoints directly from the browser. This makes it easier to validate API behaviour and ensure that endpoints work as expected.
Standardization: By adhering to the OpenAPI Specification (OAS), formerly known as the Swagger Specification, Swagger ensures that APIs are described in a consistent and standardized way. This standardization enables easier integration and interoperability between different systems and tools.
Ecosystem and integrations: Swagger integrates well with various tools and services across the API development lifecycle, such as API gateways, CI/CD pipelines, and monitoring tools. This rich ecosystem helps streamline the entire API development and deployment process.

In this write up we will explore how we can fix the Error: “Failed to load API definition (Swagger Open API) response status 500″.

Now, let’s go for how we can resolve the swagger error.

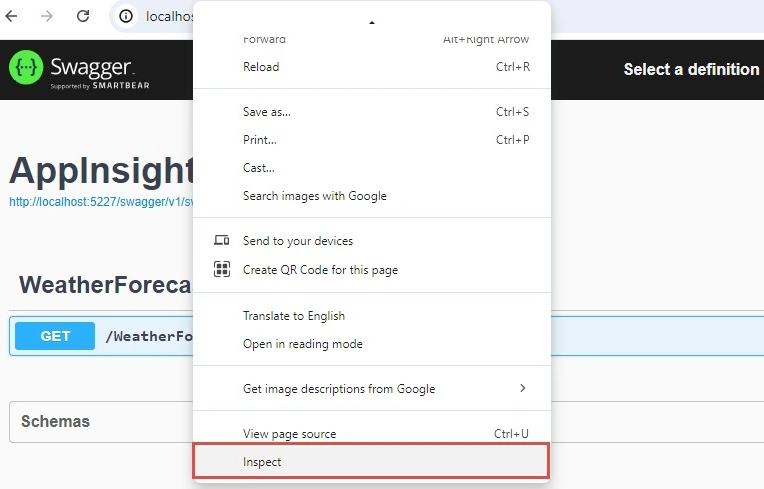

Step 1. When you see an error message in your browser right click and then click on inspect.

Error message

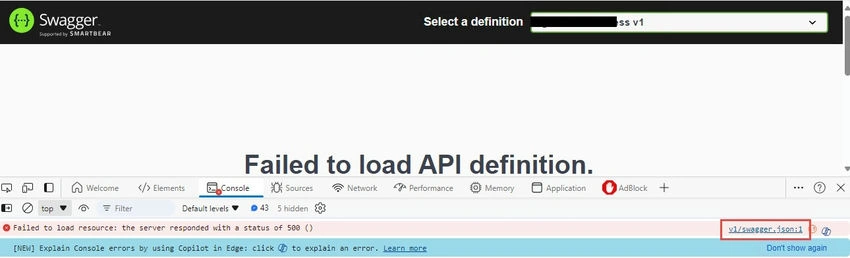

Step 2. Then go to the console and click on v1/swagger.json:1 as shown below.

Console

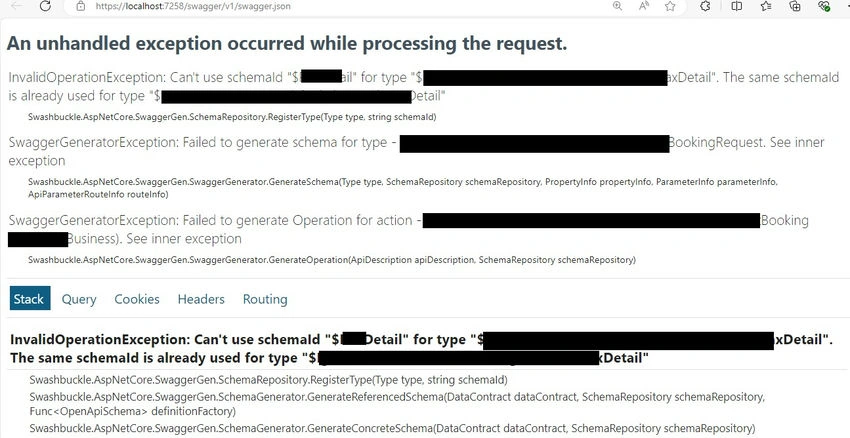

Step 3. You will get a clear message related to the issue. Below is an example of having the same SchemaId meaning you have the same name for two models.

Model

Step 4. Then based on your error message you can correct your program. In this above example error: there was an issue with the schema name so I just changed it and the Swagger page error was resolved.

Conclusion

Hence, Swagger offers developers a robust suite of tools for designing, documenting, testing, and generating code for APIs, all while maintaining adherence to industry standards. In this article we have learned what is and how to investigate and fix Swagger page load errors.
