LUIS.AI Integration with C#.NET and MVC using .NET Framework

Introduction


LUIS.AI will help build the Language Understanding (LU) Model as per your requirements. For example, if a user asks a question or conveys the conversation with a Bot or IoT device, the questions will be treated as an input. For LUIS.AI will be treated as Utterances (User Inputs). The LUIS.AI Model takes questions or input text and provides Intents, extracts the text from Input, generates Entities and produces the JSON data.

Key Points
  1. 1000 Endpoint Hits only with a free subscription.
  2. LUIS bot isn't working because when you use all  1000 free endpoint queries or exceed your pricing tier's monthly transactions quota, you receive an HTTP 403 error status code.
  3. LUIS bot isn't working or you get 403 and 429 error status codes when you exceed the transactions per second or transactions per month for your pricing tier.
  4. The update command is only to rename the application name and description of the LUIS application.
  5. App ID is mandatory to save in log information(table row).
  6. After the creation of an application, we need to make the endpoint public (This option will be available in Application Information).
  7. We can't see endpoint hits in the app's Dashboard(LUIS.AI portal) If you want to check endpoint hits we need to migrate with azure services.
  8. Only 500 applications per Azure authoring resource will be supported.
  9. We can give collaborators access to our teammates by using Azure Active Directory or Role-based access control(RBAC).

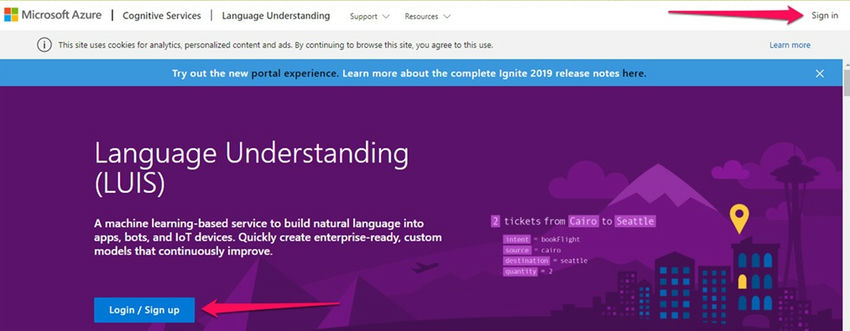

Go here and click on Sign-In.


Now give your Microsoft ID to log in.


Once you’re successfully logged in to your LUIS.AI, it will provide a note to migrate (link-up) the LUIS.AI cognitive services to your Azure resources. If you have your Azure subscription to link-up, you may proceed to click on the migrate button, or else you can click on the migrate later button.


Now the LUIS.AI home page will look like what is shown in the below figure.

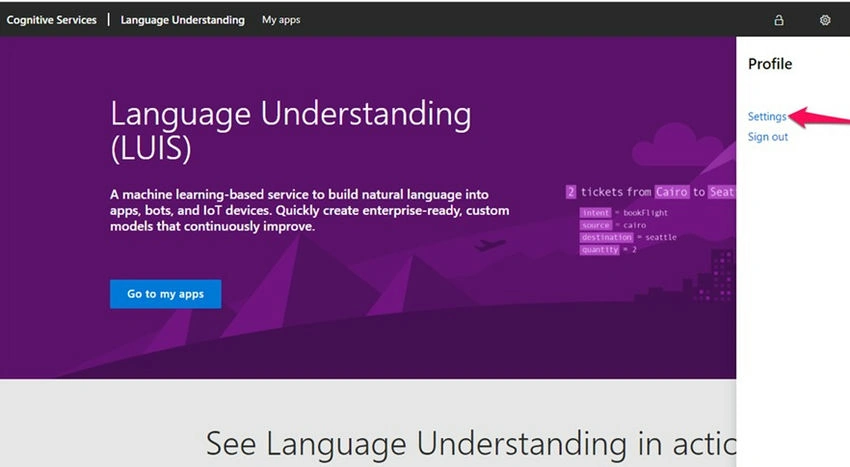

Go to the bottom right, you’ll see Profile details, Go to Settings


In this section, you’ll get information about the region, Primary key, Endpoint Url, Pricing Details and Linked Azure Resources Information.

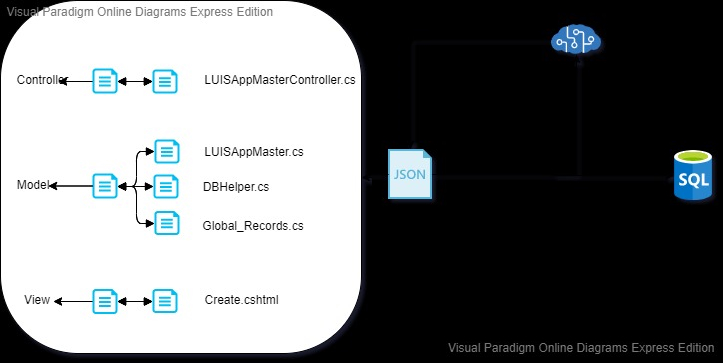

Our project flow is shown in the below screenshot:



Now it’s time to create a new project for LUIS.AI cognitive service's API.


Select ASP.Net Web Application using .Net Framework and click on the Next button.


Give a Valid Project Name and Location Path to save source files and Click on Create button.


Select MVC and click on the Create button.


The default MVC template will be created as shown in the below figure:

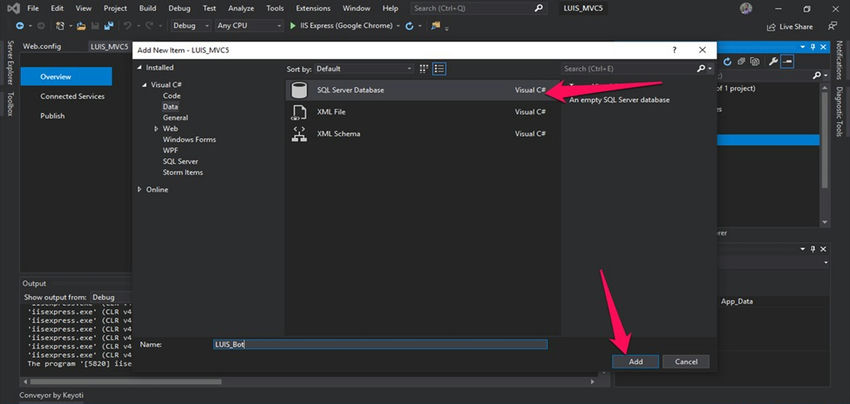

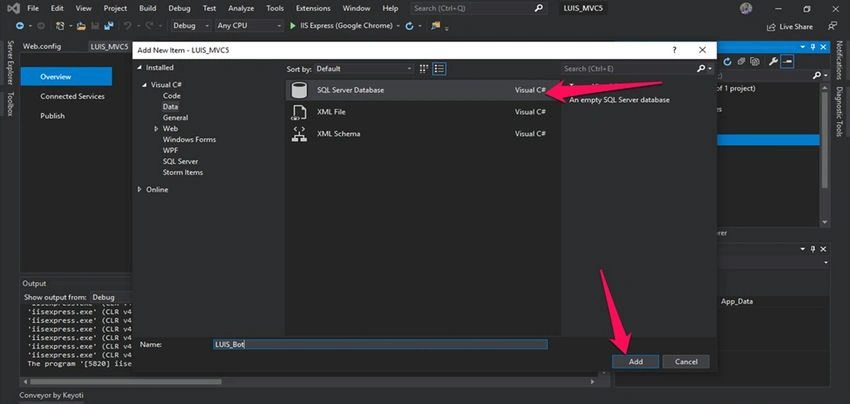

Here, I’m adding a local SQL database for maintaining all log information about the created LUIS.AI applications. The complete script will be available in the project file or GIT resource.


Go to the below link to learn more about cognitive services from Microsoft.

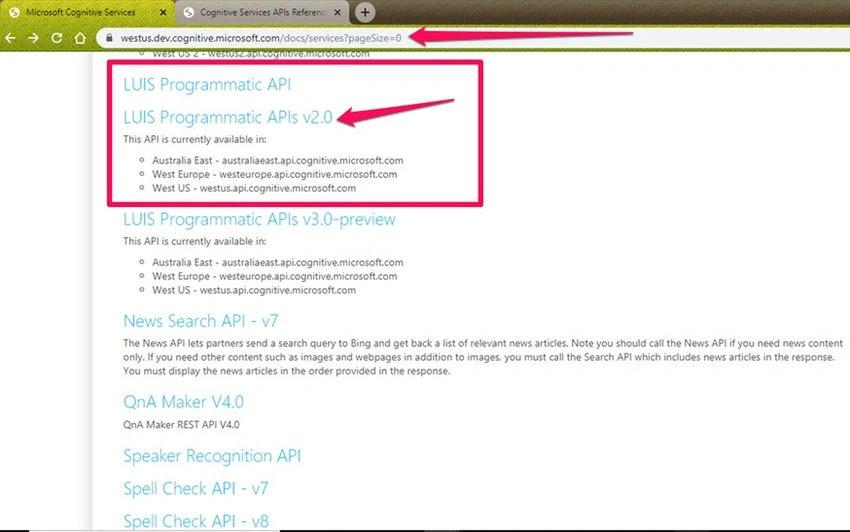

LUIS Programmatic API’s 2.0


https://westus.dev.cognitive.microsoft.com/docs/services/5890b47c39e2bb17b84a55ff/operations/5890b47c39e2bb052c5b9c2f

Add one model for LUIS Endpoint location as shown in the below figure.

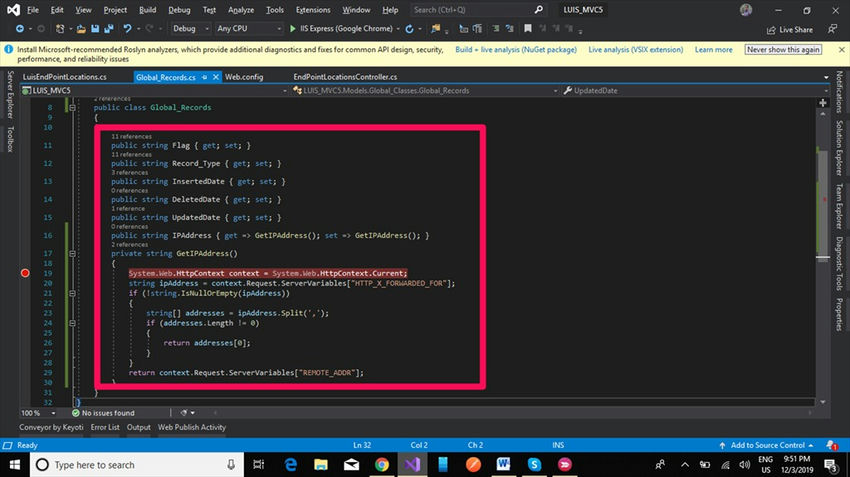

Global_Records class created log information for each and every transaction done by the user.

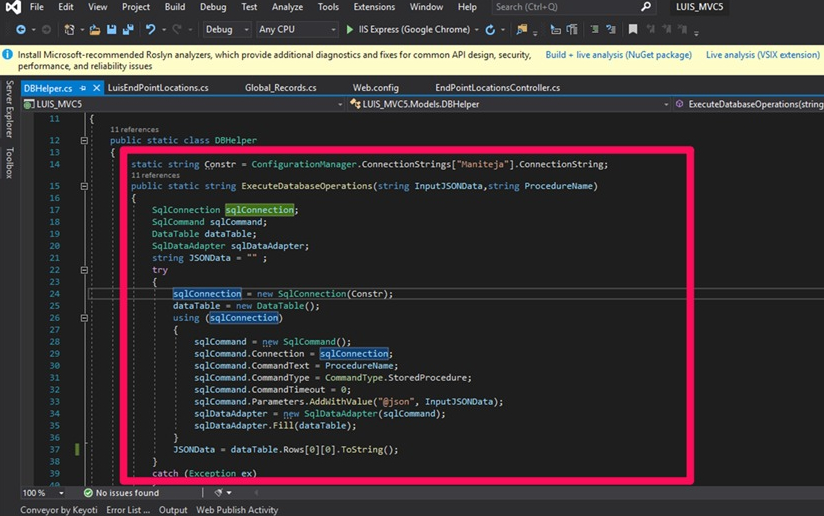

DBHelper.cs file created for database operations and code shown in the below figure.

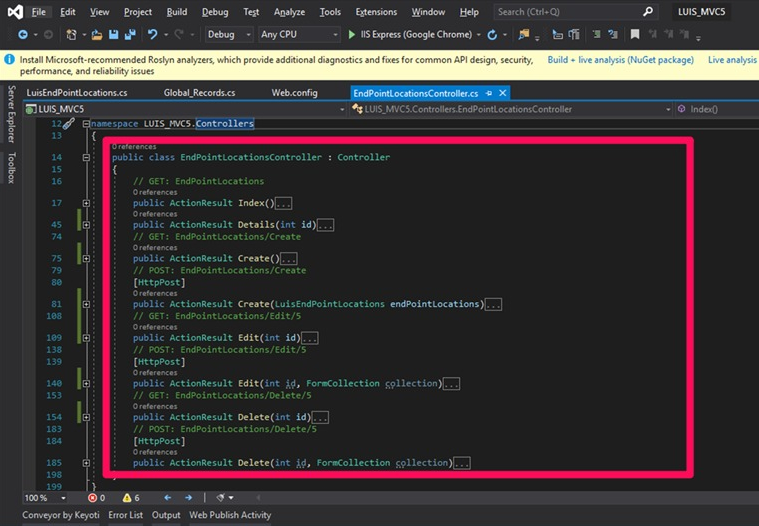

EndPointLocationsController created endpoint log information without using luis.ai API and maintaining it in our database.


LUISAppMaster.cs class created to maintain the LUIS application entities model. To access this file, download the solution file and go-to models.

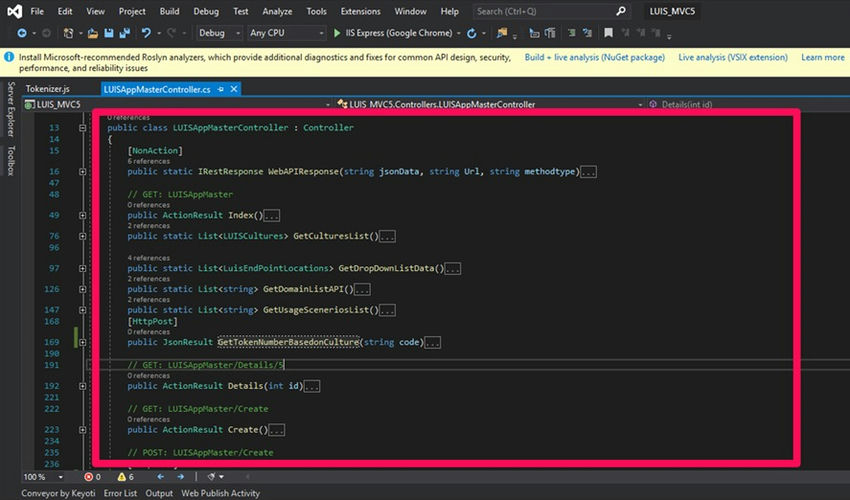

LUISAppMasterController.cs controller created for CRUD action methods for LUIS Applications.


Our design should be shown in the below figure:


For the above design, we require information about prebuilt LUIS.AI cultures, Token Version, Usage Scenario, Domain Name, EndPoint ID

Cultures: LUIS.AI API Link


Token Versions: LUIS AI API LINK

Based on the selected cultures, a tokenizer version number will be generated (In our developer language cascading dropdown list with selected culture).

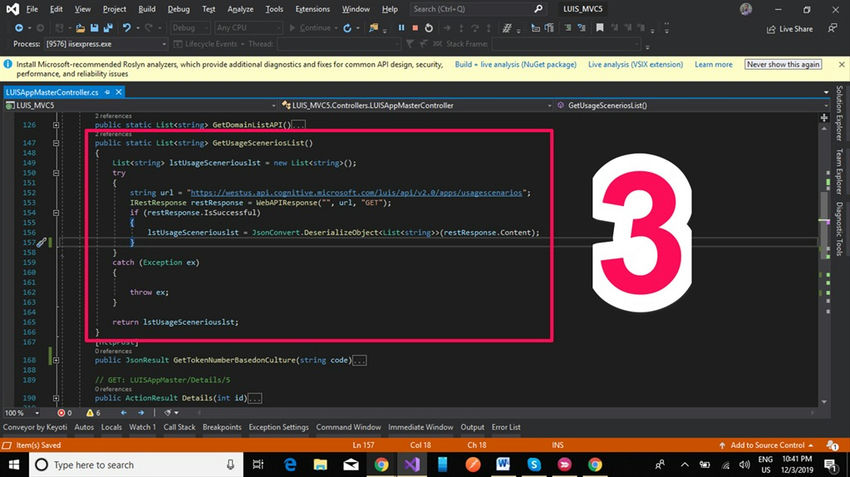

Usage Scenario: LUIS.AI API References Link


Domain: LUIS AI API References Link


Database Script
  1. CREATE TABLE [dbo].[LuisEndPointLocations] (
  2.     [LID]           INT            IDENTITY (1, 1) NOT NULL,
  3.     [LEndPoint]     NVARCHAR (MAXNULL,
  4.     [LEndPointUrl]  NVARCHAR (MAXNULL,
  5.     [LEndPointCode] NVARCHAR (MAXNULL,
  6.     [Record_Type]   CHAR (1)       NULL,
  7.     [InsertedDate]  DATETIME       NULL,
  8.     [DeletedDate]   DATETIME       NULL,
  9.     [UpdatedDate]   DATETIME       NULL,
  10.     [IPAddress]     NVARCHAR (MAXNULL,
  11.     PRIMARY KEY CLUSTERED ([LID] ASC)
  12. );
  13. Go
  14. CREATE TABLE [dbo].[LUISAppMaster] (
  15.     [AID]               INT            IDENTITY (1, 1) NOT NULL,
  16.     [AName]             NVARCHAR (MAXNULL,
  17.     [ADescription]      NVARCHAR (MAXNULL,
  18.     [ACulture]          NVARCHAR (MAXNULL,
  19.     [AtokenizerVersion] NVARCHAR (MAXNULL,
  20.     [AUsageScenario]    NVARCHAR (MAXNULL,
  21.     [Adomain]           NVARCHAR (MAXNULL,
  22.     [AinitialVersionId] NVARCHAR (MAXNULL,
  23.     [AppID]             NVARCHAR (MAXNULL,
  24.     [EndPointID]        INT            NULL,
  25.     [Record_Type]       NVARCHAR (MAXNULL,
  26.     [InsertedDate]      DATETIME       NULL,
  27.     [DeletedDate]       DATETIME       NULL,
  28.     [UpdatedDate]       DATETIME       NULL,
  29.     [IPAddress]         NVARCHAR (MAXNULL,
  30.     PRIMARY KEY CLUSTERED ([AID] ASC),
  31.     FOREIGN KEY ([EndPointID]) REFERENCES [dbo].[LuisEndPointLocations] ([LID])
  32. );
  33. Go
  34. /*
  35. Exec LocationEndpoint_CRUD '{
  36.   "LID": 1,
  37.   "Flag""R",
  38.   "Record_Type""N",
  39.   "InsertedDate""12/2/2019 1:19:29 AM"
  40. }'
  41. Exec LocationEndpoint_CRUD '{  "Flag": "R",  "LEndPoint": "ManiTeja",  "LEndPointUrl": "Maniteja Vegi",  "LEndPointCode": "VMT", "LID":"2"}'
  42. */
  43. CREATE Proc LocationEndpoint_CRUD
  44. (
  45. @json nvarchar(max)
  46. )
  47. as
  48. BEgin
  49. Declare @Flag char(1);
  50. Declare @LID int;
  51. Set @Flag =  JSON_VALUE(@json,'$.Flag') ;
  52. Set @LID =  JSON_VALUE(@json,'$.LID') ;
  53. --Select @Flag
  54.
  55. IF @Flag = 'I'
  56. BEGIN
  57. BEGIN TRY
  58. BEGIN TRANSACTION
  59. INSERT INTO LuisEndPointLocations Select * from OPENJSON(@json) with (
  60. LEndPoint nvarchar(max)
  61. ,LEndPointUrl nvarchar(max)
  62. ,LEndPointCode nvarchar(max)
  63. ,Record_Type char(1)
  64. ,InsertedDate datetime
  65. ,DeletedDate datetime
  66. ,UpdatedDate datetime
  67. ,IPAddress nvarchar(max)
  68. );
  69. COMMIT TRANSACTION
  70. Select '0' as ErrorCode,'Data Saved Successfully' as ErrorMessage FOR JSON  PATH
  71. END TRY
  72. BEGIN CATCH
  73. ROLLBACK TRANSACTION
  74. SELECT
  75.             ERROR_NUMBER() AS ErrorNumber
  76.             ,ERROR_SEVERITY() AS ErrorSeverity
  77.             ,ERROR_STATE() AS ErrorState
  78.             ,ERROR_PROCEDURE() AS ErrorProcedure
  79.             ,ERROR_LINE() AS ErrorLine
  80.             ,ERROR_MESSAGE() AS ErrorMessage FOR JSON PATH;
  81. END CATCH
  82.
  83. END
  84. IF @Flag = 'U'
  85. BEGIN
  86. BEGIN TRY
  87. BEGIN TRANSACTION
  88. update LuisEndPointLocations
  89. Set
  90. LEndPoint   = JSON_VALUE(@json,'$.LEndPoint')
  91. ,LEndPointUrl   = JSON_VALUE(@json,'$.LEndPointUrl')
  92. ,LEndPointCode  = JSON_VALUE(@json,'$.LEndPointCode')
  93. ,Record_Type   = JSON_VALUE(@json,'$.Record_Type')
  94. ,UpdatedDate   = JSON_VALUE(@json,'$.UpdatedDate')
  95. ,IPAddress    = JSON_VALUE(@json,'$.IPAddress')
  96. where LID =  JSON_VALUE(@json,'$.LID') ;
  97. COMMIT TRANSACTION
  98. Select '0' as ErrorNumber,'Data Updated Successfully' as ErrorMessage FOR JSON  PATH
  99. END TRY
  100. BEGIN CATCH
  101. ROLLBACK TRANSACTION
  102. SELECT
  103.             ERROR_NUMBER() AS ErrorNumber
  104.             ,ERROR_SEVERITY() AS ErrorSeverity
  105.             ,ERROR_STATE() AS ErrorState
  106.             ,ERROR_PROCEDURE() AS ErrorProcedure
  107.             ,ERROR_LINE() AS ErrorLine
  108.             ,ERROR_MESSAGE() AS ErrorMessage FOR JSON PATH;
  109.
  110. END CATCH
  111. END
  112. IF @Flag = 'D'
  113. BEGIN
  114. BEGIN TRY
  115. BEGIN TRANSACTION
  116. Update LuisEndPointLocations
  117. set Record_Type   = JSON_VALUE(@json,'$.Record_Type') ,
  118. DeletedDate   = JSON_VALUE(@json,'$.DeletedDate')
  119. where LID =  JSON_VALUE(@json,'$.LID') ;
  120. COMMIT TRANSACTION
  121. Select '0' as ErrorNumber,'Data Deleted Successfully' as ErrorMessage FOR JSON  PATH
  122. END TRY
  123. BEGIN CATCH
  124. ROLLBACK TRANSACTION
  125. END CATCH
  126. END
  127. IF @Flag = 'R'
  128. BEGIN
  129. IF @LID = 0
  130. BEGIN
  131. Select * from LuisEndPointLocations where Record_Type = 'L' for JSON PATH
  132. END
  133. ELSE
  134. BEGIN
  135. Select * from LuisEndPointLocations where LID =  JSON_VALUE(@json,'$.LID')  for JSON PATH
  136. END
  137. END
  138. end
  139.
  140. Go
  141. /*
  142. Exec LUISAppMaster_CRUD '{
  143.   "AName""Test",
  144.   "ADescription""test",
  145.   "ACulture""en-us",
  146.   "AtokenizerVersion""1.0.0",
  147.   "AUsageScenario""IoT",
  148.   "Adomain""Booking & Reference",
  149.   "AinitialVersionId""1",
  150.   "EndPointID": 1,
  151.   "AppID""XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
  152.   "Flag""I",
  153.   "Record_Type""L",
  154.   "InsertedDate""12/1/2019 5:35:20 PM"
  155. }'
  156. */
  157. CREATE Proc LUISAppMaster_CRUD
  158. (
  159. @json nvarchar(max)
  160. )
  161. as
  162. BEgin
  163. Declare @Flag char(1);
  164. Declare @AID int;
  165. Set @Flag =  JSON_VALUE(@json,'$.Flag') ;
  166. Set @AID =   JSON_VALUE(@json,'$.AID') ;
  167. --Select @Flag
  168.
  169. IF @Flag = 'I'
  170. BEGIN
  171. BEGIN TRY
  172. BEGIN TRANSACTION
  173. INSERT INTO LUISAppMaster Select * from OPENJSON(@json) with (
  174. AName nvarchar(max)
  175. ,ADescription nvarchar(max)
  176. ,ACulture nvarchar(max)
  177. ,AtokenizerVersion nvarchar(max)
  178. ,AUsageScenario nvarchar(max)
  179. ,Adomain nvarchar(max)
  180. ,AinitialVersionId nvarchar(max)
  181. ,AppID nvarchar(max)
  182. ,EndPointID int
  183. ,Record_Type nvarchar(max)
  184. ,InsertedDate datetime
  185. ,DeletedDate datetime
  186. ,UpdatedDate datetime
  187. ,IPAddress nvarchar(max)
  188. );
  189. Select '0' as ErrorNumber,'Data Saved Successfully' as ErrorMessage FOR JSON  PATH
  190. COMMIT TRANSACTION
  191. END TRY
  192. BEGIN CATCH
  193. ROLLBACK TRANSACTION
  194.  SELECT
  195.             ERROR_NUMBER() AS ErrorNumber
  196.             ,ERROR_SEVERITY() AS ErrorSeverity
  197.             ,ERROR_STATE() AS ErrorState
  198.             ,ERROR_PROCEDURE() AS ErrorProcedure
  199.             ,ERROR_LINE() AS ErrorLine
  200.             ,ERROR_MESSAGE() AS ErrorMessage FOR JSON PATH;
  201. END CATCH
  202. END
  203. IF @Flag = 'U'
  204. BEGIN
  205. BEGIN TRY
  206. BEGIN TRANSACTION
  207. update LUISAppMaster
  208. Set
  209. AName    =   JSON_VALUE(@json,'$.AName')
  210. ,ADescription  =   JSON_VALUE(@json,'$.ADescription')
  211. ,Record_Type   =   JSON_VALUE(@json,'$.Record_Type')
  212. ,UpdatedDate   =   JSON_VALUE(@json,'$.UpdatedDate')
  213. ,IPAddress   =   JSON_VALUE(@json,'$.IPAddress')
  214. where AID =  JSON_VALUE(@json,'$.AID') ;
  215. Select '0' as ErrorNumber,'Data Updated Successfully' as ErrorMessage FOR JSON  PATH
  216. COMMIT TRANSACTION
  217. END TRY
  218. BEGIN CATCH
  219. ROLLBACK TRANSACTION
  220. SELECT
  221.             ERROR_NUMBER() AS ErrorNumber
  222.             ,ERROR_SEVERITY() AS ErrorSeverity
  223.             ,ERROR_STATE() AS ErrorState
  224.             ,ERROR_PROCEDURE() AS ErrorProcedure
  225.             ,ERROR_LINE() AS ErrorLine
  226.             ,ERROR_MESSAGE() AS ErrorMessage FOR JSON PATH;
  227. END CATCH
  228. END
  229. IF @Flag = 'D'
  230. BEGIN
  231. BEGIN TRY
  232. BEGIN TRANSACTION
  233. Update LUISAppMaster
  234. set Record_Type   = JSON_VALUE(@json,'$.Record_Type') ,
  235. DeletedDate   = JSON_VALUE(@json,'$.DeletedDate')
  236. where AID =  JSON_VALUE(@json,'$.AID') ;
  237. Select '0' as ErrorNumber,'Data Deleted Successfully' as ErrorMessage FOR JSON  PATH
  238. COMMIT TRANSACTION
  239. END TRY
  240. BEGIN CATCH
  241. ROLLBACK TRANSACTION
  242. SELECT
  243.            ERROR_NUMBER() AS ErrorNumber
  244.             ,ERROR_SEVERITY() AS ErrorSeverity
  245.  ,ERROR_STATE() AS ErrorState
  246.             ,ERROR_PROCEDURE() AS ErrorProcedure
  247.             ,ERROR_LINE() AS ErrorLine
  248.             ,ERROR_MESSAGE() AS ErrorMessage FOR JSON PATH;
  249. END CATCH
  250. END
  251. IF @Flag = 'R'
  252. BEGIN
  253. IF @AID != 0
  254. BEGIN
  255. Select * from LUISAppMaster where AID =  JSON_VALUE(@json,'$.AID')  for JSON PATH
  256. END
  257. ELSE
  258. BEGIN
  259. Select * from LUISAppMaster where AID = 'L' for JSON PATH
  260. END
  261. END
  262. end
Our LUIS.AI project is done. If you want to check the output, you need to download the source code and replace the Primary key (Authoring Key) from th LUIS.AI portal, run DB Script into your database, and run the application.

Happy Coding...
