Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

This article will help you learn how to back up a single content database in SharePoint 2016 and restore the database on your SharePoint 2019 Server environment.

SharePoint 2019 supports content database migration from the SharePoint 2016 environment into the SharePoint 2019 environment.

Step 1

First, take a content database backup from SP 2016. Please follow the steps below.
  1. Go to the central admin and click on “Manage Content Databases”.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration
  2. Select the web application for which you need the content database backup.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

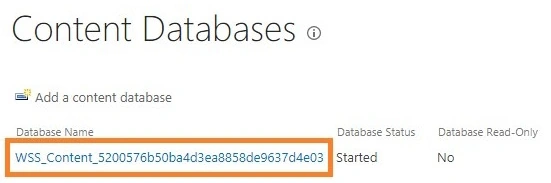

  3. Copy the Content Database name. Then select the Content Database.
    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

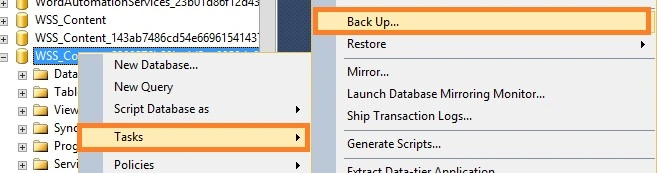

  4. Open the SQL server management studio. Expand the database. Select the database. Right-click on it. Select the Tasks > Back Up.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

  5. It will navigate to the following window. Select the below location.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

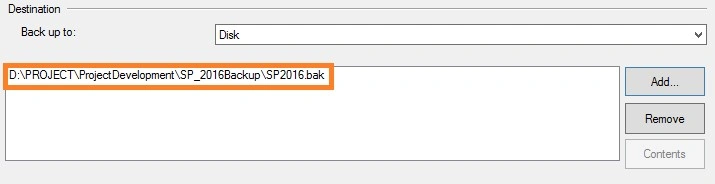

  6. Remove this path and add the path where you want to keep your back up (.bak) file.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

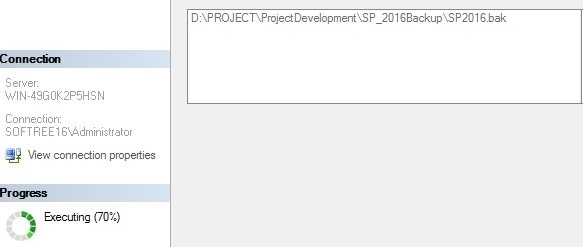

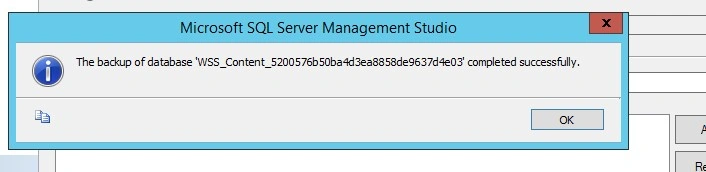

  7. Now, click on the OK button and wait till the backup completes successfully.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

  8. Once complete you can see your .bak file in the location which you have set above.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration
Step 2

Create a new web application on the SP 2019 environment. To create a new web application navigate to central admin and clicks on “Manage web application”.

Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

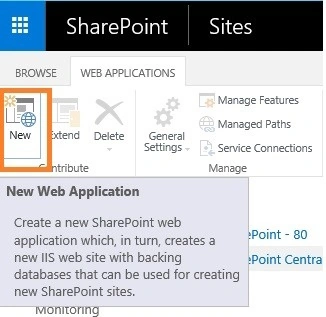

And now, click the “New” ribbon button.

Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

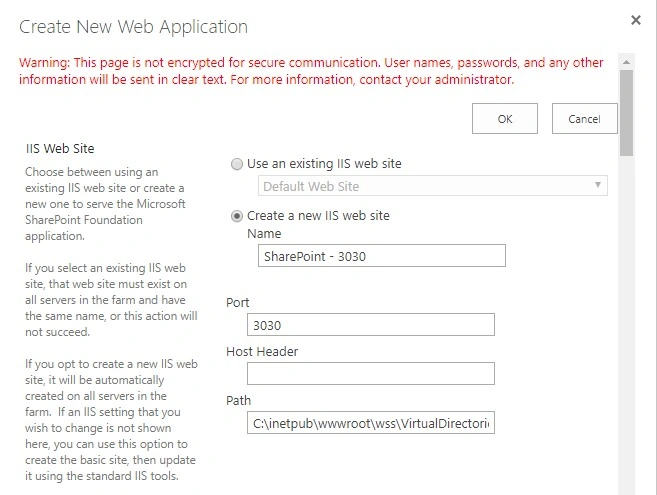

A modal dialog will appear. Please provide all the necessary information.

Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

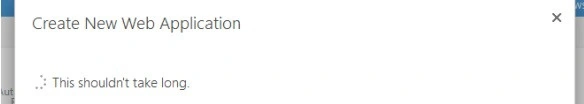

Now, please wait until the processing is finished.

Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

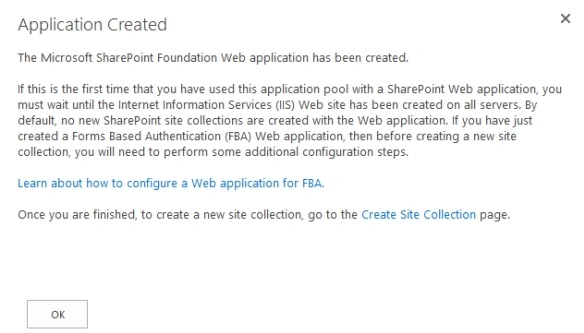

Finally, you can see your new web application has been successfully created on your end.

Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

After creating the web application follow these steps as mentioned below.
  • Select Application Management then Select the Manage Content Database under the Databases.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

  • Select the web application you have created.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration
  • Then click on the Content Database name (copy the name of the database to use it later on), it will take you to the Manage Content Database Settings page.

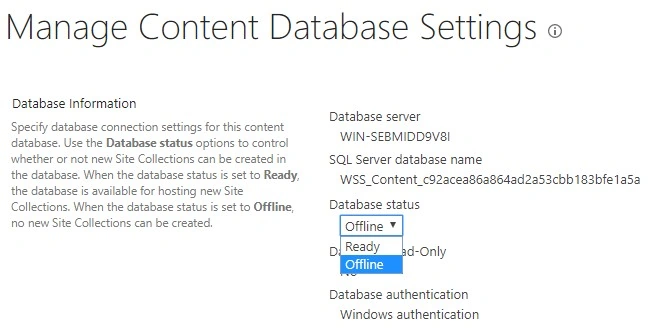

Under the Database Status, select the “Offline” option from the dropdown list.

Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

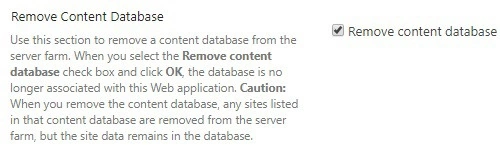

Check the Check Mark in the "Remove content database" checkbox.

Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration
A prompt will come, select OK on that. Now the content database is removed from the web application.

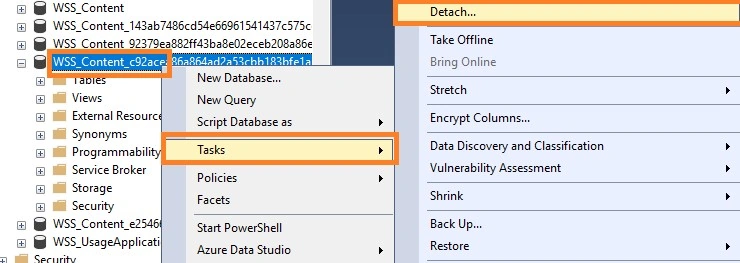

  • To detach the Content Database from SQL Server Management Studio please follow the steps: Connect the SQL Server Management Studio => Expand the Database. => Select the content database name that you have copied previously=>Right click on SQL => Tasks= > Detach

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

    Check the checkbox in the Drop and click Ok.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration
Step 3

Restore the 2016 database.

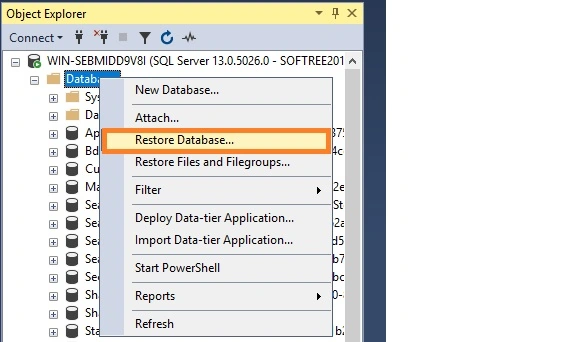

  • Right Click on Database and select Restore.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

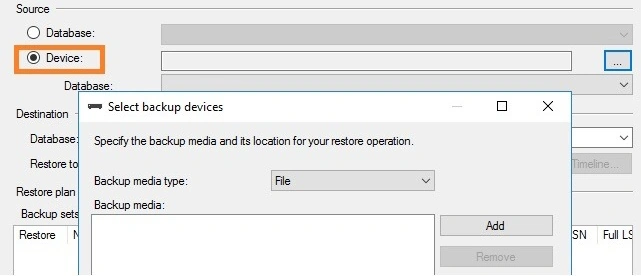

  • Now select the “Device” radio button and browse the path where you have kept the SP2016 backup file.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

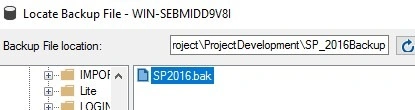

  • Select the file from the folder.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

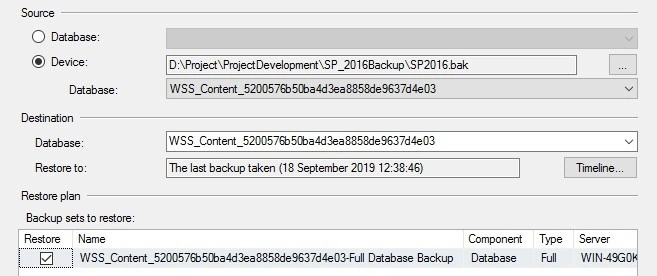

  • Now, you can see a similar window as shown below. Please verify the things and then click on the “Ok” button.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

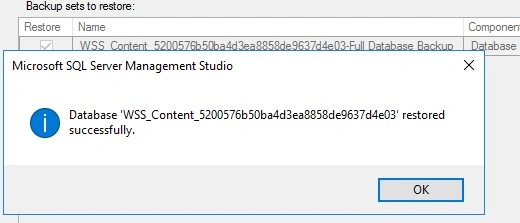

    Please wait for it to successfully restore the database on your SP2019 SQL Server environment.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration
Step 4

Now, the time has come to associate and upgrade this content database to SP2019 newly created web application. Please use this below command to mount the database to a new web application.
  • Open the SharePoint 2019 Management Shell as “Run as Administrator”.

    Mount-SPContentDatabase “<DatabaseName>” -DatabaseServer “<Db server name>” –WebApplication “<webapplication url>”

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

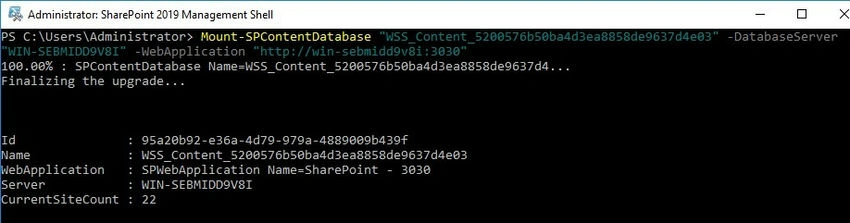

  • Once the command executes successfully, then you will get a message, as shown below.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration

    This command will upgrade the database and attach this content database to the web application.

    If required, upgrade the service applications.

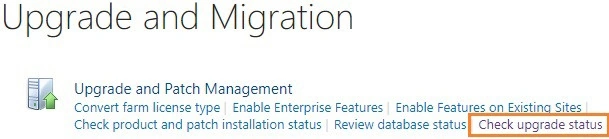

  • If you get any errors while executing the above command then please refer to the log file to get more details. Please click on « Upgrade and Migration » and then click on « Check Upgrade Status » from Central Administration.

    Migrate SharePoint 2016 To SharePoint 2019 Environment Using Content Database Migration
