Mobile_Joystick_Controller Using C# Scripts In Unity

Introduction


This article is about using  Mobile_ Joystick_Controller in Unity.

Prerequisites

Unity Environment version 2018.4.19f1

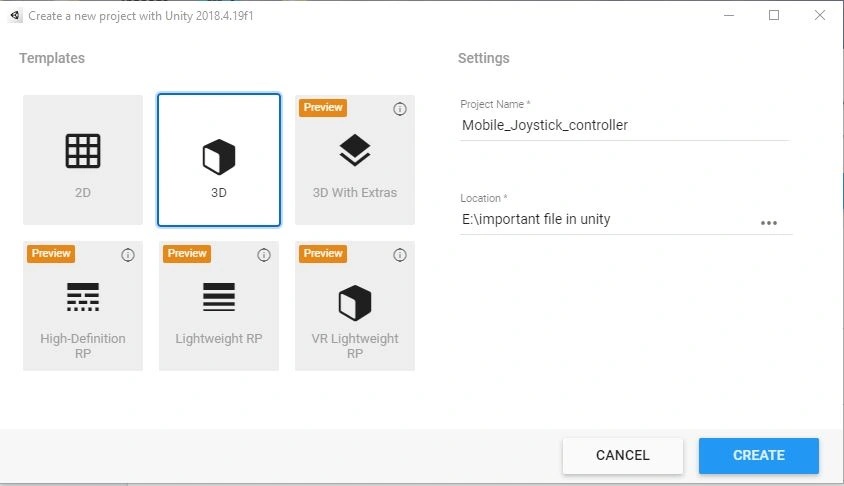

Create the project


 Mobile_Joystick_Controller Using C# Scripts In Unity

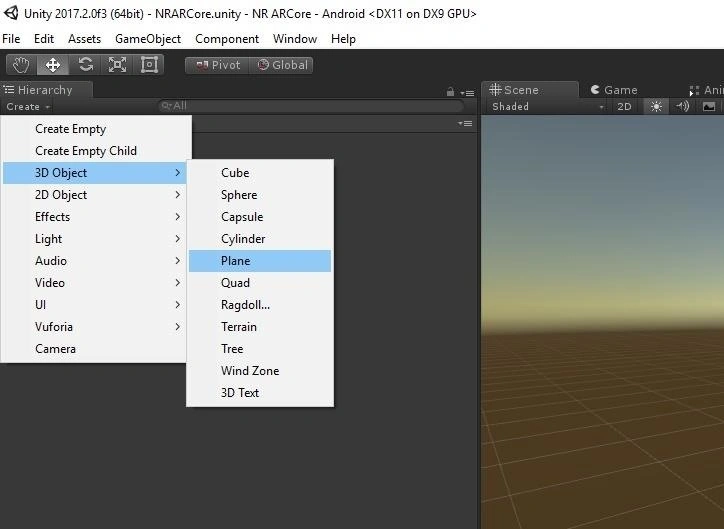

First, you have to open the Unity project. Create a plane in your project.

 Mobile_Joystick_Controller Using C# Scripts In Unity

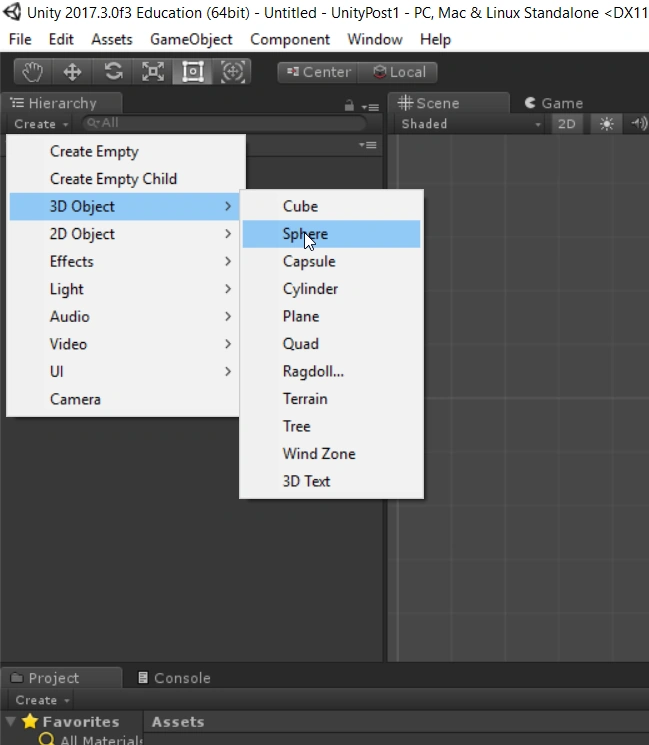

Create a sphere in your project.

Click on the "GameObject" menu in the menu bar. Select Create 3D object (Sphere). The Create Sphere will be added to the scene View.

 Mobile_Joystick_Controller Using C# Scripts In Unity

Create the Canvas

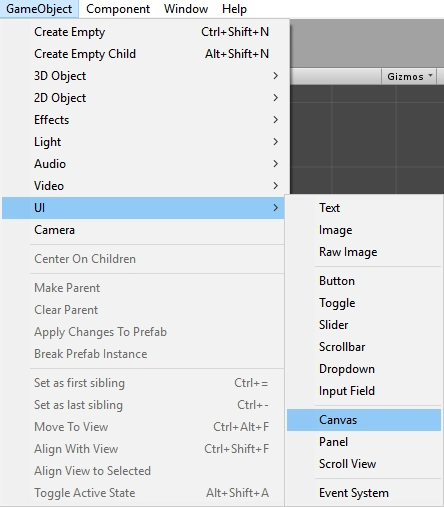

Click on the "GameObject" menu in the menu bar. Select Create UI (Canvas). The Create canvas will be added to the scene View.

 Mobile_Joystick_Controller Using C# Scripts In Unity

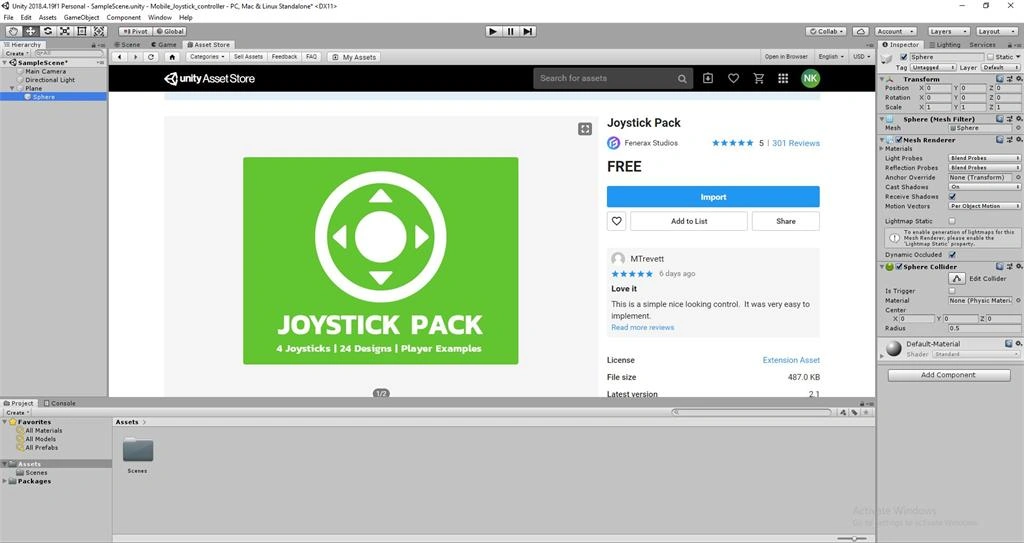

Click on the Asset Store. Click on the "Import Joystick Pack".

 Mobile_Joystick_Controller Using C# Scripts In Unity

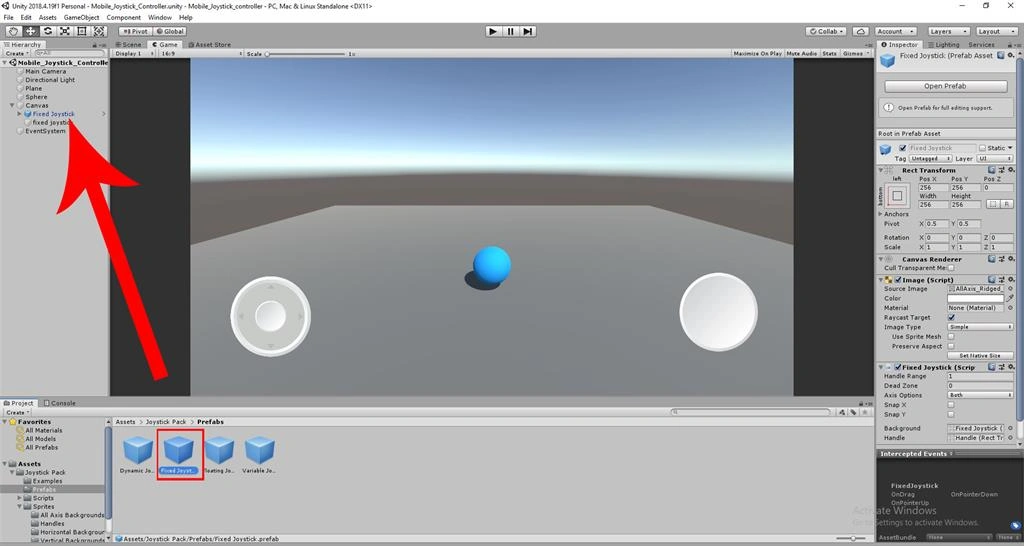

Drag and drop the Fixed Joystick scripts to Canvas in this scene view.

 Mobile_Joystick_Controller Using C# Scripts In Unity

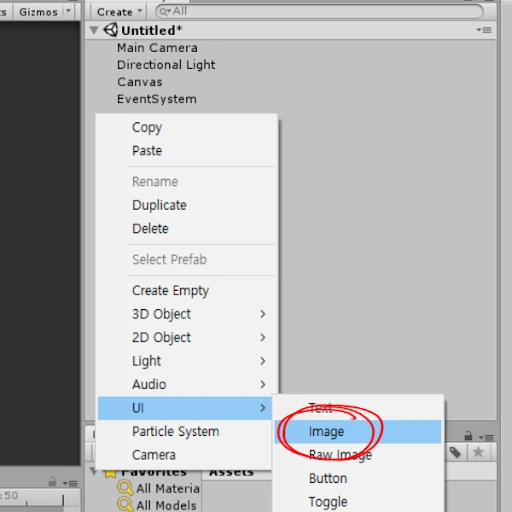

Click on the "GameObject" menu in the menu bar. Select Create UI (Image). The Create Image will be added to the scene View.

 Mobile_Joystick_Controller Using C# Scripts In Unity

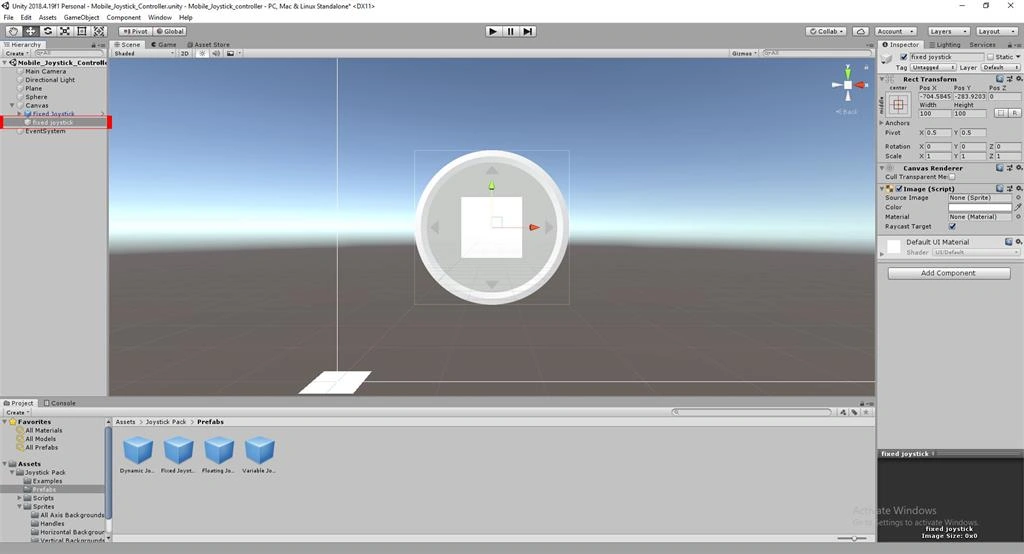

Rename the Image as fixed joystick

 Mobile_Joystick_Controller Using C# Scripts In Unity


Create C# Script

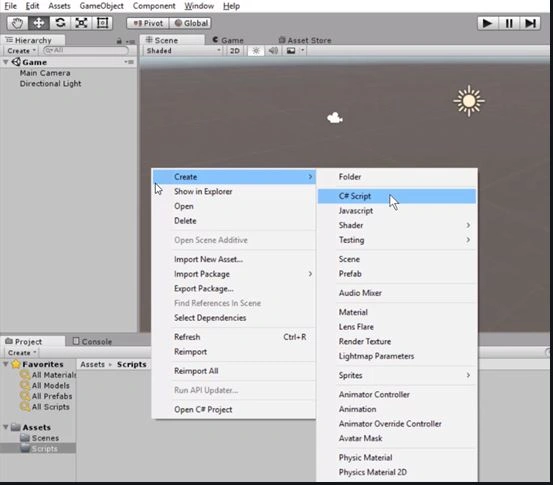

Right click on Assets. Select Create >> C# script

 Mobile_Joystick_Controller Using C# Scripts In Unity

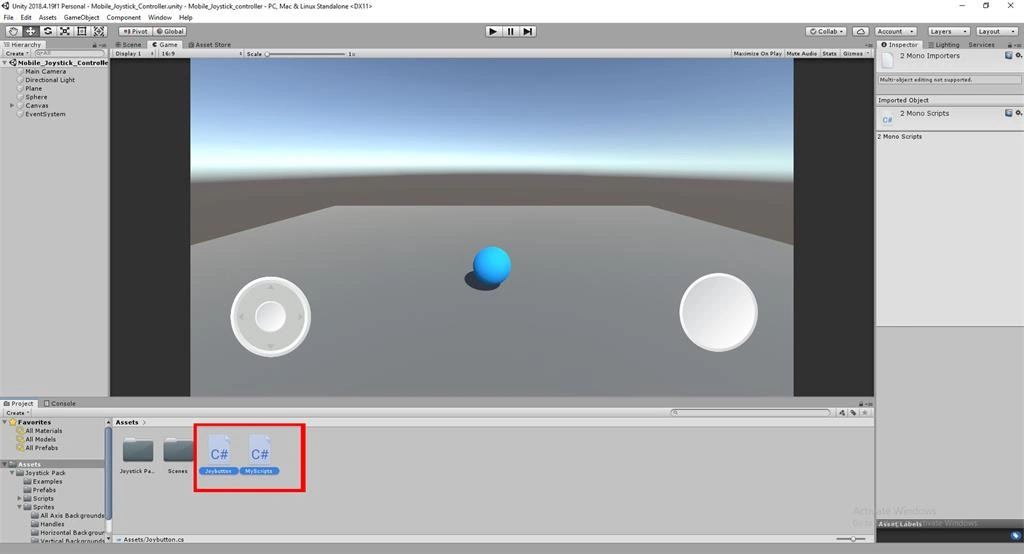

Rename the script as Joybutton & My scripts.

 Mobile_Joystick_Controller Using C# Scripts In Unity

Write the coding like the following,

Double click on the Joybutton. The MonoDevelop-Unity editor will open up.
  1. using UnityEngine;
  2. using UnityEngine.EventSystems;
  3. public class Joybutton: MonoBehaviour, IPointerUpHandler, IPointerDownHandler {
  4.     [HideInInspector]
  5.     public bool pressed;
  6.     // Start is called before the first frame update
  7.     void Start() {}
  8.     // Update is called once per frame
  9.     void Update() {}
  10.     public void OnPointerDown(PointerEventData eventData) {
  11.         pressed = true;
  12.     }
  13.     public void OnPointerUp(PointerEventData eventData) {
  14.         pressed = false;
  15.     }
  16. }
Save the program.

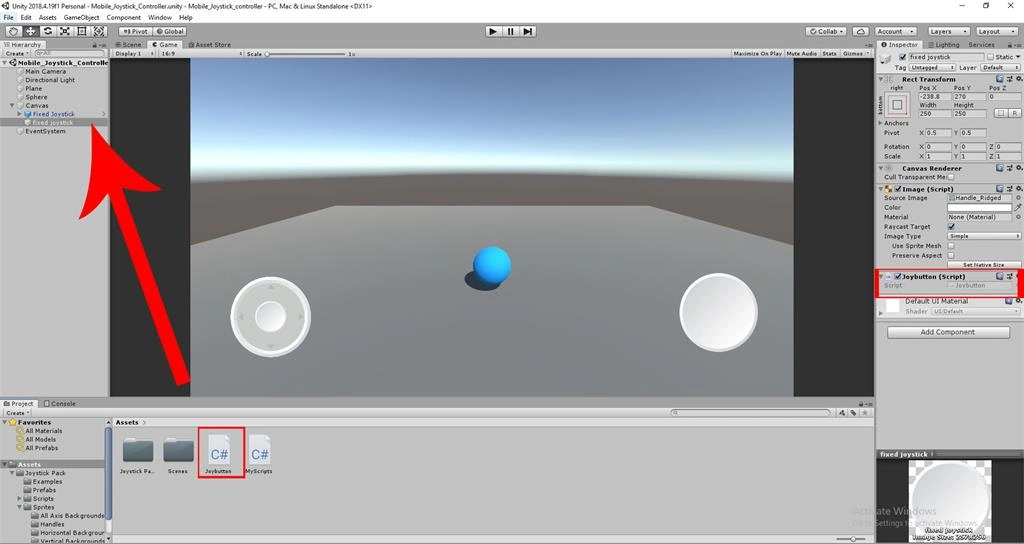

Drag and drop the Joybutton scripts to Fixed Joystick in Mobile_Joystick_Controller scene view.

 Mobile_Joystick_Controller Using C# Scripts In Unity

Write the coding like the following,

Double click on the Myscripts . The MonoDevelop-Unity editor will open up
  1. using System.Collections;
  2. using System.Collections.Generic;
  3. using UnityEngine;
  4. public class MyScripts: MonoBehaviour {
  5.     protected Joystick joystick;
  6.     protected Joybutton joybutton;
  7.     protected bool jump;
  8.     //public float Horizontal { get; private set; }
  9.     // Start is called before the first frame update
  10.     void Start() {
  11.         joystick = FindObjectOfType < Joystick > ();
  12.         joybutton = FindObjectOfType < Joybutton > ();
  13.     }
  14.     // Update is called once per frame
  15.     void Update() {
  16.         var rigidbody = GetComponent < Rigidbody > ();
  17.         rigidbody.velocity = new Vector3(joystick.Horizontal * 10 f + (Input.GetAxis("Horizontal") * 10 f), rigidbody.velocity.y, joystick.Vertical * 10 f + Input.GetAxis("Vertical") * 10 f);
  18.         if (!jump && (joybutton.pressed || Input.GetButton("Fire2"))) {
  19.             jump = true;
  20.             rigidbody.velocity += Vector3.up * 10 f;
  21.         }
  22.         if (jump && !joybutton.pressed || Input.GetButton("Fire2")) {
  23.             jump = false;
  24.         }
  25.     }
  26. }
Save the program.

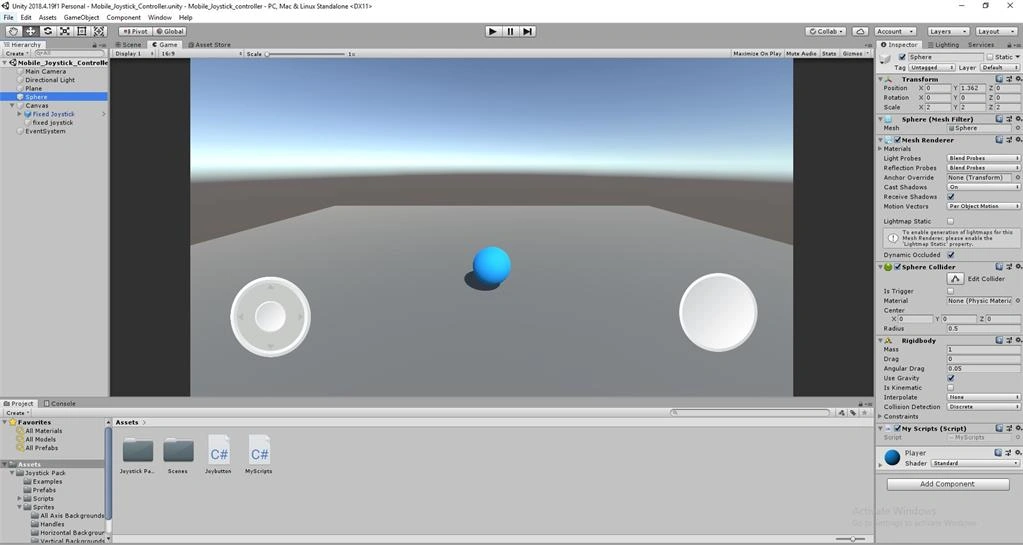

Go back to Unity. Click on the Myscripts script.Drag and drop the Myscripts script to Sphere in Mobile_Joystick_Controller scene view.

 Mobile_Joystick_Controller Using C# Scripts In Unity

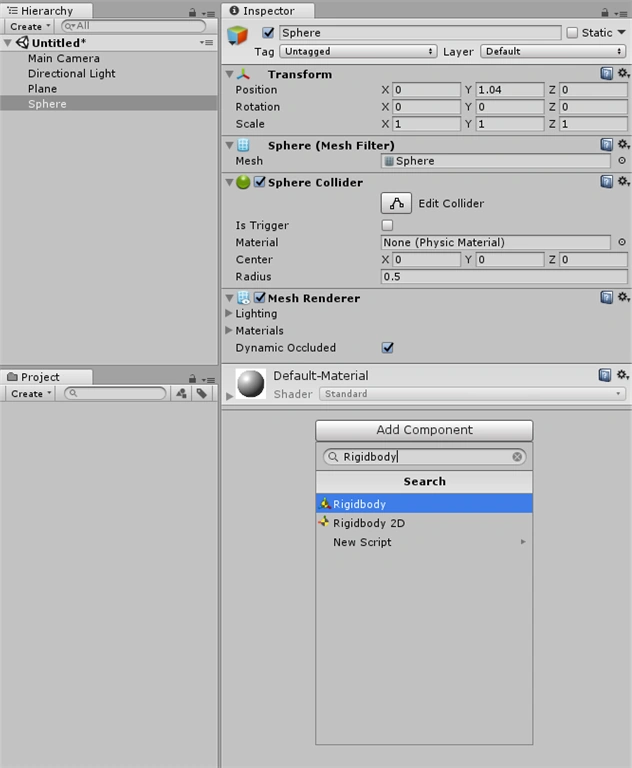

Add the rigidbody onto the Sphere

 Mobile_Joystick_Controller Using C# Scripts In Unity

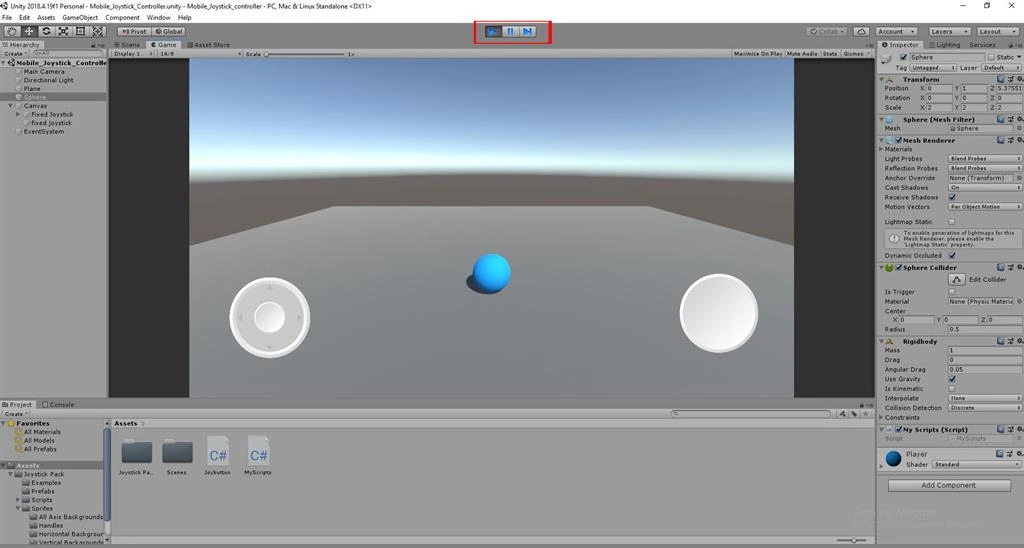

Run the app, and you will able to see a floating Mobile_Joystick_Controller.

 Mobile_Joystick_Controller Using C# Scripts In Unity


Summary


I hope you understood how to input through Mobile_Joystick_Controller in Unity.
