Modern SharePoint Online Document Set

Introduction



In this article, we explore the modern SharePoint online document set. A Document Set is a group of related documents that you can manage as a single entity. You can create a Document Set in a single step, and then define its characteristics and metadata.



Enabling Document Sets in SharePoint Online Sites



By default, the document set content type is not enabled. It is a Site Collection feature and must be manually activated before you can proceed and start creating it. Follow the below steps,



Click Gear Icon > Site Information > View all site settings



Under the Site Collection Administration section, click on Site collection features

• Scroll until Document Sets row and click Activate. Your document set content type is now activated, and you can proceed to the next step! Under theSite Collection Administration section, click on Site collection features



Find the Document Sets feature and clicks Activate. Your document set content type is now activated, and you can proceed to the next step!





Create a Document Set Content-Type



First, you need to create a content type – you do that at the Site level.



Click  the Gear Icon > Site Settings



Under Web Designer Galleries, choose Site content types

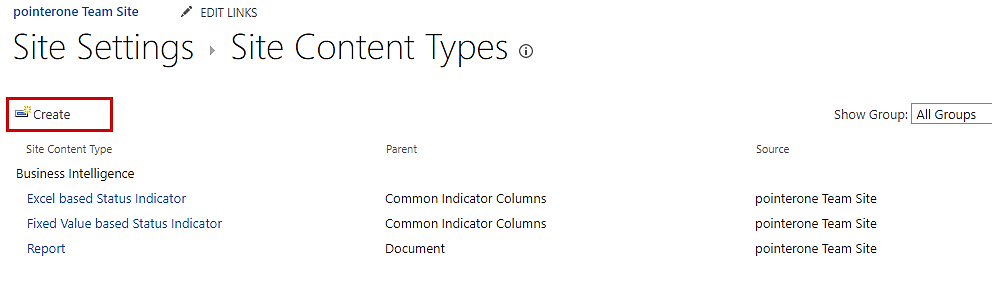

After click the below screen appear ->click Create Link

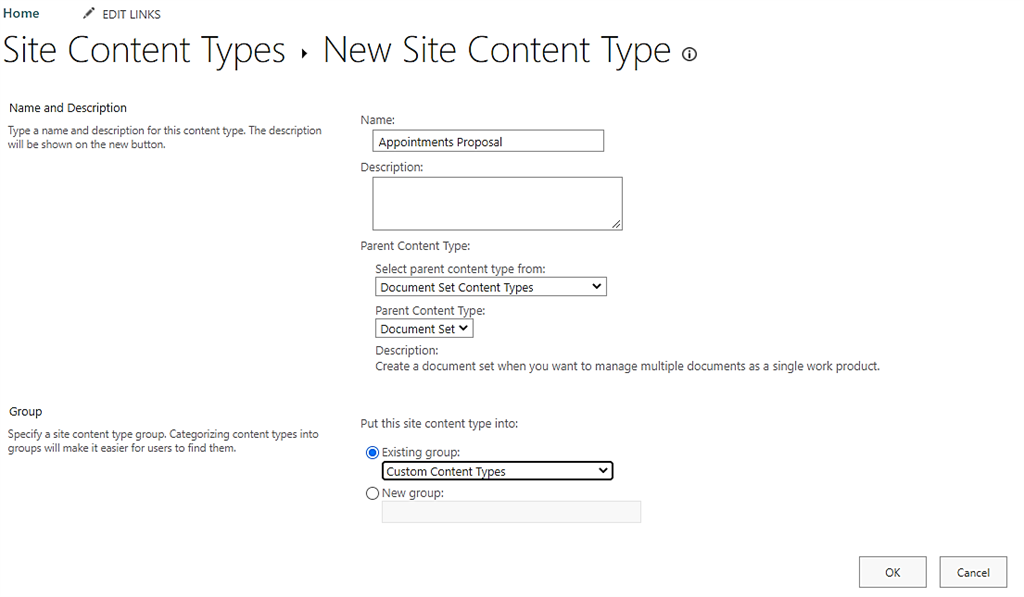

On the next screen give your Document Set a name in the Name field.



Select Document Set Content Types in the Select parent content type from drop-down field and select Document Set in the Parent Content Type drop-down field.



Click on ok button





Add Site Columns to the Content-Type

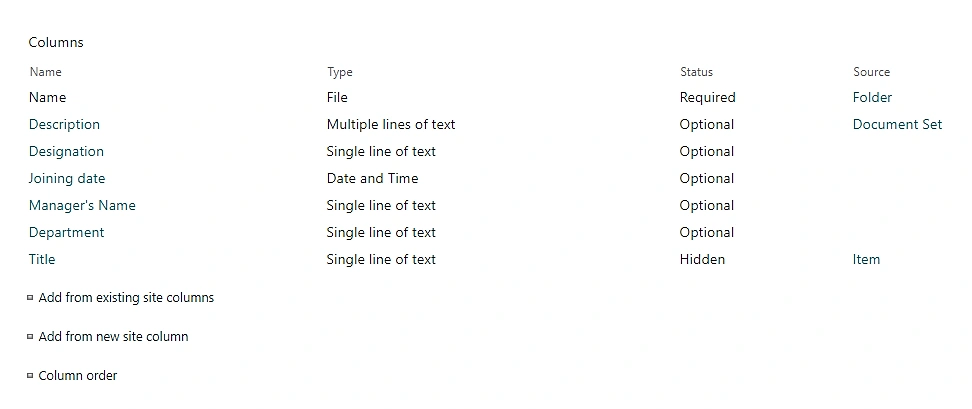

After the content type is created, start adding metadata to it by clicking the "Add a new site column" link from the content type settings page. In my case, I've added site columns such as Designation, Joining, Manager's, Department, etc to the content type.

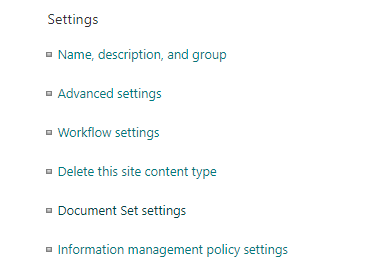

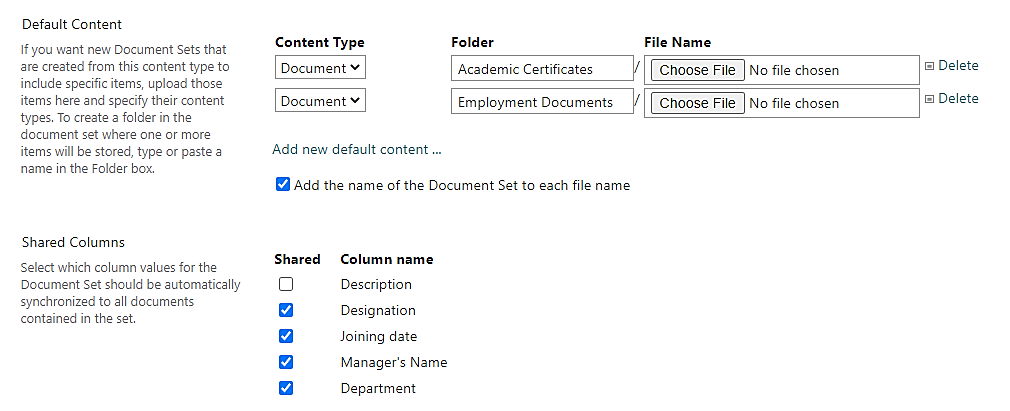

On the content type settings, click on "Document Set settings" and upload document templates. Optionally, you can set Shard columns and Welcome Page columns





Create “Employment Appointment “Document Library configured Created Document Set Content-Type

• Navigate to the Document Library setting
• On the General Settings Category section, click on the "Advanced Settings" link under the General Settings section.
• On the Content-Type section, select Yes to allow the editing of content types. Click OK Button. You'll notice a new section "Content Types" in library settings.

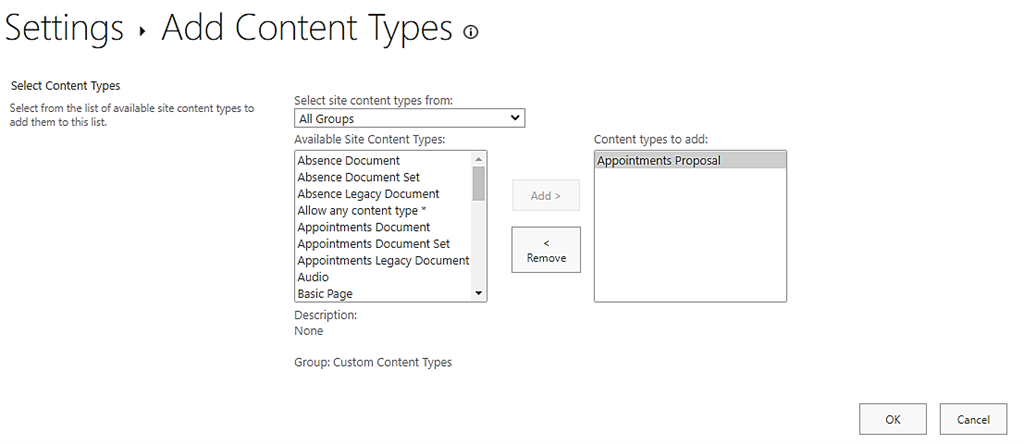

• Click the "Add from existing site content types" link. On the Add Content Types page, Select the created Document Set content type, click the Add button, and then click OK.



Implementation to Create New Document Set

To create a new Document Set, do the following steps

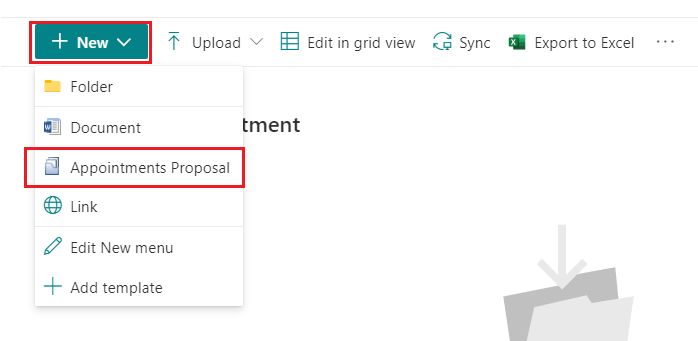

• Click "New" from the Document Library >> Select the document set we added to the library

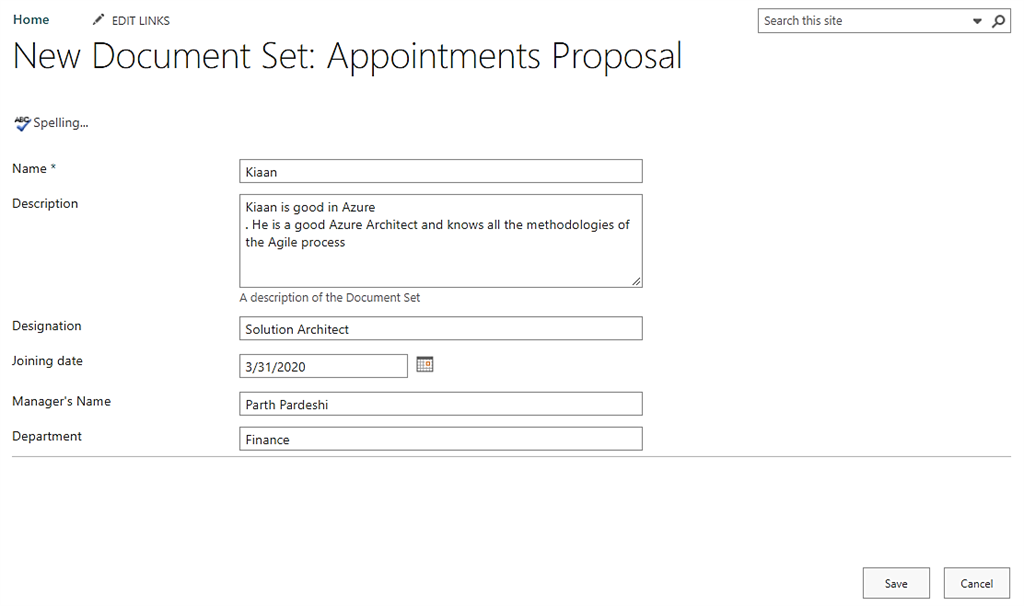

• After clicking the Appointment proposal document set below screen appear where we can fill the properties with the document set and click OK to create a document set.

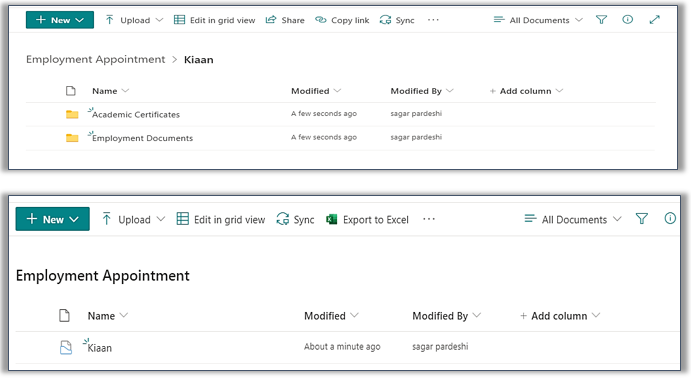

• After clicking the save button the below screen appears with folders
