Multibinding and IMultiValueConverter in WPF

Introduction

In some cases we might have several fields in your data model that represent a name (first name, middle name and last name) that you want to combine into a single entry in a list. Multibinding takes multiple values and combines them into another value. There are two ways to do multibinding, either using StringFormat or by a converter. The StringFormat is simple compared to a converter, so we will start with that first.

<TextBlock>
<TextBlock.Text>
<MultiBinding StringFormat=" {0}, {1}, {2}">
<Binding ElementName="ThisWindow" Path="FirstName"/>
<Binding ElementName="ThisWindow" Path="MiddleName"/>
<Binding ElementName="ThisWindow" Path="LastName"/>
</MultiBinding>
</TextBlock.Text>
</TextBlock>

Here the {0} ,{1}, {2} values will be replaced at runtime with FirstName, MiddleName, LastName.

Using Converter

The converter must be derived from IMultiValueConverter and is very similar to a converter derived from IValueConverter, except that instead of having a single value as an argument, it takes multiple arguments.

public class TotalConverter : IMultiValueConverter
{
public object Convert(object[] values, Type targetType, object parameter, System.Globalization.CultureInfo culture)
{
decimal Amount = 0;
decimal Discount = 0;
string TotalAmount = string.Empty;
Amount = (values[0] != null && values[0] != DependencyProperty.UnsetValue) ? System.Convert.ToDecimal(values[0]) : 0;
Discount = (values[0] != null && values[1] != DependencyProperty.UnsetValue) ? System.Convert.ToDecimal(values[1]) : 0;
TotalAmount = System.Convert.ToString(Amount - Discount);
return TotalAmount;
}
public object[] ConvertBack(object value, Type[] targetTypes, object parameter, System.Globalization.CultureInfo culture)
{
throw new NotImplementedException();
}
}

Here in the value field we will get multiple values (amount and discount), after conversation the single value will be returned.

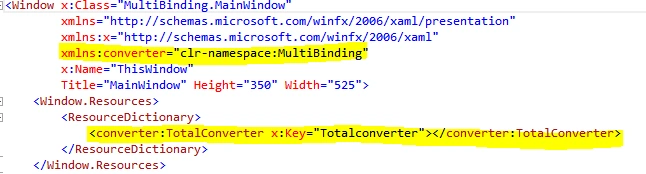

Now we have a MultiValue converter, we need to create an instance of it in a XAML resource.

xml code

We put in the main Window tag to remind you to put in the converter namespace. Then we instantiate the converter as a resource with a name. Now we can do our multibinding.

<TextBox Margin="2" MinWidth="120" Grid.Row="1" Grid.Column="1">
<TextBox.Text>
<MultiBinding Converter="{StaticResource Totalconverter }">
<Binding Path="Amount" ElementName="ThisWindow"/>
<Binding Path="Discount" ElementName="ThisWindow"/>
</MultiBinding>
</TextBox.Text>
</TextBox>

Here we have the two properties (Amount and Discount), these properties are bound to the TextBox and implemented TotalConverter.

In MainWindow.xaml.cs:

public partial class MainWindow : Window, INotifyPropertyChanged
{
public MainWindow()
{
InitializeComponent();
}
private decimal amount ;
public decimal Amount
{
get { return amount; }
set { amount = value;
OnPropertyChanged("Amount");
}
}
private decimal discount;
public decimal Discount
{
get { return discount; }
set { discount = value;
OnPropertyChanged("Discount");
}
}
#region INotifyPropertyChanged Members implementation
public event PropertyChangedEventHandler PropertyChanged;
public void OnPropertyChanged(string txt)
{
PropertyChangedEventHandler handle = PropertyChanged;
if (handle != null)
{
handle(this, new PropertyChangedEventArgs(txt));
}
}
#endregion
}

That's it. We made the application. Let me run the application.

enterzero

Figure: Initial state

entervalue

Figure: Amount = 2 and Discount = 0. So Amount – Discount = Total = 2

mainwin

Figure: Amount = 223413 and Discount = 0. So Amount – Discount = Total = 223413

mainwindowenter

Figure: Amount = 223413 and Discount = 564554544. So Amount – Discount = Total = -564331131
