Network Interface in Java

A network interface is the point of interconnection between a computer and a private or public network. A network interface is generally a network interface card (NIC). Java 1.4 introduced NetworkInterface Class to get the details of a local network interface, MAC address of the Interface, MTU (maximum transmission unit) of the Interface, list of IP address attached to the interface whether the interface up and/or down and whether it supports multicasting etc.
NetworkInterface is useful for a multihomed system, which is a system with multiple NICs. Using NetworkInterface, you can specify which NIC to use for particular network activity. The NetworkInterface class is given by Java in a package named java.net and the NetworkInterface class represents both types of interfaces.
Example
The loop back interface (127.0.0.1 for IPv4 and 1 for IPv6) is not a physical device but a piece of software simulating a network interface. The loop back interface is commonly used in test environments.
code
  1. import java.net.*;
  2. import java.io.*;
  3. import java.net.*;
  4. import java.util.*;
  5. public class DemoNetworkInterface
  6. {
  7. private static final String NL = System.getProperty("line.separator");
  8. private static final String NL_TAB = NL + " ";
  9. private static final String IPV4 = "IPv4";
  10. private static final String IPV6 = "IPv6";
  11. private static class MyInterface
  12. {
  13. public String displayName;
  14. public String name;
  15. public int mtu;
  16. public boolean isUp;
  17. public boolean isLoopback;
  18. public boolean isPointToPoint; // e.g. a PPP modem interface
  19. public boolean isVirtual; // a sub-interface
  20. public boolean supportsMulticast;
  21. public byte[] macAddress;
  22. public List < MyIpAddress > ipAddresses;
  23. public List < MyInterface > subInterfaces;
  24. public String toString()
  25. {
  26. StringBuilder sb = new StringBuilder(NL);
  27. sb.append("*** Interface [" + name + "] ***").append(NL);
  28. sb.append(NL).append("Name : " + displayName);
  29. sb.append(NL).append("MTU : " + mtu);
  30. sb.append(NL).append("Loop back : " + isLoopback);
  31. sb.append(NL).append("Point to Point: " + isPointToPoint);
  32. sb.append(NL).append(" InterFace is up : " + isUp);
  33. sb.append(NL).append("virtual : " + isVirtual);
  34. sb.append(NL).append("multicast : " + supportsMulticast);
  35. sb.append(NL).append("MAC address : ");
  36. if (macAddress != null)
  37. {
  38. for (byte b: macAddress)
  39. {
  40. sb.append(String.format("%1$02X ", b));
  41. }
  42. } else
  43. {
  44. sb.append("n/a");
  45. }
  46. for (MyIpAddress ipAddr: ipAddresses)
  47. {
  48. sb.append(ipAddr);
  49. }
  50. for (MyInterface subInfo: subInterfaces)
  51. {
  52. sb.append(subInfo);
  53. }
  54. return sb.toString();
  55. }
  56. }
  57. private static class MyIpAddress
  58. {
  59. public String ipAddress;
  60. public String ipVersion = "unknown";
  61. public String hostName;
  62. public String canonicalHostName;
  63. public boolean isLoopback;
  64. public boolean isSiteLocal; // private IP address
  65. public boolean isAnyLocal; // wildcard address
  66. public boolean isLinkLocal;
  67. public boolean isMulticast;
  68. public boolean isReachable;
  69. public String toString()
  70. {
  71. StringBuilder sb = new StringBuilder();
  72. sb.append(NL).append("INET address (" + ipVersion + "): " + ipAddress);
  73. sb.append(NL_TAB).append("host name : " + hostName);
  74. sb.append(NL_TAB).append("canonical host name : " + canonicalHostName);
  75. sb.append(NL_TAB).append("loopback : " + isLoopback);
  76. sb.append(NL_TAB).append("site local : " + isSiteLocal);
  77. sb.append(NL_TAB).append("any local : " + isAnyLocal);
  78. sb.append(NL_TAB).append("link local : " + isLinkLocal);
  79. sb.append(NL_TAB).append("multicast : " + isMulticast);
  80. sb.append(NL_TAB).append("reachable : " + isReachable);
  81. return sb.toString();
  82. }
  83. }
  84. private static MyInterface getMyInterface(NetworkInterface nif) throws IOException
  85. {
  86. // get interface information
  87. MyInterface info = new MyInterface();
  88. info.displayName = nif.getDisplayName();
  89. info.name = nif.getName();
  90. info.mtu = nif.getMTU();
  91. info.isUp = nif.isUp();
  92. info.isLoopback = nif.isLoopback();
  93. info.isPointToPoint = nif.isPointToPoint();
  94. info.isVirtual = nif.isVirtual();
  95. info.supportsMulticast = nif.supportsMulticast();
  96. info.macAddress = nif.getHardwareAddress();
  97. info.ipAddresses = new ArrayList < MyIpAddress > ();
  98. info.subInterfaces = new ArrayList < MyInterface > ();
  99. // get IP address information
  100. Enumeration < InetAddress > inetAddresses = nif.getInetAddresses();
  101. while (inetAddresses.hasMoreElements())
  102. {
  103. InetAddress inetAddr = inetAddresses.nextElement();
  104. MyIpAddress ipInfo = new MyIpAddress();
  105. if (inetAddr instanceof Inet4Address)
  106. {
  107. ipInfo.ipVersion = IPV4;
  108. } else if (inetAddr instanceof Inet6Address)
  109. {
  110. ipInfo.ipVersion = IPV6;
  111. }
  112. ipInfo.ipAddress = inetAddr.getHostAddress();
  113. ipInfo.hostName = inetAddr.getHostName();
  114. ipInfo.canonicalHostName = inetAddr.getCanonicalHostName();
  115. ipInfo.isAnyLocal = inetAddr.isAnyLocalAddress();
  116. ipInfo.isLinkLocal = inetAddr.isLinkLocalAddress();
  117. ipInfo.isSiteLocal = inetAddr.isSiteLocalAddress();
  118. ipInfo.isLoopback = inetAddr.isLoopbackAddress();
  119. ipInfo.isMulticast = inetAddr.isMulticastAddress();
  120. ipInfo.isReachable = inetAddr.isReachable(5000);
  121. info.ipAddresses.add(ipInfo);
  122. }
  123. // get virtual interface information
  124. Enumeration < NetworkInterface > subIfs = nif.getSubInterfaces();
  125. while (subIfs.hasMoreElements())
  126. {
  127. NetworkInterface subIf = subIfs.nextElement();
  128. MyInterface subInfo = getMyInterface(subIf);
  129. info.subInterfaces.add(subInfo);
  130. }
  131. return info;
  132. }
  133. public static void main(String[] args) throws IOException
  134. {
  135. Enumeration < NetworkInterface > interfaces =
  136. NetworkInterface.getNetworkInterfaces();
  137. while (interfaces.hasMoreElements())
  138. {
  139. NetworkInterface nif = interfaces.nextElement();
  140. System.out.println(getMyInterface(nif));
  141. }
  142. }
  143. }

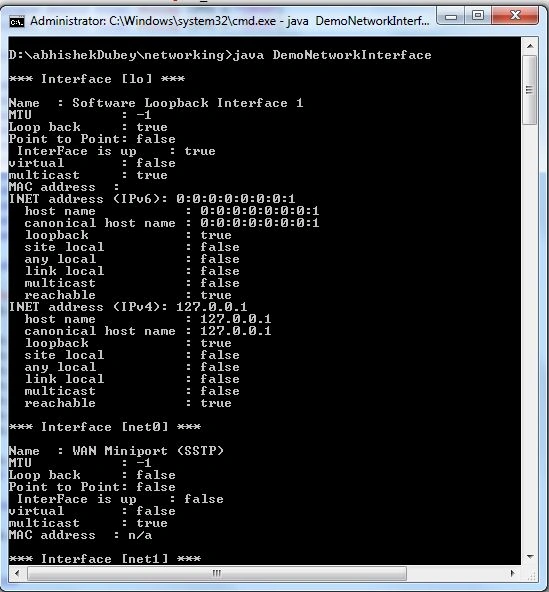

Output
The following output provides many information from the NIC (Network Interface Card) of your system.
