Open Panel On Button Click Using C# Script In Unity

Introduction


This article demonstrates how to create a feature to open a panel in unity by clicking a button using C# scripts.

Prerequisites

Unity Environment version 2018.3.0f2

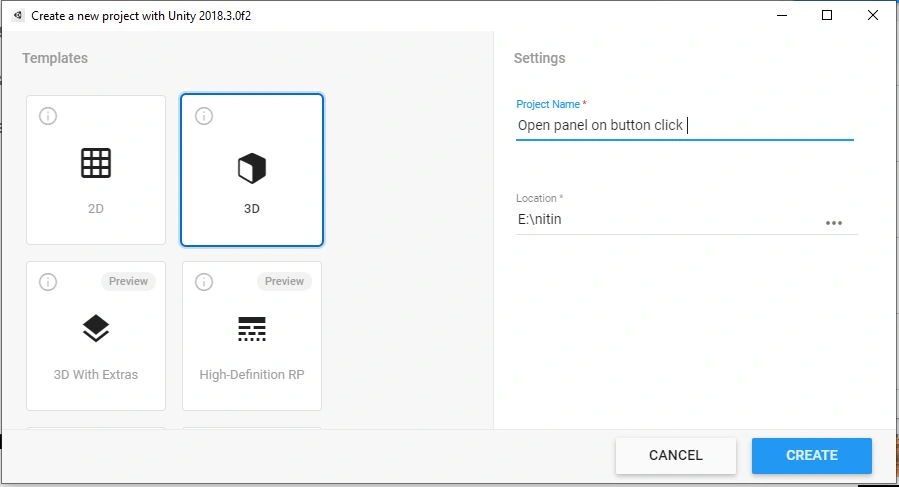

Create a New Project


Open Panel On Button Click Using C# Script in Unity


Create Button in Unity

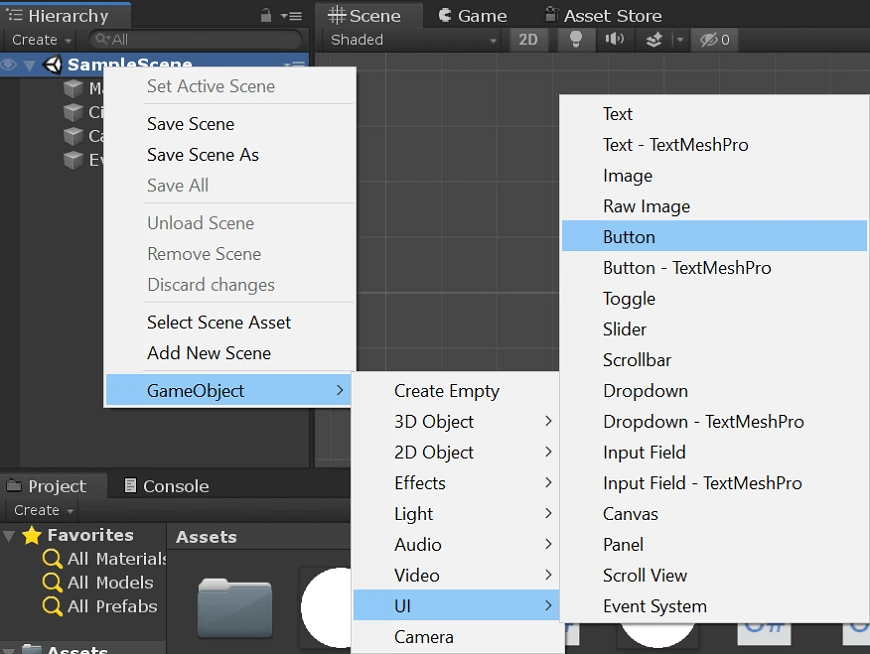

First, add a UI button if there is no canvas. It is created automatically. Then, click on the "GameObject" menu in the menu bar. Select UI and pick the "Button" option.

Open Panel On Button Click Using C# Script In Unity

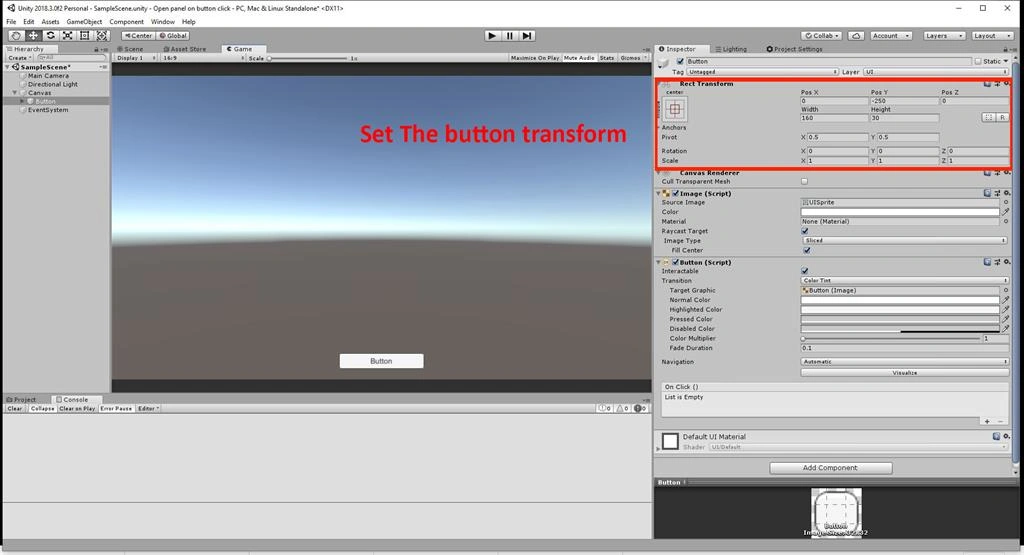

The text of the button is set Transform in Unity

Open Panel On Button Click Using C# Script in Unity

The canvas will add a Panel on the Scene view.

Click on the "GameObject" menu in the menu bar. Select UI and pick the "panel" option.

Open Panel On Button Click Using C# Script in Unity

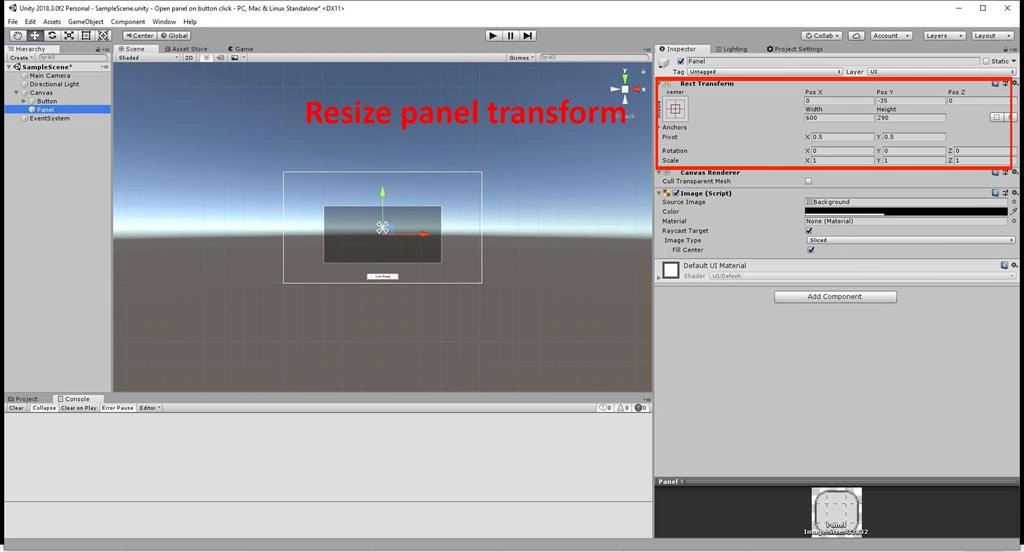

Open the Panel and after that, add a panel, resize it, and set the color to a black tone.

Open Panel On Button Click Using C# Script in Unity

The Panel will be added to the text.

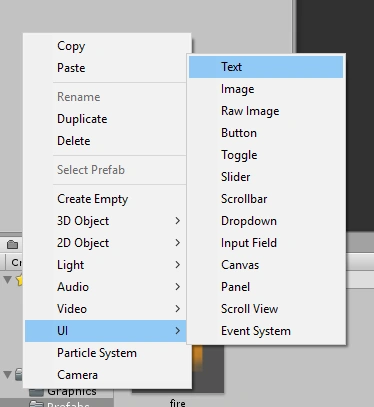

Add text to this panel in a Click on the "GameObject" menu in the menu bar. Select UI and pick the "Text" option.

Open Panel On Button Click Using C# Script in Unity

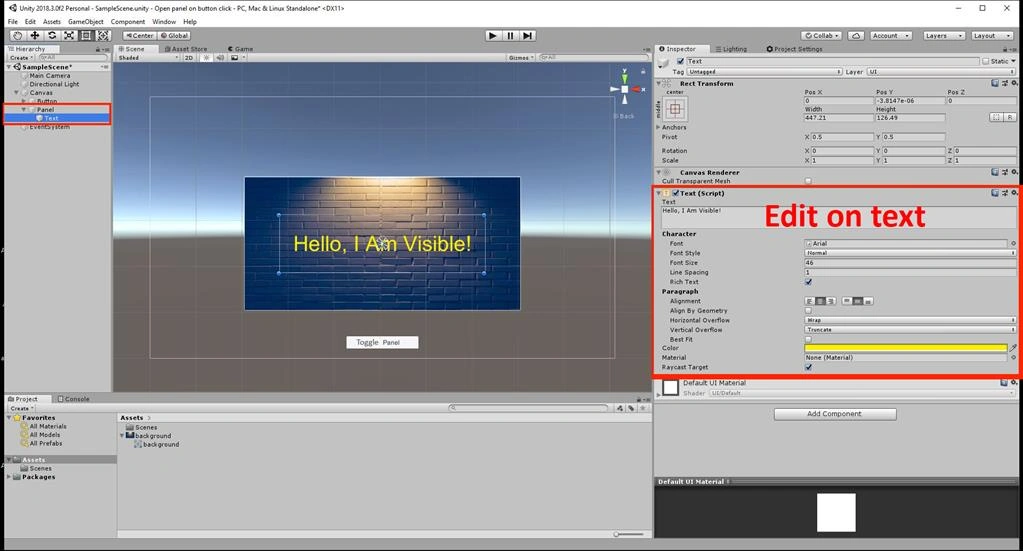

The text UI part was very fast  Edit the panel text in the scene view.

Open Panel On Button Click Using C# Script in Unity

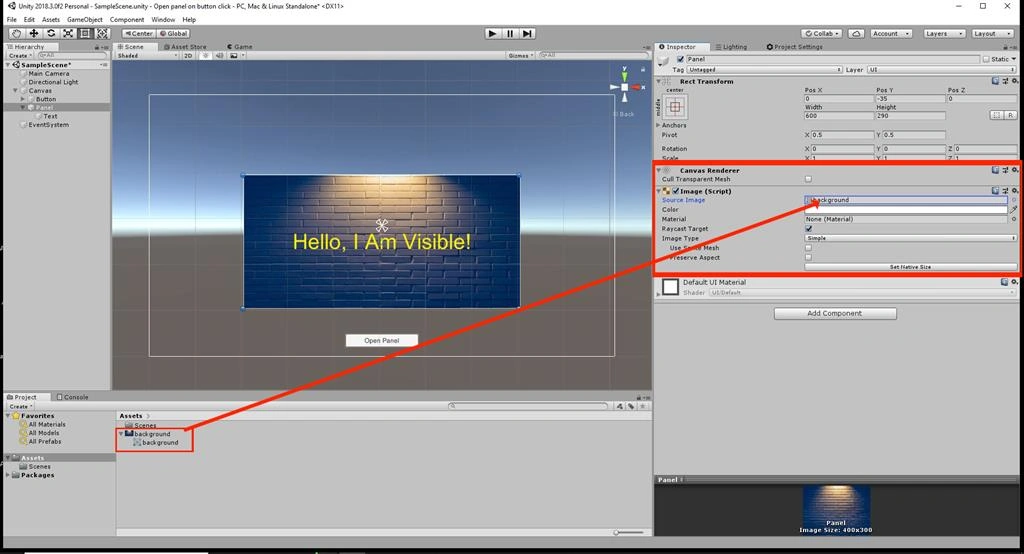

Set the Background image in the scene view

Open Panel On Button Click Using C# Script in Unity

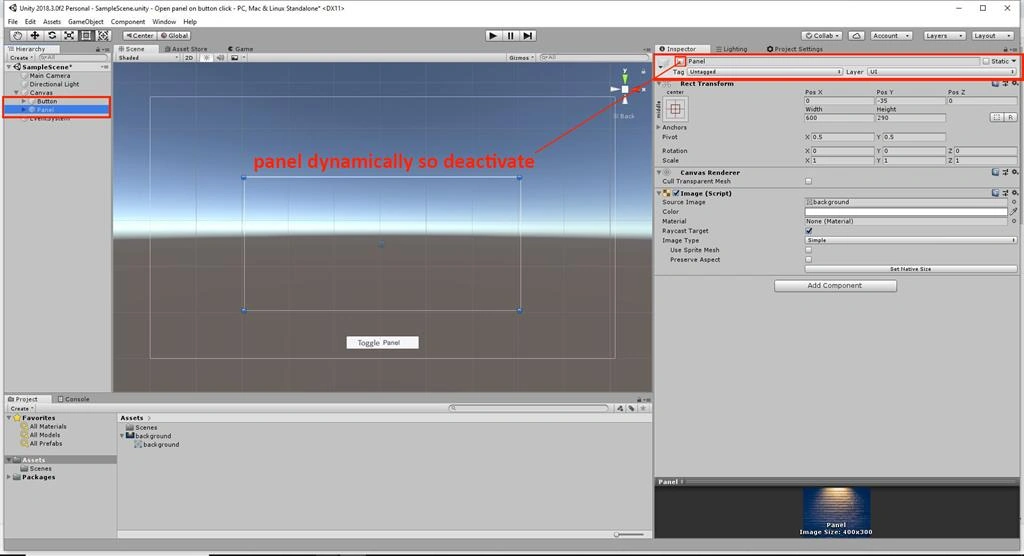

Open this panel dynamically so deactivate

The request was about how to open this panel dynamically so deactivate the panel by default in the inspector so that it is not visible.

Open Panel On Button Click Using C# Script in Unity

Create the folder

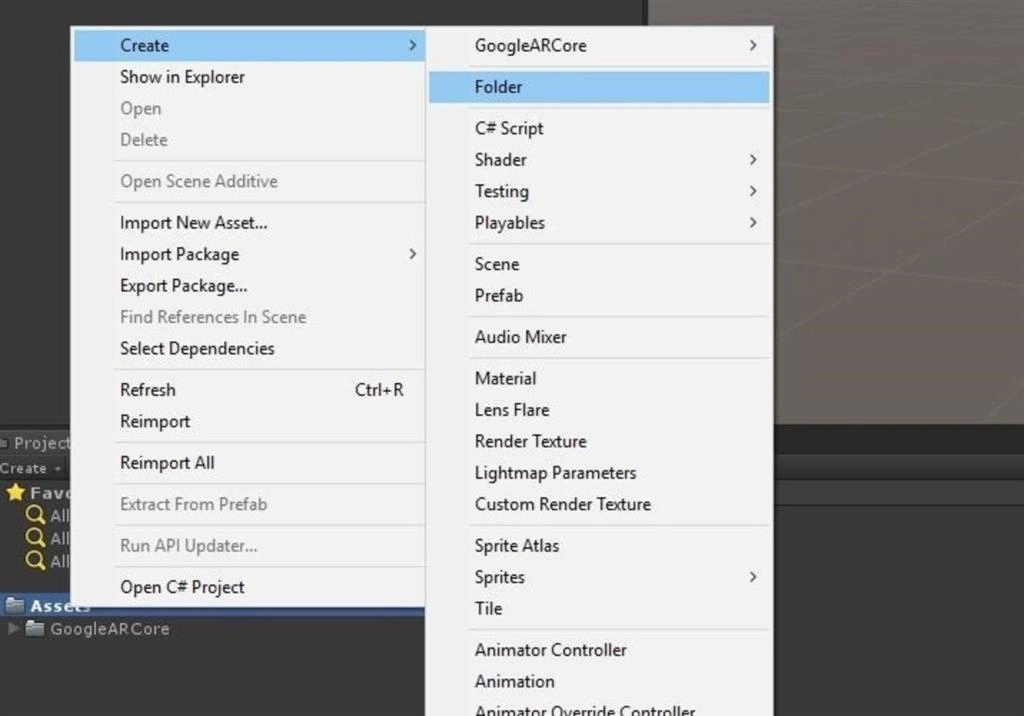

Create a c-sharp script. To open it means to activate it. So first I create a new folder. Right-click on Assets. Select Create >> folder

Open Panel On Button Click Using C# Script in Unity

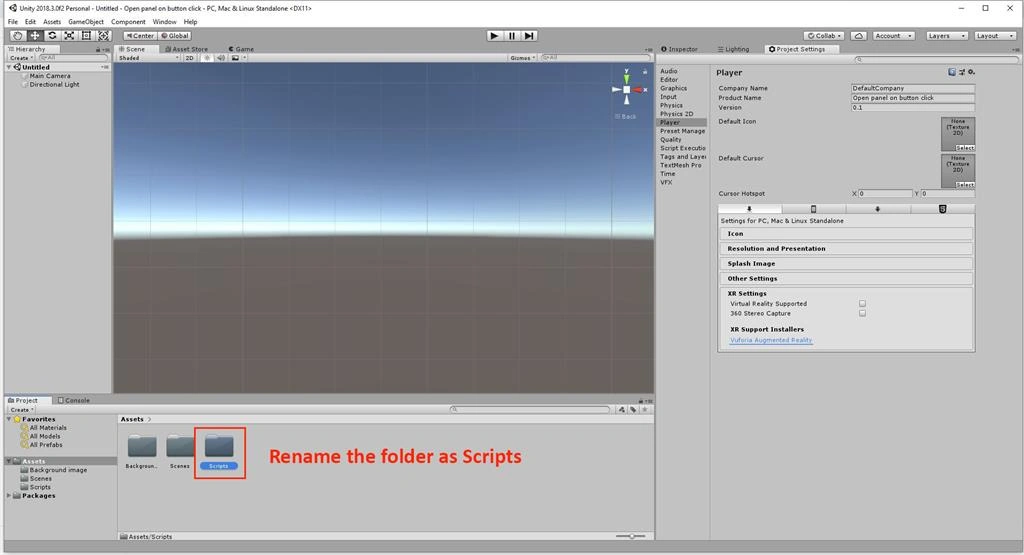

Rename the folder as Scripts

Open Panel On Button Click Using C# Script in Unity

Create the Scripts

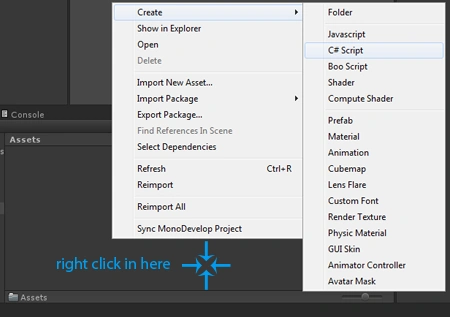

Add scripts and inside of this folder, I add a new C-sharp Script, Right-click on Assets. Select Create >> C# script.

Open Panel On Button Click Using C# Script in Unity

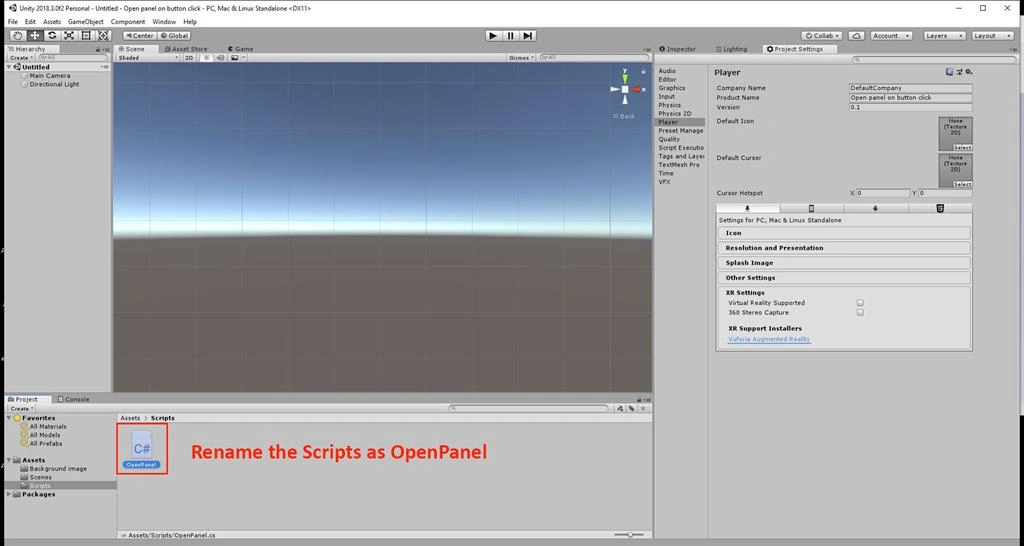

Rename this script, for example, Openpanel.

Open Panel On Button Click Using C# Script in Unity

I double click it and it will open Visual Studio 2019, which is my programming integrated development environment (IDE) for Unity. Write the code as shown below:
  1. using System.Collections;
  2. using System.Collections.Generic;
  3. using UnityEngine;
  4. public class OpenPanel: MonoBehaviour {
  5.     public GameObject Panel;
  6.     public void PanelOpener() {
  7.         if (Panel != null) {
  8.             bool isActive = Panel.activeSelf;
  9.             Panel.SetActive(!isActive);
  10.         }
  11.     }
  12. }
Save the Program

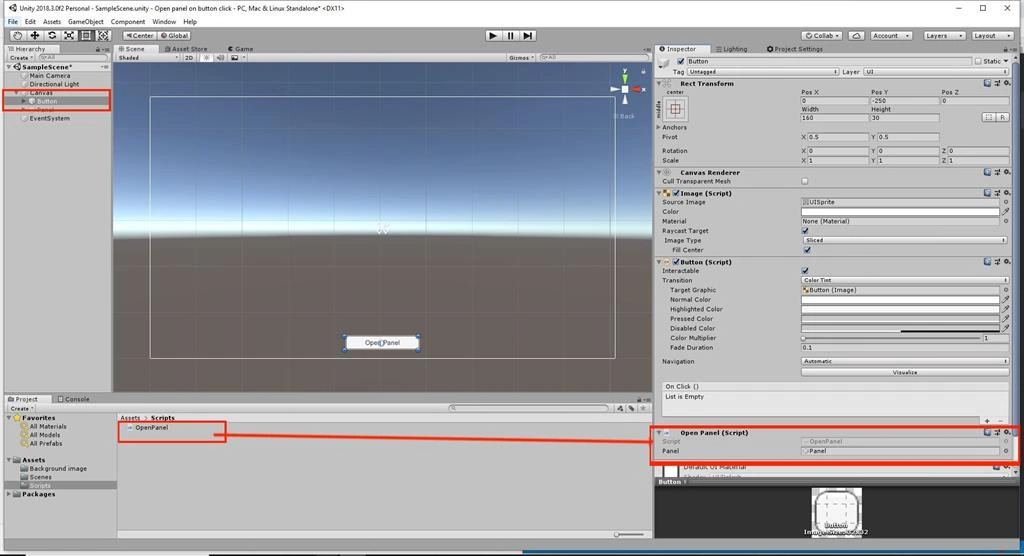

Drag and drop the OpenPanel script onto the button Open Panel on a Button click.

Open Panel On Button Click Using C# Script In Unity

To make the OpenPanel script a component to the button, I just drag it into the inspector with the button selected. After that, I assigned the panel to the public panel variable that we added to the script. Now the open panel method should be called on clicking the button. I used the on click event. You can see this here in the inspector, then I drag in the button and select the panel OpenPanel OpenPaneler.

Open Panel On Button Click Using C# Script In Unity

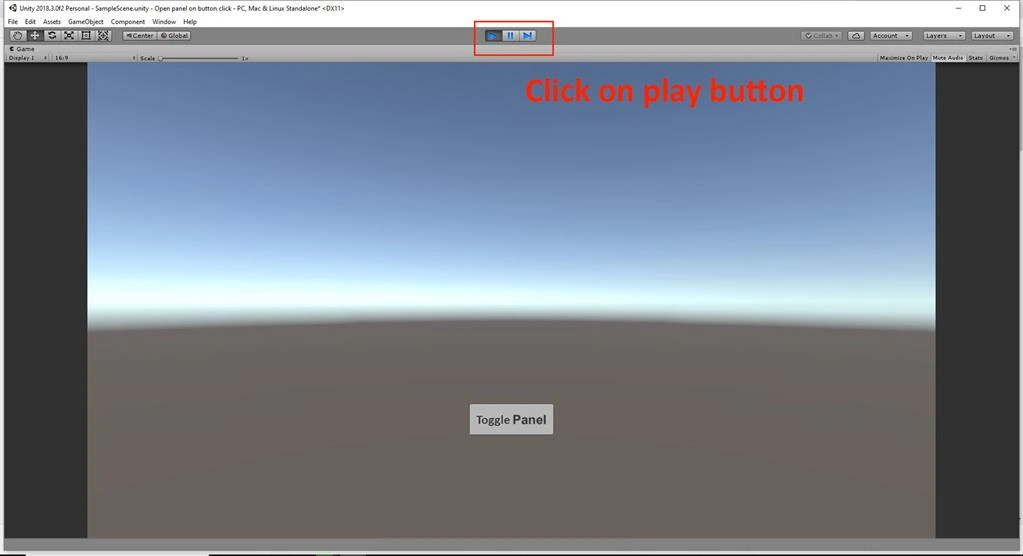

Start this game by clicking on the Play button.

Open Panel On Button Click Using C# Script in Unity

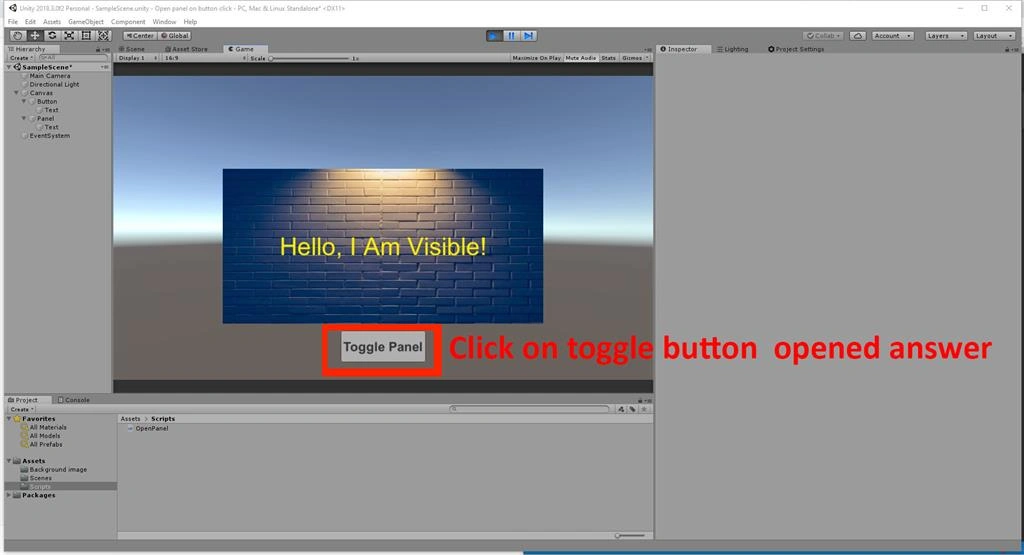

The panel will be opened by clicking on the toggle button.

Open Panel On Button Click Using C# Script in Unity


Summary


I hope you understood how to create an open panel feature on a button click using C# scripts.
