Optimizing AWS Lambda for Enterprise LangGraph RAG APIs

In the enterprise AI landscape, Retrieval-Augmented Generation (RAG) has evolved from simple prompt-in/prompt-out pipelines to complex, stateful, multi-agent workflows. LangGraph has emerged as the de facto framework for building these agentic RAG systems, allowing for cyclical reasoning, tool usage, and persistent memory. However, deploying a LangGraph RAG orchestrator behind a latency-sensitive API using AWS Lambda presents a severe architectural clash. LangGraph is heavy, stateful, and dependency-rich; Lambda is ephemeral and subject to cold starts. When a user queries an enterprise RAG API, a 5-to-10-second cold start destroys the user experience before the LLM even generates its first token. This article provides an end-to-end guide to eliminating Lambda cold starts for an enterprise LangGraph RAG application, using a real-world financial services use case.

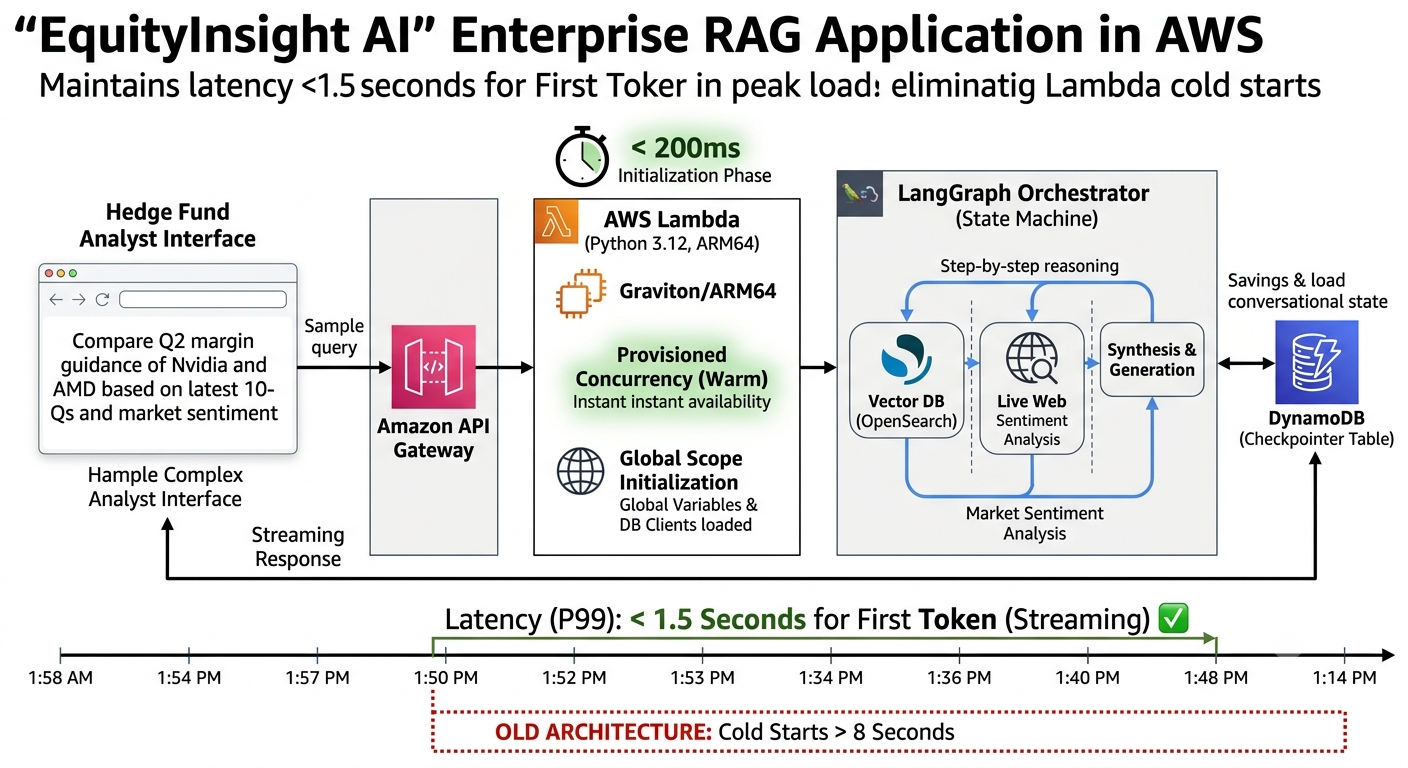

The Use Case: "EquityInsight AI"

EquityInsight AI is an internal agentic RAG platform used by hedge fund analysts.

  • The Workflow: An analyst asks a complex question (e.g., "Compare the Q2 margin guidance of Nvidia and AMD based on their latest 10-Qs and current market sentiment").

  • The Architecture: API Gateway →→ AWS Lambda →→ LangGraph Orchestrator.

  • The Graph: The LangGraph state machine routes the query between a Vector DB (OpenSearch) for historical 10-Qs, a live Web Search tool for market sentiment, and a final Synthesis node. It uses a DynamoDB-backed Checkpointer to maintain conversational state.

  • The SLA: The API must return the first token of the streaming response in < 1.5 seconds at P99.

The Problem: During peak trading hours, Lambda scales out. The cold starts for the LangGraph Python runtime (importing langchain, langgraph, opensearchpy, boto3, and initializing network connections) spike to 8.2 seconds. The SLA is breached.

3

Anatomy of a LangGraph Cold Start

To fix the problem, we must understand where the time is spent during a Lambda cold start in a LangGraph context:

  1. Runtime Initialization: Booting the Python 3.12 interpreter.

  2. Dependency Importation: langgraph, langchain_core, pydantic, and vector DB clients are notoriously heavy. Importing them can take 1–3 seconds.

  3. Network Handshakes: Establishing TLS connections to the Vector DB, LLM API, and Checkpointer (DynamoDB/Postgres).

  4. Graph Compilation: LangGraph requires compiling the state graph and initializing the checkpointer before invocation.

End-to-End Optimization Strategy

To bring the P99 latency under 1.5 seconds, we must apply optimizations across four layers: Code, Packaging, Infrastructure, and Architecture.

Level 1: Code & Runtime Optimizations (The Global Scope)

The most common mistake in Lambda LangGraph deployments is initializing clients and compiling the graph inside the handler.

The Fix: Move all heavy initializations to the global scope (outside the lambda_handler function). Lambda freezes and reuses the execution environment, meaning the global scope only runs during a cold start.

import os
import boto3
from langgraph.graph import StateGraph, END
from langgraph.checkpoint.dynamodb import DynamoDBSaver
from opensearchpy import OpenSearch
from my_agents import research_node, synthesis_node # Your custom nodes

# ==========================================
# GLOBAL SCOPE: Runs ONLY on cold starts
# ==========================================

# 1. Initialize heavy AWS/DB clients globally
dynamodb_resource = boto3.resource('dynamodb')
opensearch_client = OpenSearch(
    hosts=[os.environ['OPENSEARCH_ENDPOINT']],
    http_auth=(os.environ['OS_USER'], os.environ['OS_PASS']),
    use_ssl=True,
    timeout=30
)

# 2. Initialize LangGraph Checkpointer globally
checkpointer = DynamoDBSaver(table_name=dynamodb_resource.Table('langgraph_checkpoints'))

# 3. Build and Compile the Graph globally
def build_graph():
    workflow = StateGraph(dict) # Simplified state for example
    workflow.add_node("research", research_node)
    workflow.add_node("synthesis", synthesis_node)
    workflow.set_entry_point("research")
    workflow.add_edge("research", "synthesis")
    workflow.add_edge("synthesis", END)

    # Compiling with the checkpointer attaches the state memory
    return workflow.compile(checkpointer=checkpointer)

# Compile once during cold start
app = build_graph()

# ==========================================
# HANDLER: Runs on every invocation (Warm)
# ==========================================
def lambda_handler(event, context):
    user_query = event.get('query')
    thread_id = event.get('thread_id', 'default_thread')

    config = {"configurable": {"thread_id": thread_id}}

    # Stream the response
    for chunk in app.stream({"input": user_query}, config=config):
        # Process and yield chunks to API Gateway...
        pass

    return {"statusCode": 200}

Level 2: Packaging & Dependency Optimization

LangGraph pulls in a massive dependency tree. If you bundle everything into a single zip deployment package, Lambda spends extra time unzipping and caching it.

  1. Use Lambda Layers: Move langchain, langgraph, opensearch-py, and pydantic into a dedicated Lambda Layer. Layers are cached independently of your function code, significantly speeding up the extraction phase of the cold start.

  2. Prune Unused Dependencies: LangChain is modular. Do not import langchain_community if you only need langchain_core and langgraph. Use lightweight alternatives where possible (e.g., use the native boto3 DynamoDB client instead of a heavy ORM for the checkpointer).

  3. Lazy Loading (If applicable): If your graph has conditional nodes that use heavy, distinct libraries (e.g., a node that parses complex PDFs using pypdf), use Python's importlib to lazy-load those specific libraries only when that specific node is triggered.

Level 3: Infrastructure Tuning

  1. Switch to ARM64 (Graviton2/3): AWS Graviton processors offer up to 20% better performance and 20% lower cost than x86. More importantly, the ARM64 architecture often yields faster Python module initialization times.

  2. Right-Size Memory for CPU: In Lambda, CPU power is proportional to memory. The initialization phase (imports, graph compilation) is highly CPU-bound. Increasing memory from 512MB to 1024MB or 2048MB will drastically reduce the time it takes to boot the Python environment and compile the LangGraph state machine, even if the actual execution doesn't need that much RAM.

  3. Use Python 3.12: Python 3.12 introduced significant performance improvements to the interpreter, including faster module imports and a new tokenizer, which directly benefits cold start times.

Level 4: The Enterprise Silver Bullet (Provisioned Concurrency)

For a latency-sensitive enterprise API, code optimization alone is not enough. You cannot afford any cold starts during peak hours. The definitive solution is Provisioned Concurrency (PC).

PC initializes a specified number of execution environments for you, keeping them "warm" and ready to respond in milliseconds.

Implementing Auto-Scaling Provisioned Concurrency:
You don't want to overpay for PC 24/7. Use AWS Application Auto Scaling to scale PC based on actual demand.

  1. Create an Alias: Point your API Gateway to a specific Lambda Alias (e.g., prod), not the $LATEST version.

  2. Configure PC: Set a baseline Provisioned Concurrency on the prod alias (e.g., 10 instances).

  3. Auto-Scaling Target Tracking: Configure Auto Scaling to track the Provisioned Concurrency Utilization metric.

    • Target: 70%.

    • If utilization hits 70%, AWS automatically provisions more warm instances. If it drops, it scales them down.

  4. Pre-warming for Market Open: For our hedge fund use case, we use EventBridge to trigger a Step Function at 8:30 AM EST (pre-market) to temporarily spike the Provisioned Concurrency minimum, ensuring zero cold starts when the analysts log in.

Architectural Reality Check: When to leave Lambda

While the above steps will reduce cold starts to < 200ms, enterprise architects must ask: Is Lambda the right compute for the LangGraph orchestrator?

LangGraph is inherently stateful and long-running. If your RAG graph involves complex multi-agent debates, long-running tool executions (like waiting for a slow internal API), or massive context windows, the Lambda execution might approach the 15-minute timeout, and you are paying for idle compute while waiting on external I/O.

The Enterprise Alternative:
If latency remains an issue despite Provisioned Concurrency, shift the LangGraph orchestrator to AWS Fargate (ECS) or EKS.

  • Keep the API Gateway →→ Lambda pattern for lightweight request validation and routing.

  • Have the Lambda function push the payload to an SQS Queue or invoke an AWS Step Functions workflow.

  • Step Functions or a Fargate-hosted FastAPI service handles the actual LangGraph execution. This completely eliminates cold starts and aligns the compute paradigm with the stateful nature of LangGraph.

Observability: Measuring the Fix

You cannot optimize what you do not measure. To ensure your optimizations are holding the SLA:

  1. AWS CloudWatch & X-Ray: Enable active X-Ray tracing. Look specifically at the Initialization phase duration in the Lambda metrics. It should drop from seconds to < 200ms.

  2. LangSmith: Integrate LangSmith for LangGraph tracing. This allows you to see exactly how much time is spent in the LangGraph routing logic vs. the actual LLM/Tool calls, ensuring your Lambda optimizations didn't just shift the bottleneck to the network layer.

  3. API Gateway Latency Metrics: Monitor the IntegrationLatency (time taken by Lambda) vs Latency (total time). The gap between the two should be negligible.

Conclusion

Deploying Enterprise LangGraph RAG on AWS Lambda requires treating the function not as a simple script, but as a heavy, stateful application. By shifting initialization to the global scope, optimizing the dependency tree via Layers, leveraging ARM64, and utilizing Auto-Scaling Provisioned Concurrency, you can tame the cold start.

For latency-sensitive APIs like EquityInsight AI, these optimizations transform Lambda from a bottleneck into a highly scalable, sub-second gateway, allowing your analysts to interact with complex agentic RAG workflows as if they were querying a local database.
