Oracle Database Server To SQL Server Migration

Introduction


Welcome! In this article, we are going to learn how to migrate Oracle Database to Microsoft SQL Database. Let’s go through this from scratch.

Pre-requisites
  • Download SSMA for Oracle Setup exe
  • Download Oracle extension for SSMA
  • Microsoft SQL Server
  • Oracle Database
Let start the installation of SSMA and Oracle Extension,

Step 1 - Installation of SSMA

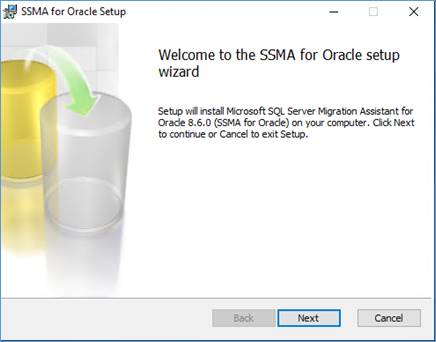

Run the downloaded exe file - Click Next

Oracle Database Server To Microsoft SQL Database Server Migration

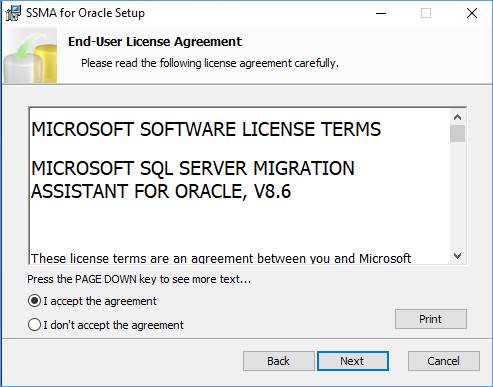

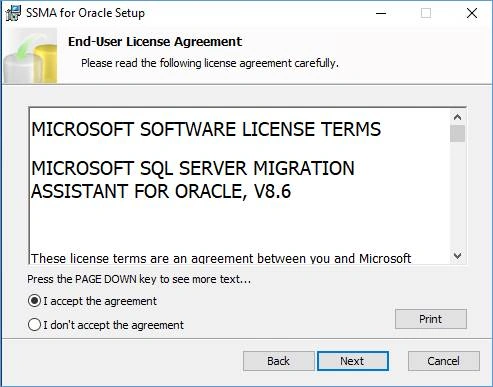

Read and accept the license agreement and click Next

Oracle Database Server To Microsoft SQL Database Server Migration

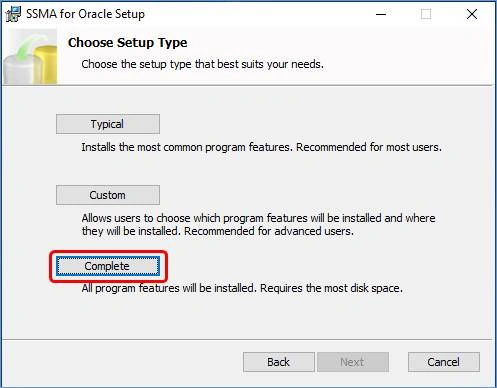

Click Complete.

Oracle Database Server To Microsoft SQL Database Server Migration

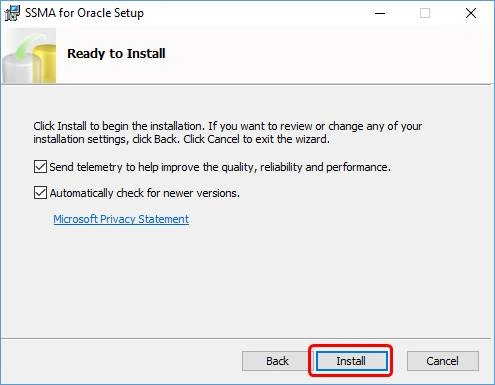

Click Install to start Installation.

Oracle Database Server To Microsoft SQL Database Server Migration

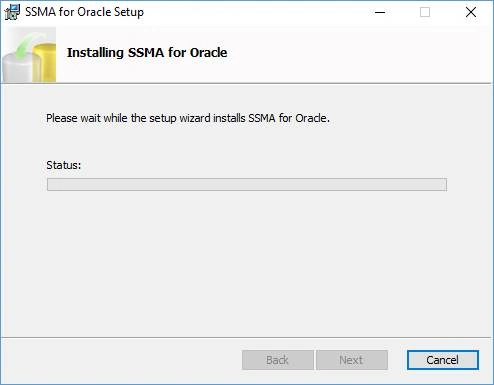

You can see the status of the installation.

Oracle Database Server To Microsoft SQL Database Server Migration

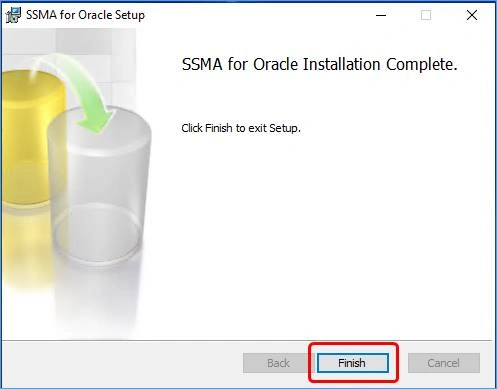

After installation is complete click Finish to exit the setup

Oracle Database Server To Microsoft SQL Database Server Migration

Step 2 - Installation of Oracle Extension for SSMA

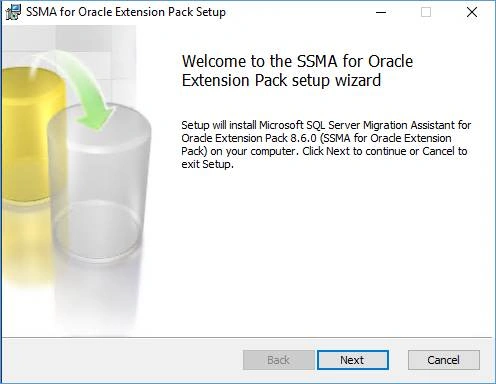

Run the Download of Oracle Extension for SSMA

Click - Next

Oracle Database Server To Microsoft SQL Database Server Migration

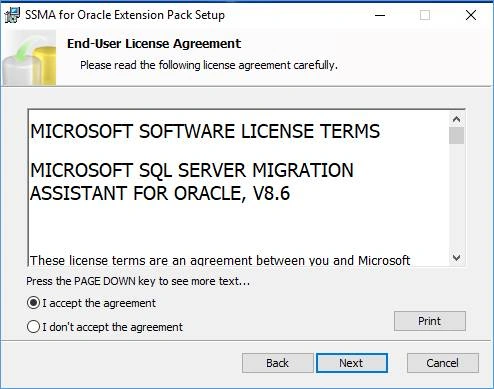

Read and accept the license agreement and click Next

Oracle Database Server To Microsoft SQL Database Server Migration

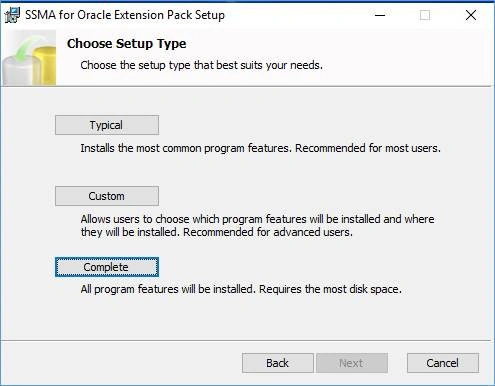

Click Complete and choose next.

Oracle Database Server To Microsoft SQL Database Server Migration

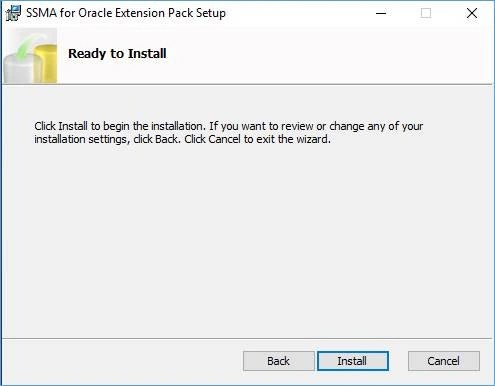

Click Install to start Installation.

Oracle Database Server To Microsoft SQL Database Server Migration

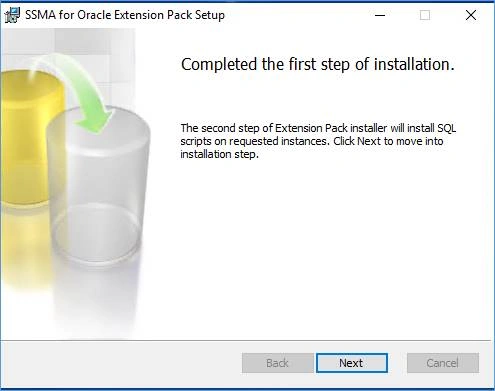

After completion of the first step click Next to go to the second step of installation.

Oracle Database Server To Microsoft SQL Database Server Migration

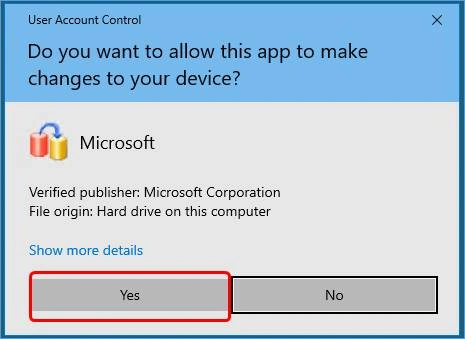

If you are an Admin user, it will not ask you to enter the password, otherwise click yes

Oracle Database Server To Microsoft SQL Database Server Migration

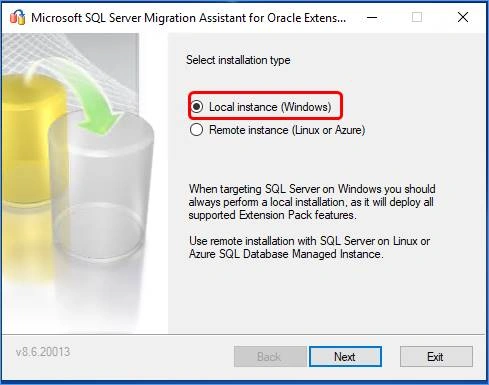

Click Local instance, because my target MSSQL server is running in the local machine

Oracle Database Server To Microsoft SQL Database Server Migration

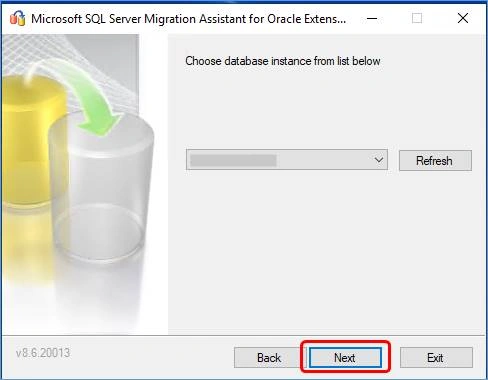

Select target database instance and click Next

Oracle Database Server To Microsoft SQL Database Server Migration

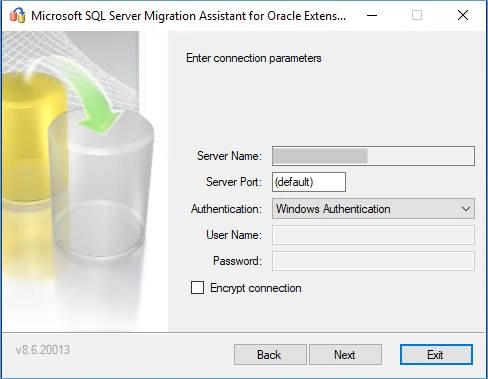

Give the credentials of MSSQL server and click Next

Oracle Database Server To Microsoft SQL Database Server Migration

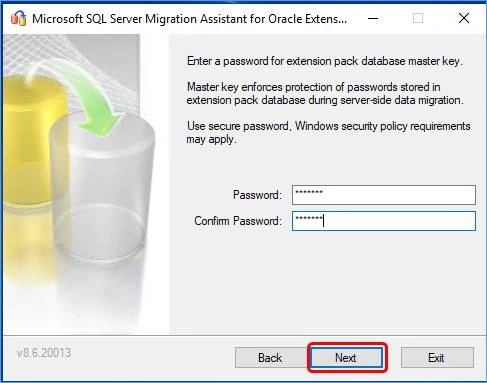

Enter Password and click Next

Oracle Database Server To Microsoft SQL Database Server Migration

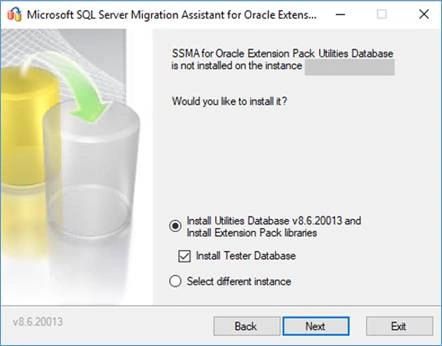

Select install utilities and click Next

Oracle Database Server To Microsoft SQL Database Server Migration

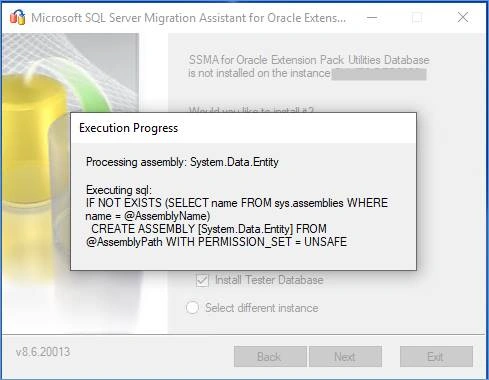

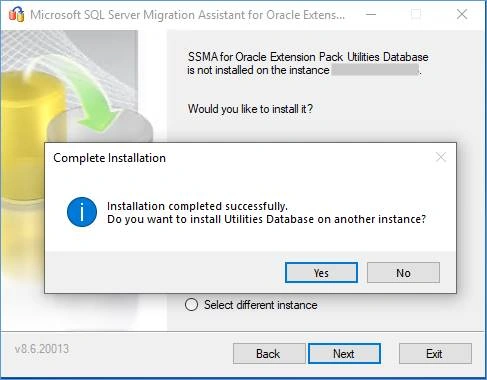

You can see the below warning.

Oracle Database Server To Microsoft SQL Database Server Migration

Click No and finish the installation.

Oracle Database Server To Microsoft SQL Database Server Migration


Oracle to MS SQL Migration Steps


Step 1

Creating target database using MSQL server Management Studio

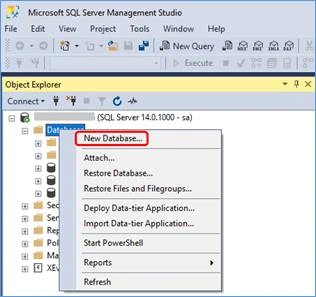

Right click on Databases - Click New Database.

Oracle Database Server To Microsoft SQL Database Server Migration

Give database name and select the owner.

Note
Owner must have full permission to migrate.

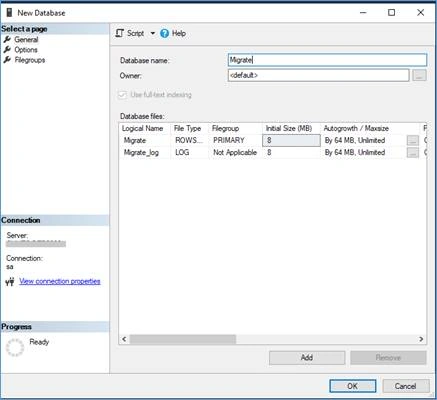

Give Database name and click OK

Oracle Database Server To Microsoft SQL Database Server Migration

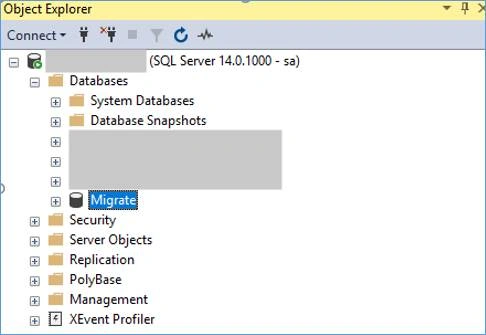

You can see the database (Migrate) has been created successfully.

Oracle Database Server To Microsoft SQL Database Server Migration

Step 2

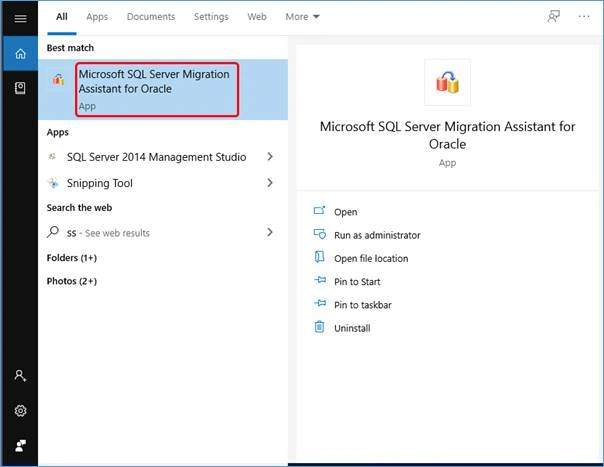

Open SSMA and create a Project

Oracle Database Server To Microsoft SQL Database Server Migration

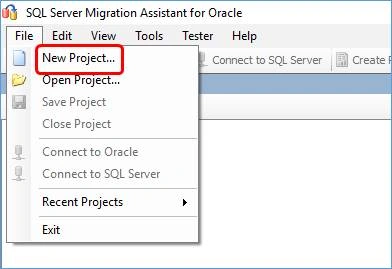

Click File - Select New Project to create a new project for migration.

Oracle Database Server To Microsoft SQL Database Server Migration

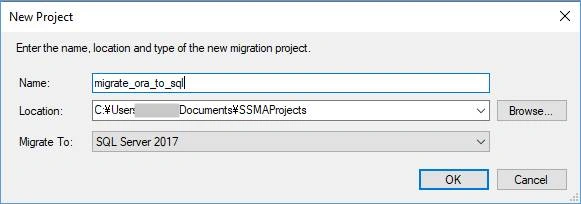

Type Name for Migration - select target SQL Server - click OK

Oracle Database Server To Microsoft SQL Database Server Migration

Step 3

Connect Oracle source database

After project creation - Click Connect to Oracle

Oracle Database Server To Microsoft SQL Database Server Migration

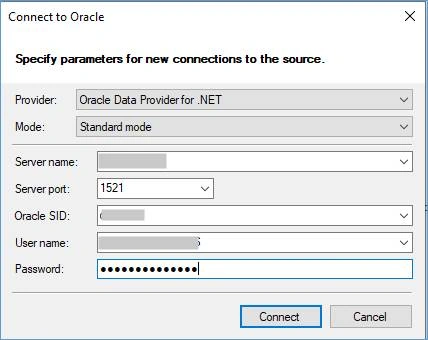

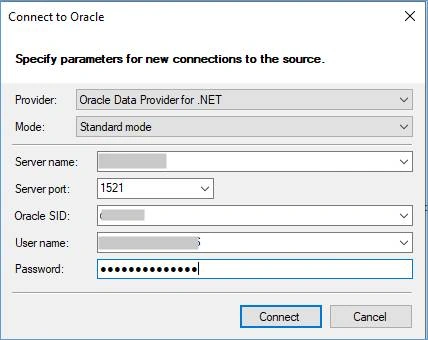

Give the details and click connect

Oracle Database Server To Microsoft SQL Database Server Migration

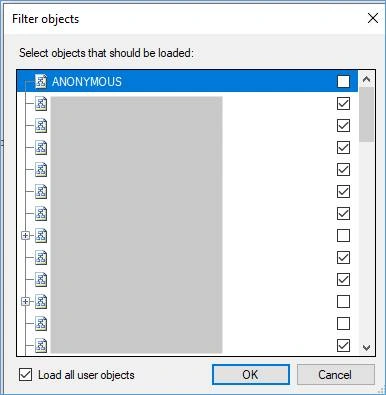

Select the required database or schema of the source oracle server and click OK

Oracle Database Server To Microsoft SQL Database Server Migration

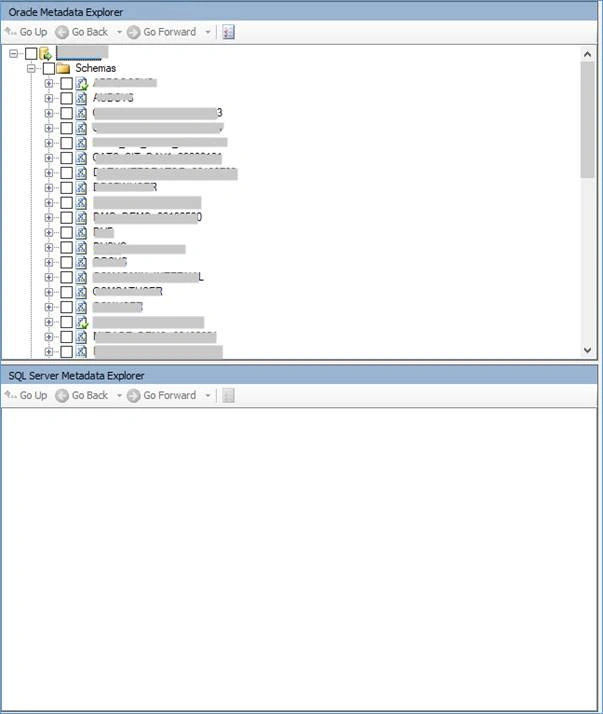

You can see all schema.

Oracle Database Server To Microsoft SQL Database Server Migration

Step 4

Connect Target SQL Database

Next, we need to connect target database

Oracle Database Server To Microsoft SQL Database Server Migration

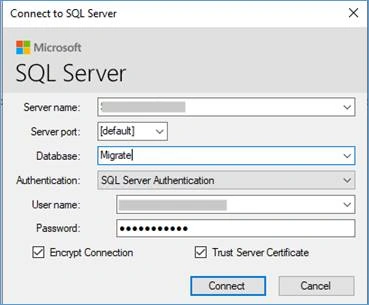

Give the required target SQL Server details

Oracle Database Server To Microsoft SQL Database Server Migration

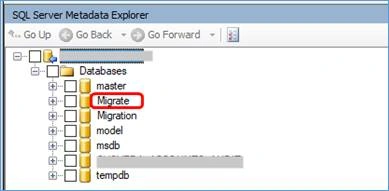

You can see the SQL server databases.

Oracle Database Server To Microsoft SQL Database Server Migration

Step 5

Create a report for analyzing the migration process.

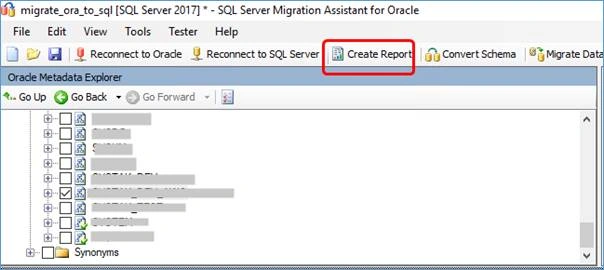

In the next step, click create report.

Oracle Database Server To Microsoft SQL Database Server Migration

After clicking create report you can see the output section, it was processing.

Oracle Database Server To Microsoft SQL Database Server Migration

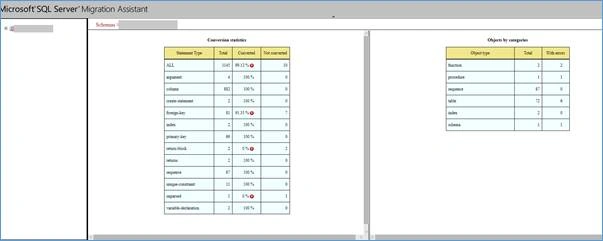

After the process completes, you can see the report.

Oracle Database Server To Microsoft SQL Database Server Migration

You can see the output:

Oracle Database Server To Microsoft SQL Database Server Migration

Step 6

Convert Oracle schema to MS SQL Database which we created. (Select schema in oracle and select SQL server database.

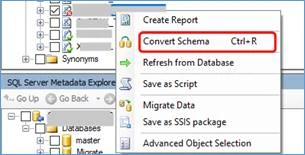

Next step right click - schema which you want convert - Click Convert Schema.

Oracle Database Server To Microsoft SQL Database Server Migration

Step 7

Synchronize converted data with Oracle database

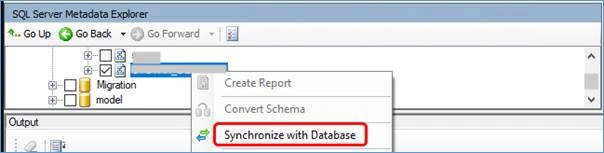

After Conversion - Right Click the targeted database and - click synchronize with database.

Oracle Database Server To Microsoft SQL Database Server Migration

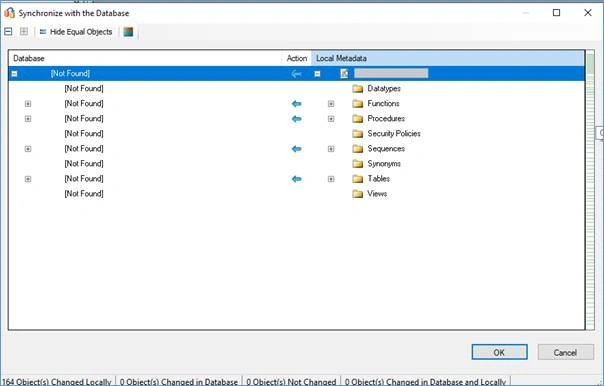

Now you can see in the below image, you can check all datatypes, tables of the source and click OK to synchronize.

Oracle Database Server To Microsoft SQL Database Server Migration

You can see the output of synchronization operation has been completed.

Oracle Database Server To Microsoft SQL Database Server Migration

Step 9

Migrate data from oracle to SQL server

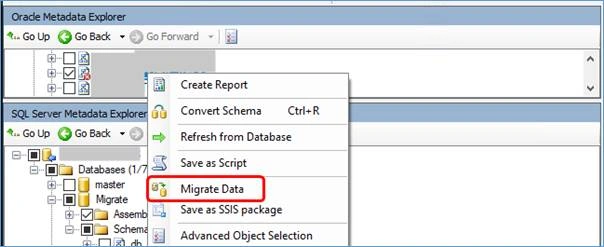

Right click the source schema and click Migrate data.

Oracle Database Server To Microsoft SQL Database Server Migration

It will ask the user name/password to start the migration.

Oracle Database Server To Microsoft SQL Database Server Migration

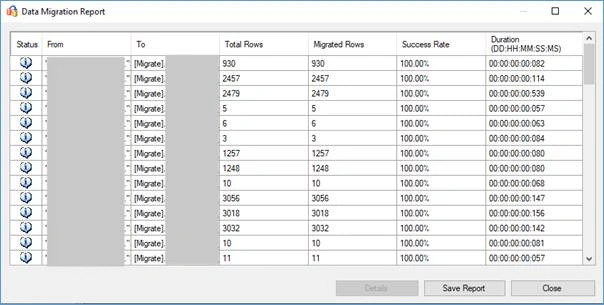

After completion you can save the report for further comparison and changing some datatypes formats.

Oracle Database Server To Microsoft SQL Database Server Migration

You can see that all tables are migrated successfully!!

Oracle Database Server To Microsoft SQL Database Server Migration

I hope this article has been helpful in your tech advancement.

If this article was useful for you, please like and share.

Thank you for reading this article. Have a nice day.
