PDF To Text Automation Using UiPath Studio

Introduction


Robotic Process Automation is a technology that allows anyone today to configure computer software, or a “robot” to emulate and integrate the actions of a human interacting within digital systems to execute a business process.

RPA robots utilize the user interface to capture data and manipulate applications just like humans do. They interpret, trigger responses, and communicate with other systems in order to perform on a vast variety of repetitive tasks. Only substantially better: an RPA software robot never sleeps and makes zero mistakes.

UiPath is a leading Robotic Process Automation vendor providing a complete software platform to help organizations efficiently automate business processes.

UiPath Studio is a tool that can model an organization's business processes in a visual way.

By reading this article, you can learn how to convert Generated PDF to Text automation with the Read PDF and Message Box activities using UiPath Studio Pro Community.

The following tools are required for developing UiPath Bots:
  1. Windows 7/8.1/10 (Recommended)
  2. UiPath Studio Pro - Community Cloud (It is free software available online – https://www.uipath.com/start-trial)
Now we can discuss App development.

Step 1

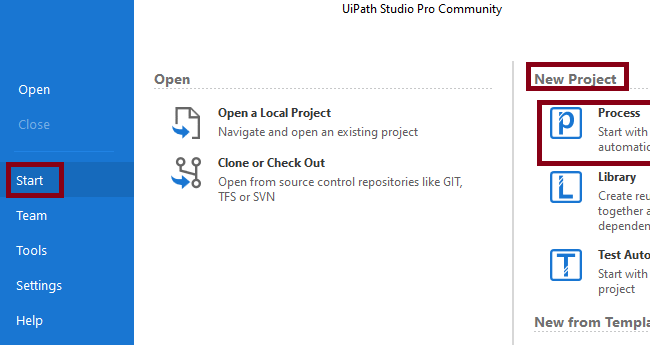

Open UiPath Studio -> Start -> New Project-> Click Process

PDF To Text Automation Using UiPath Studio

Step 2

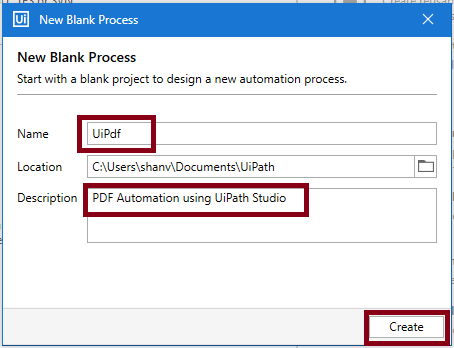

Now, create a New Blank Process, Name it Uipdf and give your Description:

PDF To Text Automation Using UiPath Studio

Step 3

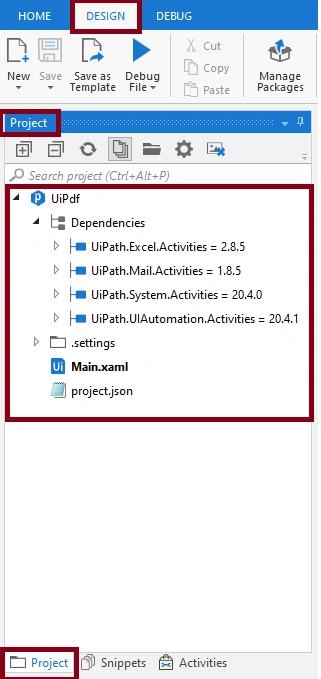

After that, UiPath studio creates the project Uipdf with supporting files:

PDF To Text Automation Using UiPath Studio

Step 4

Next, for converting PDF to Text, create a New Sequence workflow named GeneratedPDF:

PDF To Text Automation Using UiPath Studio

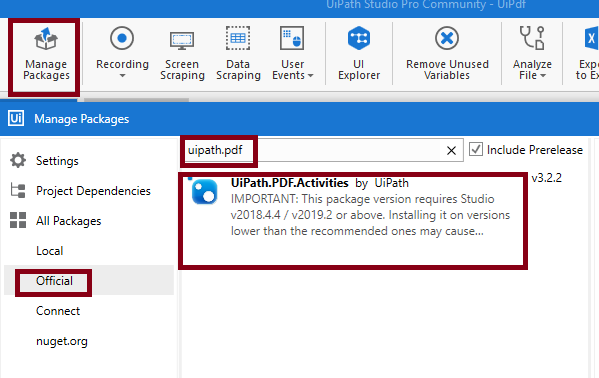

Next, to install the PDF packages ->Go to Manage packages and select Official and select UiPath.PDF.Activities and install it.

PDF To Text Automation Using UiPath Studio

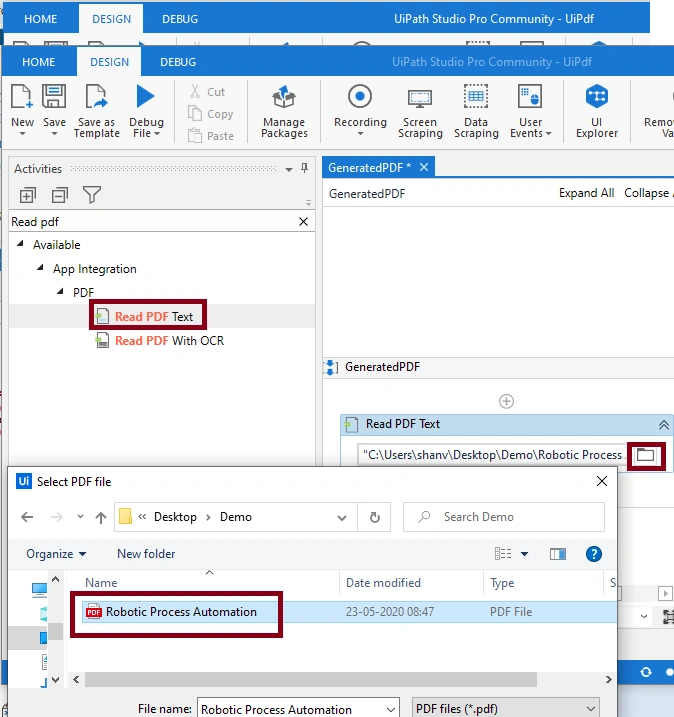

Click Activities -> search ReadPDF activity->Drag and drop in to sequence and select the PDF file:

PDF To Text Automation Using UiPath Studio

Create a String variable pdftotext and set the properties Range as 1 page and Output Text as pdftotext in the Read PDF Text Activity

PDF To Text Automation Using UiPath Studio

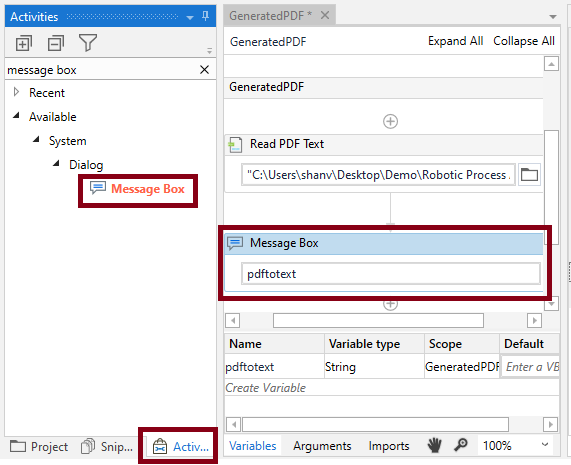

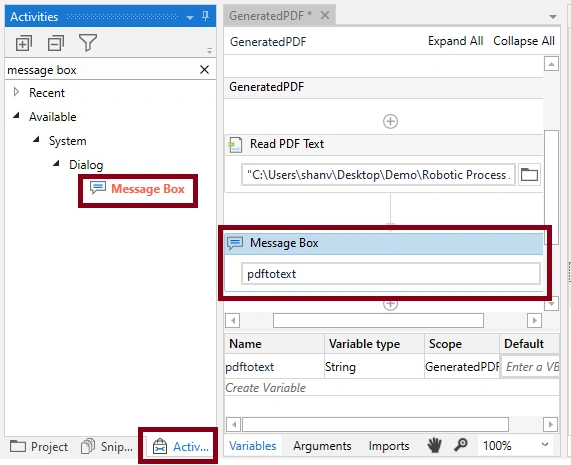

For displaying the result, Click Activities -> search MessageBox activity->Drag and drop into a sequence and set the Text as pdftotext variable:

PDF To Text Automation Using UiPath Studio

Step 5

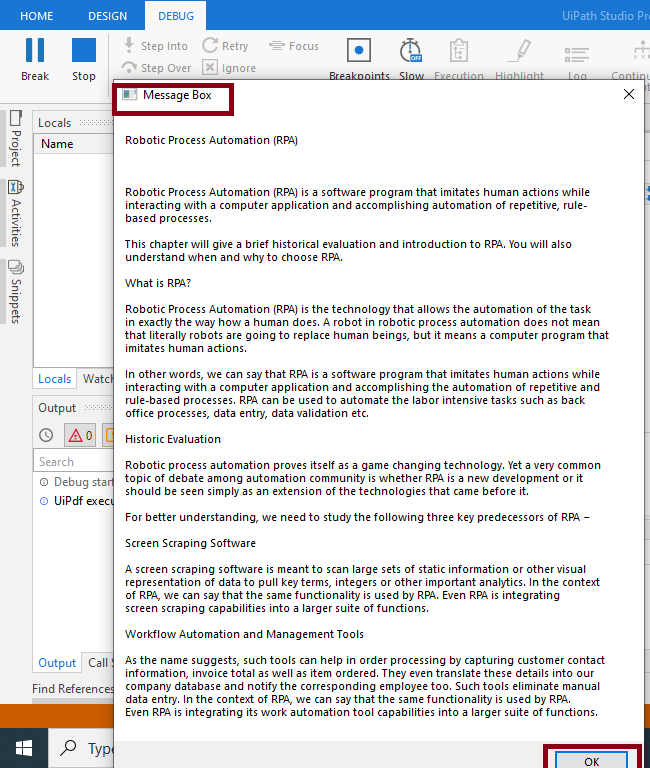

To run your project, Select debug file -> Run, The output of the Uipdf project is:

PDF To Text Automation Using UiPath Studio


Summary


Now you have successfully created and tested a PDF to automation using UiPath Studio.
