Power Automate HTTP Trigger API with Dataverse & Testing via Postman - A Practical Guide

In this article, we’ll walk through a practical implementation of an Employee Records API that accepts employee data and stores it in Dataverse.

Real-World Use Case

Imagine your organization has:

• A website HR form

• An internal onboarding portal

• Or a third-party recruitment system

Whenever a new employee joins, the system must automatically:

• Capture employee details

• Store them in Dataverse

• Return a proper success or failure response

Instead of building a custom backend API, we can expose a secure HTTP endpoint using Power Automate that behaves like a lightweight REST API.

Step - by Step Implementation:

Step 1 – Dataverse Table Preparation

Before building the flow, create a Dataverse table.

Table Name:

Employee Records

Columns Created:

• First Name (Text)

• Last Name (Text)

• Email (Text)

• Company (Text)

Step 2 – Configure HTTP Trigger

Create a new Instant flow and select trigger as: When an HTTP request is received

This trigger converts your flow into a callable API endpoint.

Trigger Option: Who Can Trigger the Flow?

Option	Who Can Call the Flow	Authentication Required	Explantion	Risk Level
Anyone	Any person/system with the URL	No authentication	The flow becomes publicly callable. If someone has the URL, they can trigger it. Suitable for demos or temporary integrations, but not recommended for production without additional validation (like secret keys).	High (URL exposure risk)
Any user in my tenant	Any authenticated user in your Microsoft 365 tenant	Azure AD login required	Only authenticated users within your organization can call the endpoint.	Medium
Specific users in my tenant	Only selected users or service principals	Azure AD + restricted access	Access is restricted to defined users or service principals. This is the safest configuration and recommended for enterprise-grade integrations.	Low (recommended)

Please Note:
1. For testing purpose configuration is set as : Anyone. You can select as per your need.

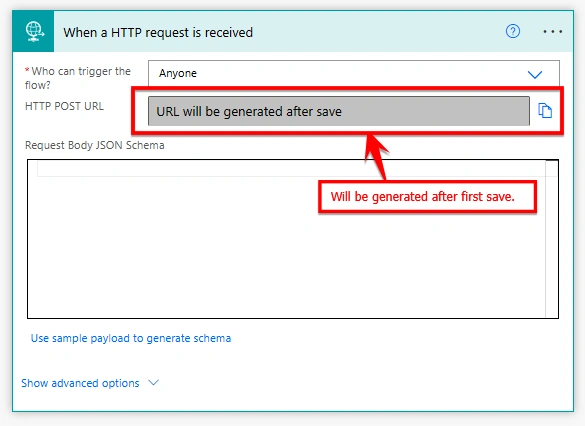

2. Also, you will notice the "HTTP POST URL" is empty. This URL is generated after you save the flow for the first time.

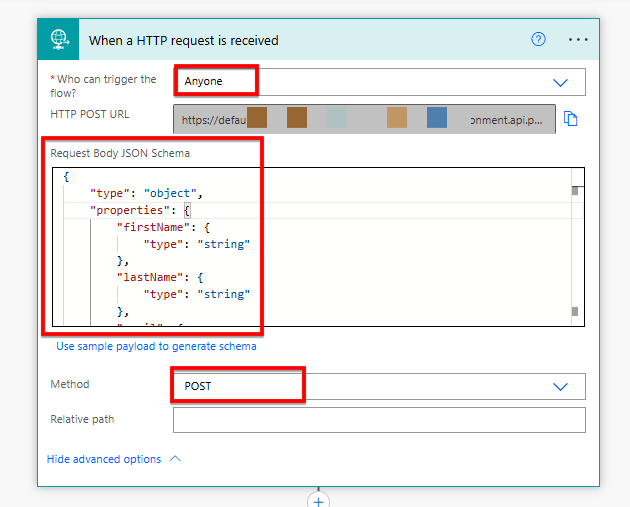

Defining the JSON Schema

configure the schema as:

{
    "type": "object",
    "properties": {
        "firstName": { "type": "string" },
        "lastName": { "type": "string" },
        "email": { "type": "string" },
        "company": { "type": "string" }
    }
}

This schema does three important things:

1. It tells Power Automate how to parse incoming JSON.

2. It enables dynamic content mapping in later steps.

3. It prevents blank payload issues ({ } body problems).

Without a schema, the flow may trigger successfully but the body will be unreadable and Dataverse fields will remain empty. Think of this as defining the input model of your API.

Step 3- Understanding and configuring the HTTP Method Correctly

By default, when sending structured JSON data, the request method must be POST.

Why?

• GET requests are intended for retrieval.

• POST requests are intended for sending structured data.

• Only POST reliably carries a body payload.

Since we are sending employee details, POST is the correct method.

Always ensure:

• Trigger method matches request method.

• If method is changed, copy the regenerated URL.

Method alignment is critical for correct API behavior.

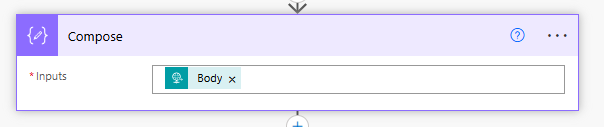

Step 4 – Add Compose (Optional)

You added a Compose action with:

triggerBody()

This is not required for production, but extremely useful for testing.

Why this step is powerful:

• Confirms that body is received

• Helps identify schema or header issues

• Avoids silent Dataverse failures

In integration projects, always validate incoming payload before processing.

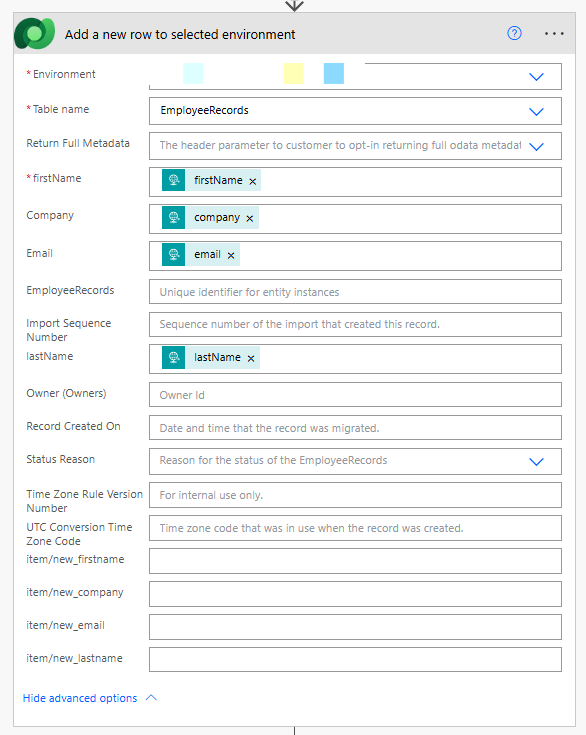

Step 5 – Add New Row in Dataverse

Add action: Add a new row to selected environment

Important Configurations:

1. Select correct Environment

2. Select correct Table (Employee Records)

3. Map fields using Dynamic Content

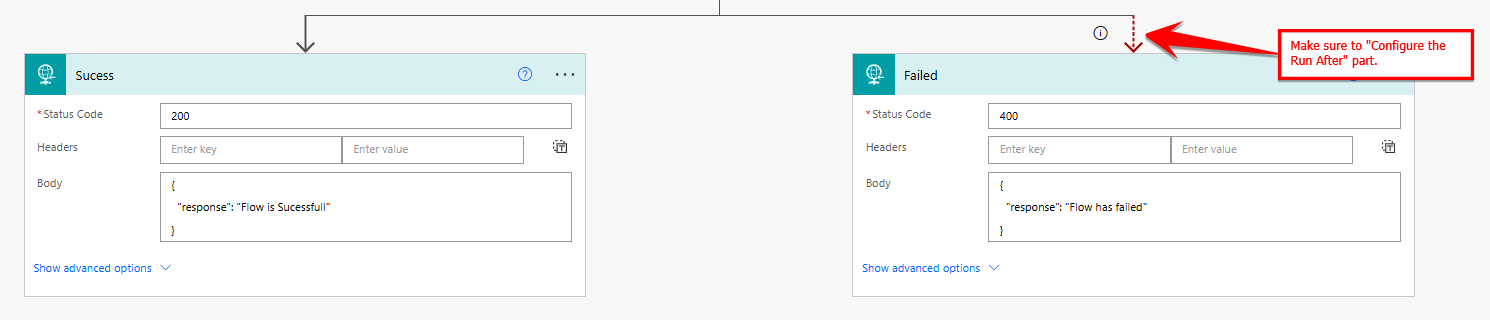

Step 6 – Structuring API Responses

To make the flow behave like a proper API, structured responses are configured.

Success Response with Status Code: 200

{
  "response": "Flow is successful"
}

This confirms:

• Record successfully inserted

• Request processed correctly

Failure Response with Status Code: 400

{
  "response": "Flow has failed"
}

This indicates:

• Bad request

• Validation failed

• Required data missing

Returning proper HTTP status codes transforms your flow from simple automation into a standards-compliant API endpoint.

HTTP Status Codes communicate API state clearly as:

Code	Meaning
200	Success
400	Client Error
401	Unauthorized
500	Server Error

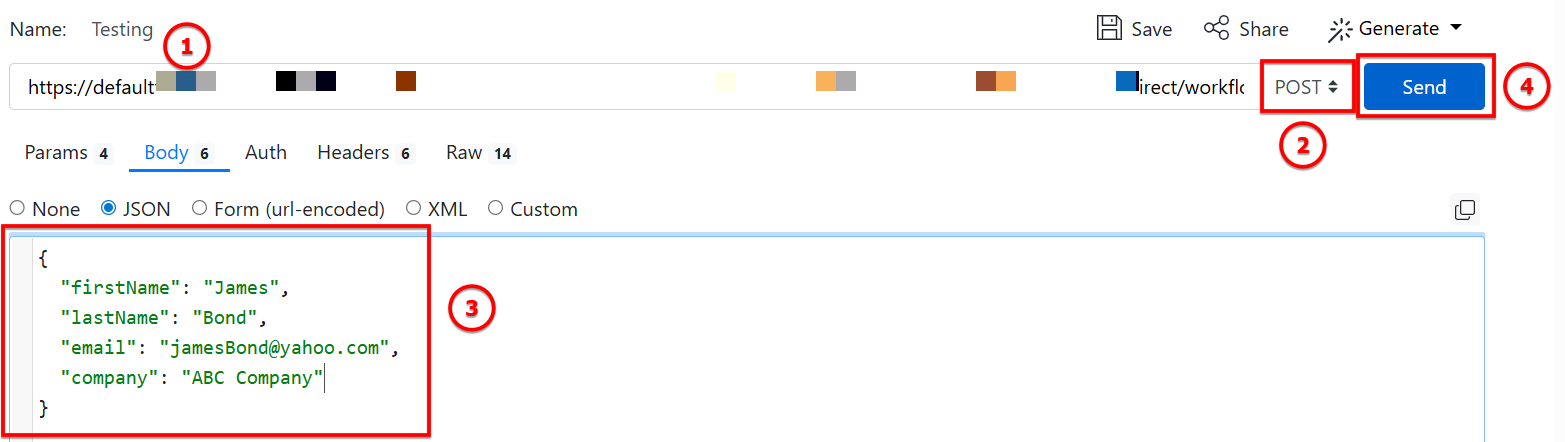

Step 7 – Testing via Postman

Configuration used:

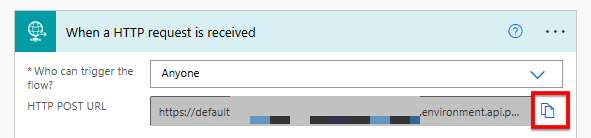

1. URL : Copy the trigger URL generated and paste it in Postman.

2. Method: POST

3. Body (raw JSON):

{
  "firstName": "James",
  "lastName": "Bond",
  "email": "[email protected]",
  "company": "ABC Company"
}

4. Click "Send".

If everything works correctly:

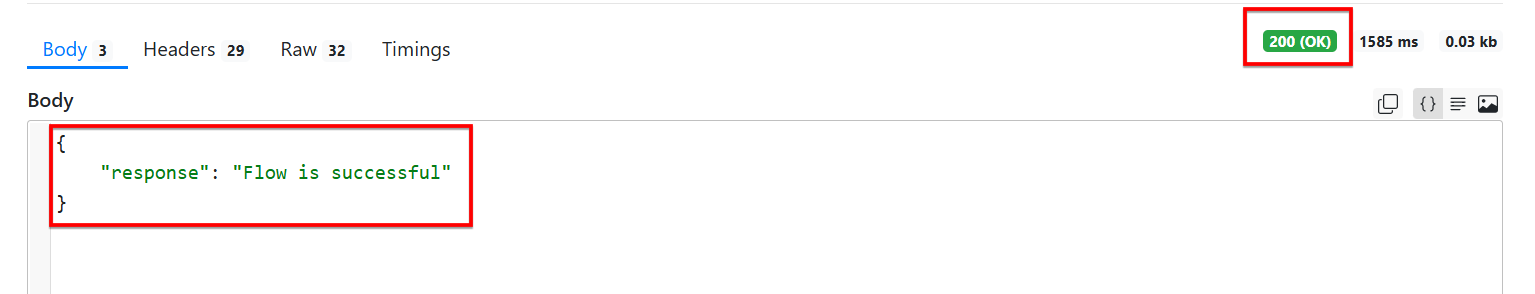

You’ll receive:

{
  "response": "Flow is successful"
}

Status: 200 OK.

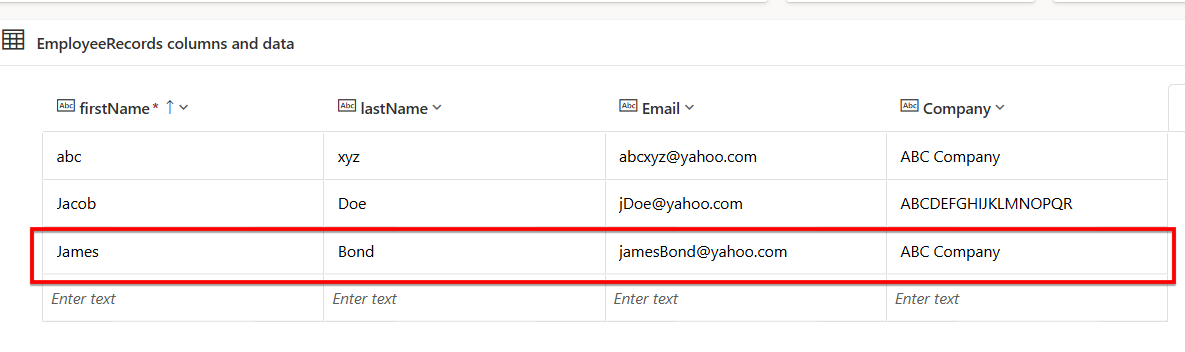

And a new record will be created in Dataverse : Employee Records Table.

Pro Tips for Developers

1. Security is Key

By default, if “Anyone” is allowed to trigger the flow, anyone with the URL can invoke it.

For production scenarios:

• Use Trigger Conditions to validate a secret key from request headers.

• Require Azure AD authentication.

• Place API Management (APIM) in front of the flow.

• Never expose anonymous endpoints without validation logic.

Security must be designed — not assumed.

2. Method Matters

POST is the standard method for structured payloads.

If you need to handle GET requests:

• Change the method in the trigger’s Advanced Settings.

• Remove body-dependent logic.

• Pass parameters via query string instead.

Always design method usage intentionally.

3. Use the Async Pattern for Long-Running Flows

If your flow includes:

• Complex approvals

• External system calls

• Long processing steps

Do not keep the client (external server) waiting.

Instead:

1. Immediately return a 202 or 200 response like:
   "Request received"

2. Process the logic asynchronously.

Alternatively:
Enable the Asynchronous Response setting in the trigger.

This prevents timeouts and improves integration reliability.

4. Consider Logging

For production-grade APIs, create a separate logging table:

Store:

• Request body

• Timestamp

• Response code

• Error message (if any)

This reduces debugging time when integrations fail.

Conclusion

Power Automate, when used with HTTP triggers and structured responses, becomes:

• A lightweight API layer

• An integration middleware

• A secure entry point into Dataverse

With proper schema definition, method alignment, response handling, and security considerations, you can confidently use Power Automate as a low-code backend service.
