Programmatically create web part for mobile in SharePoint2010

3. Create the mobile (adapter) version of our web part

To add web part to the mobile version of the site we must provide SharePoint with a mobile optimized version of our web part. We do this by adding a new class. Microsoft calls this class an adapter.

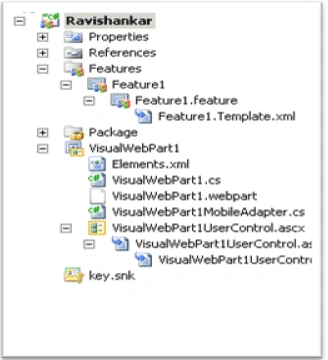

Add a new class and name it "VisualWebPart1MobileAdapter.cs". Note that we added the name of our web part in front and added the text "MobileAdapter" at the end.

Microsoft recommends using the namespace "SharePoint. WebPartPages.MobileAdapters" so modify the namespace to use "Ravishankar.SharePoint.WebPartPages .MobileAdapters".

Our class should inherit the "WebPartMobileAdapter" class.

The adapter does not use the "OnLoad" event. Instead it uses the "CreateControlsForSummaryView" to render. Override this class and add the following code:

namespace Ravishankar.SharePoint.WebPartPages.MobileAdapters
{
public class VisualWebPart1MobileAdapter : WebPartMobileAdapter
{
TextBox txt;
Label latest;
Button btn;
protected override void CreateControlsForSummaryView()
{
//base.CreateControlsForSummaryView();
StringBuilder strDiv = new StringBuilder();
Literal heading = new Literal();
Literal litHello = new Literal();
txt = new TextBox();
btn = new Button();
latest = new Label();
btn.Text = "Enter";
btn.Click += new EventHandler(btn_Click);
heading.Text = "Hello,You are in Mobile now<BR/>";
litHello.Text = "Enter value: ";
Controls.Add(heading);
Controls.Add(litHello);
Controls.Add(txt);
Controls.Add(btn);
Controls.Add(latest);
}

protected void btn_Click(object sender, EventArgs e)
{
latest.Text = "<BR/><strong>Your entered value is: " + txt.Text + "</strong>";
}
}
}

4. Add the adapter to the safe controls

Open the web.config file of SharePoint IIS site (example: C:\inetpub\wwwroot\wss\VirtualDirectories\80) and add the line below into the safe controls section. Replace the PublicKeyToken with your own key!

<SafeControl Assembly="Ravishankar, Version=1.0.0.0, Culture=neutral, PublicKeyToken=d33553c133c4f434" Namespace="Ravishankar.VisualWebPart1" TypeName="*" Safe="True" SafeAgainstScript="False" />

5. Configure the compat.browser file to use our mobile web part

Inside SharePoint IIS directory you will see a directory "App_Browsers" and inside that directory is a file called "compat.browser". Load this file in the editor.

At the top of this file you will find a "<controlAdapters>" section. Add the line below to this section:

<adapter controlType="Ravishankar.VisualWebPart1.VisualWebPart1, Ravishankar, Version=1.0.0.0, Culture=neutral, PublicKeyToken=d33553c133c4f434" adapterType=" Ravishankar.SharePoint.WebPartPages.MobileAdapters.VisualWebPart1MobileAdapter, Ravishankar, Version=1.0.0.0, Culture=neutral, PublicKeyToken=d33553c133c4f434" />

Again, replace the PublicKeyToken with your own key! Save the configuration and exit the file.

6. Build the project, Add web part to the page

We finished the required steps to provide SharePoint with a web part that is optimized for the mobile page. Build the project and deploy. Add the web part in your page

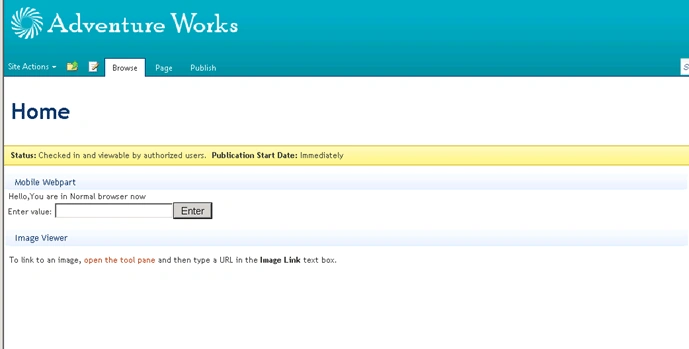

Web Page Preview:

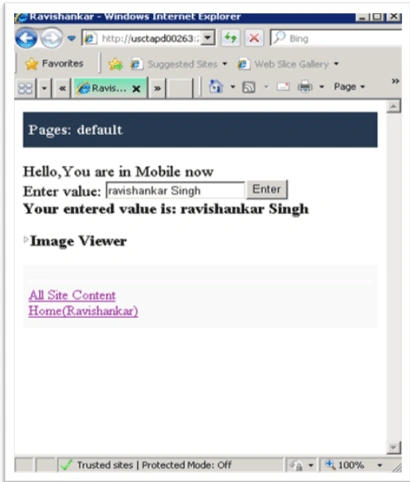

Mobile View:



To view the web site in mobile view, type a "?mobile=1" after the normal site url. For example: "http://localhost/pages/default.aspx?mobile=1".

And that's it. Enjoy!
