Introduction

In my previous article "Creating a Simple Bot Application using Microsoft Bot Framework", I explained how can we create a very simple Bot application using Microsoft Bot Framework.

In this article I will create a very simple real time Bot Application using Microsoft Bot Framework, that is Stock Bot. In this application I will use Yahoo's Finance API. I will pass a stock symbol as a message and I will get the current stock value of that particular company symbol.

Let's start step by step:

Step 1: Firstly, create a Bot Application,

Step 2: Create a class in your project with any name. I am giving Name as Yahoo Bot Application and writing the following code inside it.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Threading.Tasks;
using System.Web;
namespace StockBot2
{
public class YahooBot
{
public static async Task<double?> GetStockRateAsync(string StockSymbol)
{
try
{
string ServiceURL = $"http://finance.yahoo.com/d/quotes.csv?s={StockSymbol}&f=sl1d1nd";
string ResultInCSV;
using (WebClient client = new WebClient())
{
ResultInCSV = await client.DownloadStringTaskAsync(ServiceURL).ConfigureAwait(false);
}
var FirstLine = ResultInCSV.Split('\n')[0];
var Price = FirstLine.Split(',')[1];
if (Price != null && Price.Length >= 0)
{
double result;
if (double.TryParse(Price, out result))
{
return result;
}
}
return null;
}
catch (WebException ex)
{
//handle your exception here
throw ex;
}
}
}
}

In the above code you can see a function that is GetStockRateAsync, which takes a StockSymbol as a parameter. I am calling Yahoo Finance API, where I will pass that symbol and that will return a CSV file of stock market rate, and I am splitting CSV File by comma because CSV File means Comma Separated Value. So, I am splitting by comma(,) and getting current price of that stock. Then I am converting it into double because of course our stock rate will be in double and returning current price.

Step 3: Now in MessagesController create a class that will call this above function., so I am creating a GetStock function in My MessageController class.

GetStock function's Code

private async Task<string> GetStock(string StockSymbol)
{
double? dblStockValue = await YahooBot.GetStockRateAsync(StockSymbol);
if(dblStockValue==null)
{
return string.Format("This \"{0}\" is not an valid stock symbol",StockSymbol);
}
else
{
return string.Format("Stock : {0}\n Price : {1}",StockSymbol,dblStockValue);
}
}

In above code you can see I am calling my GetStockRateAsync function that will return a nullable double. I am checking whether that stock value is null or not.

According to stock value I am returning appropriate string.

Step 4: Calling GetStock function from Post action of MessagesController.

Post Action's Code in MessagesController

public async Task<Message> Post([FromBody]Message message)
{
if (message.Type == "Message")
{
string StockRateString = await GetStock(message.Text);
// return our reply to the user
return message.CreateReplyMessage(StockRateString);
}
else
{
return HandleSystemMessage(message);
}
}

In above code you can see when a user will send a message that will be nothing but a symbol, GetStock function will be called and will return an appropriate message as a reply message.

Step 5: Run the project and simulate in Bot Framework Simulator.

Output:

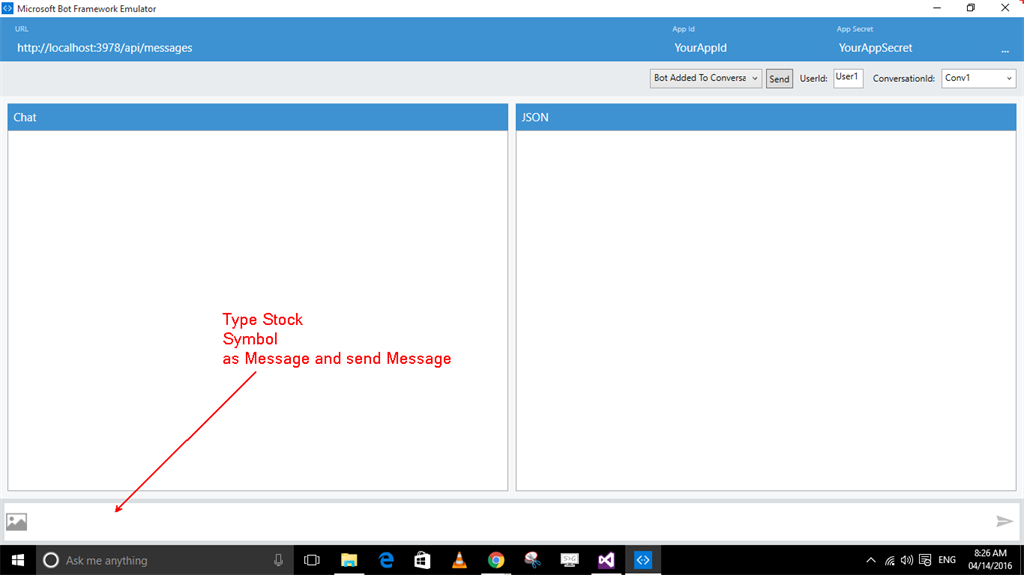

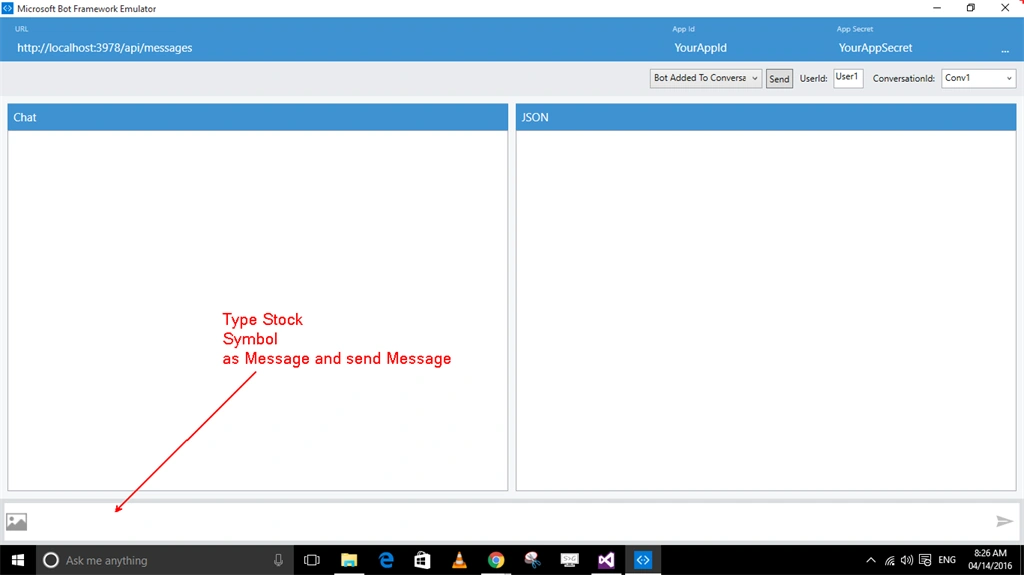

Initial Simulator Window

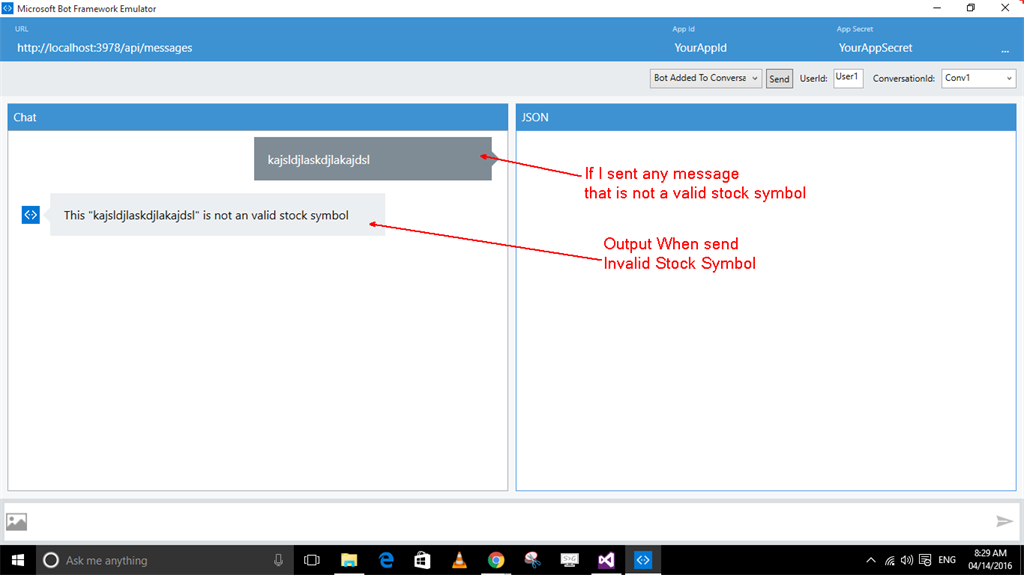

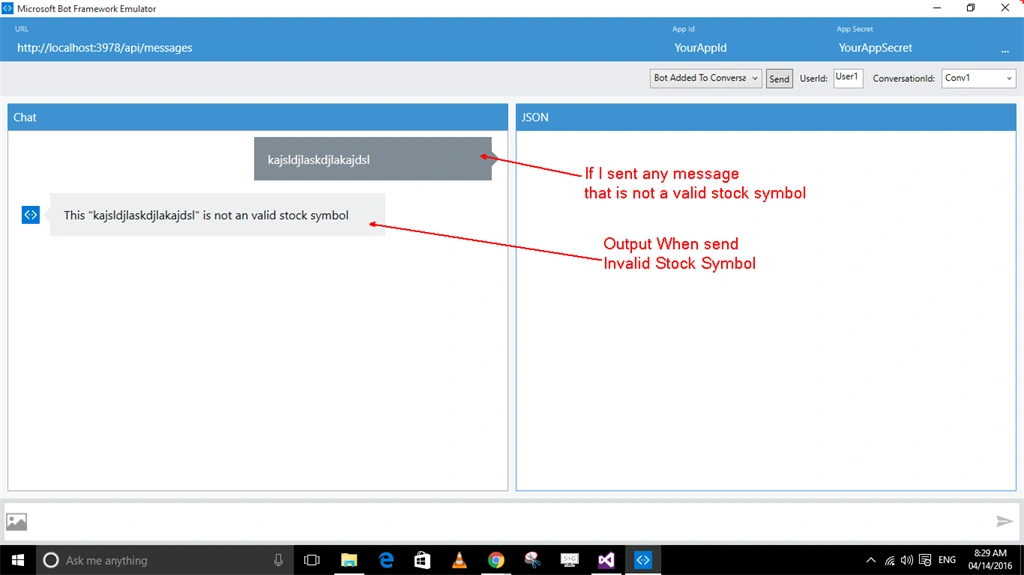

If I send invalid input stock symbol

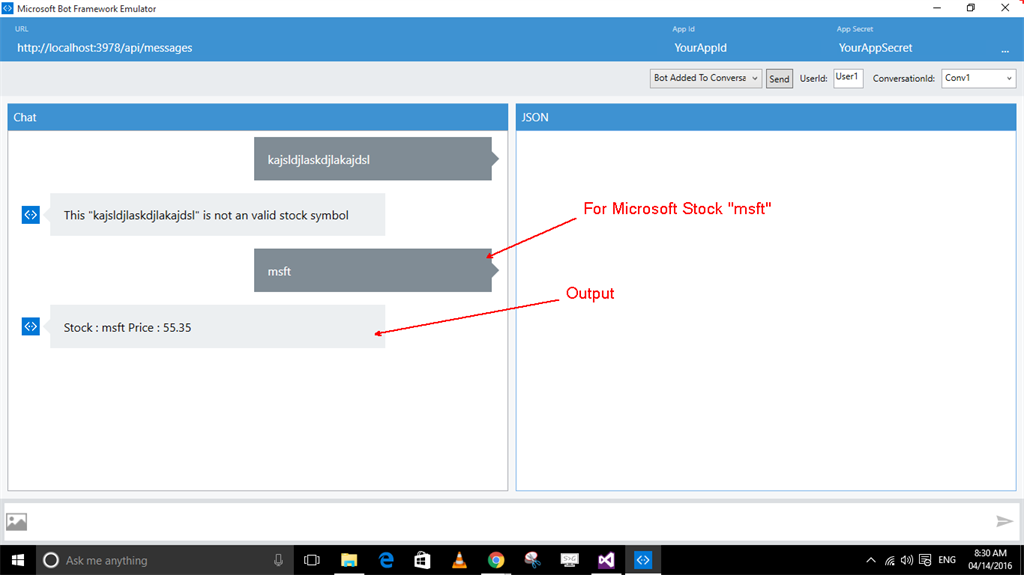

For Microsoft stock:

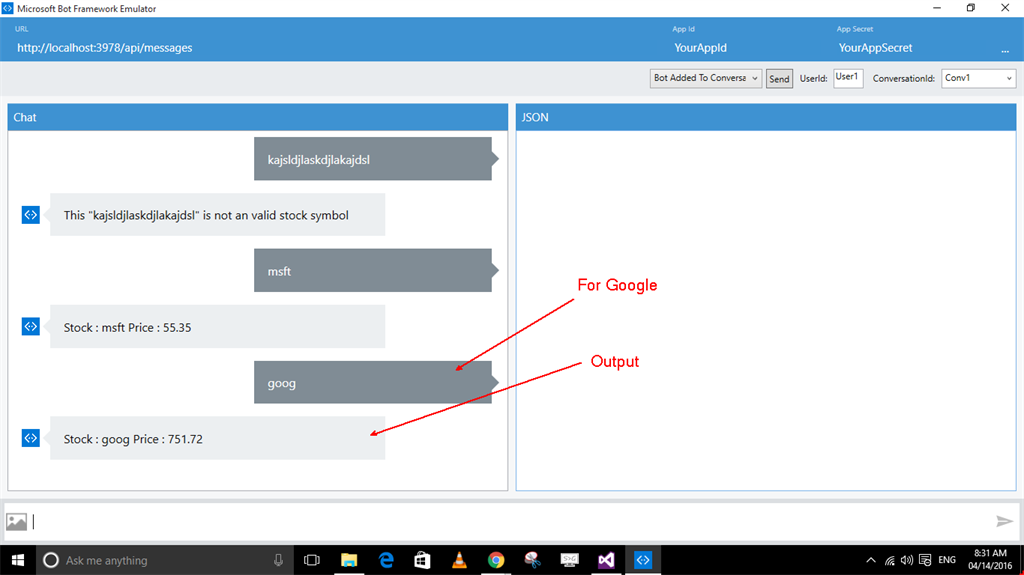

For Google stock:

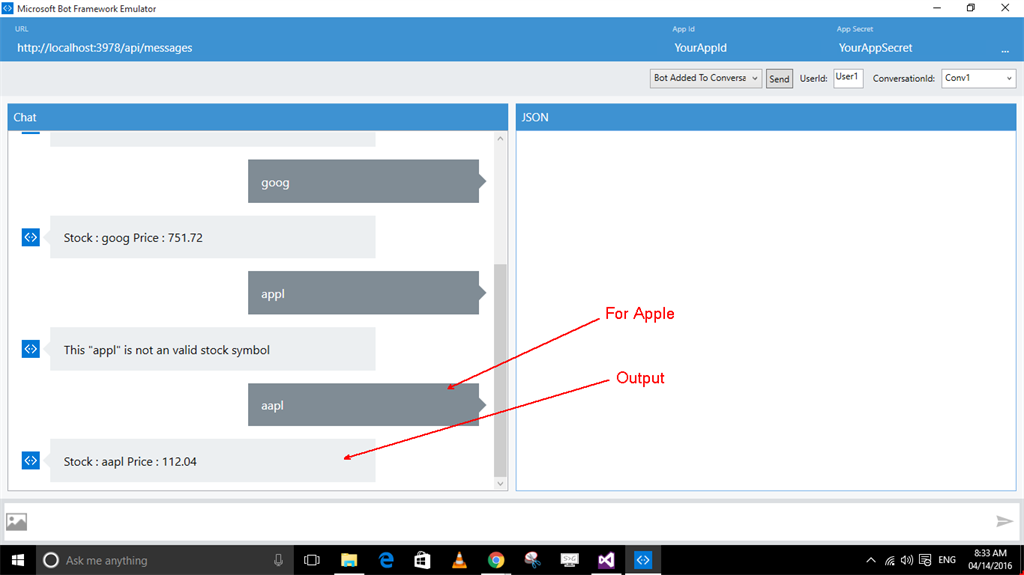

For Apple Stock:

Conclusion: In this article we have created a very simple bot application that will take stock symbol as an Input and send an auto reply message of that particular stock rate.
