Reverse Geo Coding Using Google Maps API In Power Query

In this article, you will learn how to reverse Geo coding using Google Maps API in Power query.

Overview


I work in a safety team, where I am working on a report for safety analysis.

Our technicians have to fill pre-start forms before starting any work. My aim is to create Site location (work location) vs Record Location (GPS location when the form is completed) report.

It is important as we want to confirm if technicians are filling and completing the forms on Site Location.

When technicians submit their form, GPS location coordinates are saved automatically. My aim is to get the address out of the coordinates.

I am going to use Excel Power query (M-quey), google maps API to get the location from coordinates.

Below is the table that I am going to use for generating Site Location vs GPS Record location to know from where the form is submitted.

Below is the format of Record Location that I get from the system. I used Excel formulas to get Lat and Long.

Reverse Geo Coding Using Google Maps API In Power Query

I have used Reversed Geocoding in Google maps API to get an address. For using Google Maps Api we need API key.


The first step is to get data in Data table, select the entire table and name the table.

Reverse Geo Coding Using Google Maps API In Power Query

Name the table and click Ok

Reverse Geo Coding Using Google Maps API In Power Query

Click on Data tab and click From Table

Reverse Geo Coding Using Google Maps API In Power Query

Below is the table that we get, click on Advanced editor.

Reverse Geo Coding Using Google Maps API In Power Query

Click close and load, you can see the Data table under workbook queries in the right hand side.

Reverse Geo Coding Using Google Maps API In Power Query

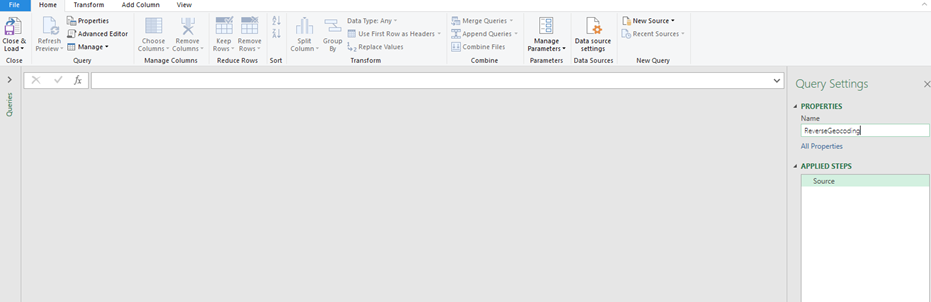

Click on Data Tab, click From other Sources => Blank query, in this query we are going to get Location from coordinates using Reverse Geocoding.

Reverse Geo Coding Using Google Maps API In Power Query

Click on Advanced editor, and paste the below code.
  1. let
  2. Source1 = Excel.CurrentWorkbook(){[Name="Table1"]}[Content],
  3. #"Changed Type1" = Table.TransformColumnTypes(Source,{{"Address", type text}, {"Record Location", type text}, {"Lat", type text}, {"Long", type text}}),
  4. get_geo = (lat as text, lng as text) =>
  5. let
  6. Source = Json.Document(Web.Contents("https://maps.googleapis.com/maps/api/geocode/json?latlng="&lat&","&lng&"&key=APIKey")),
  7. results = Source[results],
  8. #"Converted to Table" = Table.FromList(results, Splitter.SplitByNothing(), null, null, ExtraValues.Error),
  9. #"Expanded Column1" = Table.ExpandRecordColumn(#"Converted to Table", "Column1", {"formatted_address", "types"}, {"Column1.formatted_address", "Column1.types"}),
  10. #"Expanded Column1.types" = Table.ExpandListColumn(#"Expanded Column1", "Column1.types"),
  11. #"Filtered Rows" = Table.SelectRows(#"Expanded Column1.types", each ([Column1.types] = "street_address") or ([Column1.types] = "establishment")
  12. or ([Column1.types] = "Locality") or ([Column1.types] = "route")),
  13. #"Transposed Table" = Table.Transpose(#"Filtered Rows"),
  14. #"Reversed Rows" = Table.ReverseRows(#"Transposed Table"),
  15. #"Promoted Headers" = Table.PromoteHeaders(#"Reversed Rows", [PromoteAllScalars=true])
  16. in
  17. #"Promoted Headers"
  18. in
  19. get_geo
Reverse Geo Coding Using Google Maps API In Power Query

Click Done.

Reverse Geo Coding Using Google Maps API In Power Query

Now you can see two queries, one for the table and other query is a function for Reverse Geocoding.

Click on JSADataTable.

Reverse Geo Coding Using Google Maps API In Power Query

Make sure you convert Data type of Lat and Long column to Text

Reverse Geo Coding Using Google Maps API In Power Query

Click on Invoke Custom Function.

Reverse Geo Coding Using Google Maps API In Power Query
Click Ok.

Now expand Table, and select all options.

Reverse Geo Coding Using Google Maps API In Power Query

Click Ok, below is the list of columns that we just added to the table.

Reverse Geo Coding Using Google Maps API In Power Query

If you want to move columns, you could do that as shown below.

Reverse Geo Coding Using Google Maps API In Power Query

Click home, and Save and Load to a sheet you want.

Reverse Geo Coding Using Google Maps API In Power Query

Note
I am using the free version of Google Maps.
