Introduction

This article shows how to select data using Entity Framework in WPF applications.

Create a WPF application as in Figure 1.

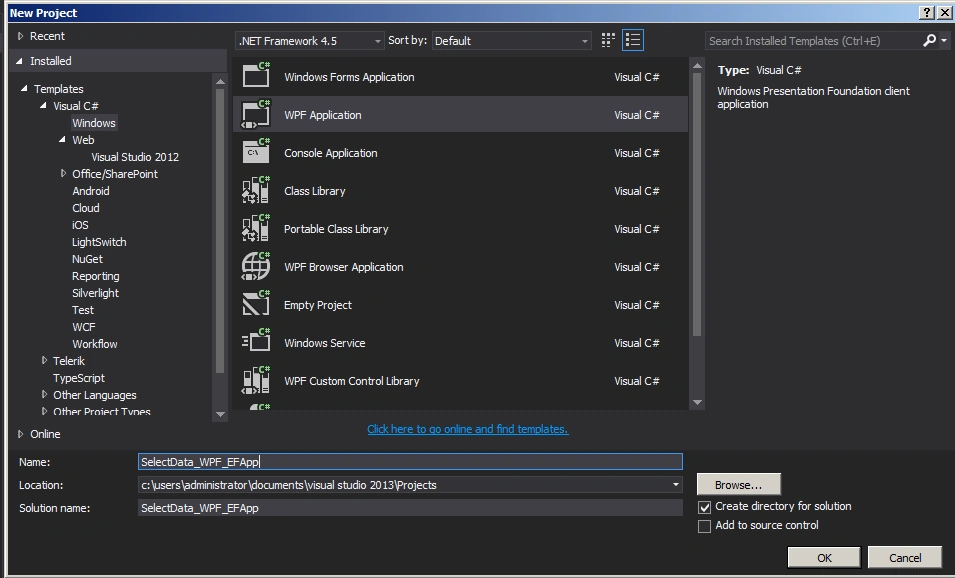

Figure 1: Create WPF application

Add Entity Framework to the project as in Figures 2, 3, 4, 5, 6 and 7.

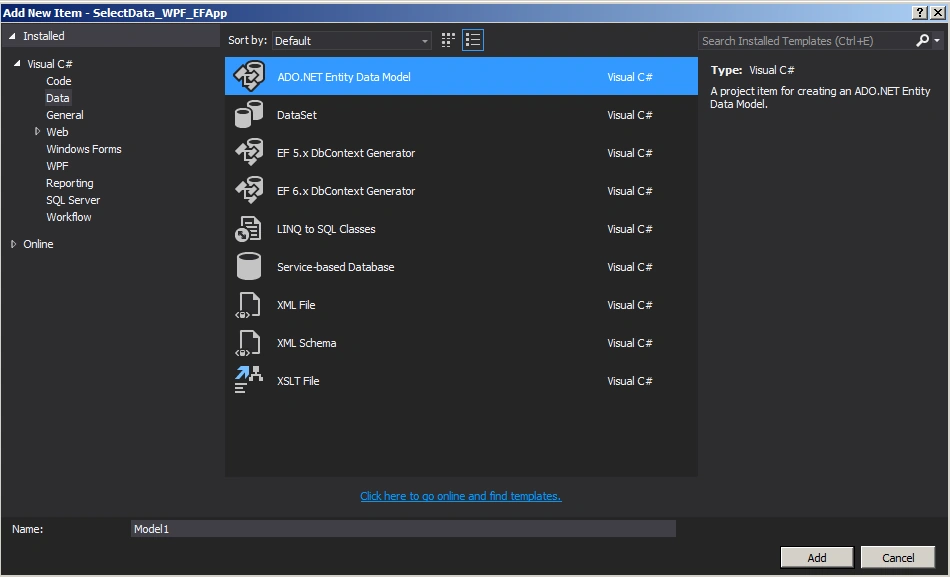

Figure 2: Add Entity Framework

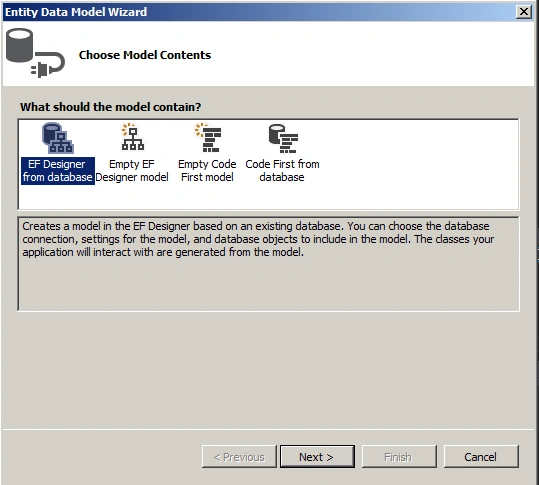

Figure 3: Entity Data Model wizard

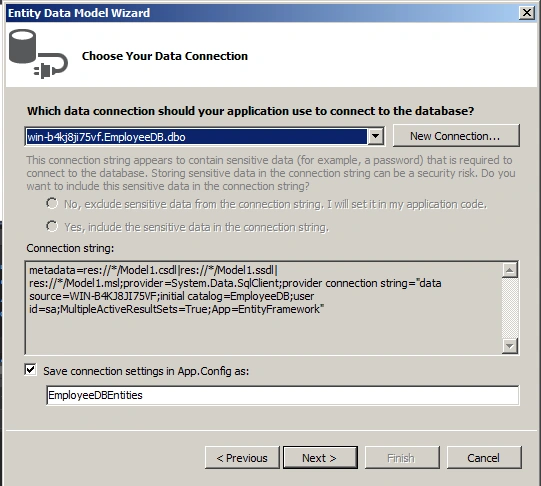

Figure 4: Choose connection

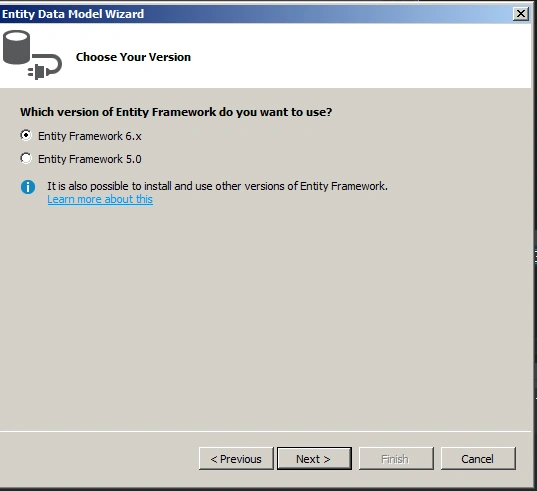

Figure 5: Choose Entity Framework version

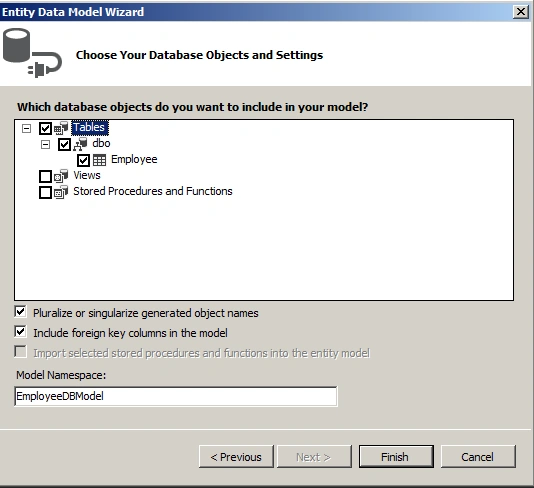

Figure 6: Choose database object

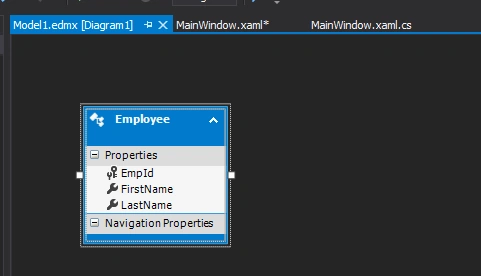

Figure 7: Model designer

MainWindow.xaml
  1. <Window x:Class="SelectData_WPF_EFApp.MainWindow"
  2. xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  3. xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  4. Title="MainWindow"
  5. Width="735.448"
  6. Height="350"
  7. Loaded="Window_Loaded">
  8. <DataGrid x:Name="dgEmployee"
  9. Width="221"
  10. Margin="242,47,0,0"
  11. HorizontalAlignment="Left"
  12. VerticalAlignment="Top"
  13. AutoGenerateColumns="False"
  14. CanUserAddRows="False"
  15. ColumnWidth="*">
  16. <DataGrid.Columns>
  17. <DataGridTextColumn x:Name="dgrEmpId"
  18. Binding="{Binding EmpId}"
  19. Header="EmpId"
  20. IsReadOnly="True" />
  21. <DataGridTextColumn x:Name="dgrFirstName"
  22. Binding="{Binding FirstName}"
  23. Header="FirstName"
  24. IsReadOnly="True" />
  25. <DataGridTextColumn x:Name="dgrLastName"
  26. Binding="{Binding LastName}"
  27. Header="LastName"
  28. IsReadOnly="True" />
  29. </DataGrid.Columns>
  30. </DataGrid>
  31. </Window>

MainWindow.xaml.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using System.Windows;
  7. using System.Windows.Controls;
  8. using System.Windows.Data;
  9. using System.Windows.Documents;
  10. using System.Windows.Input;
  11. using System.Windows.Media;
  12. using System.Windows.Media.Imaging;
  13. using System.Windows.Navigation;
  14. using System.Windows.Shapes;
  16. namespace SelectData_WPF_EFApp
  17. {
  18. /// <summary>
  19. /// Interaction logic for MainWindow.xaml
  20. /// </summary>
  21. public partial class MainWindow : Window
  22. {
  23. public MainWindow()
  24. {
  25. InitializeComponent();
  26. }
  28. private void Window_Loaded(object sender, RoutedEventArgs e)
  29. {
  30. dgEmployee.ItemsSource = objEmployeeEntities.Employees.ToList();
  31. }
  33. EmployeeDBEntities objEmployeeEntities = new EmployeeDBEntities();
  34. }
  35. }

The output of the application is as in Figure 8.

Output of the application
Figure 8: Output of the application

Summary

In this article we saw how to select data using Entity Framework in WPF applications.
