Introduction

This article shows how to select data using LINQ to SQL in WPF applications.

Create a WPF application as in Figure 1.

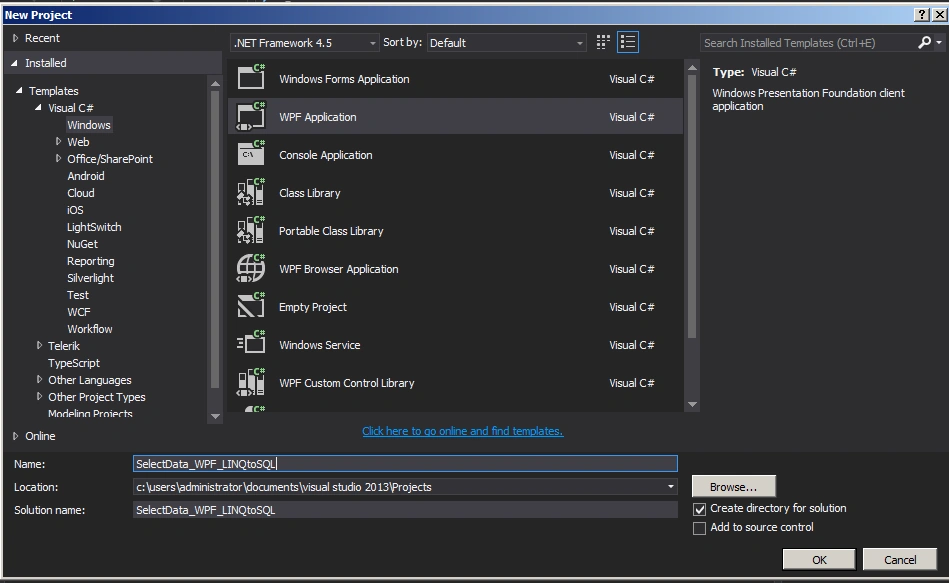

Figure 1: Create WPF application

Add LINQ to SQL classes to the project as in Figures 2 and 3.

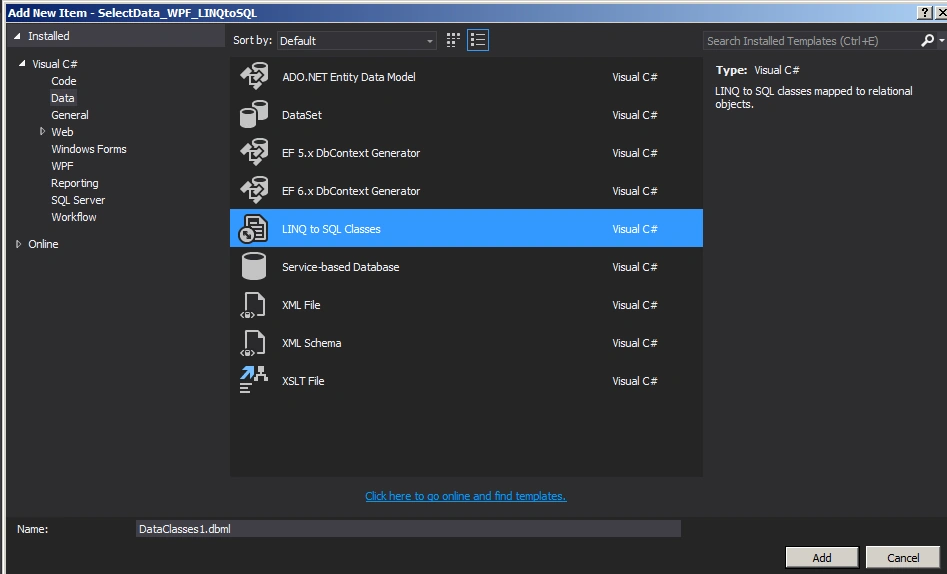

Figure 2: Add LINQ to SQL

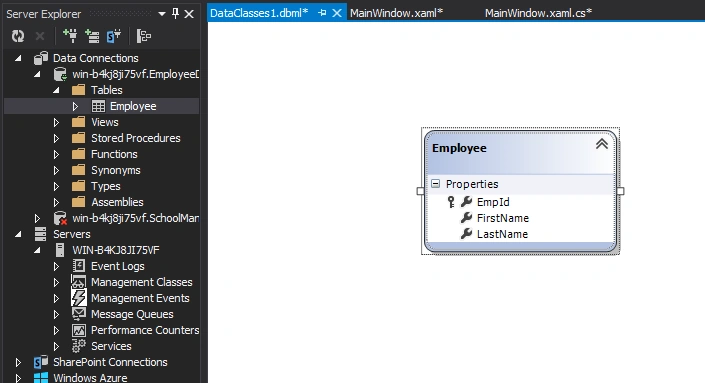

Figure 3: Choose database objects

MainWindow.xaml

  1. <Window x:Class="SelectData_WPF_LINQtoSQL.MainWindow"
  2. xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  3. xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  4. Title="MainWindow"
  5. Width="525"
  6. Height="350"
  7. Loaded="Window_Loaded">
  8. <Grid>
  9. <DataGrid x:Name="dgEmployee"
  10. Width="267"
  11. Margin="118,47,0,0"
  12. HorizontalAlignment="Left"
  13. VerticalAlignment="Top"
  14. AutoGenerateColumns="False"
  15. CanUserAddRows="False"
  16. ColumnWidth="*">
  17. <DataGrid.Columns>
  18. <DataGridTextColumn x:Name="dgrEmpId"
  19. Binding="{Binding EmpId}"
  20. Header="EmpId"
  21. IsReadOnly="True" />
  22. <DataGridTextColumn x:Name="dgrFirstName"
  23. Binding="{Binding FirstName}"
  24. Header="FirstName"
  25. IsReadOnly="True" />
  26. <DataGridTextColumn x:Name="dgrLastName"
  27. Binding="{Binding LastName}"
  28. Header="LastName"
  29. IsReadOnly="True" />
  30. </DataGrid.Columns>
  31. </DataGrid>
  32. </Grid>
  33. </Window>

MainWindow.xaml.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using System.Windows;
  7. using System.Windows.Controls;
  8. using System.Windows.Data;
  9. using System.Windows.Documents;
  10. using System.Windows.Input;
  11. using System.Windows.Media;
  12. using System.Windows.Media.Imaging;
  13. using System.Windows.Navigation;
  14. using System.Windows.Shapes;
  16. namespace SelectData_WPF_LINQtoSQL
  17. {
  18. /// <summary>
  19. /// Interaction logic for MainWindow.xaml
  20. /// </summary>
  21. public partial class MainWindow : Window
  22. {
  23. public MainWindow()
  24. {
  25. InitializeComponent();
  26. }
  28. private void Window_Loaded(object sender, RoutedEventArgs e)
  29. {
  30. dgEmployee.ItemsSource = objContext.Employees.ToList();
  31. }
  33. DataClasses1DataContext objContext = new DataClasses1DataContext();
  34. }
  35. }

The output of the application is as in Figure 4.


Figure 4: Output of the application

Summary

In this article we saw how to select data using LINQ to SQL in WPF applications.
