Selenium WebDriver Overview

What is Selenium WebDriver?

Selenium WebDriver is a powerful tool used for automating web application testing. It allows you to simulate user interactions with a web browser, such as clicking buttons, entering text, and navigating pages.

Key Features

  • Browser Automation: Supports major browsers like Chrome, Firefox, Edge, and Safari.
  • Language Support: Works with Java, Python, C#, Ruby, JavaScript, etc.
  • Cross-Platform: Runs on Windows, macOS, and Linux.
  • Integration Friendly: Easily integrates with frameworks like TestNG, JUnit, NUnit, and CI/CD tools like Jenkins.

Core Components

  • WebDriver Interface: Defines methods for browser actions (e.g., get(), click(), sendKeys()).
  • Browser Drivers: Each browser has its driver (e.g., chromedriver, geckodriver) that translates WebDriver commands into browser-specific actions.
  • Locators: Used to find elements on a page (e.g., by ID, name, XPath, CSS selector).
  • Waits: Handles synchronization issues using Implicit Wait, Explicit Wait, and Fluent Wait.

Basic Example in Java

WebDriver driver = new ChromeDriver();
driver.get("https://example.com");
WebElement loginButton = driver.findElement(By.id("login"));
loginButton.click();

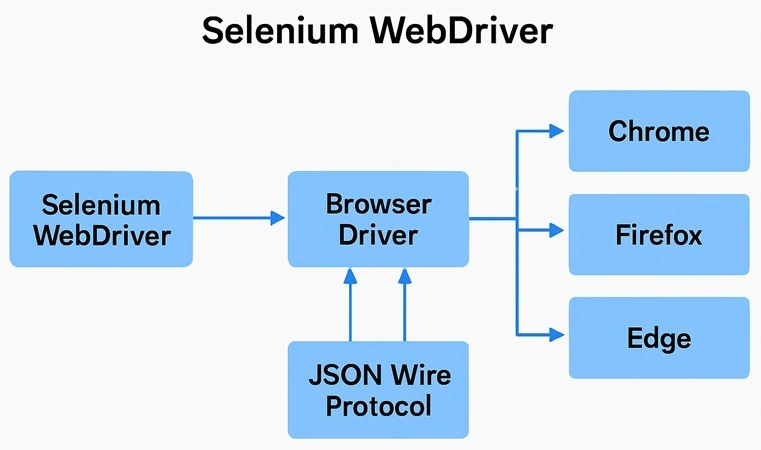

Selenium WebDriver Architecture

Selenium WebDriver

Architecture Components

  • Test Script (Client Layer): Written in languages like Java, Python, C#, etc. Uses WebDriver APIs to send commands.
  • Selenium WebDriver API: Provides a programming interface to interact with browsers. Converts test commands into a format understood by the browser driver.
  • Browser Driver (Server Layer): Each browser has its driver (e.g., ChromeDriver, GeckoDriver). Acts as a bridge between the WebDriver API and the browser.
  • Browser: The actual browser (Chrome, Firefox, Edge, etc.) where the test is executed.
  • Web Application Under Test (AUT): The target application being tested.

Flow of Execution

  1. Test script sends a command (e.g., click()) via WebDriver API.
  2. WebDriver API forwards the command to the browser-specific driver.
  3. The driver communicates with the browser using HTTP.
  4. The browser acts and sends the response back.

The driver returns the result to the test script.

Advanced Capabilities

  • Handling Alerts, Frames, and Windows
  • Taking Screenshots
  • Executing JavaScript
  • Headless Testing
  • Parallel Execution with Selenium Grid
