SharePoint Developer Tools - How To Test And Debug SharePoint Rest API Endpoints (Get Requests)

In this article, we will understand how to utilize a famous developer productivity tool called Fiddler as REST API Test Client for SharePoint (though the target system could be anything with a valid REST API Endpoint).

Fiddler is primarily used as a Web Proxy that can allow you intercept REST API Request-Response Cycle. The usage of this tool has increased with the shift in modern SharePoint development paradigms that favors more the Client-Side Development Techniques/Strategies/Platforms rather than traditional Farm Solutions.

In this upcoming section of this article, I will guide on how to use Fiddler to test REST API Call against SharePoint Data.

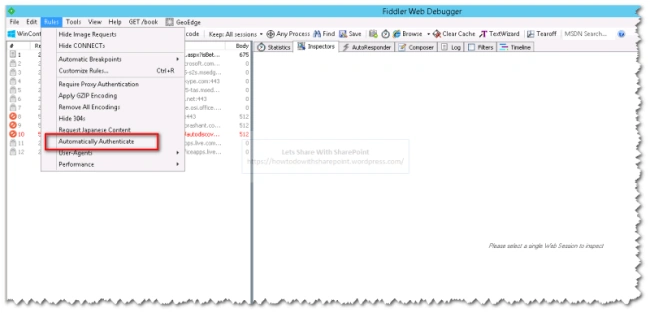

In this article, we will explore GET type of requests only. To start with this demo, launch Fiddler and go to  the “Rules” menu and select “Automatically Authenticate”. This will let Fiddler authenticate you against SharePoint based on the User Token stored once.

SharePoint

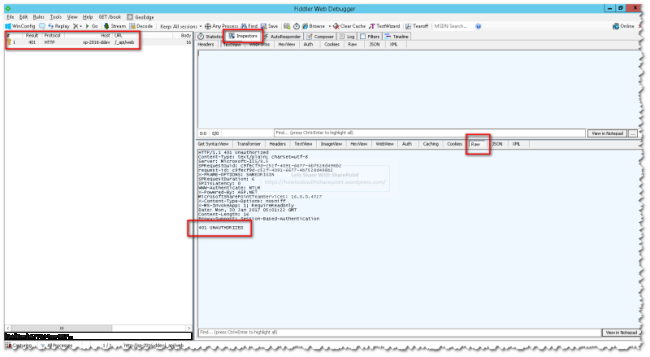

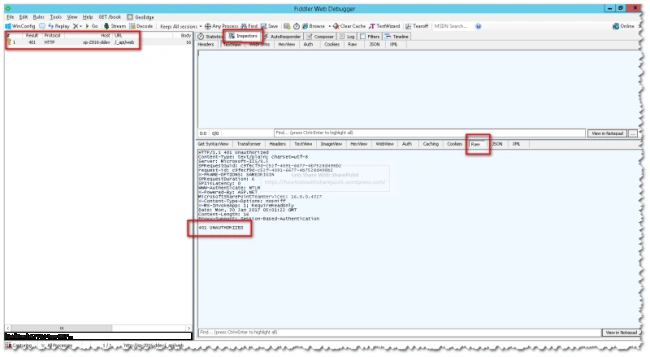

If this setting is not enabled, you might encounter “401 UNAUTHORIZED” as shown below.

SharePoint

Also, notice the request headers that are required to execute the SharePoint REST API Endpoint.

GET Requests http://<Host Name>/_api/<SharePoint Endpoint>

Request Headers accept: application/json;odata=verbose Content-Type: application/json;odata=verbose

Get Web Object
http://<Host Name>/_api/web

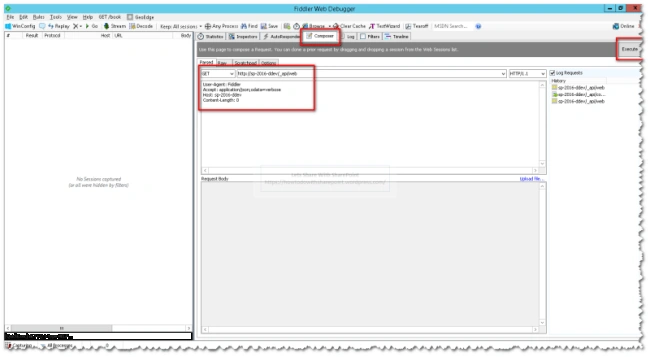

  • Click on “Compose” Tab.
  • Select request type as “GET” from the dropdown.
  • Specify the Request URL as http://<Host Name>/_api/web.
  • Click on “Execute” button.

SharePoint

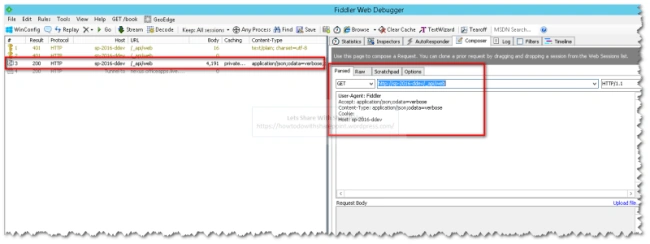

Once the request is issued using Fiddler “Composer“, we can see the request details in the left pane.

SharePoint

When you click on the request in the left pane, you see the details breakdown in the right-side pane.

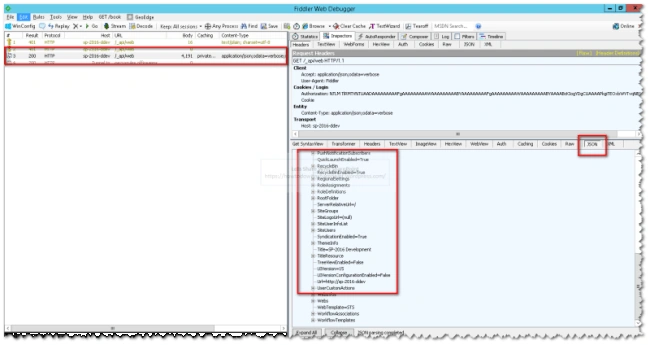

For instance, we can click on “Inspectors” tab and then click on “JSON” tab. The JSON Tab will display the response received from SharePoint in JSON Format.

SharePoint

Similarly, we can execute other GET Requests as shown in the below images.

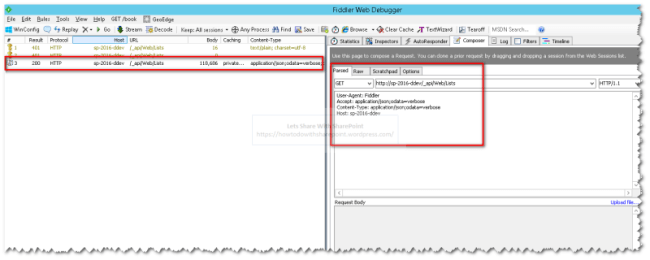

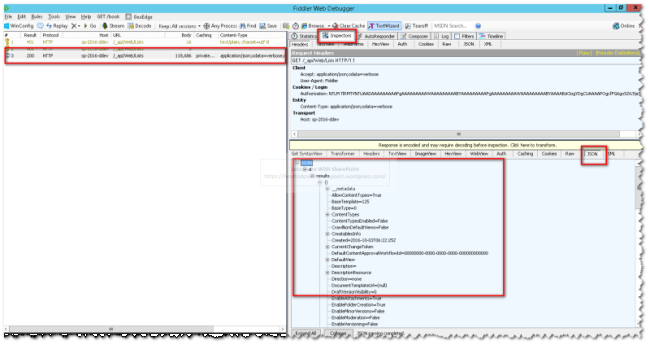

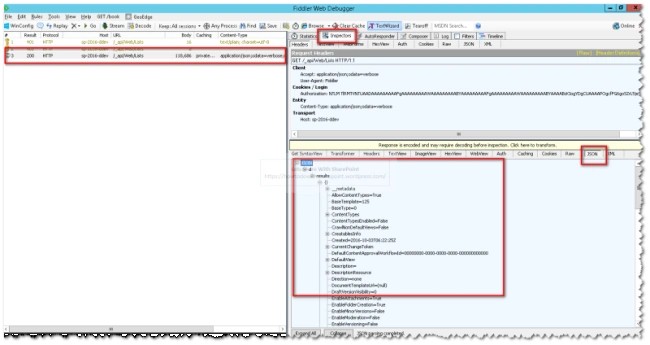

Get List Object http://<Host Name>/_api/Web/Lists

SharePoint

SharePoint

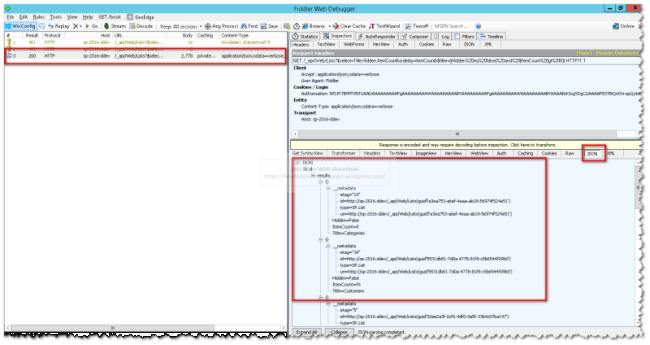

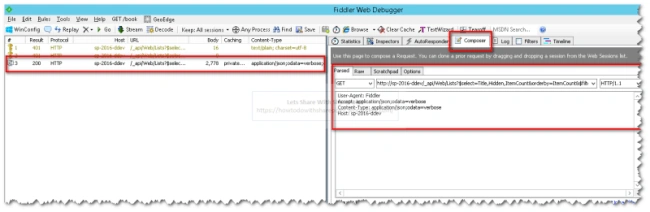

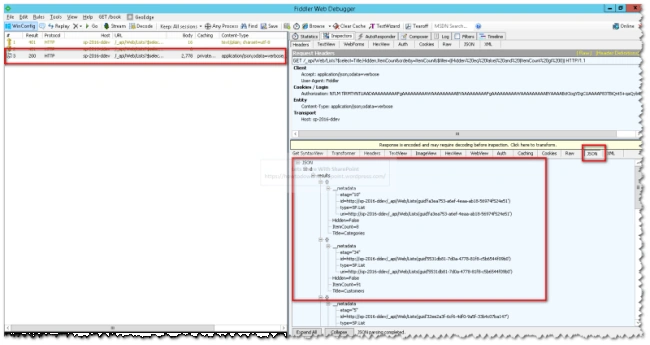

Get Lists which are not hidden and have Items

http://<Host Name>/_api/Web/Lists?$select=Title,Hidden,ItemCount&orderby=ItemCount&$filter=((Hidden eq false) and (ItemCount gt 0))

Encoded Version of Request URL

http://<Host Name>/_api/Web/Lists?$select=Title,Hidden,ItemCount&orderby=ItemCount&$filter=((Hidden%20eq%20false)%20and%20(ItemCount%20gt%200))

SharePoint

SharePoint

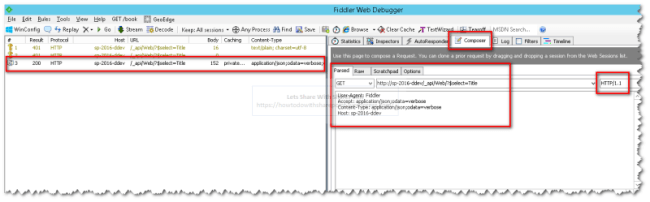

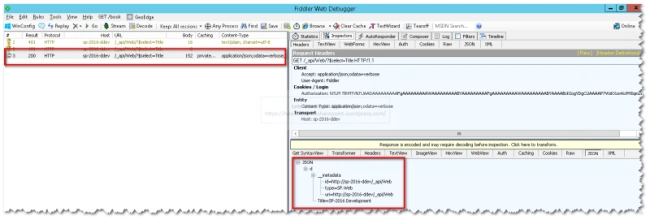

Get Web filtered by Title http://<Host Name>/_api/Web/?$select=Title

SharePoint

SharePoint

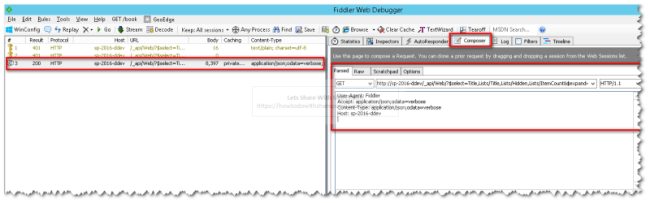

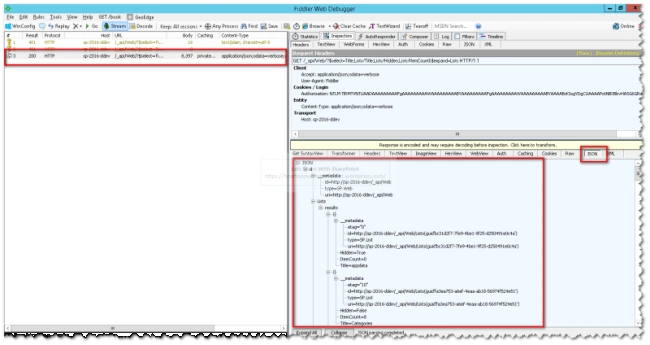

Get Web and Lists using Look Properties Expanding Lists Collection

http://<Host Name>/_api/Web/?$select=Title,Lists/Title,Lists/Hidden,Lists/ItemCount&$expand=Lists

SharePoint

SharePoint

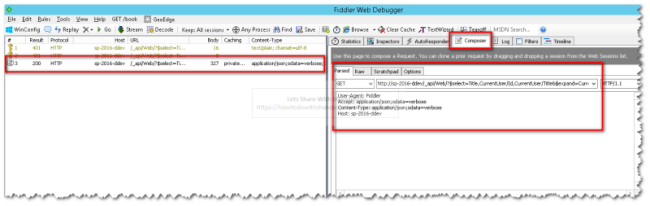

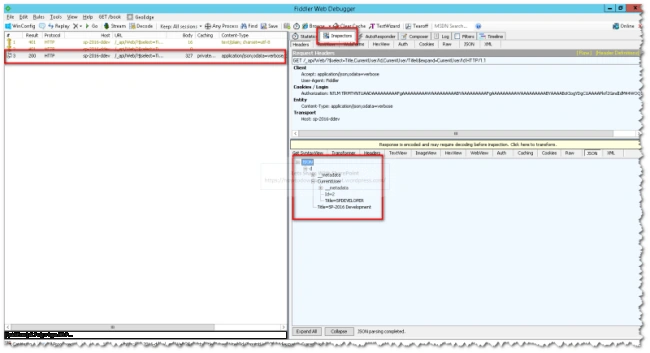

Get Web and Lists using Look Properties Expanding Users Collection

http://sp-2016-ddev/_api/Web/?$select=Title,CurrentUser/Id,CurrentUser/Title&$expand=CurrentUser/Id

SharePoint

SharePoint

That is all for this demo.

Hope you find it helpful.
