Here are the steps,
Step 1: Create SharePoint Hosted App with Office 365 account credentials. Open Visual Studio and select New Project as in the following,

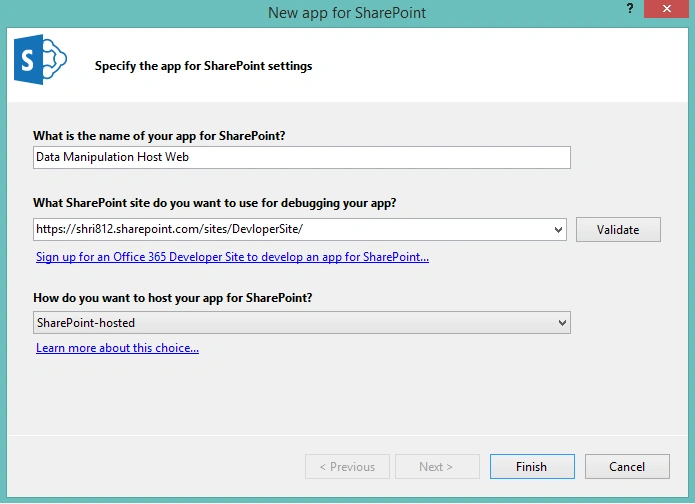

Step 2: Specify Site URL & app type to proceed next.

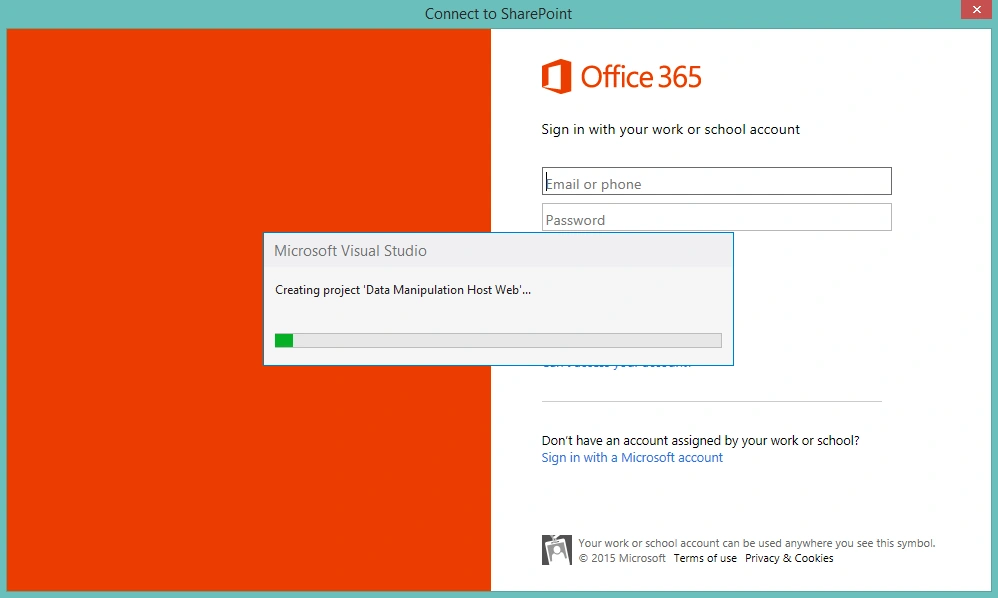

Step 3: Provide Office365 credentials to continue further.


Step 4: Project structure is as in the following,

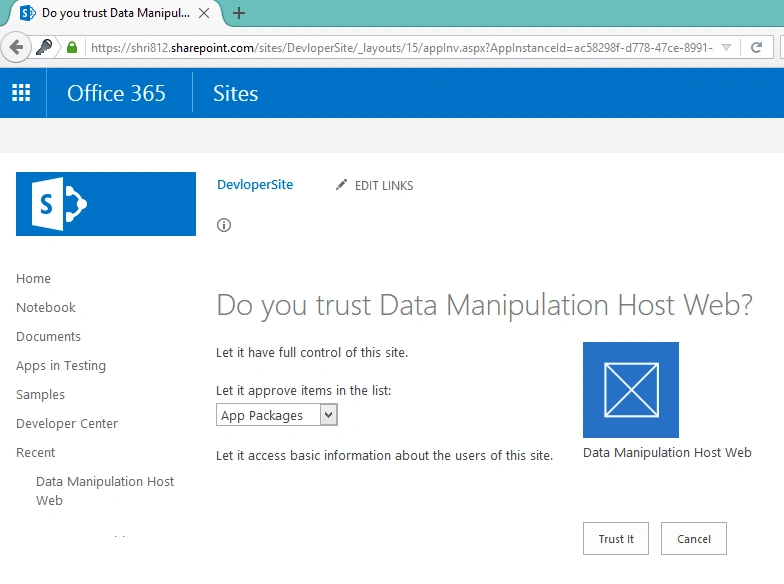

Step 5: We first need to set permission for App, so that we can communicate with site properly.


Step 6: Deploy the app into Office 365 environment.

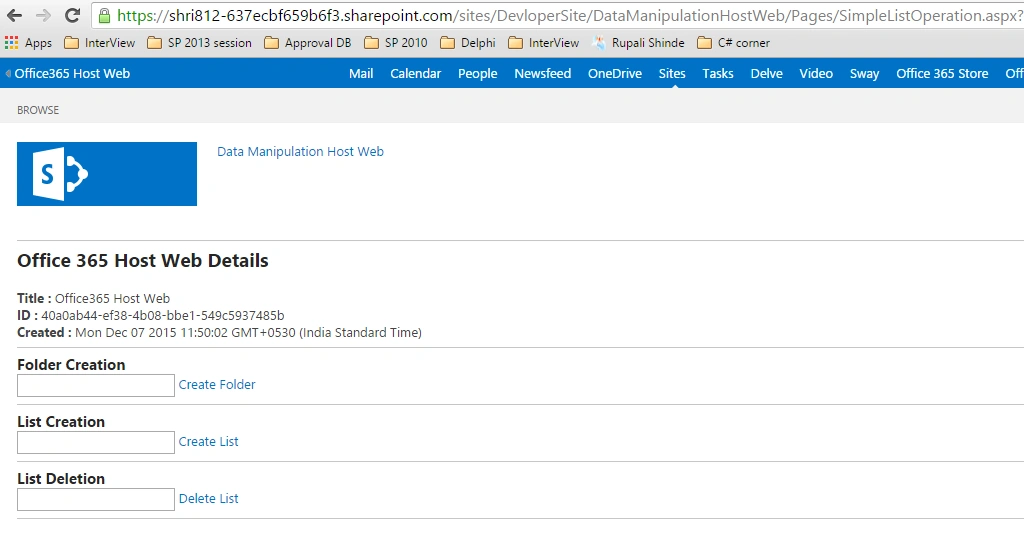

Step 7: User Interface creation code

In this part, we are going to perform simple operation so UI is also very simple as in the following example,

Source Code
  1. <%@ Page Language="C#" MasterPageFile="~masterurl/default.master" Inherits="Microsoft.SharePoint.WebPartPages.WebPartPage, Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
  2. <%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
  3. <%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
  4. <%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
  5. <asp:Content ContentPlaceHolderID="PlaceHolderAdditionalPageHead" runat="server">
  6. <SharePoint:ScriptLink Name="sp.js" runat="server" OnDemand="true" LoadAfterUI="true" Localizable="false" />
  7. <script src="../Scripts/jquery-1.8.2.js" type="text/javascript"></script>
  8. <script src="../Scripts/JSLibrary.js" type="text/javascript"></script>
  9. </asp:Content>
  10. <asp:Content ContentPlaceHolderID="PlaceHolderMain" runat="server">
  11. <WebPartPages:WebPartZone runat="server" FrameType="TitleBarOnly" ID="full" Title="loc:full" />
  12. <hr />
  13. <div>
  14. <h2><b>Office 365 Host Web Details</b></h2>
  15. <br />
  16. <div id="HostwebDetails"></div>
  17. </div>
  18. <hr />
  19. <div>
  20. <h3><b>Folder Creation</b></h3>
  21. <input type="text" id="txtFolderName" /> <a href="#" onclick="Wingtip.JSOMHostWebCollections.HWCreateFolder()">Create Folder</a> </div>
  22. <hr />
  23. <div>
  24. <h3><b>List Creation</b></h3>
  25. <input type="text" id="txtListName" /> <a href="#" onclick="Wingtip.JSOMHostWebCollections.HWCreateList()">Create List</a> </div>
  26. <hr />
  27. <div>
  28. <h3><b>List Deletion</b></h3>
  29. <input type="text" id="txtDeletionListName" /> <a href="#" onclick="Wingtip.JSOMHostWebCollections.HWDeleteList()">Delete List</a> </div>
  30. <hr/> </asp:Content>
Step 8: Fetch current Web Site details on page load. The following code is used to perform this operation.
  1. var clientContext;
  2. var factory;
  3. var appContextSite;
  4. var web;
  5. var collList;
  6. var itemCreateInfo;
  7. var param1, param2, param3;
  8. var oList, targetList, listFields, oListItem, oField, itemId;
  9. var ExsitingListNameVal;
  10. window.Wingtip = window.Wingtip ||
  11. {}
  12. Wingtip.JSOMHostWebCollections = function()
  13. {
  14. LoadlayoutsJS = function()
  15. {
  16. //debugger
  17. hostweburl = decodeURIComponent(Wingtip.JSOMHostWebCollections.QSParameter("SPHostUrl"));
  18. appweburl = decodeURIComponent(Wingtip.JSOMHostWebCollections.QSParameter("SPAppWebUrl"));
  19. var Sessionhostweburl = sessionStorage.getItem("hostweburl");
  20. var Sessionappweburl = sessionStorage.getItem("appweburl");
  21. if (Sessionhostweburl == null || Sessionappweburl == null)
  22. {
  23. sessionStorage.setItem("hostweburl", hostweburl);
  24. sessionStorage.setItem("appweburl", appweburl);
  25. }
  26. if (hostweburl == null || appweburl == null || hostweburl == 'undefined' || appweburl == 'undefined')
  27. {
  28. hostweburl = sessionStorage.getItem("hostweburl");
  29. appweburl = sessionStorage.getItem("appweburl");
  30. }
  31. var scriptbase = hostweburl + "/_layouts/15/";
  32. $.getScript(scriptbase + "SP.Runtime.js", function()
  33. {
  34. $.getScript(scriptbase + "SP.js", function()
  35. {
  36. $.getScript(scriptbase + "SP.RequestExecutor.js", Wingtip.JSOMHostWebCollections.HWLoadClientContext);
  37. });
  38. });
  39. }
  40. getQueryStringParameter = function(paramToRetrieve)
  41. {
  42. //debugger
  43. try
  44. {
  45. var params = document.URL.split("?")[1].split("&");
  46. var strParams = "";
  47. for (var i = 0; i < params.length; i = i + 1)
  48. {
  49. var singleParam = params[i].split("=");
  50. if (singleParam[0] == paramToRetrieve) return singleParam[1];
  51. }
  52. }
  53. catch (ex)
  54. {}
  55. }
  56. LoadClientContext = function()
  57. {
  58. //debugger
  59. clientContext = new SP.ClientContext(appweburl);
  60. factory = new SP.ProxyWebRequestExecutorFactory(appweburl);
  61. clientContext.set_webRequestExecutorFactory(factory);
  62. appContextSite = new SP.AppContextSite(clientContext, hostweburl);
  63. web = appContextSite.get_web();
  64. clientContext.load(web);
  65. Wingtip.JSOMHostWebCollections.HWGetTitle();
  66. //Wingtip.JSOMHostWebCollections.HWCreateFolder("Rupali");
  67. //Wingtip.JSOMHostWebCollections.HWCreateList("Book");
  68. //Wingtip.JSOMHostWebCollections.HWDeleteList("Book");
  69. }
  70. GetTitle = function()
  71. {
  72. //debugger
  73. web.set_title('Office365 Host Web');
  74. web.update();
  75. clientContext.load(web);
  76. clientContext.executeQueryAsync(Function.createDelegate(this, SPHostWebDetailsSuccessHandler), Function.createDelegate(this, SPHostWebDetailsErrorHandler));
  78. function SPHostWebDetailsSuccessHandler()
  79. {
  80. var Result = "";
  81. Result = Result + "<b>Title :</b> " + web.get_title() + "<br/>";
  82. Result = Result + "<b> ID :</b> " + web.get_id() + "</br>";
  83. Result = Result + "<b> Created :</b> " + web.get_created() + "</br>";
  84. document.getElementById("HostwebDetails").innerHTML = Result;
  85. }
  87. function SPHostWebDetailsErrorHandler(data, errorCode, errorMessage)
  88. {
  89. alert("fail" + errorMessage);
  90. document.getElementById("HostwebTitle").innerText = "Could not complete cross-domain call: " + errorMessage;
  91. }
  92. }
  93. //public interface
  94. return {
  95. HWLoadlayoutsJS: LoadlayoutsJS,
  96. QSParameter: getQueryStringParameter,
  97. HWLoadClientContext: LoadClientContext,
  98. HWGetTitle: GetTitle,
  99. HWCreateFolder: CreateFolder,
  100. HWCreateList: CreateList,
  101. HWDeleteList: DeleteList,
  102. HWEmpty: Empty
  103. }
  104. }();
  105. $(document).ready(function()
  106. {
  107. //Load Out Of Box JS file for List Operation
  108. Wingtip.JSOMHostWebCollections.HWLoadlayoutsJS();
  109. });

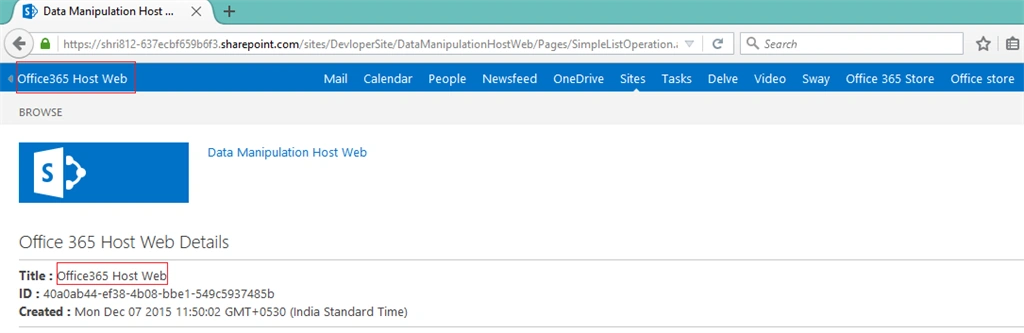

Output


Step 9: Create folder at site, we can use the following code,
  1. CreateFolder = function()
  2. {
  3. //debugger
  4. oList = web.get_lists().getByTitle("Documents");
  5. itemCreateInfo = new SP.ListItemCreationInformation();
  6. itemCreateInfo.set_underlyingObjectType(SP.FileSystemObjectType.folder);
  7. var FolderNameVal = $(txtFolderName).val();
  8. console.log(FolderNameVal);
  9. itemCreateInfo.set_leafName(FolderNameVal);
  10. //itemCreateInfo.set_leafName("My new folder!!!");
  11. oListItem = oList.addItem(itemCreateInfo);
  12. oListItem.update();
  13. clientContext.load(oListItem);
  14. clientContext.executeQueryAsync(Function.createDelegate(this, CreateFolderSuccessHandler), Function.createDelegate(this, CreateFolderErrorHandler));
  16. function CreateFolderSuccessHandler()
  17. {
  18. alert("Go to Site Content ->Documents to see your new folder.");
  19. }
  21. function CreateFolderErrorHandler()
  22. {
  23. alert("Request failed: " + arguments[1].get_message());
  24. }
  25. }

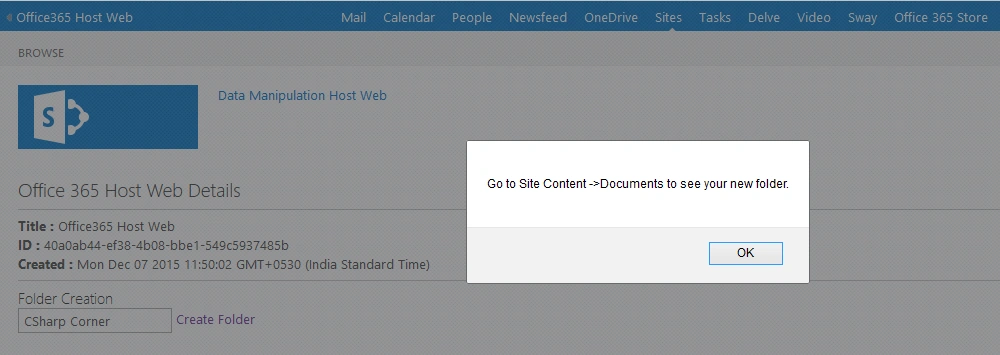

Output


New folder is getting created inside Document folder at root level.


Step 10: Create List at host web using the following code,
  1. CreateList = function()
  2. {
  3. //debugger
  4. var listCreationInfo = new SP.ListCreationInformation();
  5. var ListNameVal = $(txtListName).val();
  6. //var ListNameVal = ListName;
  7. listCreationInfo.set_title(ListNameVal);
  8. listCreationInfo.set_templateType(SP.ListTemplateType.announcements);
  9. oList = web.get_lists().add(listCreationInfo);
  10. clientContext.load(oList);
  11. oList.set_description(ListNameVal + 'created via JSOM Model ...');
  12. oList.update();
  13. clientContext.executeQueryAsync(Function.createDelegate(this, SPHostWebCreateListSuccessHandler), Function.createDelegate(this, SPHostWebCreateListErrorHandler));
  15. function SPHostWebCreateListSuccessHandler()
  16. {
  17. var result = oList.get_title() + ' List created successfully.';
  18. alert(result);
  19. }
  21. function SPHostWebCreateListErrorHandler(sender, args)
  22. {
  23. alert('Request failed. ' + args.get_message() + '\n' + args.get_stackTrace());
  24. }
  25. }
Output


Finally list is created at host web.


Step 11: Delete list at host web using the following code,
  1. DeleteList = function()
  2. {
  3. // debugger
  4. var DeleteListNameVal = $(txtDeletionListName).val();
  5. oList = web.get_lists().getByTitle(DeleteListNameVal);
  6. oList.deleteObject();
  7. clientContext.executeQueryAsync(Function.createDelegate(this, DeleteListHostWebSucceeded), Function.createDelegate(this, DeleteListHostWebFailed));
  9. function DeleteListHostWebSucceeded()
  10. {
  11. alert("Delete List done Successfully ...");
  12. }
  14. function DeleteListHostWebFailed(sender, args)
  15. {
  16. alert('Request failed. ' + args.get_message() + '\n StackTrace : ' + args.get_stackTrace());
  17. }
  18. }
Output

Full Source Code
  1. var clientContext;
  2. var factory;
  3. var appContextSite;
  4. var web;
  5. var collList;
  6. var itemCreateInfo;
  7. var param1, param2, param3;
  8. var oList, targetList, listFields, oListItem, oField, itemId;
  9. var ExsitingListNameVal;
  10. window.Wingtip = window.Wingtip ||
  11. {}
  12. Wingtip.JSOMHostWebCollections = function()
  13. {
  14. LoadlayoutsJS = function()
  15. {
  16. //debugger
  17. hostweburl = decodeURIComponent(Wingtip.JSOMHostWebCollections.QSParameter("SPHostUrl"));
  18. appweburl = decodeURIComponent(Wingtip.JSOMHostWebCollections.QSParameter("SPAppWebUrl"));
  19. var Sessionhostweburl = sessionStorage.getItem("hostweburl");
  20. var Sessionappweburl = sessionStorage.getItem("appweburl");
  21. if (Sessionhostweburl == null || Sessionappweburl == null)
  22. {
  23. sessionStorage.setItem("hostweburl", hostweburl);
  24. sessionStorage.setItem("appweburl", appweburl);
  25. }
  26. if (hostweburl == null || appweburl == null || hostweburl == 'undefined' || appweburl == 'undefined')
  27. {
  28. hostweburl = sessionStorage.getItem("hostweburl");
  29. appweburl = sessionStorage.getItem("appweburl");
  30. }
  31. var scriptbase = hostweburl + "/_layouts/15/";
  32. $.getScript(scriptbase + "SP.Runtime.js", function()
  33. {
  34. $.getScript(scriptbase + "SP.js", function()
  35. {
  36. $.getScript(scriptbase + "SP.RequestExecutor.js", Wingtip.JSOMHostWebCollections.HWLoadClientContext);
  37. });
  38. });
  39. }
  40. getQueryStringParameter = function(paramToRetrieve)
  41. {
  42. //debugger
  43. try
  44. {
  45. var params = document.URL.split("?")[1].split("&");
  46. var strParams = "";
  47. for (var i = 0; i < params.length; i = i + 1)
  48. {
  49. var singleParam = params[i].split("=");
  50. if (singleParam[0] == paramToRetrieve) return singleParam[1];
  51. }
  52. }
  53. catch (ex)
  54. {}
  55. }
  56. LoadClientContext = function()
  57. {
  58. //debugger
  59. clientContext = new SP.ClientContext(appweburl);
  60. factory = new SP.ProxyWebRequestExecutorFactory(appweburl);
  61. clientContext.set_webRequestExecutorFactory(factory);
  62. appContextSite = new SP.AppContextSite(clientContext, hostweburl);
  63. web = appContextSite.get_web();
  64. clientContext.load(web);
  65. Wingtip.JSOMHostWebCollections.HWGetTitle();
  66. //Wingtip.JSOMHostWebCollections.HWCreateFolder("Rupali");
  67. //Wingtip.JSOMHostWebCollections.HWCreateList("Book");
  68. //Wingtip.JSOMHostWebCollections.HWDeleteList("Book");
  69. }
  70. GetTitle = function()
  71. {
  72. //debugger
  73. web.set_title('Office365 Host Web');
  74. web.update();
  75. clientContext.load(web);
  76. clientContext.executeQueryAsync(Function.createDelegate(this, SPHostWebDetailsSuccessHandler), Function.createDelegate(this, SPHostWebDetailsErrorHandler));
  78. function SPHostWebDetailsSuccessHandler()
  79. {
  80. var Result = "";
  81. Result = Result + "<b>Title :</b> " + web.get_title() + "<br/>";
  82. Result = Result + "<b> ID :</b> " + web.get_id() + "</br>";
  83. Result = Result + "<b> Created :</b> " + web.get_created() + "</br>";
  84. document.getElementById("HostwebDetails").innerHTML = Result;
  85. }
  87. function SPHostWebDetailsErrorHandler(data, errorCode, errorMessage)
  88. {
  89. alert("fail" + errorMessage);
  90. document.getElementById("HostwebTitle").innerText = "Could not complete cross-domain call: " + errorMessage;
  91. }
  92. }
  93. CreateFolder = function()
  94. {
  95. //debugger
  96. oList = web.get_lists().getByTitle("Documents");
  97. itemCreateInfo = new SP.ListItemCreationInformation();
  98. itemCreateInfo.set_underlyingObjectType(SP.FileSystemObjectType.folder);
  99. var FolderNameVal = $(txtFolderName).val();
  100. console.log(FolderNameVal);
  101. itemCreateInfo.set_leafName(FolderNameVal);
  102. //itemCreateInfo.set_leafName("My new folder!!!");
  103. oListItem = oList.addItem(itemCreateInfo);
  104. oListItem.update();
  105. clientContext.load(oListItem);
  106. clientContext.executeQueryAsync(Function.createDelegate(this, CreateFolderSuccessHandler), Function.createDelegate(this, CreateFolderErrorHandler));
  108. function CreateFolderSuccessHandler()
  109. {
  110. alert("Go to Site Content ->Documents to see your new folder.");
  111. }
  113. function CreateFolderErrorHandler()
  114. {
  115. alert("Request failed: " + arguments[1].get_message());
  116. }
  117. }
  118. CreateList = function()
  119. {
  120. //debugger
  121. var listCreationInfo = new SP.ListCreationInformation();
  122. var ListNameVal = $(txtListName).val();
  123. //var ListNameVal = ListName;
  124. listCreationInfo.set_title(ListNameVal);
  125. listCreationInfo.set_templateType(SP.ListTemplateType.announcements);
  126. oList = web.get_lists().add(listCreationInfo);
  127. clientContext.load(oList);
  128. oList.set_description(ListNameVal + 'created via JSOM Model ...');
  129. oList.update();
  130. clientContext.executeQueryAsync(Function.createDelegate(this, SPHostWebCreateListSuccessHandler), Function.createDelegate(this, SPHostWebCreateListErrorHandler));
  132. function SPHostWebCreateListSuccessHandler()
  133. {
  134. var result = oList.get_title() + ' List created successfully.';
  135. alert(result);
  136. }
  138. function SPHostWebCreateListErrorHandler(sender, args)
  139. {
  140. alert('Request failed. ' + args.get_message() + '\n' + args.get_stackTrace());
  141. }
  142. }
  143. DeleteList = function()
  144. {
  145. // debugger
  146. var DeleteListNameVal = $(txtDeletionListName).val();
  147. oList = web.get_lists().getByTitle(DeleteListNameVal);
  148. oList.deleteObject();
  149. clientContext.executeQueryAsync(Function.createDelegate(this, DeleteListHostWebSucceeded), Function.createDelegate(this, DeleteListHostWebFailed));
  151. function DeleteListHostWebSucceeded()
  152. {
  153. alert("Delete List done Successfully ...");
  154. }
  156. function DeleteListHostWebFailed(sender, args)
  157. {
  158. alert('Request failed. ' + args.get_message() + '\n StackTrace : ' + args.get_stackTrace());
  159. }
  160. }
  162. function Empty()
  163. {
  164. console('Hello');
  165. }
  166. //public interface
  167. return {
  168. HWLoadlayoutsJS: LoadlayoutsJS,
  169. QSParameter: getQueryStringParameter,
  170. HWLoadClientContext: LoadClientContext,
  171. HWGetTitle: GetTitle,
  172. HWCreateFolder: CreateFolder,
  173. HWCreateList: CreateList,
  174. HWDeleteList: DeleteList,
  175. HWEmpty: Empty
  176. }
  177. }();
  178. $(document).ready(function()
  179. {
  180. //Load Out Of Box JS file for List Operation
  181. Wingtip.JSOMHostWebCollections.HWLoadlayoutsJS();
  182. });
