SharePoint Online Columns Formatting Using JSON

In this article, you will learn about SharePoint online columns formatting using JSON.

Introduction


In this article, we will explore No Code Column Formatting in SharePoint Online. SharePoint Online Column formatting is easier to use and an OOTB resolution to the problem statement. However, it is less flexible because it does not allow custom code solutions, it only allows for certain predefined elements, classes, and attributes.

In SharePoint online Column formatting users can easily find list item value to change styling based on conditions, such as applying different colors on item value, placing indicator icon, formatting data in a bar chart, etc.

Column formatting works with JSON structure, below are the common nodes in JSON used to change styling and branding of list item values.


Common Nodes in JSON

  • elmType – Specifies the element type like DIV, span, A
  • debugMode - An optional property that is meant for debugging
  • attributes - An optional property that specifies additional attributes to add to the element
  • class – Specifies the predefined class for style and action
  • operator - Specify the type of operation to perform like =, -, +, <, >, <=, etc…
  • operands - Specifies the parameters or operands for an expression

Scenario


User has created the "ICC world cup Team Modern SharePoint List “. In the list, an item of specific column value is showing the Country-wise flag icon without code formatting the column content.


Objective


We achieve the expected result using SharePoint online new feature Column formatting list item value of specific Column Using JSON.


How to Apply Column Formatting in a Specific Column?

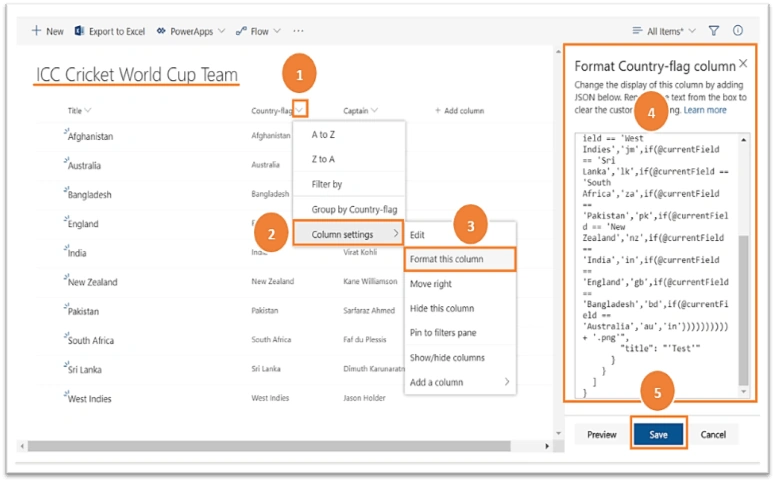

Navigate to your SharePoint 2013 site -> open SharePoint list -> Follow the numerical point as shown in the below screenshot.

SharePoint Online Columns Formatting Using JSON

JSON Code
  1. {
  2.   "$schema""https://developer.microsoft.com/json-schemas/sp/column-formatting.schema.json",
  3.   "elmType""div",
  4.   "children": [
  5.     {
  6.       "elmType""img",
  7.       "attributes": {
  8.         "src""='https://flagpedia.net/data/flags/h20/'+if(@currentField == 'Afghanistan','af',if(@currentField == 'West Indies','jm',if(@currentField == 'Sri Lanka','lk',if(@currentField == 'South Africa','za',if(@currentField == 'Pakistan','pk',if(@currentField == 'New Zealand','nz',if(@currentField == 'India','in',if(@currentField == 'England','gb',if(@currentField == 'Bangladesh','bd',if(@currentField == 'Australia','au','in'))))))))))+ '.png'",
  9.         "title""=if(@currentField == 'Afghanistan','Afghanistan',if(@currentField == 'West Indies','West Indies',if(@currentField == 'Sri Lanka','Sri Lanka',if(@currentField == 'South Africa','South Africa',if(@currentField == 'Pakistan','Pakistan',if(@currentField == 'New Zealand','New Zealand',if(@currentField == 'India','India',if(@currentField == 'England','England',if(@currentField == 'Bangladesh','Bangladesh',if(@currentField == 'Australia','Australia','India'))))))))))"
  10.       }
  11.     }
  12.   ]
  13. }
After adding the JSON and clicking the save button then we see the preview output of the result.

Get the flag codes table. To do so, copy & paste this whole table with the flag codes from Github.


Final Output

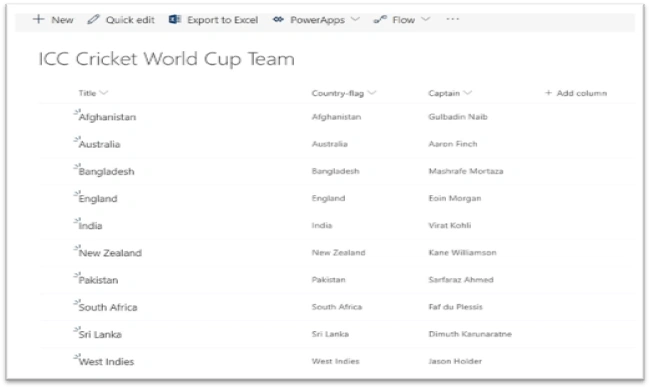

Before applying the column formatting Screen

SharePoint Online Columns Formatting Using JSON

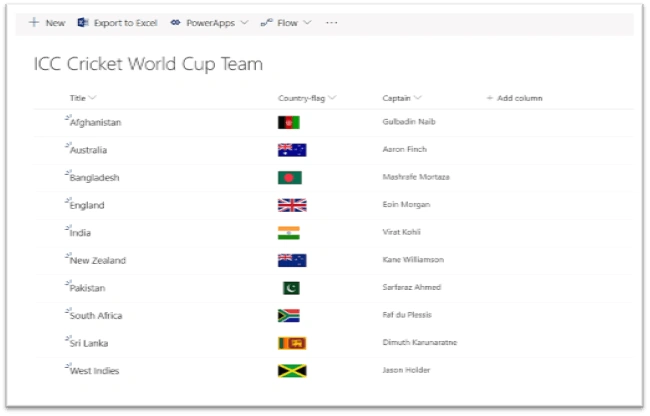

After applying the column formatting Screen

SharePoint Online Columns Formatting Using JSON


Limitations and Predefined OOTB Classes


Supported column types

Sr.No
Supported Column Format List
Un- Supported Column Format List
1.
Single line of text
Managed Metadata
2.
Number
Filename (in Document Libraries)
3.
Choice
Calculated
4.
Person or Group
Retention Label
5.
Yes/No
Currency
6.
Hyperlink
Managed Metadata
7.
Filename (in Document Libraries)
8.
Date/Time

9.
Lookup

10.
Title (in Lists)

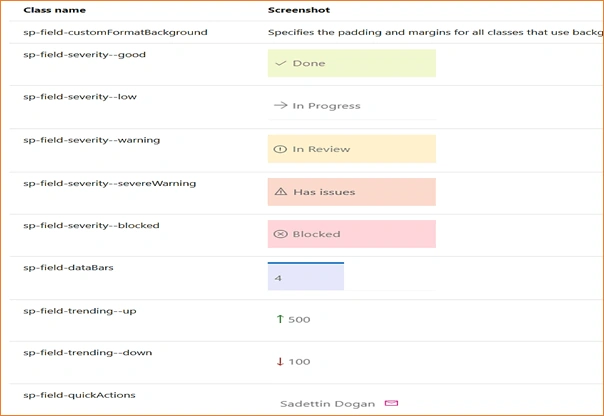

Currently Available OOTB Predefined classes

SharePoint Online Columns Formatting Using JSON

For more details, please refer to this link.
