Simple Earthquake Sensor Detection And Vibration Mode By Arduino Mega 2560

In this article I will explain about Earthquake Sensor Detection and Vibration mode with Arduino Mega 2560.

Introduction

In my last article I explained about finding weather conditions using Arduino Mega 2560. Now In this article I will explain about simple earthquake sensor detection and vibration mode with Arduino Mega 2560.

Parts Of Lists
  • Arduino UNO/MEGA/PRO
  • 1x Vibration Tilt Switch
  • 1x LED
  • 1x 220 k Resistor
  • 1x 10k Resistor.
Connection

Connection from the Vibration Tilt Switch to Arduino Mega 2560:

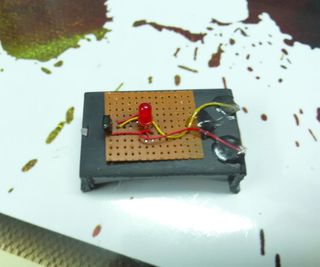

Figure 1: Vibration Tilt Switch
  • Sensor Board
  • Vcc------->5V.
  • Gnd------->Gnd.
  • Din-------->02.
  • Connection From Led To ArduinoMega2560:
  • Postive pin(Dout)-------->13
  • Negative pin------->Gnd.
Programming
  1. int Din = 2;
  2. int Dout = 13;
  3. int LEDStatus = HIGH;
  4. int Reading;
  5. int Previous = LOW;
  6. long DTime = 0;
  7. long Dbounce = 50;
  8. void setup()
  9. {
  10.     pinMode(Din, INPUT);
  11.     digitalWrite(Din, HIGH);
  12.     pinMode(Dout, OUTPUT);
  13. }
  14. void loop()
  15. {
  16.     int ReadingState;
  17.     Reading = digitalRead(Din);
  18.     if (Reading != Previous)
  19.     {
  20.         DTime = millis();
  21.     }
  22.     if ((millis() - DTime) > Dbounce)
  23.     {
  24.         ReadingState = Reading;
  25.         if (ReadingState == HIGH) LEDStatus = LOW;
  26.         else LEDStatus = HIGH;
  27.     }
  28.     digitalWrite(Dout, LEDStatus);
  29.     Previous = Reading;
  30. }
Explanation

It will explain the earth level where we have fix.

When earthquake occurs, LED will ON.

When it does not occur, LED will OFF.

Output

                          Figure 2
