Sliding Tab In Android

Introduction


Here, I am going to discuss how we can create a sliding layout in Android. All the Android Applications are using sliding tabs.

Here, I have an action bar with the left side. There is a back button and in the center, it's showing the application title. Below that, it's showing the tabs. Each tab has a scrolling facility, in order to change the content. We can do click operations to the tabs.

First, create your mail layout, as shown below:
  1. <LinearLayout
  2.     xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent"
  4. android:layout_height="match_parent" android:paddingLeft="@dimen/activity_horizontal_margin"
  5. android:paddingRight="@dimen/activity_horizontal_margin"
  6. android:paddingTop="@dimen/activity_vertical_margin"
  7. android:orientation="vertical"
  8. android:paddingBottom="@dimen/activity_vertical_margin" tools:context=".MainActivity">
  9.     <include
  10. android:id="@+id/tool_bar"
  11. layout="@layout/tool_bar"
  12. android:layout_height="wrap_content"
  13. android:layout_width="match_parent"
  14. />
  15.     <techniche.com.slidingtabs.helper.SlidingTabLayout
  16. android:id="@+id/tabs"
  17. android:layout_width="match_parent"
  18. android:layout_height="wrap_content"
  19. android:elevation="2dp"
  20. android:background="@color/sub_title_bg"/>
  21.     <android.support.v4.view.ViewPager
  22. android:id="@+id/pager"
  23. android:layout_height="match_parent"
  24. android:layout_width="match_parent"
  25. android:layout_weight="1"
  26. ></android.support.v4.view.ViewPager>
  27. </LinearLayout>
Tool_bar.xml
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <android.support.v7.widget.Toolbar
  3.     xmlns:app="http://schemas.android.com/apk/res-auto"
  4. android:layout_height="wrap_content"
  5. android:layout_width="match_parent"
  6. android:elevation="0dp"
  7. android:contentInsetLeft="5dp"
  8. android:contentInsetStart="5dp"
  9. app:contentInsetLeft="5dp"
  10. app:contentInsetStart="5dp"
  11. android:contentInsetRight="5dp"
  12. android:contentInsetEnd="5dp"
  13. app:contentInsetRight="5dp"
  14. app:contentInsetEnd="5dp"
  15.     xmlns:android="http://schemas.android.com/apk/res/android" >
  16.     <RelativeLayout
  17. android:layout_width="match_parent"
  18. android:layout_height="wrap_content" >
  19.         <TextView
  20. android:id="@+id/menuLeft"
  21. android:layout_width="wrap_content"
  22. android:layout_height="wrap_content"
  23. android:layout_alignParentLeft="true"
  24. android:layout_centerHorizontal="true"
  25. android:layout_centerVertical="true"
  26. android:layout_alignParentStart="true"
  27. android:textColor="@color/white"
  28. android:clickable="true" />
  29.         <TextView
  30. android:id="@+id/toolbar_title"
  31. android:layout_width="wrap_content"
  32. android:layout_height="wrap_content"
  33. android:layout_centerHorizontal="true"
  34. android:layout_centerVertical="true"
  35. android:text="@string/app_name"
  36. android:textColor="@color/white"/>
  37.     </RelativeLayout>
  38. </android.support.v7.widget.Toolbar>
Here, I have a custom class named SlidingLayout.java, which is the file that I am using in the main layout. One needs to add the following lines in the build.gradle file, as shown below:

compile 'com.android.support:support-v13:22.2.1'
compile 'com.android.support:appcompat-v7:23.0.1'

Now, we need to create a style for the Application bar, as shown below:
  1. <style name="HomeTheme" parent="Theme.AppCompat.Light.DarkActionBar">
  2.     <!-- Customize your theme here. -->
  3.     <item name="colorPrimary">@color/colorPrimary</item>
  4.     <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
  5.     <item name="colorAccent">@color/colorAccent</item>
  6.     <item name="windowActionBar">false</item>
  7.     <item name="windowNoTitle">true</item>
  8. </style>
Now, bind the controls in the Java file, as given below:
  1. TextView backButton = (TextView) findViewById(R.id.menuLeft);
  2. TextView titleText = (TextView) findViewById(R.id.toolbar_title);
  3. backButton.setOnClickListener(new View.OnClickListener()
  4. {
  5.     @Override
  6.     public void onClick(View view)
  7.     {
  8.         final FragmentManager fragmentManager = getFragmentManager();
  9.         if (fragmentManager.getBackStackEntryCount() != 0)
  10.         {
  11.             fragmentManager.popBackStackImmediate();
  12.         } else
  13.             finish();
  14.     }
  15. });
  16. // Creating The Toolbar and setting it as the Toolbar for the activity
  17. toolbar = (Toolbar) findViewById(R.id.tool_bar);
  18. setSupportActionBar(toolbar);
  19. adapter = new HomeViewPagerAdapter(getSupportFragmentManager(), Titles, Numboftabs);
  20. pager = (ViewPager) findViewById(R.id.pager);
  21. pager.setAdapter(adapter);
  22. // Assiging the Sliding Tab Layout View
  23. tabs = (SlidingTabLayout) findViewById(R.id.tabs);
  24. tabs.setDistributeEvenly(true); // To make the Tabs Fixed set this true, This makes the tabs Space Evenly in Available width
Now, we need to create the adapter for all the contents, as given below:
  1. public class HomeViewPagerAdapter extends FragmentStatePagerAdapter
  2. {
  3.     CharSequence Titles[]; // This will Store the Titles of the Tabs which are Going to be passed when ViewPagerAdapter is created
  4.     int NumbOfTabs; // Store the number of tabs, this will also be passed when the ViewPagerAdapter is created
  5.     // Build a Constructor and assign the passed Values to appropriate values in the class
  6.     public HomeViewPagerAdapter(FragmentManager fm, CharSequence mTitles[], int mNumbOfTabsumb)
  7.         {
  8.             super(fm);
  9.             this.Titles = mTitles;
  10.             this.NumbOfTabs = mNumbOfTabsumb;
  11.         }
  12.         //This method returns the fragment for the every position in the View Pager
  13.     @Override
  14.     public Fragment getItem(int position)
  15.     {
  16.             if (position == 0) // if the position is 0 we are returning the First tab
  17.             {
  18.                 FragmentOne healthFragment = new FragmentOne();
  19.                 return healthFragment;
  20.             } else if (position == 1) // if the position is 0 we are returning the First tab
  21.             {
  22.                 FragmentTwo appointmentFragment = new FragmentTwo();
  23.                 return appointmentFragment;
  24.             } else if (position == 2) // if the position is 0 we are returning the First tab
  25.             {
  26.                 FragmentThree favourateFragment = new FragmentThree();
  27.                 return favourateFragment;
  28.             } else // As we are having 2 tabs if the position is now 0 it must be 1 so we are returning second tab
  29.             {
  30.                 FragmentFour messagesFragment = new FragmentFour();
  31.                 return messagesFragment;
  32.             }
  33.         }
  34.         // This method return the titles for the Tabs in the Tab Strip
  35.     @Override
  36.     public CharSequence getPageTitle(int position)
  37.         {
  38.             return Titles[position];
  39.         }
  40.         // This method return the Number of tabs for the tabs Strip
  41.     @Override
  42.     public int getCount()
  43.     {
  44.         return NumbOfTabs;
  45.     }
Now, create four fragments to show on selecting each tab, as shown below:
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout
  3.     xmlns:android="http://schemas.android.com/apk/res/android"
  4. android:orientation="vertical" android:layout_width="match_parent"
  5. android:layout_height="match_parent">
  6.     <TextView
  7. android:layout_width="wrap_content"
  8. android:text="Fragment Two"
  9. android:layout_height="wrap_content" />
  10. </LinearLayout>

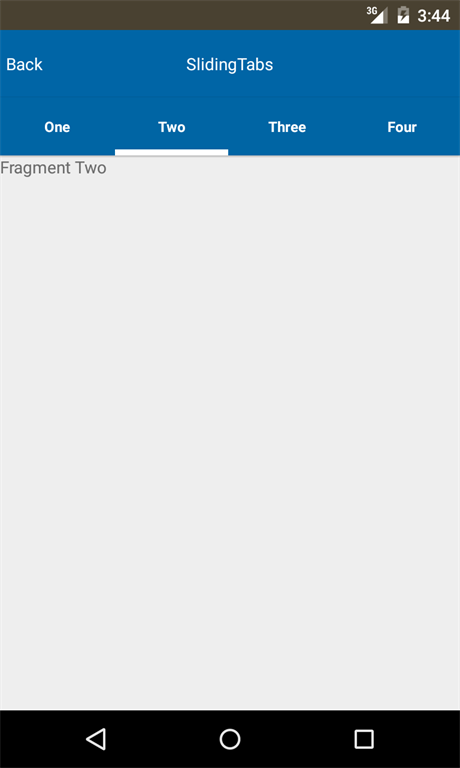

See the screenshots also,
