Start Service Using Alarm Manager in Android Studio

Services

Services run in the background without direct intervention by the user. Applications can use the predefined services that are provided by Android by giving the right permission in the manifest file. The user can use predefined services by extending a specific manager class and access to them by the getSysytemService( ) method. The user can also create its own services. The service is not a separate process and it is not a thread. How to create your own service To create our own services the user must first declare it in the Android Menifest.Xml file and the class must extend the service class. The following code will show you how to declare and implement services. Manifest file

Class File

Types of Services

Local services When a component of an application starts and it does not have any other component running then the Android system creates a new Linux process for the application with a single thread of execution. By default all components of an application run in the same process. If a component starts and a process already exists for the other components then the component will start in that process of the application for the same thread of execution. By default, Services run in the same process as the application in its own thread. Services that run in a process of an application are known as local services. How to declare services that run in a separate process

We write the manifests file like this:

The colon prefix before the name tells Android that the service is private and will run in a separate process. If we do not use the colon then the service will be declared as global and can be used by another application. When the service runs in its own process then it does not block the application on performing a long-running task in its main thread. But as the services run in its own process you need to use some InterProcess Communication (IPC) to communicate with your service from other parts.Even if the service runs in its own process you need to use asynchronous processing to perform network access because Android does not allow network access. Intent Services To implement an Intent Service your class must extend the IntentService class. The intent service thereby performs some specific task in the background and when it completes its task then the instance of the Intent Service automatically terminates. An example of an Intent Service is when you download a resource from the internet. The Intent Service class provides the onHandler() method that will be called asynchronously by the Android System.

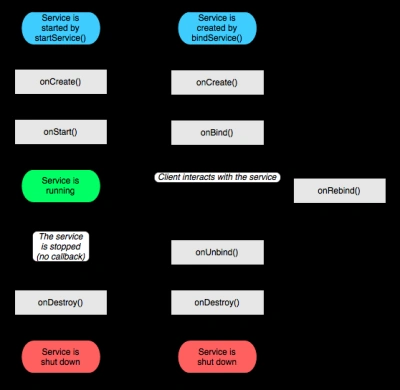

Service Lifecycle

onStartCommand() When another component like an activity requests a service to start by calling the startService( ) method the system calls the onStartCommand method to the start service. If you use this service then it is your responsibility to stop this Service by calling the stopService( ) method. If the service is created by calling the satrtService( ) method from the system then it remains running until it will not call stopSelf( ) or the component stops it by calling the stopService() method. OnBind( ) When the component wants to bind the services by calling the bindServices( ) method then the system calls the onBind() method. In your implementation of this method you must provide an interface that clients need to communicate with the service, by returning IBinder.

If you don't want to bind then you must return null. When the service is created by calling the bindService method from the component then the service remains running until the component is bound with it otherwise it will be destroyed by the system on unbinding. onCreate( )

This method is called by the system when the service is first created. If the service is already running then this method will not be called. onDestroy( ) This method is called by the system when the service is no longer needed. It will be the last call the service receives. Before proceeding, we must understand some basic concepts for implementing services. Pending intent In this, we use a pending intent that is ed to the Alarm Manager that allows the use of the permission of your application to execute a piece of code. You use the pending.getService( ) method to call the service directly when that alarm goes off. Alarm Manager An Alarm Manager is a class that gives you access to the system alarm services and that allows you to schedule the execution of a code at a specific time, even when your application is not running.

Calendar Calendar is an abstract class for converting between a Date object and a set of integer fields.

Step 1

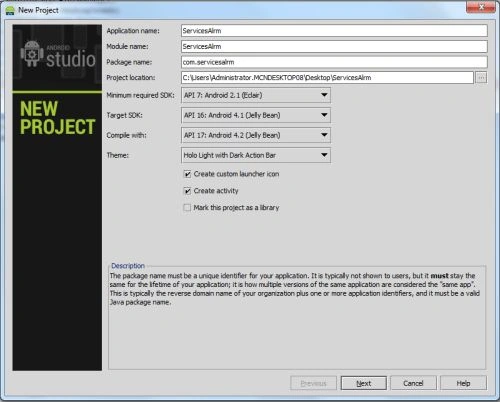

Create a new project:

Step 2

Create a layout activity_main.xml file:

Step 3

Create a Java Class file MainActivity.

You will be ed the pending intent to the AlarmManager to use the permission of your application as in the following: The getService() method is provided by the pending intent that allows the use of the permission to execute a piece of code.

In this you will use the AlarmManager class to access Alarm Manager services by calling getSystemServices() method In this first, you will get the object of the calendar class and then call the setTimeMills( ) to set the time of a calendar.
