Step-By-Step Demo Of Creating A VNet To VNet Connection In Microsoft Azure

In this article, I am going to show you how to create a VNet to VNet connection using Virtual Network Gateways.

VNet to VNet connection can be established between two Virtual Networks lying in different regions. Let us go ahead with the demo.

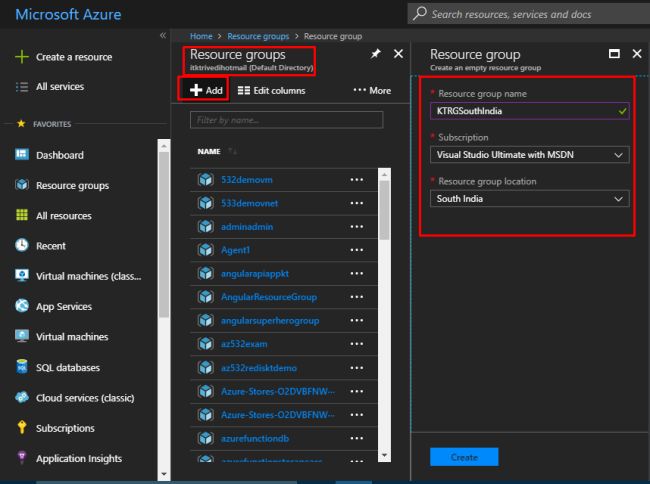

Step 1

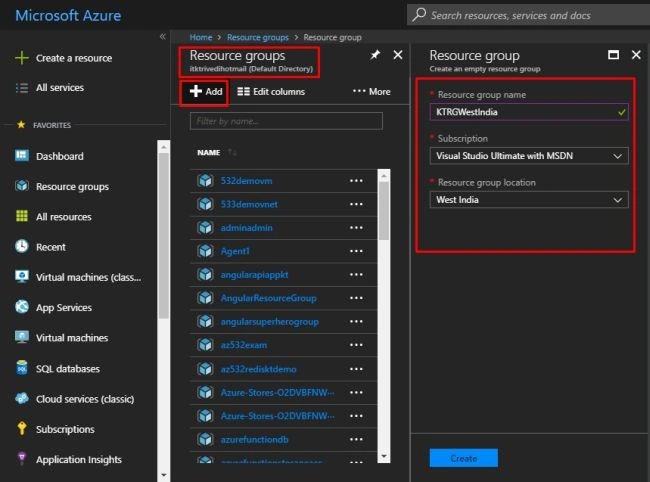

Create two different resource groups in two different locations.

Azure
Azure

Step 2

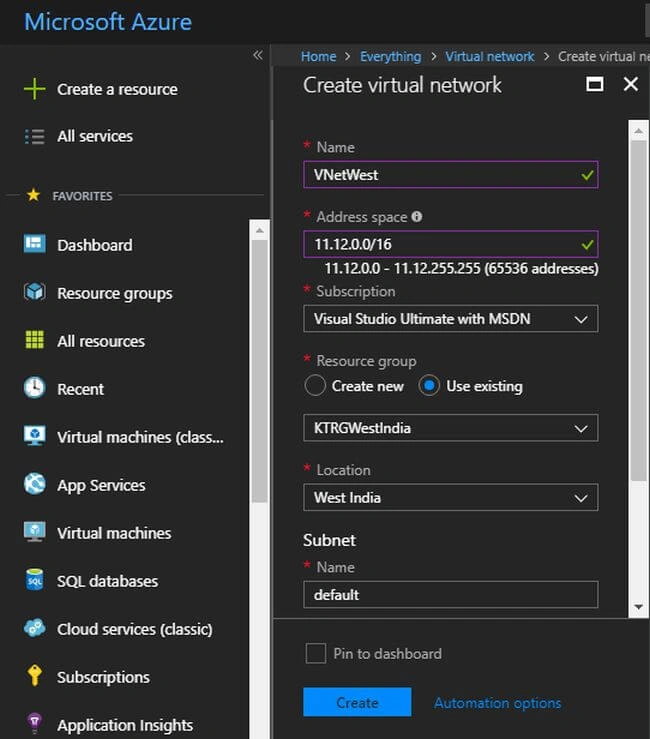

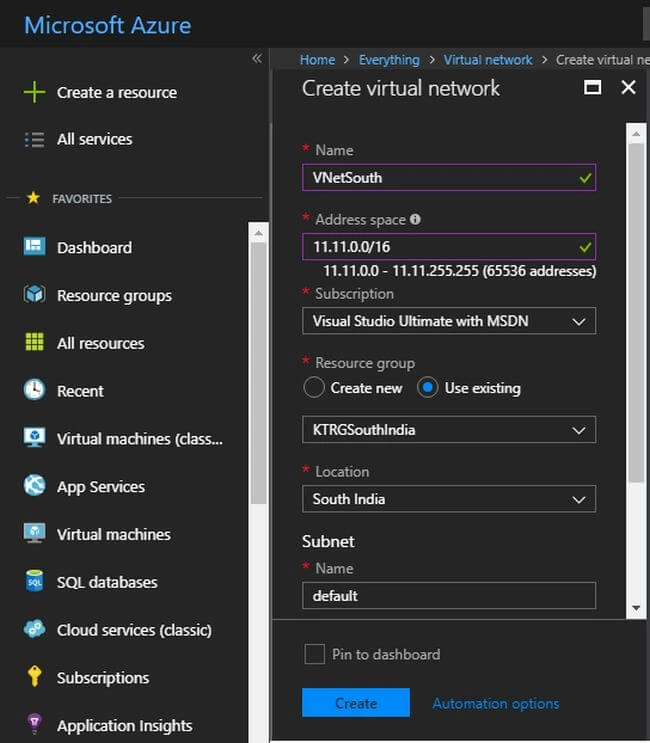

Create two virtual networks, one in each of the resource group.


Azure
Azure

Step 3

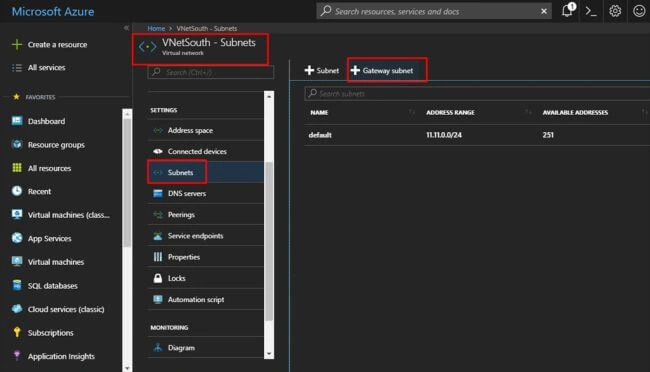

Create Gateway
subnets for VNetSouth. Click on Gateway Subnet and keep everything as default and click on OK.

Azure

Step 4

Similarly, create a gateway subnet for
VNetWest.

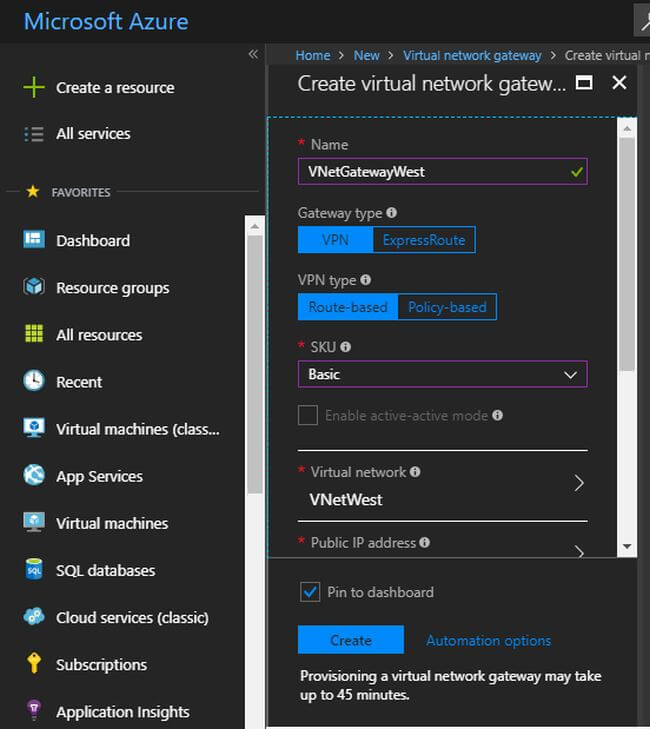

Step 5

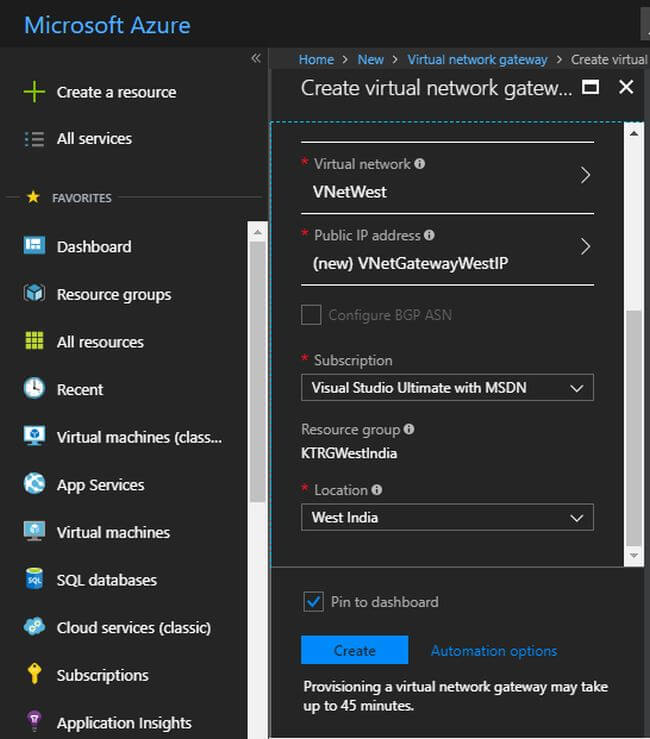

Create Virtual Network Gateway in the West India region for the West India
VNet.

Azure
Azure

Step 6

Similarly, create a Virtual Network Gateway for the South India
VNet in the South India Region.

Step 7

Now, in order to establish a connection between two Virtual Networks, we need to establish a connection between the two gateways.

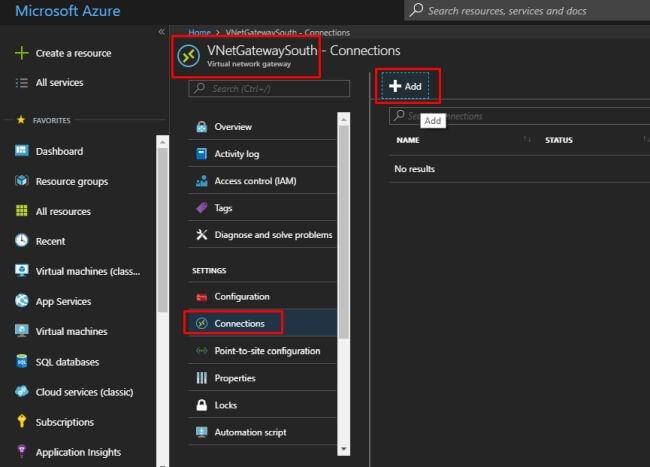

Step 8

Go to
VNetGateway South and click on the connections tab. Click on Add to add a connection.

Azure

Step 9

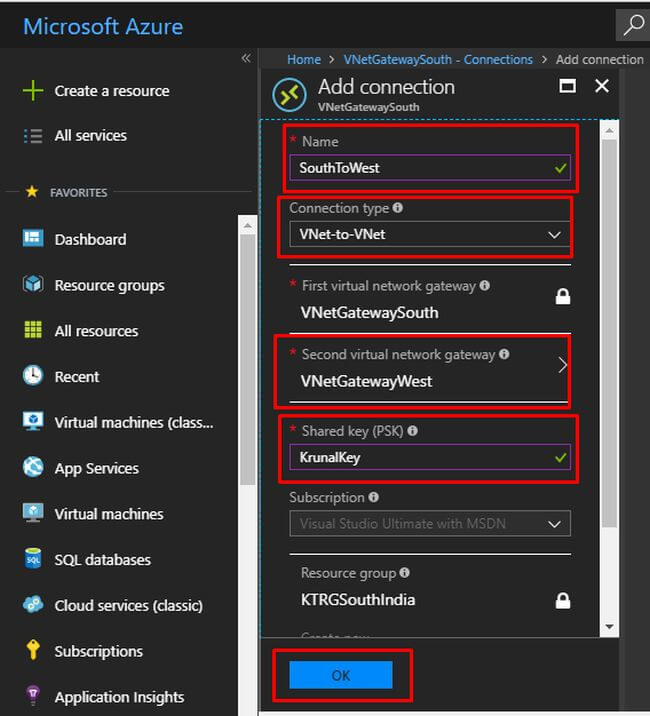

Give a name. Give the connection type. First
VNet gateway will be fixed; i.e., the South one. The second gateway will be the West one. Give a shared key. And click on OK.

Azure

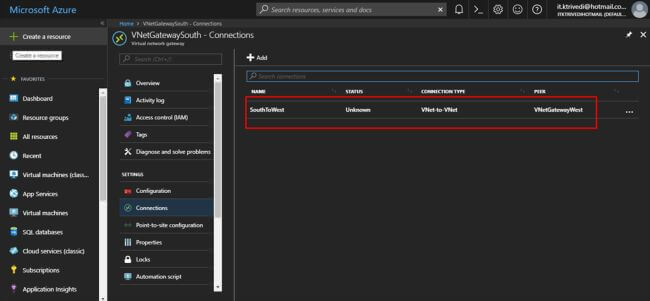

Step 10

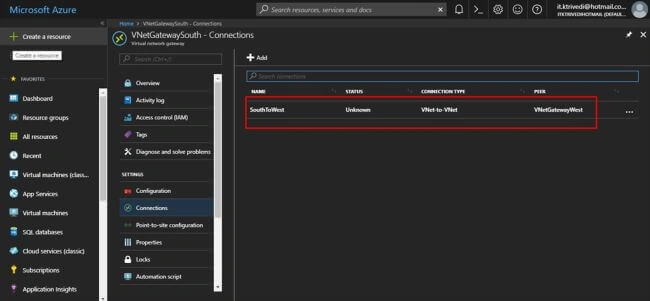

Now, it has been created but it shows the status as unknown because we have not established a connection from the other gateway.

Azure

Step 11

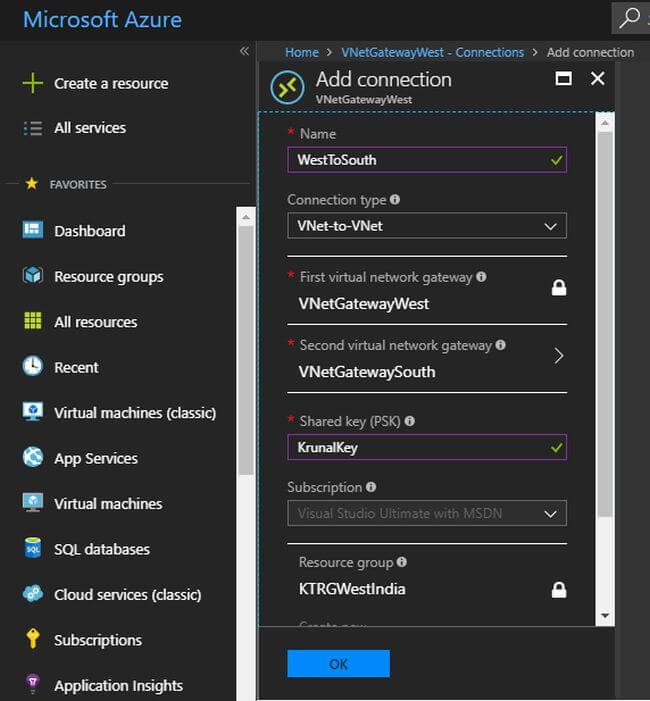

Similarly, add a new connection to the other gateway as well.


Azure

Step 12

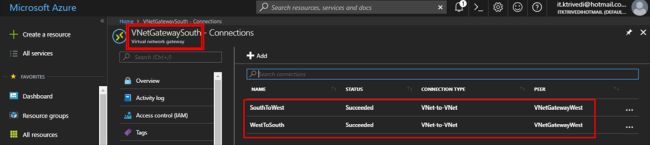

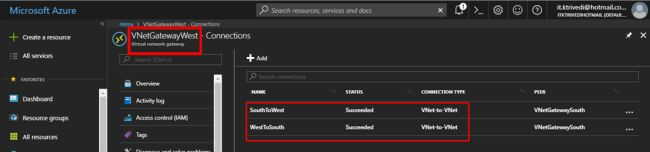

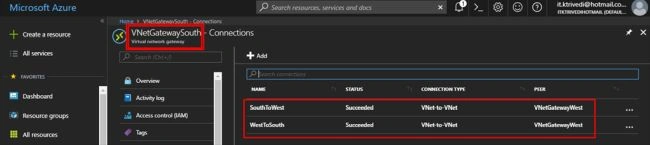

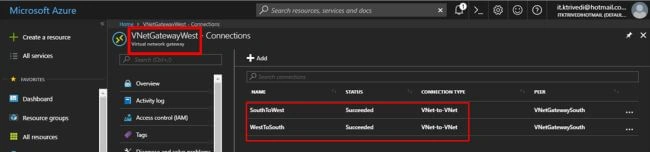

Here, you can see that in both the gateways’ connection blade, we can see that the connections are succeeded. However, when you open the connection tab, it might take some time to refresh the status.


Azure
Azure

Step 13

To look into how the traffic is going on between the two virtual networks, we need to set up two virtual machines, one in each of the virtual network.

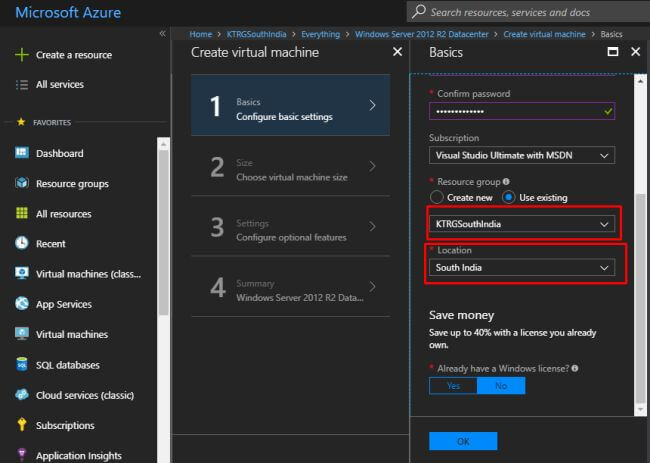

Step 14

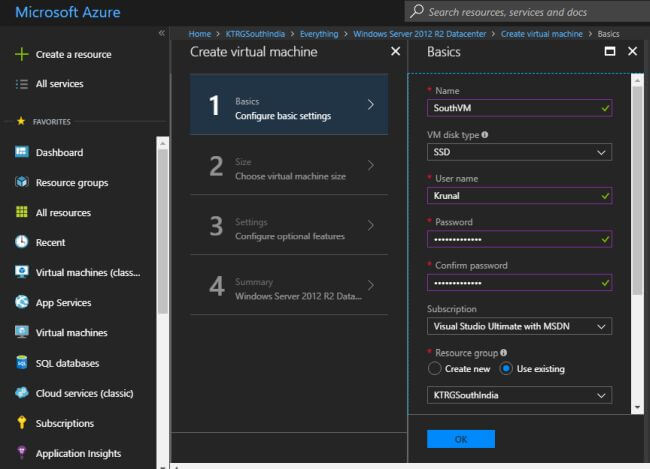

First, create a Windows Server 2012 R2 Datacentre VM in South India under its respective Resource Group. Rest everything keeps default according to the necessities.


Azure
Azure

Step 15

Similarly, create one more VM in West India region for its respective resource group.


Step 16

Once they are created, connect to both of them via the public IP
i.e., through the RDP connection.

Step 17

Once they get connected, go to any of one of the VM and open the command prompt there. Then try pinging the other VM through it.


Step 18

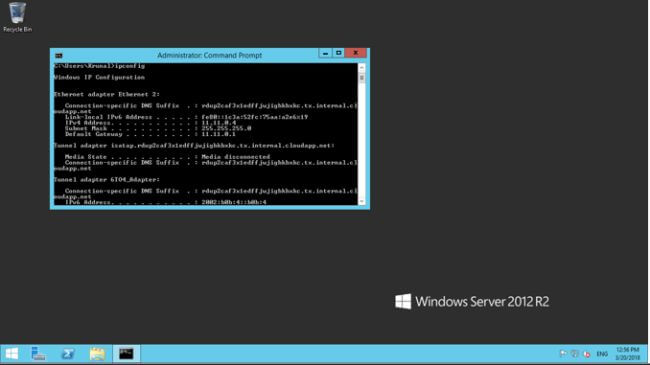

Right now I am in my
SouthVM and I ran the command ipconfig at its command prompt. I got the IPv4 address as 11.11.0.4

Azure
Step 19

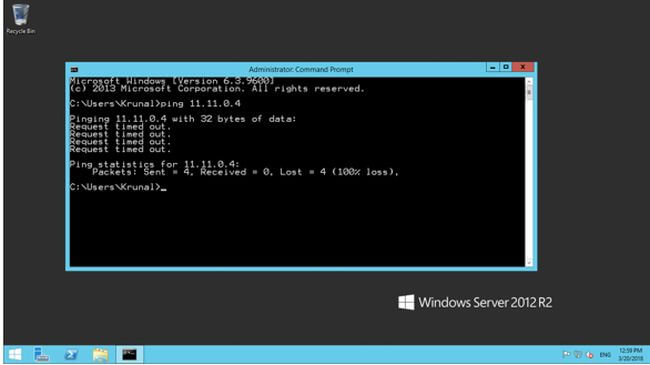

Now, from my
WestVM if I try to ping my SouthVM through the IP address, the request will get timed out. So for that, we need to turn off the firewall in the SouthVM.
Azure
Step 20

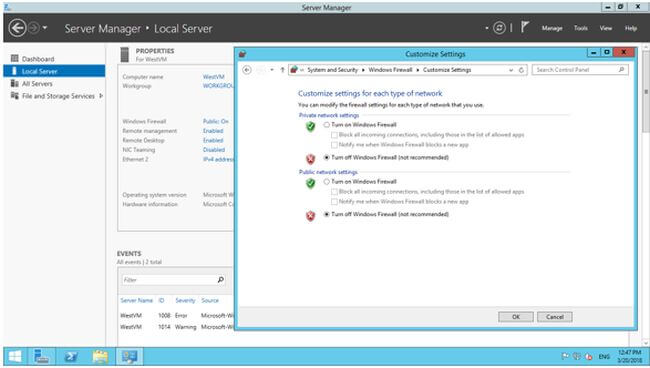

Inside the
SouthVM, turn off the firewall options.

Azure
Step 21

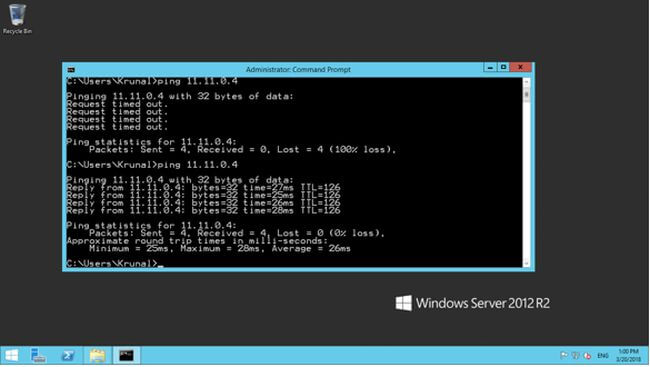

Now, if we go and ping the
SouthVM from the WestVM, it will reply perfectly.

Azure
Step 22

Similarly, you can turn off the firewall from the
WestVM and ping it from the SouthVM as well and it will work fine.

Step 23

We can also go to the portal and see the VM overview to view the traffic exchanged from the VM.


Step 24

So, it can be concluded that both the VMs are connected; i.e., at the back, both the virtual networks are connected and the data traffic channel is working.
