Table View In Xamarin iOS

Introduction

In this article, we are going to take a look into different UITableViewCell built-in styles in Xamarin.iOS. Before getting started with this post, you should follow the Part 1 article instructions completely.

Step 1. Let’s modify the UITableViewCell and its properties in GetCell Implementation within the UITableViewSource class. Here are the properties of building styles.

Subject: Title label string.
Body: Detailed title label string.
Image: Set Image

Depending upon your cell selection, you have to fill in different subview values.

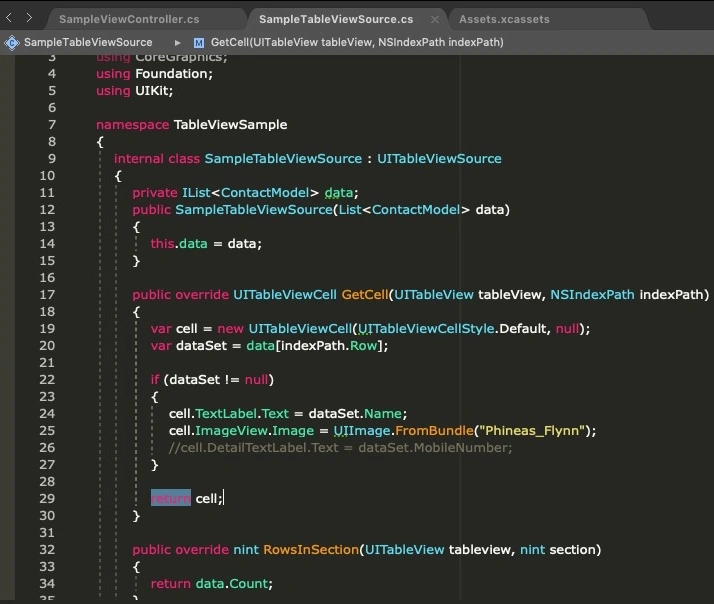

Subviewsvalues

Step 2. Add profile (image) file in Assets. To perform that, open

Solution Explorer >> Resources >> Assets >> Then, right-click to add Image Set >> give the Image Set name, and drag and drop the images.

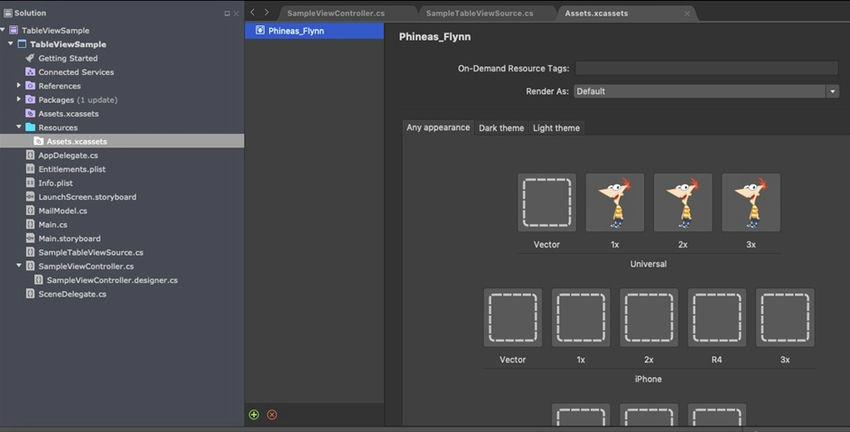

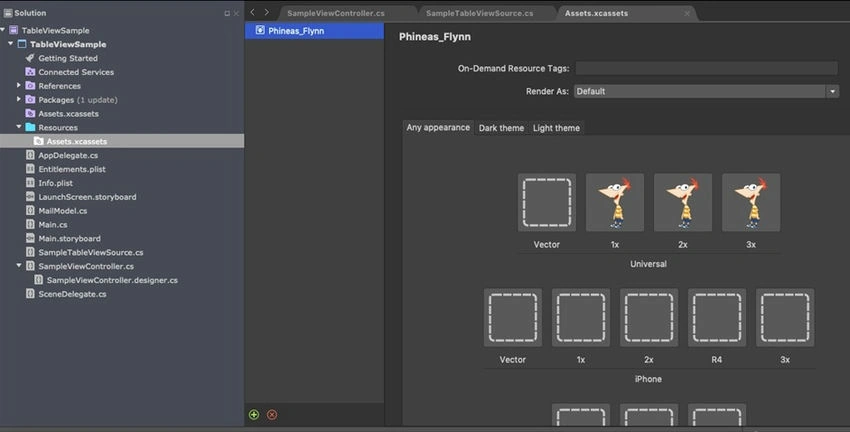

Solution Explorer

Step 3. Open the TableViewSource class and go to the GetCell method. All the changes will be made only in the GetCell method.

Sample 1. Default Style

Change the constructor of UITableViewCell is UITableViewCellStyle.Default. Both UITableViewCellStyle.Default and string are the parameters. Here, we can set the cell type as Default and the string as null. Let’s bind the data into their properties based on the Index and your will code look as shown below.

using System;
using System.Collections.Generic;
using CoreGraphics;
using Foundation;
using UIKit;

namespace TableViewSample
{
    internal class SampleTableViewSource : UITableViewSource
    {
        private IList<ContactModel> data;
        public SampleTableViewSource(List<ContactModel> data)
        {
            this.data = data;
        }

        public override UITableViewCell GetCell(UITableView tableView, NSIndexPath indexPath)
        {
            var cell = new UITableViewCell(UITableViewCellStyle.Default, null);
            var dataSet = data[indexPath.Row];

            if (dataSet != null)
            {
                cell.TextLabel.Text = dataSet.Name;
                cell.ImageView.Image = UIImage.FromBundle("Phineas_Flynn");
            }

            return cell;
        }

        public override nint RowsInSection(UITableView tableview, nint section)
        {
            return data.Count;
        }
    }
}

Run the application, your output will be like below.

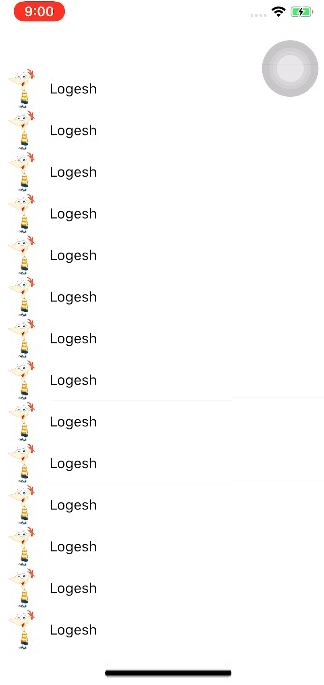

Run the application

Sample 2. Subtitle Style

Next, try with Subtitle style. Just change a piece of code. Change the cell style type default into a subtitle, add one more property as Detail, and bind the Detail string with this. The code will be shown as given below.

using System;
using System.Collections.Generic;
using CoreGraphics;
using Foundation;
using UIKit;

namespace TableViewSample
{
    internal class SampleTableViewSource : UITableViewSource
    {
        private IList<ContactModel> data;
        public SampleTableViewSource(List<ContactModel> data)
        {
            this.data = data;
        }

        public override UITableViewCell GetCell(UITableView tableView, NSIndexPath indexPath)
        {
            var cell = new UITableViewCell(UITableViewCellStyle.Default, null);
            var dataSet = data[indexPath.Row];

            if (dataSet != null)
            {
                cell.TextLabel.Text = dataSet.Name;
                cell.ImageView.Image = UIImage.FromBundle("Phineas_Flynn");
                cell.DetailTextLabel.Text = dataSet.MobileNumber;
            }

            return cell;
        }

        public override nint RowsInSection(UITableView tableview, nint section)
        {
            return data.Count;
        }
    }
}

Run the app to see the output.

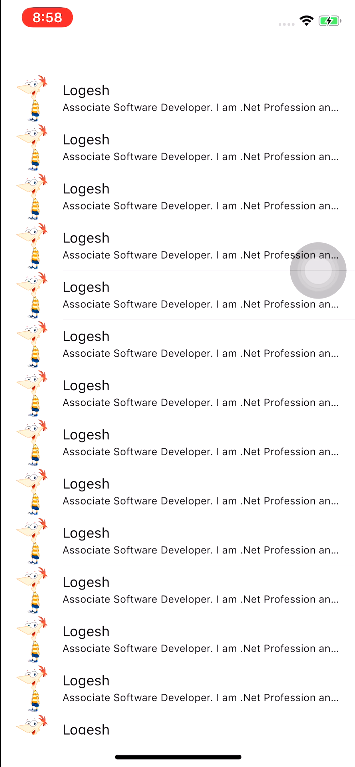

See the output

Sample 3. Value Style

Finally, look into the Value style type as well as changing the cell type and properties. Change the type Subtitle into Default: Here we have only two label properties. This class code will be as shown below.

using System;
using System.Collections.Generic;
using CoreGraphics;
using Foundation;
using UIKit;

namespace TableViewSample
{
    internal class SampleTableViewSource : UITableViewSource
    {
        private IList<ContactModel> data;
        public SampleTableViewSource(List<ContactModel> data)
        {
            this.data = data;
        }

        public override UITableViewCell GetCell(UITableView tableView, NSIndexPath indexPath)
        {
            var cell = new UITableViewCell(UITableViewCellStyle.Default, null);
            var dataSet = data[indexPath.Row];

            if (dataSet != null)
            {
                cell.TextLabel.Text = dataSet.Name;
                cell.DetailTextLabel.Text = dataSet.MobileNumber;
            }

            return cell;
        }

        public override nint RowsInSection(UITableView tableview, nint section)
        {
            return data.Count;
        }
    }
}

Run the app to see the result below.

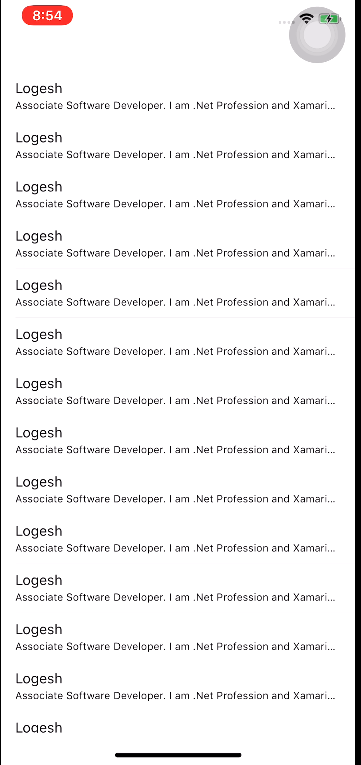

See the result

Full source code here.

I believe by now you should understand how to use Default Tableviewcells. Please share if you have any queries in the comments section.
