Text to Speech in Windows Phone 7

Introduction

In this article I am explaining how to leverage the cloud to solve the problem of Text to Speech translation. It's pretty simple to archive such kind of functionality in Windows Phone 7 using the Bing API. Here I will show how we can retrieve a list of languages supported by the Microsoft Translator for the Speech API and speak the user's input text.

First of all we must obtain a valid Bing API AppID, let's use the following steps.

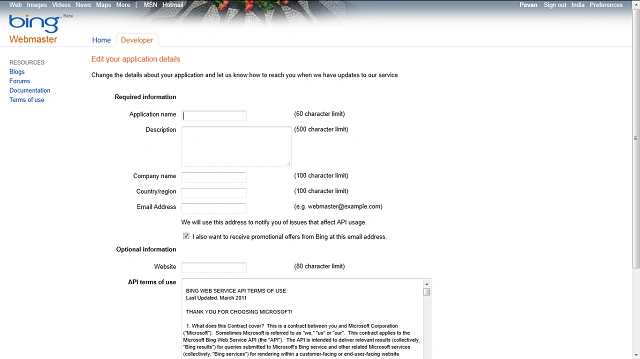

Step 1 : Open the following Url to register your application and follow the instructions to obtain a valid Bing API AppID.

http://www.bing.com/developers/appids.aspx

Step 2 : Enter required information and obtain a valid Bing API AppID.



After having registered your application, we will proceed with the Windows Phone 7 application development and invoke the cloud service.

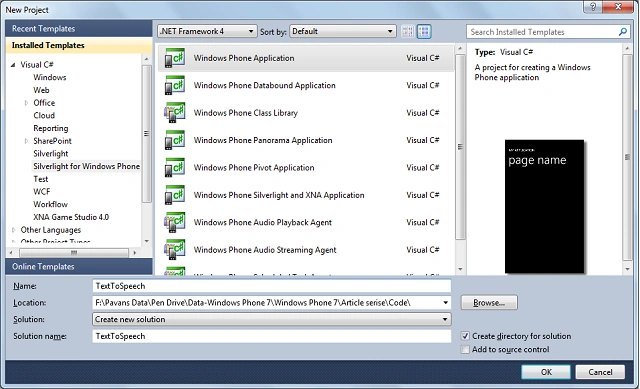

Step 3 : Create a Windows Phone 7 application project.

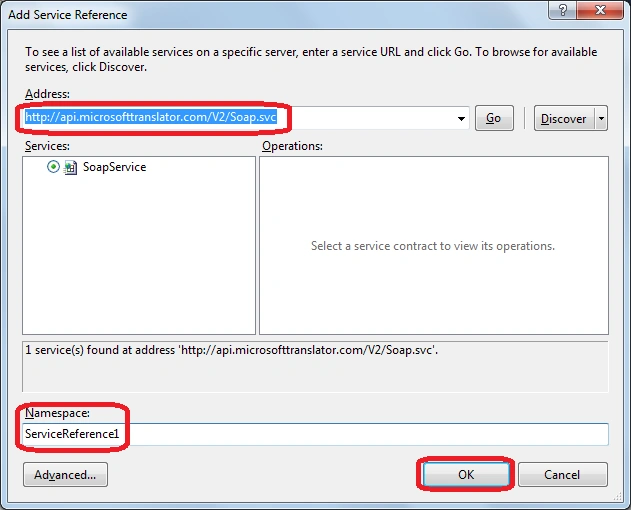

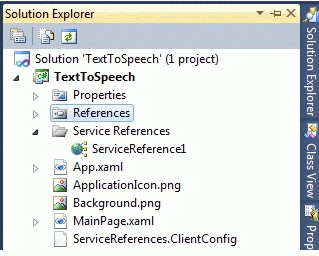

Step 4 : To add a web reference of the Microsoft Translator Service, we need to add a service reference to the Windows Phone project. Right-click the Windows Phone Project in the Solution Explorer, and choose Add Service Reference. Please see the following pictures of that.

http://api.microsofttranslator.com/V2/Soap.svc

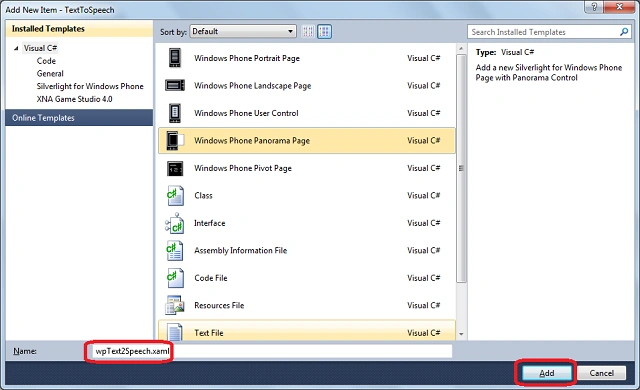

Step 5 : Now add a panorama page to the Windows Phone 7 project.

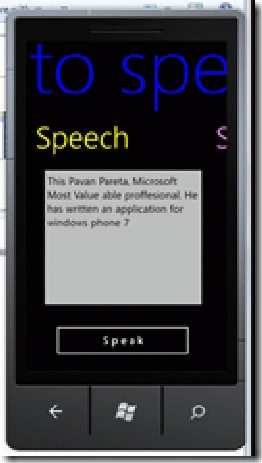

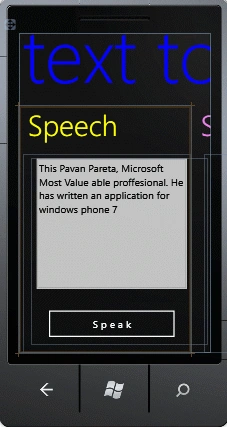

Step 6 : Create a UI as per application requirements; see the following XAML code snippet. Here I have added three panorama items.

<Grid x:Name="LayoutRoot">
<controls:Panorama Title="text to speech" Name="panoSpeech" Foreground="Blue" FontFamily="Comic Sans MS">
<!--Panorama item one-->
<controls:PanoramaItem Header="Language(s)" Foreground="Plum" FontFamily="DengXian" FontSize="72">
<StackPanel Orientation="Horizontal">
<StackPanel.Resources>
<DataTemplate x:Key="LanguageTemplate">
<TextBlock Foreground="White" Margin="0,0,0,0" Text="{Binding Name}" />
</DataTemplate>
</StackPanel.Resources>
<ListBox HorizontalAlignment="Left" ItemTemplate="{StaticResource LanguageTemplate}" Margin="20,10,0,20" Name="ListLanguages" Width="441">
</ListBox>
</StackPanel>
</controls:PanoramaItem>
<!--Panorama item two-->
<controls:PanoramaItem Header="Speech" Foreground="Yellow">
<StackPanel Orientation="Vertical" Margin="20,0,0,0">
<TextBox Name="TextToSpeachText" Text="This Pavan Pareta, Microsoft Most Value able proffesional. He has written an application for windows phone 7" TextWrapping="Wrap"
Height="350" />
<Button Content="S p e a k" Height="90" Margin="0,30,0,0" Name="btnSpeak" Width="338" Click="btnSpeak_Click" />
</StackPanel>
</controls:PanoramaItem>
<!--Panorama item three-->

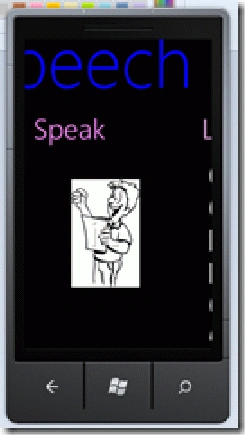

<controls:PanoramaItem Header="Speak" Foreground="Violet">
<StackPanel Orientation="Vertical">
<Image Height="auto" Name="image1" Stretch="None" Width="auto" Margin="50 60 80 0" Source="/speak.jpg" />
</StackPanel>
</controls:PanoramaItem>
</controls:Panorama>
</Grid>

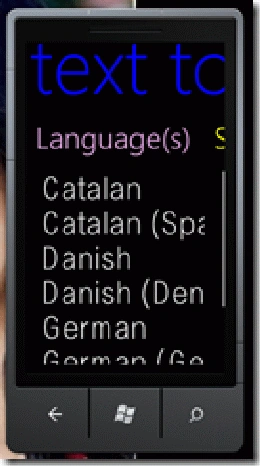

Step 7 : First the Panorama item used in development for retrieving the supported speech languages. To retrieve the supported language we need to call a web service method "GetLanguagesForSpeakAsync". The GetLanguagesForSpeak method only returns the language codes, for example, en for English and fr for French etc. See the following UI and code snippet.
