Three Tier Architecture In ASP.NET

Let's start creating a 3-Tier Architecture Application.

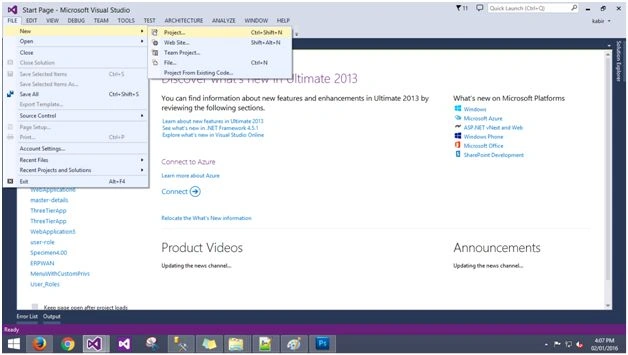

Create a new project using "File", "New" , then "Project...".
In Visual C# select "Web".

(Select "ASP.NET Web application" and name it as: ThreeTierApp).

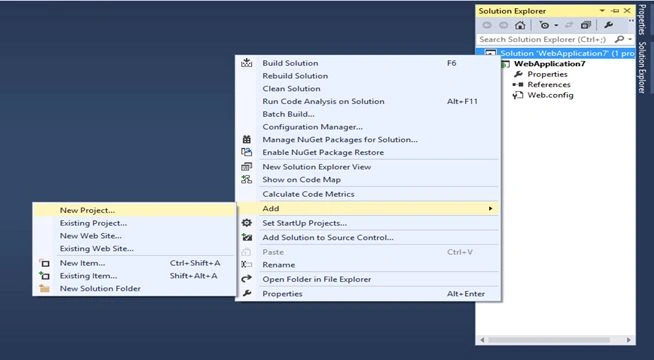

How to add class library to solution:

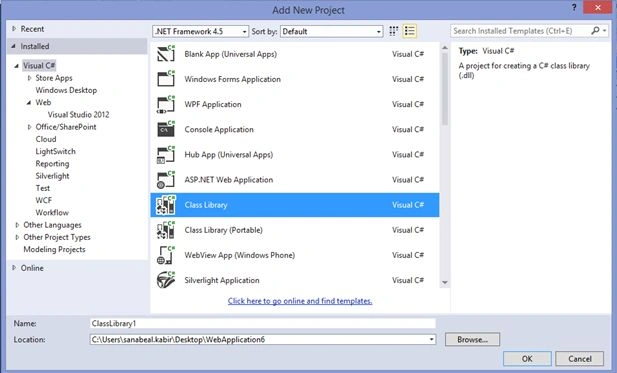

After clicking on a new project you would see the following screen. Select "Class Library" from this and name it "BusinessObject".

• Same(step: 3) as BusinessLogic, DataAccess.

• ThreeTierApp(in Solution Explorer)- Reference, Add Reference, Solutions, then Projects click (BusinessObject,BusinessLogic, DataAccess) Click
OK.
BusinessObject, then EmployeeBO and add Class,

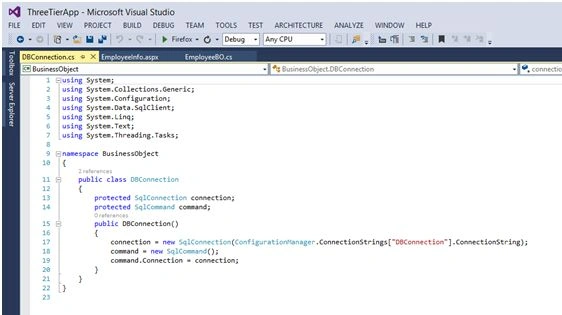

BusinessObject, DBConnection add Class (For database Connection).

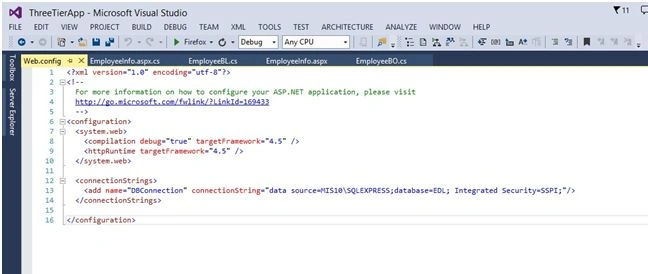

Web.config:

• Now we are done. Add all layers to our project.
• You can see the three tiers in the image given below.

Basically a 3-Tier architecture contains the following 3 layers:

1. Application Layer or Presentation Layer (our web form and UI Part)
2. Business Logic Layer (BusinessLogic)
3. Data Access Layer (DataAccess)
ThreeTierApp - add new webform,

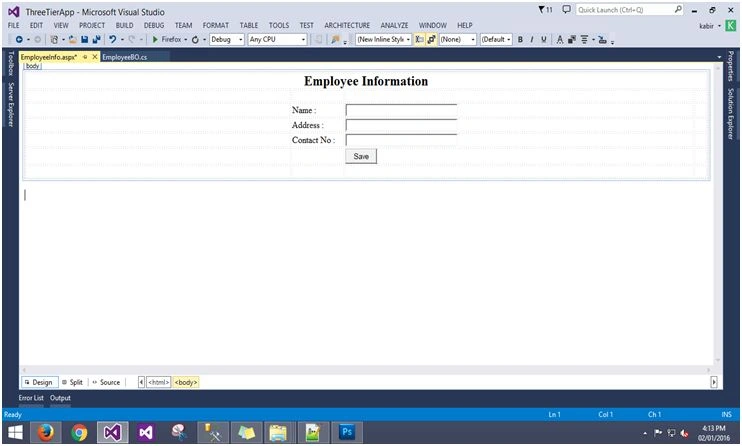

Form Design

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
<style type="text/css">
.auto-style1 {
text-align: center;
font-size: x-large;
}
.auto-style2 {
width: 488px;
}
.auto-style3 {
width: 95px;
}
</style>
</head>
<body>
<form id="form1" runat="server">
<div>
<table style="width:100%;">
<tr>
<td class="auto-style1" colspan="4"><strong>Employee Information</strong></td>
</tr>
<tr>
<td class="auto-style2"> </td>
<td class="auto-style3"> </td>
<td> </td>
<td> </td>
</tr>
<tr>
<td class="auto-style2"> </td>
<td class="auto-style3">Name :</td>
<td>
<asp:TextBox ID="txtName" runat="server" Width="200px"></asp:TextBox>
</td>
<td> </td>
</tr>
<tr>
<td class="auto-style2"> </td>
<td class="auto-style3">Address :</td>
<td>
<asp:TextBox ID="txtAddress" runat="server" Width="200px"></asp:TextBox>
</td>
<td> </td>
</tr>
<tr>
<td class="auto-style2"> </td>
<td class="auto-style3">Contact No :</td>
<td>
<asp:TextBox ID="txtContactNo" runat="server" Width="200px"></asp:TextBox>
</td>
<td> </td>
</tr>
<tr>
<td class="auto-style2"> </td>
<td class="auto-style3"> </td>
<td>
<asp:Button ID="btnSave" runat="server" OnClick="btnSave_Click" Text="Save" Width="58px" />
<asp:Label ID="lblMsg" runat="server"></asp:Label>
</td>
<td> </td>
</tr>
<tr>
<td class="auto-style2"> </td>
<td class="auto-style3"> </td>
<td> </td>
<td> </td>
</tr>
</table>
</div>
</form>
</body>
</html>

Now let’s start to create a table for saving this data using our 3-Tier Architecture.

CREATE TABLE[dbo].[Emp_Info]
(
[Id][int] IDENTITY(1, 1) NOT NULL, [Name][varchar](50) NULL, [Address][varchar](200) NULL, [ContactNo][int] NULL
) ON[PRIMARY]

Let's start with a business object first as in the following: Create a new class name, "EmployeeBO".

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace BusinessObject
{
public class EmployeeBO
{
public string Name
{
get;
set;
}
public string Address
{
get;
set;
}
public int ContactNo
{
get;
set;
}
}
}

Now in the same way we created EmployeeBL in BusinessLogic, create a new class EmployeeDA in DataAccess.

The main thing TO DO

The main thing to do is to add the three layers:

EmployeeBO.cs
BusinessLogic.cs
EmployeeDA .cs

Last Step:

Save Button btnSave_Click

using BusinessLogic; // Creating object of Business Layer
using BusinessObject; // Creating object of Business Object
using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace ThreeTierApp
{
public partial class EmployeeInfo: System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e) {}
EmployeeBO oEmployeeBO = new EmployeeBO(); // Creating object of Business Object
EmployeeBL oEmployeeBL = new EmployeeBL(); // Creating object of Business Logic
protected void btnSave_Click(object sender, EventArgs e)
{
oEmployeeBO.Name = txtName.Text;
oEmployeeBO.Address = txtAddress.Text;
oEmployeeBO.ContactNo = Convert.ToInt32(txtContactNo.Text);
string msg = oEmployeeBL.Save(oEmployeeBO);
lblMsg.ForeColor = Color.Green;
lblMsg.Text = msg.ToString();
}
}
}

EmployeeBL.cs

using BusinessObject;
using DataAccess;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace BusinessLogic
{
public class EmployeeBL
{
EmployeeDA oEmployeeDA = new EmployeeDA(); // Creating object of Data Access
public string Save(EmployeeBO oEmployeeBO)
{
return oEmployeeDA.Save(oEmployeeBO);
}
}
}

EmployeeDA.cs

using BusinessObject;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace DataAccess
{
public class EmployeeDA: DBConnection // Inherited DBConnection Class
{
public string Save(EmployeeBO oEmployeeBO)
{
try
{
connection.Open();
string query = "insert into Emp_Info (Name,Address,ContactNo)values(@Name,@Address,@ContactNo)";
command.CommandText = query;
command.Parameters.Clear();
command.Parameters.AddWithValue("@Name", oEmployeeBO.Name);
command.Parameters.AddWithValue("@Address", oEmployeeBO.Address);
command.Parameters.AddWithValue("@ContactNo", oEmployeeBO.ContactNo);
command.ExecuteNonQuery();
connection.Close();
return "Save Success.";
} finally
{
connection.Close();
}
}
}
}
