Understand Switch Statement In Power Automate

Introduction

Generally to handle multiple conditions like in javascript and C# .net switch will be used. We can use Switch action in the same way in Power automate. In this article, we can see how it can be used to decide whether a person can get a vaccination or not.

Step 1

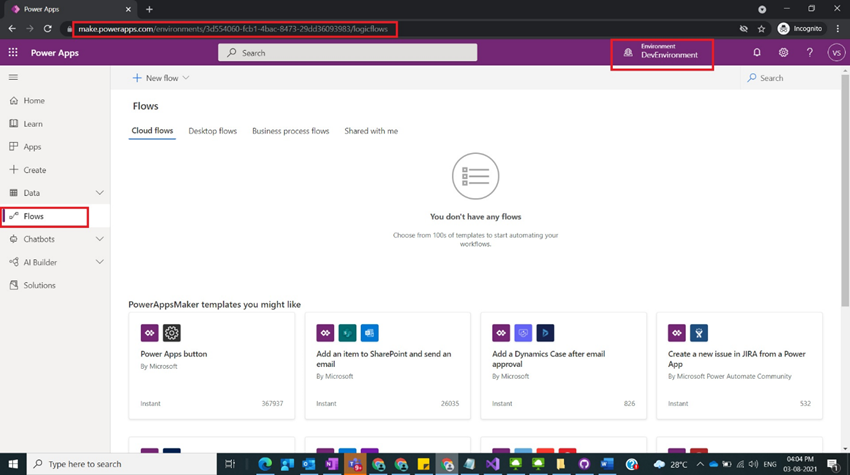

Login to the required Power Apps environment using URL make.powerapps.com by providing username and password and click on Flows on the left-hand side as shown in the below figure.

Understand Switch Statement in Power Automate

Step 2

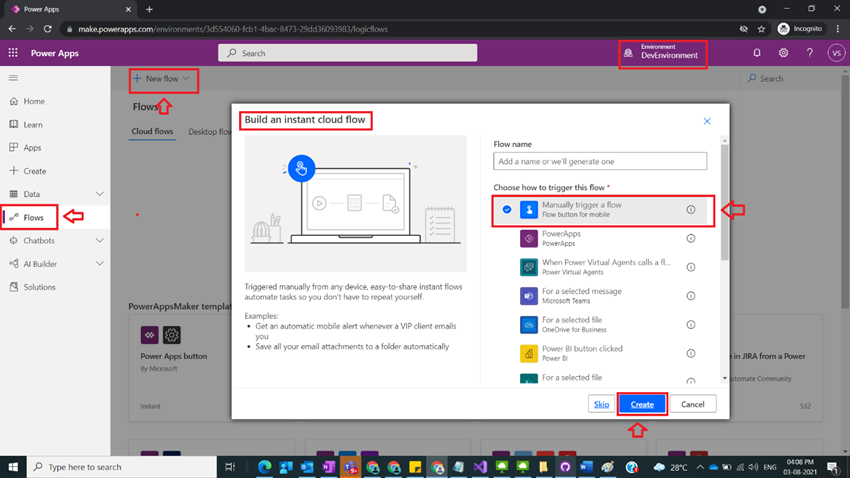

After Step 1, Click on New Flow and select instant cloud flow and provide the trigger as Manually trigger a flow and click on Create as shown in the below figure.

Understand Switch Statement in Power Automate

Step 3

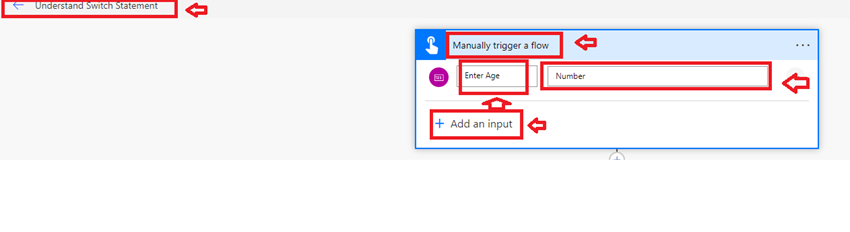

After Step 2, name the flow as Understand Switch Statement and in Manually trigger provide input values as

Title : Enter Age
 Value : Number

as shown in the below figure.

Understand Switch Statement in Power Automate

Step 4

After Step 3, take Initialize variable action and provide the values as below

Name : Age
Type : Integer
Value : @{triggerBody()['number']} [ From Step 3]

as shown in the below figure.

Understand Switch Statement in Power Automate Figure 4

Step 5

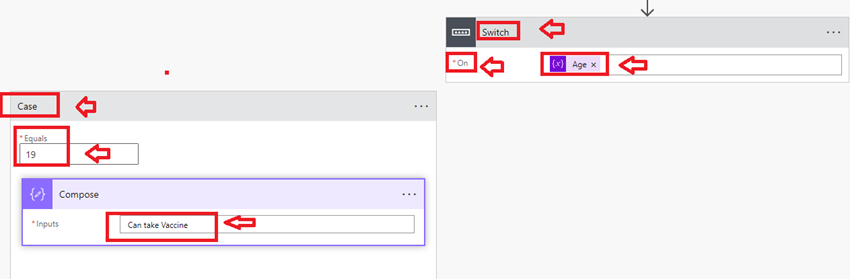

After Step 4, take Switch Action and provide the value

On : @{variables('Age')}

and in one part of Case provide the value as

Equals 19

 and take a compose function and provide the inputs as

Inputs : Can take vaccine

as shown in the below figure.

Understand Switch Statement in Power Automate

Step 6

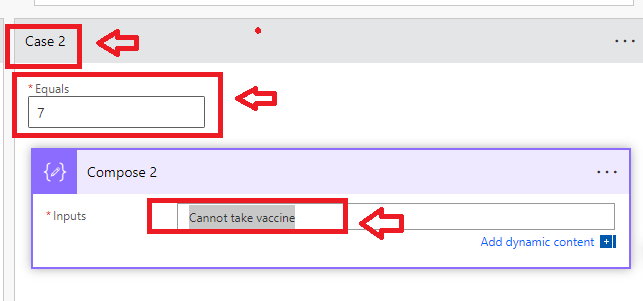

After Step 5, take another case section and name it as Case 2 and provide

Equals : 7

And take compose action and provide inputs as

Inputs : Cannot take vaccine

as shown in the below figure.

Understand Switch Statement in Power Automate Figure 6

Step 7

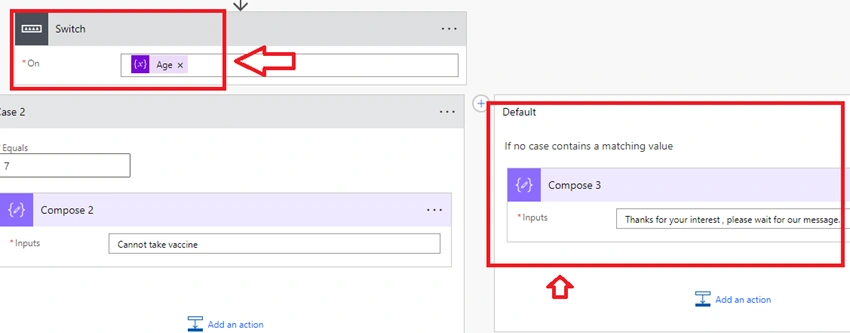

After Step 6, under switch statement under default section take a compose action and provide the inputs as

Inputs : Thanks for your interest , please wait for our message.

as shown in the below figure.

Understand Switch Statement in Power Automate

Step 8

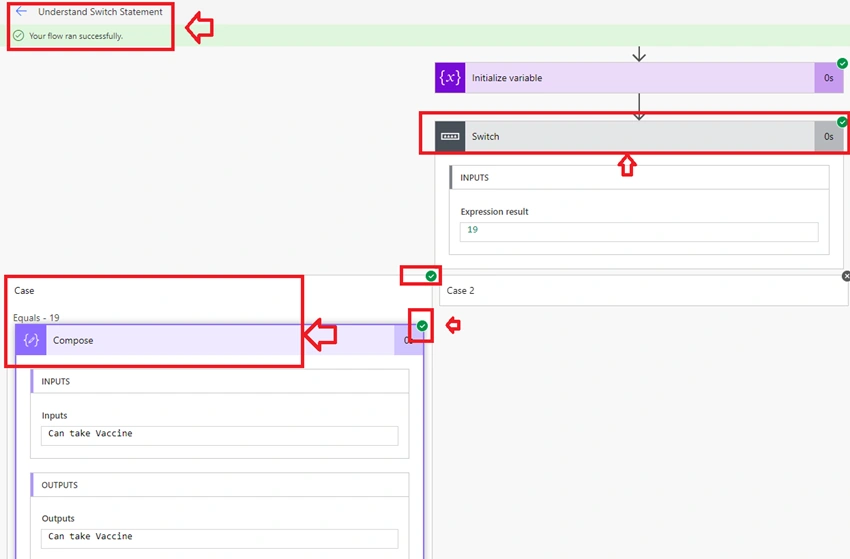

After Step 7, now save and test the flow and provide the value as 19 you should see the first case part will be executed as shown in the below figure

Understand Switch Statement in Power Automate

Step 9

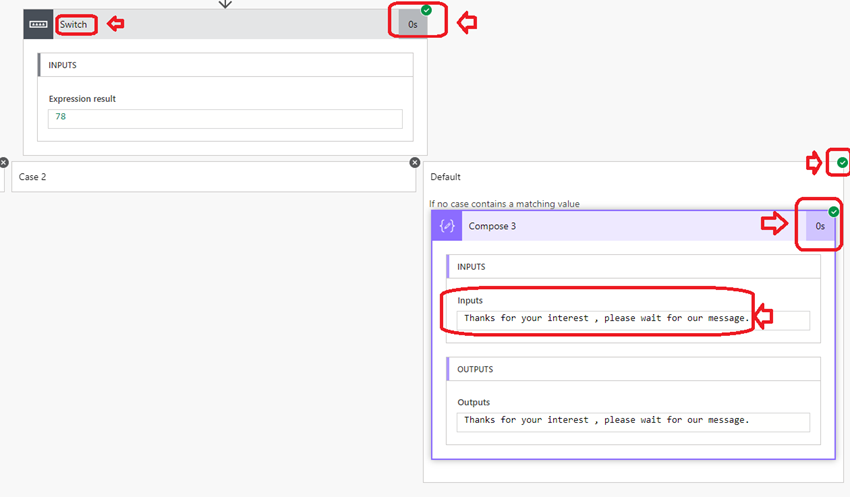

After Step 8, now save and test the flow and provide the value as 78 you should see the default section of switch will be executed as shown in the below figure

Understand Switch Statement in Power Automate

Note

  1. Just like a normal switch case all the case options can be handled.

Conclusion

In this way, we can easily use switch action to handle different conditions in power automate.
