Introduction
Discover the essence of three-tier architecture in database management systems (DBMS) with this concise guide. Unveil the layers—presentation, application, and data management—each serving a unique purpose in orchestrating seamless data interactions. Explore the advantages, principles, and practical implications of this architectural model, empowering you to design and deploy robust and scalable database solutions.

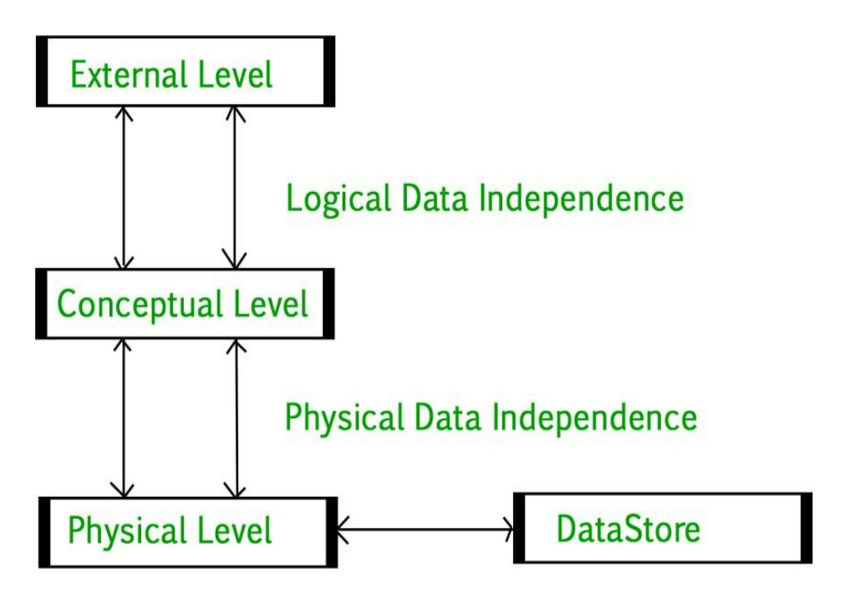

![Three-tier architecture]()
Three Tier Architecture
External Layer
The external level, also known as the user interface layer, is the topmost tier in the three-tier architecture of a database management system (DBMS). It serves as the gateway for end-users to interact with the system, presenting data in a format that is understandable and accessible to them. This layer encapsulates user-facing functionalities, such as forms, reports, dashboards, and graphical interfaces, tailored to specific user roles and preferences. By abstracting the complexities of the underlying database structure, the external level provides a simplified and intuitive interface, enabling users to query, retrieve, update, and manipulate data efficiently.
Conceptual Level
The conceptual level, positioned between the external and physical levels, is the intermediary tier in the three-tier architecture of a database management system (DBMS). It represents the logical view of the database, abstracting the underlying physical storage details from the end-users and applications interacting with the system. At this level, the focus is on defining the overall structure, organization, and relationships of the data within the database, without concern for implementation specifics. The conceptual level is typically realized through entity-relationship diagrams (ERDs) or other conceptual data models, which capture the entities, attributes, and relationships in the database schema. This abstraction facilitates data independence, allowing changes to the database structure to be made without affecting the external applications, thus enhancing flexibility and maintainability.
Physical Level
The physical level, located at the bottom of the three-tier architecture of a database management system (DBMS), is responsible for managing the actual storage and retrieval of data on the physical storage devices. This tier interacts directly with the hardware components(Data Store), including disks, memory, and storage devices. At the physical level, data is organized and stored in a manner optimized for efficient access and retrieval, such as through indexing, partitioning, and storage optimization techniques. This tier also encompasses aspects like data compression, encryption, and disk management strategies to ensure data integrity, security, and performance. Unlike the conceptual and external levels, which abstract away from physical implementation details, the physical level deals directly with the low-level storage mechanisms, translating logical data structures into physical storage representations
The interaction between these layers follows a structured flow, with each layer performing specific tasks and passing data or requests to the next layer as necessary. This separation of concerns enables modularity, scalability, and maintainability in the design and management of database systems.
Conclusion
In the three-tier architecture, the external layer provides user-friendly interfaces, the conceptual layer defines logical data structures, and the physical layer manages actual data storage. Together, they create a cohesive framework for efficient data management and processing, enhancing scalability, maintainability, and security in database systems.
