Usage Of Do Until Function In Power Automate

Introduction

In Power Automate, at times we must repeat certain steps until a condition is met. In these scenarios, we make use of Do until function as an example counter value will be incremented till it becomes 3.

Step 1

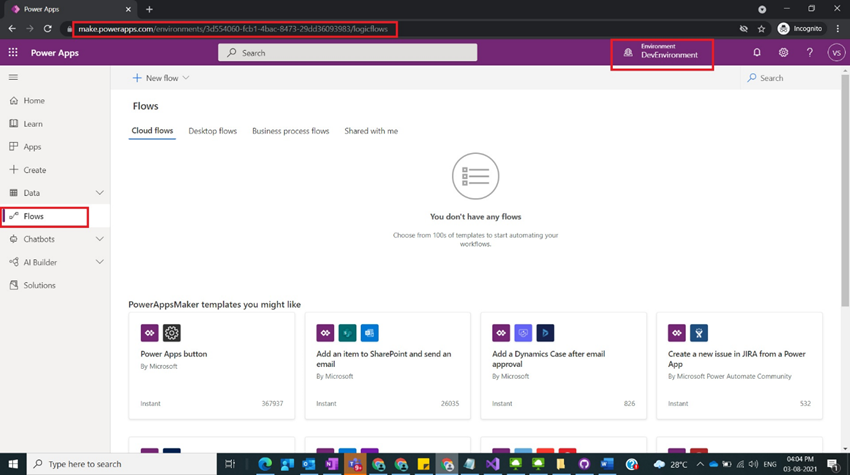

Login to the required Power Apps environment using URL make.powerapps.com by providing username and password and click on Flows on the left-hand side as shown in the below figure.

Usage Of Do Until Function In Power Automate

Step 2

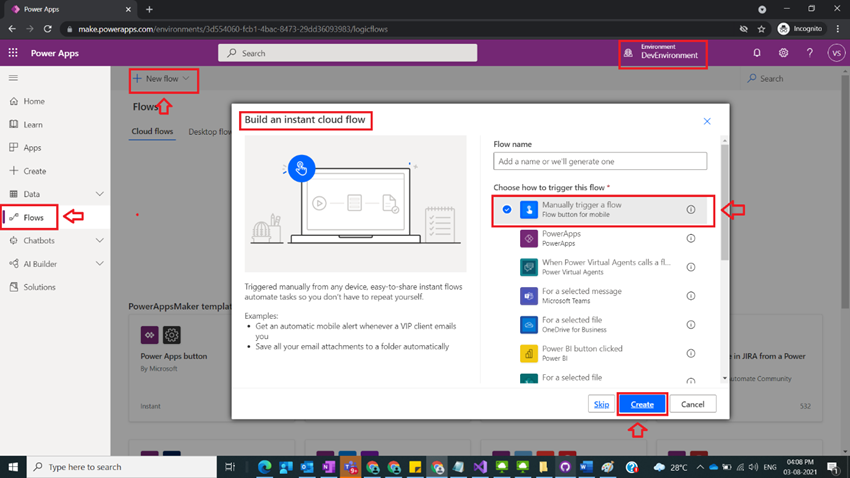

After Step 1, Click on New Flow and select instant cloud flow and provide the trigger as Manually trigger a flow and click on Create as shown in the below figure.

Usage Of Do Until Function In Power Automate

Step 3

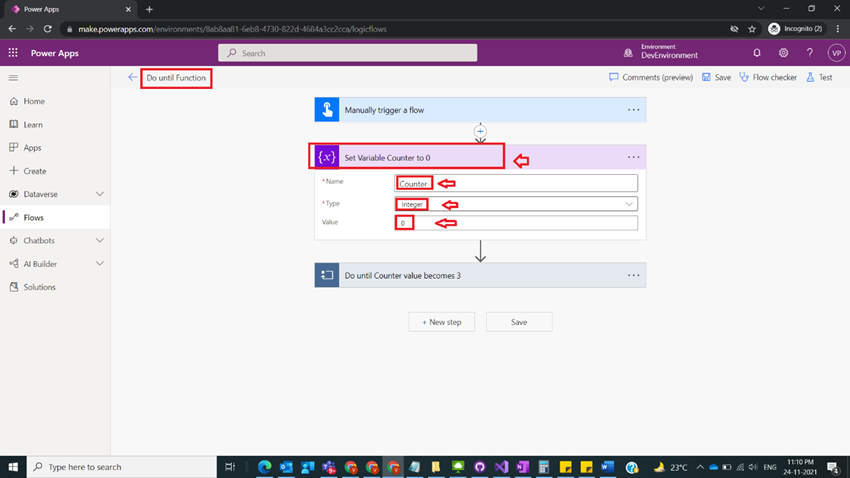

After Step 2, name flow as doUntil Function and take initialize variable as Set Variable Counter to 0 with the following fields

Name: Counter
Type: Integer
Value : 0

as shown in the below figure.

Usage Of Do Until Function In Power Automate

Step 4

After Step 3, take Do until Action and name it as Do until Counter value becomes 3 and provide the following condition

Variable: Counter
Condition : is equal to
Value : 3

as shown in the below figure.

Usage Of Do Until Function In Power Automate

Step 5

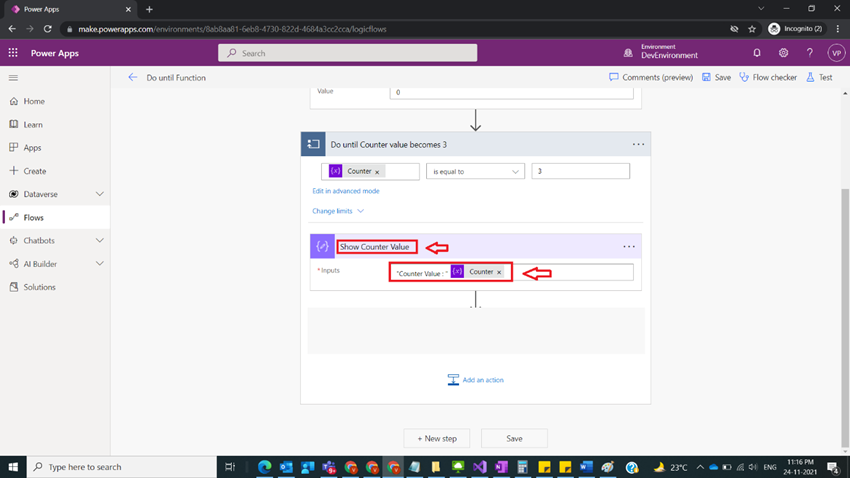

After Step 4, take compose action and name it as  Show Counter Value and provide the input as

Inputs : "Counter Value : " @{variables('Counter')}

As shown in the below figure

Usage Of Do Until Function In Power Automate

Step 6

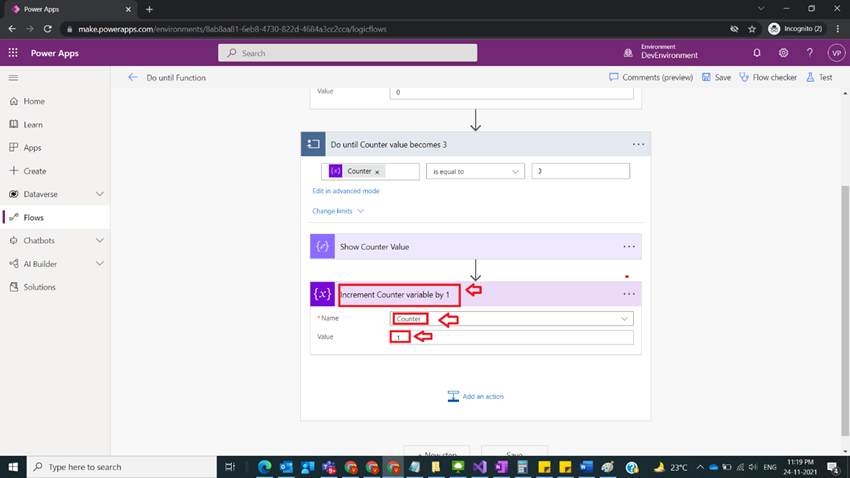

After Step 5, take increment variable and name it as  Increment Counter variable by 1 and provide the following details

Name : Counter
Value : 1

As shown in the below figure

Usage Of Do Until Function In Power Automate

Step 7

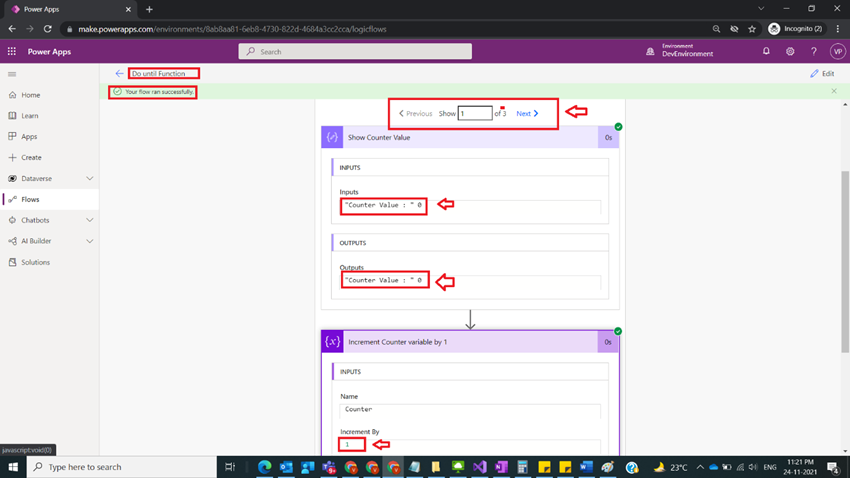

After Step 6, save the flow and test and run the flow and observe the result such that Do until loop will execute till Counter value equal to 3.

As shown in the below figure

Usage Of Do Until Function In Power Automate

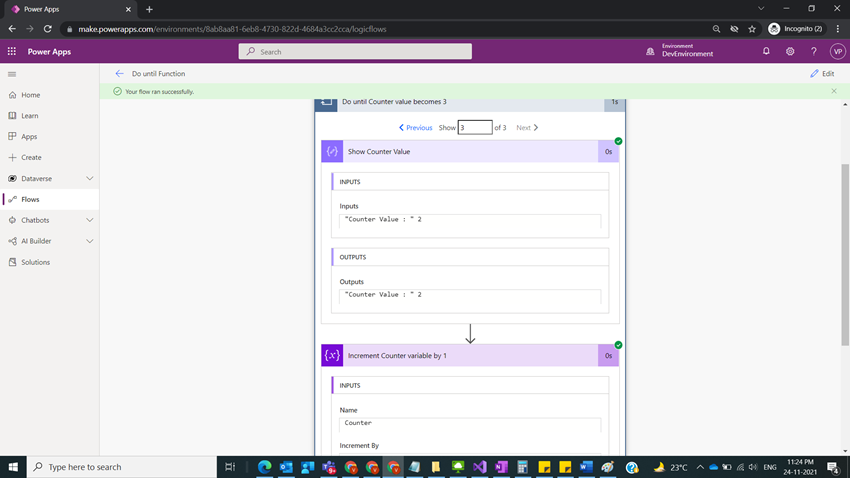

And the last step looks like below

Usage Of Do Until Function In Power Automate

Note

  1. Make sure to save and run the flow whenever you try expressions.

Conclusion

In this way, we can use do Until function so that repetitive actions can be done until condition was met in power automate.
