Introduction

I have already provided the Use HTML and CSS file in the Windows Phone Apps article. So you can see for Windows Phone Apps.
Now In this article, you will see the use of HTML and CSS files in Android apps.

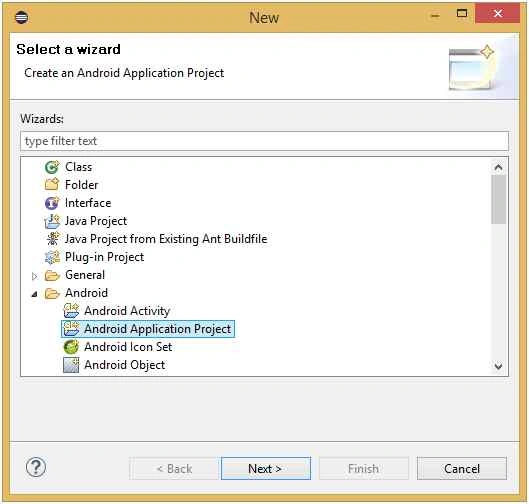

First, create an Android Application Project in Eclipse.
Create an Android Application
Layout XML file
Then open the Layout XML file. Drag the first Linear Layout then WebView Element to the Relative Layout of the Activity.
webView
XML File Code
  1. <RelativeLayout
  2. xmlns:android="http://schemas.android.com/apk/res/android"
  3. xmlns:tools="http://schemas.android.com/tools"
  4. android:layout_width="fill_parent"
  5. android:layout_height="fill_parent"
  6. android:keepScreenOn="true"
  7. android:paddingBottom="@dimen/activity_vertical_margin"
  8. android:paddingLeft="@dimen/activity_horizontal_margin"
  9. android:paddingRight="@dimen/activity_horizontal_margin"
  10. android:paddingTop="@dimen/activity_vertical_margin">
  11. <LinearLayout
  12. android:layout_width="fill_parent"
  13. android:layout_height="fill_parent"
  14. android:orientation="vertical" >
  15. <WebView
  16. android:id="@+id/webview"
  17. android:layout_width="fill_parent"
  18. android:layout_height="fill_parent" />
  19. </LinearLayout>
  20. </RelativeLayout>
Then make a HTML and CSS file.
Copy files into the assets folder as in the following:
assets
Now open the Activity Java file.
Java File Code
  1. import android.app.Activity;
  2. import android.os.Bundle;
  3. import android.view.Menu;
  4. import android.view.MenuItem;
  5. import android.webkit.WebView;
  6. public class HtmlMainActivity extends Activity {
  7. WebView webview;@Override
  8. protected void onCreate(Bundle savedInstanceState) {
  9. super.onCreate(savedInstanceState);
  10. setContentView(R.layout.activity_html_main);
  11. webview.loadUrl("file:///android_asset/demo.html");
  12. }@Override
  13. public boolean onCreateOptionsMenu(Menu menu) {
  14. // Inflate the menu; this adds items to the action bar if it is present.
  15. getMenuInflater().inflate(R.menu.html_main, menu);
  16. return true;
  17. }@Override
  18. public boolean onOptionsItemSelected(MenuItem item) {
  19. // Handle action bar item clicks here. The action bar will
  20. // automatically handle clicks on the Home/Up button, so long
  21. // as you specify a parent activity in AndroidManifest.xml.
  22. int id = item.getItemId();
  23. if (id == R.id.action_settings) {
  24. return true;
  25. }
  26. return super.onOptionsItemSelected(item);
  27. }
  28. }
  30. webview.loadUrl("file:///android_asset/demo.html");
That line is important for seeing the HTML Page.

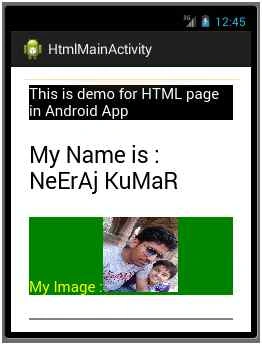

Output
Output
