Various Techniques To Verify The Connectivity From Client To Server (Including Port Number)

In this article, I will explore a few techniques to test the network connectivity with another machine & Port number using the built-in tools in the Operating System.


In an era of interconnected devices, the code we write involves connectivity from one machine to another remote machine. In other words, while working on a frontend application, it needs to communicate with another remote API. It's essential to understand if the connectivity exists between the two machines and if the port for the destination machine is open and accessible.

In this article, I will explore a few techniques to test the network connectivity with another machine & port number using the built-in tools in the Operating System. No additional downloads or installation is required. Once we establish the connectivity between two machines, we can proceed ahead with our implementation details. However, if network connectivity is not established, we may need to further troubleshoot the issue. You might find these helpful in case you need to verify the connectivity to remote machines.

What are the various steps to verify connectivity to the destination machine & port?

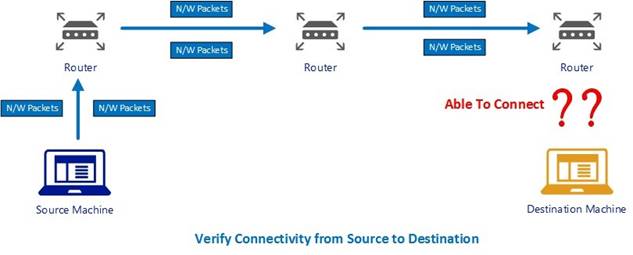

  1. The first step in this process is to verify the network connectivity with the remote machine. It means checking if we can send packets to the remote machine or not.
  2. Next, verify the connectivity to the destination port to check if the port is blocked or inaccessible. This ensures that the firewall is not blocking the port.

    Network

Check Connectivity between machines using Ping

Using the Ping command, we can verify the network level connectivity between the client and Remote Machine. At the N/w level Ping rely on ICMP, which is at layer 3. Hence, it doesn't check if a port is open or not. So, it is possible that ping works, but still, the call to the API on destination machine at the specific port doesn't work.

How to use ping?

  1. Open the command prompt.
  2. Enter ping command, passing the destination machine IP or Hostname as shown below.

    Network

Successful Response

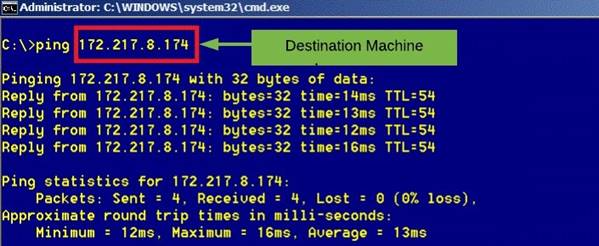

If Ping Succeeds, we will get a reply from the destination machine. This reply ensures that the connectivity exists between the source and destination machines. The following image displays the result of a successful ping response.

Network

Failure Response

If ping results in a " Request timed out." or "Destination Host Unreachable" message, then there is a connectivity issue from the source to the destination.

Some of the possible reasons for failure are listed below.

The Source/Destination machine is not connected to the network.

The destination machine is not turned on.

Other causes could include an issue with the router or a problem with other networking components.

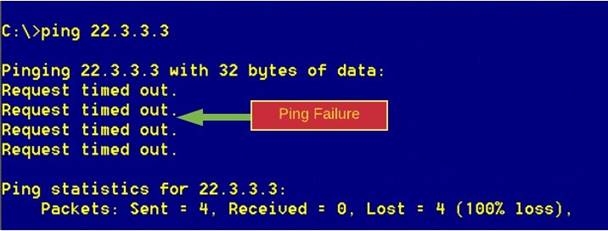

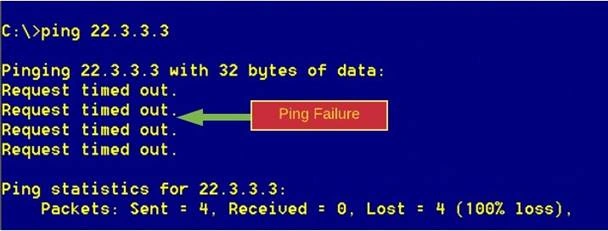

Request Timed Out

Network

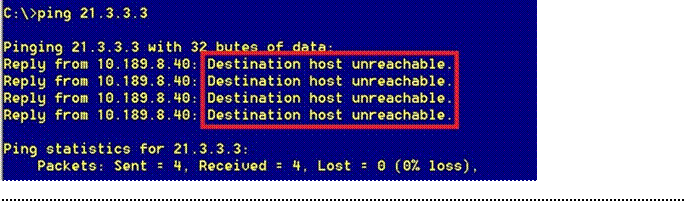

Destination Host Unreachable

Network

Check Connectivity between machines Using Telnet

Wikipedia defines Telnet as "a protocol used on the Internet or local area networks to provide a bidirectional interactive text-oriented communication facility using a virtual terminal connection." At N/w level, Telnet works in the application layer and needs the port connectivity.

Telnet gets its name from Terminal Network. With Telnet, we can establish a host session to a server. The advantage of using Telnet is that we can verify the connectivity to a port as well.

Why is Telnet not preferred?

Telnet uses plain text for communication and hence is not encrypted. Therefore, in Windows, by default the TelNet Client is disabled.

Telnet can be enabled in Windows by Adding/Removing windows component using Control Panel.

How to use Telnet?

  1. Enter command prompt.
  2. Use telnet command in the Destination Server Name/Address and the port number; e.g., telnet destination, as 80.

Note
The default port for Telnet is 23. So, if we omit the port number in the Telnet command, the Telnet will try to connect to the destination using port 23.

Telnet succeeds

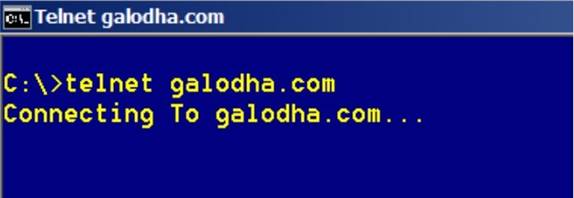

After entering the Telnet command, we will see the text connecting to HostName, as shown in the below image.

Network

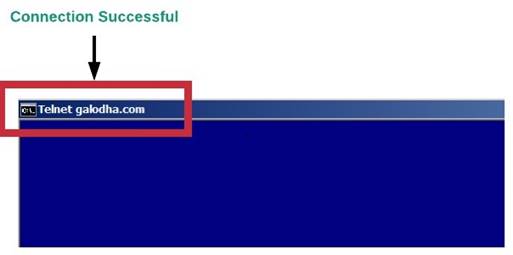

If the connection succeeds, we will see a blank screen. Notice the title of the console window. It should read Telnet

<DestinationName>

Network
Telnet Failure

Network

If the destination Machine or the port is inaccessible, we will get the error "Could not open connection to the host, on port 80: Connection failed"

What if Ping works successfully and Telnet fails?

It might be the case that the port is blocked. The firewall can block the traffic. This firewall can either be on your local machine or the server. Check both ends for a firewall. If the actual server is on a different network, for example across the Internet, there could be other firewalls in the middle too.

Check Connectivity between machines using Powershell

My preferred option is Powershell. It is powerful as it allows us to explore all the potential of a .net framework as we can call .NET Framework methods using Powershell.

Option 1 - Test-NetConnectioncommand

If you're running Windows 8/Windows Server 2012 or newer, you can use the Test-NetConnectioncommand.

The Test-NetConnection cmdlet displays diagnostic information for a connection. It supports ping tests, TCP tests, route tracing, and route selection diagnostics. For our purposes, we are going to use the cmdlet with destination name and the port number.

How to Use Powershell Test-NetConnection

Provide the HostName/IP and the port number to verify the connectivity.

Network

Success

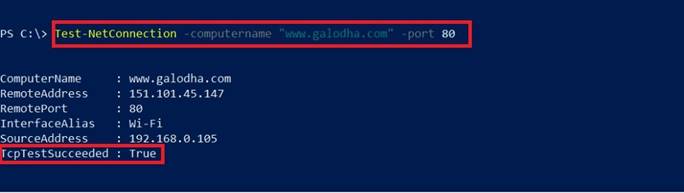

If we get the message TcpTestSucceeded: True, then it means that the connection to the destination machine and port is successful.

Network

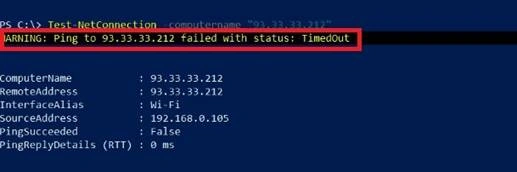

Failure

A value of PingSucceeded: False or the Timeout error message implies that there is an issue with N/W connectivity.

Network

Option 2 - System.Net.Sockets.TcpClient

Another option using PowerShell is making use of the .Net Class TcpClient. This class has a constructor which takes in the Destination Server Name and the Port number.This constructor creates a new TcpClient and makes a synchronous connection attempt to the provided host name and port number. TcpClient will block until it either connects or fails. This constructor allows you to initialize, resolve the DNS hostname, and connect in one convenient step.

How to use Powershell TcpClient

Create a new object using the TcpClient class as shown below, passing in the HostName/IP and the Port Number.

Network

Success

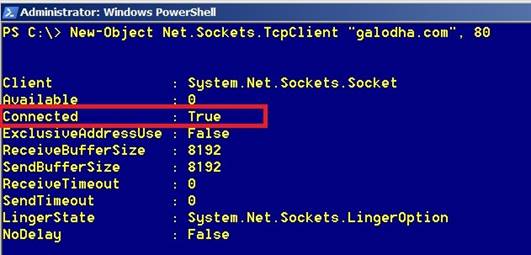

If the Connected Property is True, then connectivity succeeds.

Network

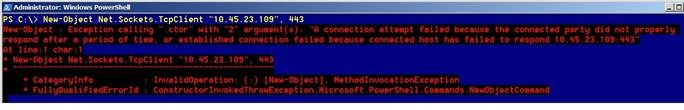

Failure

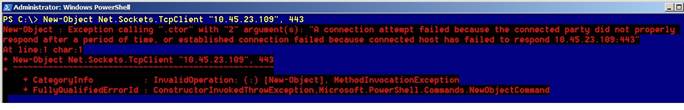

If the Connected Property is False or you get an error message, then it indicates a network connectivity issue.

Network

Summary

In this article, we explored three techniques to verify the connectivity to the destination machine and the port number. We looked at the Ping, Telnet and PowerShell commands to verify the connectivity. These techniques are mostly supported on the Windows Operating System.
