What Is the Role of the Animator Controller in Unity

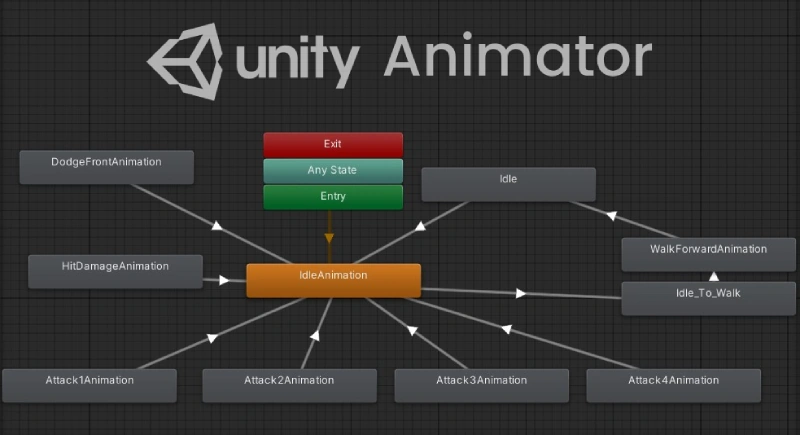

What is an Animator Controller?

An Animator Controller in Unity is an asset that controls the flow of animations in a GameObject. Think of it as a visual state machine where you define how one animation transitions into another based on logic and parameters. This controller is assigned to the Animator component on a GameObject and becomes the core hub for animation logic.

Animator Controllers are most often used with characters, enemies, NPCs, UI elements, and anything else that needs a sequence of animations or reactions to inputs, triggers, or events.

Core Concepts of Animator Controllers

Animator Controllers are built around several key concepts:

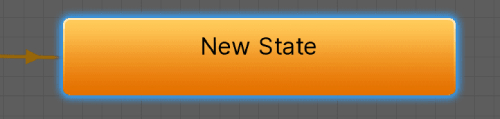

1. States

States are the building blocks of an Animator Controller. Each state typically represents an Animation Clip. For example, you might have states like Idle, Walk, Run, Jump, Attack, etc.

When a GameObject is being animated, it will always be in one of these states. Unity plays the animation assigned to the current state until it's told to transition to another.

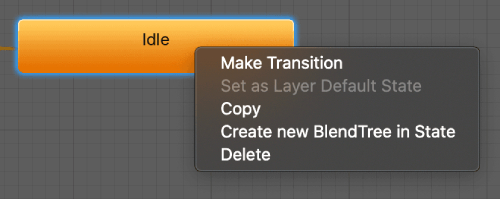

2. Transitions

Transitions define how and when Unity moves from one state to another. You can specify:

• The conditions under which a transition should occur (e.g., when the "Speed" parameter is greater than 0.5).
• The duration of the transition (how long it takes to blend from one animation to the next).
• Whether the transition should wait for the current animation to finish before triggering.

Transitions allow you to control the flow of animations based on gameplay input or logic.

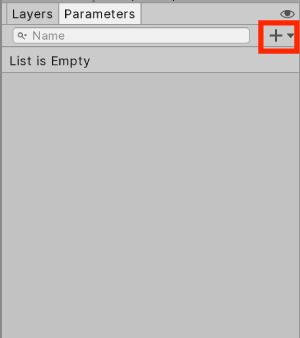

3. Parameters

Parameters are variables used to control transitions. These are defined inside the Animator Controller and can be of different types:

• Float: e.g., Speed, Distance
• Int: e.g., ComboStep
• Bool: e.g., IsJumping
• Trigger: a special one-time bool used to activate transitions

You update these parameters through script or animation events. For example, if your player presses the jump button, you could set IsJumping to true, which would trigger a transition from Idle or Run to the Jump animation.

4. Sub-State Machines

A Sub-State Machine is a container of states. It’s useful for organizing large Animator Controllers into modular sections. For example, you could have one sub-state machine for Locomotion (Idle, Walk, Run) and another for Combat (Attack, Block, Dodge). This keeps your Animator clean and manageable.

5. Any State

The Any State node is a special state that can transition into any other state, regardless of the current one. It's often used for animations that should be played immediately, such as a damage reaction or death animation.

Creating an Animator Controller in Unity

To create and set up an Animator Controller in Unity, follow these steps:

Step 1. Create the Animator Controller

• Right-click in the Project window.
• Select Create > Animator Controller.
• Name it (e.g., PlayerAnimator).

Step 2. Assign it to a GameObject

• Select the GameObject (e.g., your character).
• Add an Animator component (if not already present).
• Drag the Animator Controller into the Controller field of the Animator component.

Step 3. Open the Animator Window

• Go to Window > Animation > Animator.
• This opens a visual interface where you can add states, transitions, and parameters.

Step 4. Add Animation States

• Right-click in the Animator window.
• Choose Create State > Empty or Create State > From New Clip.
• Assign animation clips to the states.

Step 5. Define Parameters and Transitions

• Switch to the Parameters tab in the Animator window.
• Add parameters like Speed, IsJumping, etc.
• Right-click on a state and choose Make Transition to connect it to another state.
• Click on the transition arrow and set the conditions using your parameters.

Controlling the Animator via Script

You control the Animator Controller’s behavior using Unity’s scripting API. The most commonly used component is Animator, which provides methods to set parameters and trigger transitions.

Here’s a basic example

public class PlayerMovement : MonoBehaviour
{
    public Animator animator;

    void Update()
    {
        float move = Input.GetAxis("Horizontal");
        animator.SetFloat("Speed", Mathf.Abs(move));

        if (Input.GetButtonDown("Jump"))
        {
            animator.SetTrigger("Jump");
        }
    }
}

In this example:

• The Speed parameter adjusts the movement animation.
• The Jump trigger plays the jump animation.

Best Practices for Using Animator Controllers

• Keep your Animator organized: Use sub-state machines and consistent naming conventions to manage complexity.
• Avoid deep nesting unless necessary: Over-nesting sub-state machines can make debugging harder.
• Use blend trees for smooth transitions between similar animations (e.g., walk and run).
• Use Triggers wisely: Triggers are great for one-shot animations, but can behave unpredictably if transitions overlap.
• Optimize transitions: Minimize transition durations and unwanted crossfades to maintain responsive controls.

Common Use Cases

Here are some common scenarios where Animator Controllers shine:

1. Character Animation

• Switching between idle, walk, run, jump, and attack based on player input.

2. Enemy AI

• Reacting to player presence, taking damage, patrolling, and attacking.

3. UI Animations

• Menu buttons scaling or sliding in/out using animation states.

4. Environmental Effects

• Opening doors, flickering lights, or changing weather through animation states.

Conclusion

Animator Controllers are one of Unity’s most powerful features for managing animation logic. With their state machine structure, parameter-based transitions, and sub-state machines, they provide a highly flexible system to control how your GameObjects animate and respond to the world.

By mastering Animator Controllers, you'll be able to build dynamic characters, responsive interfaces, and immersive worlds. Whether you're a beginner or an experienced developer, understanding and leveraging this system is essential to crafting polished and professional-quality Unity games.
