When building enterprise-grade Retrieval-Augmented Generation (RAG) applications using LangGraph, infrastructure selection is just as critical as the model selection. While Amazon ECS Fargate is the gold standard for long-running, predictable, and stateful microservices, it is often the wrong choice for event-driven, bursty AI workloads.
This article explores a real-time enterprise use case—Intelligent Customer Support Ticket Resolution—and demonstrates why AWS Lambda is the superior compute engine for this specific LangGraph RAG workload. We will cover the architectural rationale, system design, and provide the complete, production-ready Python code for the Lambda function.
The Real-Time Use Case: Intelligent Ticket Triage & Auto-Resolution
The Scenario: A global enterprise receives thousands of customer support tickets daily. During a major product outage, ticket volume spikes by 400% in minutes. The business requires an AI agent that can:
Ingest the ticket in real-time.
Retrieve relevant troubleshooting steps from the internal knowledge base (Confluence/Jira).
Evaluate (grade) if the retrieved context is sufficient to resolve the issue.
Generate a personalized, empathetic response to the customer, or escalate to a human.
The Workflow: This is a perfect fit for LangGraph. Unlike simple linear RAG chains, LangGraph allows us to build a cyclic, stateful agent that can "think," retrieve, grade its own retrieval, and re-retrieve if the context is poor.
The Architecture Decision: Why Lambda over ECS Fargate?
If we were to host this LangGraph agent on ECS Fargate, we would face severe architectural friction. Here is why Lambda wins for this specific workload:
| Feature | AWS Lambda | ECS Fargate | Why it matters for this RAG Workload |
|---|
| Scaling Speed | Seconds (Instant concurrency) | Minutes (1-3 mins to provision ENIs/Tasks) | During an outage, 5,000 tickets arrive instantly. Lambda scales immediately; Fargate will queue requests and cause SLA breaches. |
| Cost Model | Pay-per-invocation (Scale to zero) | Pay-per-second (Even when idle) | Ticket volume is highly unpredictable. Lambda ensures you pay nothing during quiet hours and only pay for the exact seconds the LLM is running. |
| Execution Time | Up to 15 minutes | Unlimited | A single RAG retrieval + LLM generation takes 5–20 seconds. Lambda’s 15-minute limit is more than enough, without the overhead of managing containers. |
| Operational Overhead | Zero (Serverless) | High (Container images, task definitions) | AI models and LangGraph dependencies update frequently. Lambda layers and container-image support make updates frictionless. |
The Verdict: Because the LangGraph RAG execution is short-lived (stateless per request), highly event-driven, and subject to massive, unpredictable traffic spikes, AWS Lambda is the definitive choice.

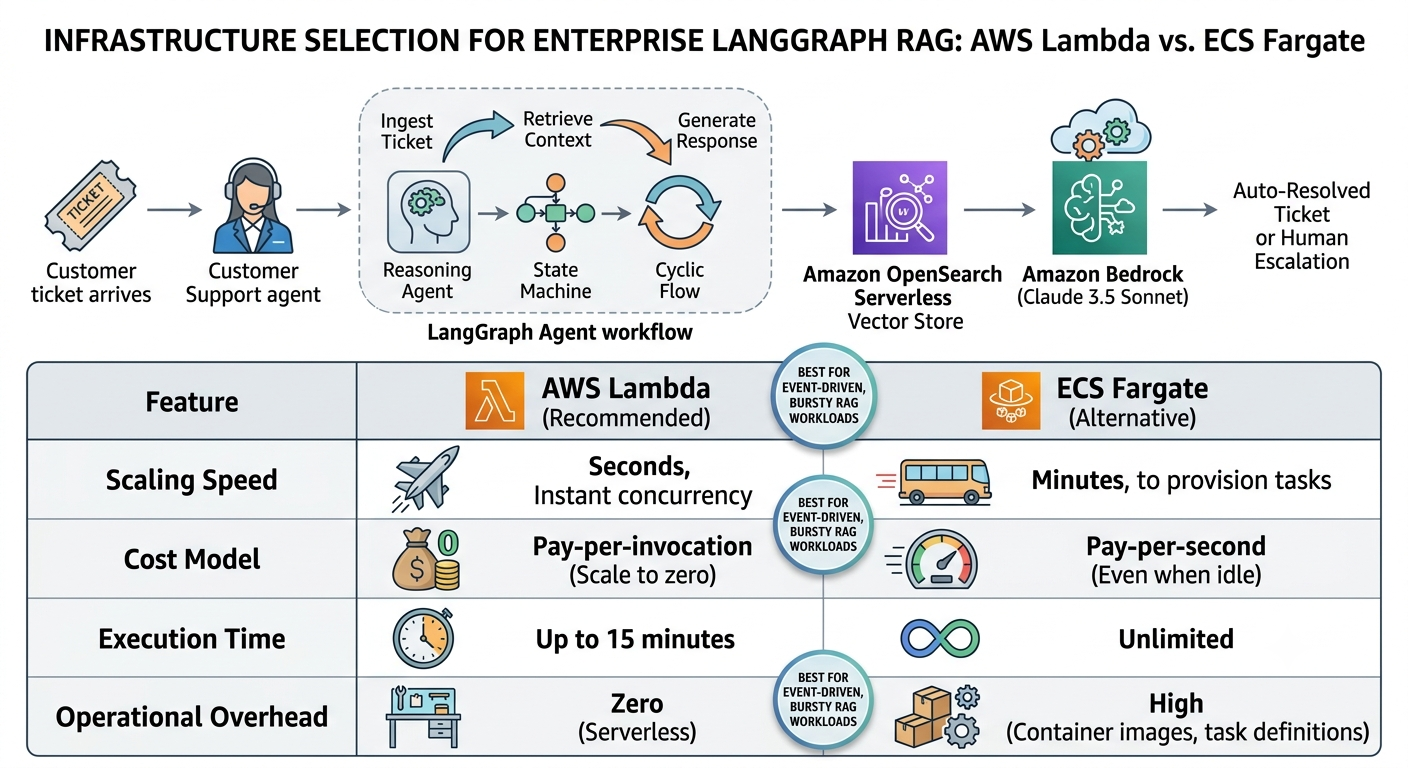

System Architecture
Ingestion: A new support ticket is created in Zendesk/Salesforce.
Event Routing: EventBridge captures the event and routes it to an SQS queue (to buffer spikes) or directly invokes the Lambda.
Compute (Lambda): The Lambda function initializes the LangGraph state machine.
Knowledge Retrieval: The retrieve node queries Amazon OpenSearch Serverless (Vector Store).
Reasoning (LangGraph): The grade node evaluates context. If poor, it routes back to retrieve. If good, it routes to generate.
LLM Execution: Amazon Bedrock (Claude 3.5 Sonnet) powers the reasoning and generation.
Resolution: The final response is written back to the ticketing system.
![2]()
End-to-End Implementation: The Code
Below is the complete, production-ready code for the AWS Lambda function. It uses langgraph for the agent orchestration and langchain_aws for Amazon Bedrock integration.
Prerequisites
Ensure your Lambda layer or container image includes:
langgraph>=0.2.0
langchain>=0.2.0
langchain-aws>=0.1.0
boto3>=1.34.0
lambda_function.py
import os
import json
import logging
import boto3
from typing import Annotated, Sequence, TypedDict, Literal
from langchain_core.messages import BaseMessage, HumanMessage, AIMessage, SystemMessage
from langchain_core.prompts import ChatPromptTemplate
from langchain_aws import ChatBedrock
from langgraph.graph import StateGraph, END
from langgraph.graph.message import add_messages
# --- Enterprise Logging Configuration ---
logger = logging.getLogger()
logger.setLevel(logging.INFO)
# --- Environment Variables ---
BEDROCK_MODEL_ID = os.getenv("BEDROCK_MODEL_ID", "anthropic.claude-3-5-sonnet-20241022-v2:0")
AWS_REGION = os.getenv("AWS_REGION", "us-east-1")
# Initialize Bedrock LLM (Shared across invocations via Lambda execution environment)
llm = ChatBedrock(
model_id=BEDROCK_MODEL_ID,
model_kwargs={"temperature": 0.1, "max_tokens": 1000},
region_name=AWS_REGION
)
# --- 1. Define the LangGraph State ---
class TicketAgentState(TypedDict):
# The messages keep track of the agent's internal monologue and tool calls
messages: Annotated[Sequence[BaseMessage], add_messages]
# Specific state for our RAG workflow
ticket_id: str
ticket_text: str
retrieved_context: str
is_context_relevant: bool
# --- 2. Define the Nodes (The "Steps" in our Graph) ---
def retrieve_context(state: TicketAgentState) -> dict:
"""
Node 1: Retrieve context from the Vector Database.
(Mocked here for brevity. In production, use LangChain's OpenSearch/Elasticsearch retriever).
"""
logger.info(f"Retrieving context for ticket: {state['ticket_id']}")
# TODO: Replace with actual Vector DB retrieval (e.g., Amazon OpenSearch Serverless)
# retriever = OpenSearchVectorSearch(...)
# docs = retriever.invoke(state['ticket_text'])
mock_context = """
1. Check if the user's internet connection is stable.
2. Clear browser cache and cookies.
3. If using the mobile app, force close and restart the app.
4. Known Issue: The US-East API gateway experienced a 5-minute outage at 14:00 UTC.
"""
return {"retrieved_context": mock_context}
def grade_context(state: TicketAgentState) -> dict:
"""
Node 2: Grade the retrieved context to ensure it actually answers the user's question.
"""
logger.info("Grading retrieved context relevance...")
grade_prompt = ChatPromptTemplate.from_messages([
("system", "You are a grader assessing relevance of retrieved docs to a user question. "
"If the docs contain keyword matches or semantic meaning to answer the question, grade them as relevant. "
"Give a binary score 'yes' or 'no'."),
("human", "User Question: {question}\n\nRetrieved Docs: {context}\n\nIs it relevant? (yes/no)")
])
chain = grade_prompt | llm
response = chain.invoke({
"question": state['ticket_text'],
"context": state['retrieved_context']
})
is_relevant = "yes" in response.content.lower()
logger.info(f"Context relevance grade: {is_relevant}")
return {"is_context_relevant": is_relevant}
def generate_response(state: TicketAgentState) -> dict:
"""
Node 3: Generate the final customer-facing response using the validated context.
"""
logger.info("Generating final customer response...")
gen_prompt = ChatPromptTemplate.from_messages([
("system", "You are an enterprise customer support agent. Use the provided context to answer the user. "
"Be empathetic, professional, and concise. If the context mentions a known outage, apologize and provide the ETA."),
("human", "Customer Issue: {question}\n\nInternal Context: {context}\n\nDraft Response:")
])
chain = gen_prompt | llm
response = chain.invoke({
"question": state['ticket_text'],
"context": state['retrieved_context']
})
return {"messages": [AIMessage(content=response.content)]}
def handle_no_context(state: TicketAgentState) -> dict:
"""
Node 4: Fallback if context is irrelevant after grading.
"""
fallback_msg = "I apologize, but I couldn't find specific information regarding your issue in our knowledge base. I am escalating this to a human specialist."
return {"messages": [AIMessage(content=fallback_msg)]}
# --- 3. Define the Routing Logic (Conditional Edges) ---
def route_based_on_grade(state: TicketAgentState) -> Literal["generate_response", "handle_no_context"]:
"""
Determines the next step based on the context grading.
"""
if state.get("is_context_relevant", False):
return "generate_response"
return "handle_no_context"
# --- 4. Build and Compile the LangGraph ---
def build_agent_graph():
workflow = StateGraph(TicketAgentState)
# Add nodes
workflow.add_node("retrieve_context", retrieve_context)
workflow.add_node("grade_context", grade_context)
workflow.add_node("generate_response", generate_response)
workflow.add_node("handle_no_context", handle_no_context)
# Set the entry point
workflow.set_entry_point("retrieve_context")
# Add edges
workflow.add_edge("retrieve_context", "grade_context")
# Add conditional edge based on grading
workflow.add_conditional_edges(
"grade_context",
route_based_on_grade,
{
"generate_response": "generate_response",
"handle_no_context": "handle_no_context"
}
)
# Both terminal nodes lead to the END
workflow.add_edge("generate_response", END)
workflow.add_edge("handle_no_context", END)
# Compile the graph
return workflow.compile()
# Initialize graph globally to leverage Lambda execution environment reuse
agent_graph = build_agent_graph()
# --- 5. AWS Lambda Handler ---
def lambda_handler(event, context):
"""
Main Lambda entry point.
Expected event format (from EventBridge/SQS/API Gateway):
{
"ticket_id": "TKT-9942",
"ticket_text": "My dashboard is showing a 500 error since 2 PM."
}
"""
logger.info(f"Received event: {json.dumps(event)}")
try:
# Parse input
ticket_id = event.get("ticket_id", "UNKNOWN")
ticket_text = event.get("ticket_text", "")
if not ticket_text:
raise ValueError("ticket_text is missing from the event payload.")
# Initialize state
initial_state = {
"messages": [HumanMessage(content=ticket_text)],
"ticket_id": ticket_id,
"ticket_text": ticket_text,
"retrieved_context": "",
"is_context_relevant": False
}
# Invoke the LangGraph Agent
final_state = agent_graph.invoke(initial_state)
# Extract the final AI response
final_ai_message = final_state["messages"][-1]
response_text = final_ai_message.content
# Format success response
return {
"statusCode": 200,
"body": json.dumps({
"ticket_id": ticket_id,
"resolution": response_text,
"status": "SUCCESS"
})
}
except Exception as e:
logger.error(f"Error processing ticket {event.get('ticket_id')}: {str(e)}", exc_info=True)
return {
"statusCode": 500,
"body": json.dumps({
"ticket_id": event.get("ticket_id", "UNKNOWN"),
"error": "Internal Server Error",
"message": str(e)
})
}
Enterprise Deployment & Security Considerations
To run this in a true enterprise environment, you must address the following operational requirements:
1. VPC and Networking
Private Subnets: The Lambda must be deployed inside a VPC in private subnets to securely communicate with Amazon OpenSearch (Vector DB) and Amazon Bedrock (via VPC Endpoints/Interface Endpoints).
NAT Gateways: If the Lambda needs to pull external dependencies or call public APIs, ensure the private subnets have a route to a NAT Gateway.
2. IAM and Least Privilege
The Lambda Execution Role must be strictly scoped:
bedrock:InvokeModel (Restricted to the specific Sonnet model ARN).
es:ESHttpGet / es:ESHttpPost (Restricted to the specific OpenSearch domain ARN).
sqs:ReceiveMessage, sqs:DeleteMessage (If consuming from an SQS queue).
logs:CreateLogGroup, logs:CreateLogStream, logs:PutLogEvents (For CloudWatch).
3. Handling LangGraph State in Lambda
In the code above, we use in-memory state (TicketAgentState). This is perfect for a single Lambda invocation that completes in < 15 seconds.
Enterprise Pro-Tip: If your LangGraph workflow becomes highly complex and requires human-in-the-loop (HITL) or takes longer than 15 minutes, you must implement a persistent checkpointer. Use LangGraph's PostgreSQLSaver or DynamoDBSaver to persist the graph state between asynchronous Lambda invocations.
4. Concurrency and Throttling
Bedrock Provisioned Throughput: If this Lambda scales to 1,000 concurrent executions during an outage, on-demand Bedrock API limits will throttle you. For enterprise RAG at scale, purchase Bedrock Provisioned Throughput for your chosen model to guarantee TPS (Tokens Per Second).
Lambda Reserved Concurrency: Set a Reserved Concurrency limit on the Lambda (e.g., 500) to prevent it from exhausting your AWS account-level concurrent execution limit, which could impact other critical services.
Conclusion
Choosing the right compute layer for AI workloads is about matching the infrastructure to the traffic pattern. While ECS Fargate remains an excellent choice for steady-state, long-running microservices, AWS Lambda is the undisputed champion for event-driven, bursty LangGraph RAG applications.
By leveraging Lambda, our enterprise ticket-resolution agent achieves instant scalability during traffic spikes, ensures strict pay-per-use cost efficiency, and eliminates the operational overhead of container management. The provided LangGraph implementation ensures that the AI doesn't just "guess," but actively retrieves, grades, and reasons over enterprise data to deliver accurate, automated resolutions.
