Windows Azure - AppFabric Access Control Service Programming

In this article we are going to experiment with the Access Control feature using a Web Role. This article is a continuation of the Access Control feature in Azure AppFabric.

You can refer tp the previous articles here:

• Introduction to Access Control
• AppFabric Access Control Service Portal

Pre-Requisites

This article requires the following SDK and Runtime installations.

• Windows Identity Foundation Runtime
• Windows Identity Foundation SDK

Now we are ready to proceed with creating the following:

• New Namespace for Access Control Service
• New Identity Provider
• New Rule Group

We are performing the following activities in this article:

• Create a Web Role
• Register the Web Role in Relying Party Applications
• Get the path of WS-Federation Metadata
• Configure STS for the web role
• Test the Application

Create a Web Role

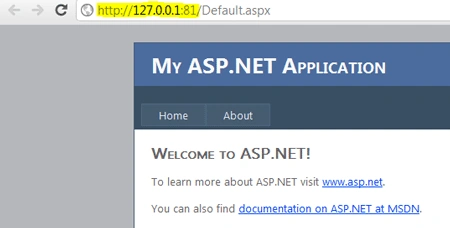

Create a new Azure Project and add a web role into it. Now run the application and copy the url from the browser.



It should be like: http://127.0.0.1:81/

Registering with the Relying Party Applications

Now we are ready with the url to register witht the Relying Party Applications. For open the Access Control Service portal.

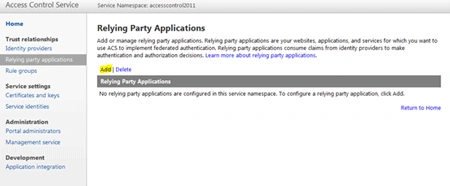

Select the Relying Party Applications item from the left pane. You will see the following screen.

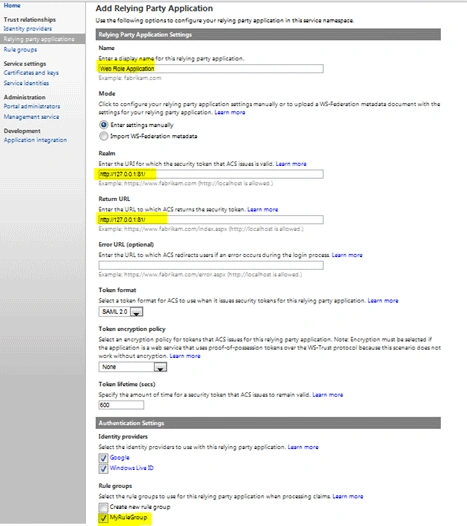

Now click on the Add button to add the new relying party details.



Application Name: Web Role Application
Realm: http://127.0.0.1:81/
Return Url: http://127.0.0.1:81/
Rule Groups: Check already created MyRuleGroup

You can leave the other options unchanged to default and click the Save button which is visible at the bottom of the page.

Get the path of WS-Federation Metadata

The WS-Federation Metadata contains information about the relying party. It is a well configured schema xml according to the WS-Federation standards. We can get the url of our metadata xml file from the portal. (we can also specify the content, but for our article the url is better)

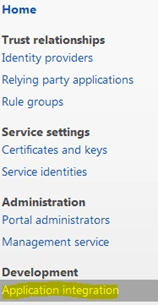

Use the access control address (https://YourNameSpace.accesscontrol.windows.net) to open and sign in to it. From the left side link under Development you can see an Application Integration item.

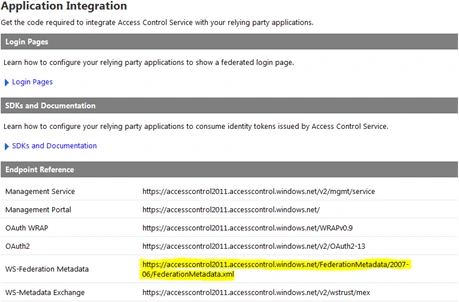

Click on it to open the screen and copy the XML path as highlighted. We will be needing this path in the next step.



Configure STS for the web role

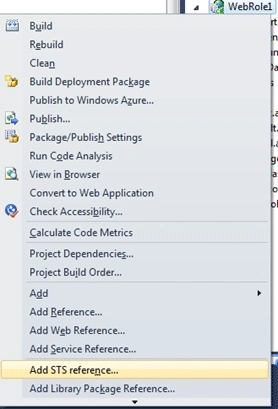

Now we need to configure the Secured Token Service of our web role. Right click on the web role project and click the option Add STS Reference. (Enabling this option requires the Pre-Requisites)

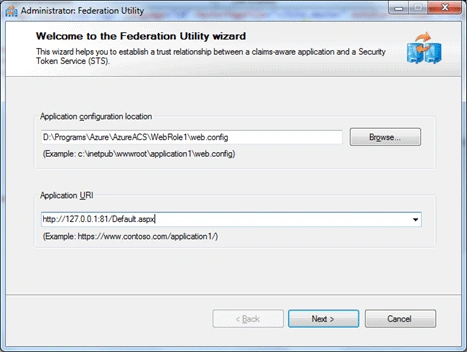

The following dialog will be appearing.



In the first text box enter the web.config file path of the web role. In the second text box enter the url to Defaul.aspx.

Click the Next button to continue and discard the appearing warning dialog by clicking Yes button.

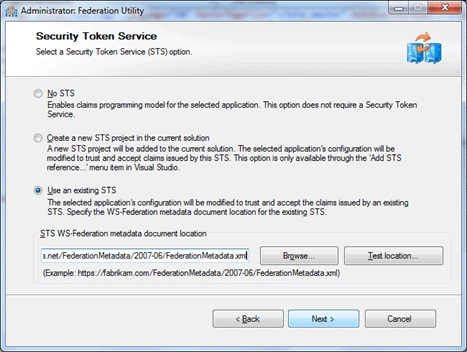

In the next page of the wizard select the last option Use an Existing STS and paste the WS-Federation Metadata url obtained from the previous step.



After entering the xml path click the Next button to continue. Leave the default options in the next three wizard pages and click the Finish button. You will get the following message box.



Now the wizard added the necessary pages, xml files and configuration items. Still we need to add one tag in the web.config file.

Add the following tag into the web.config file inside the system.web tag.

<httpRuntime requestValidationMode="2.0"/>

Make sure you are entering the tag in the outer system.web section. There will be 2 system.web sections inside the configuration file.

Without this tag a cross site scripting error will be occurring while authentication. Make sure you a

Test the Application

Now you are ready to test the application. Before testing we can have some modification in the Default page to display the login information.

Add reference to the Microsoft.Identity.Model.dll from the Azure SDK folder (eg: C:\Program Files\Windows Azure SDK\v1.5\bin\devfabric)

Open the Default.aspx in design mode and remove the existing text controls. Place a label control and name it to InfoLabel. In the Page load event add the following code. The code converts the Identity object of current user into ClaimsIdentity. We can iterate through the claims items and display the type and value as shown below.

protected void Page_Load(object sender, EventArgs e)
{
InfoLabel.Text = string.Empty;
