Windows Virtual Machine Creation In Microsoft Azure

In this article, we are going to create Windows virtual machines.

Introduction

In this article, we will see how we can create a Virtual Machine on Microsoft Azure Cloud using Azure Portal.

The purpose of creating Virtual machines is to access any services on Microsoft Azure Cloud.

Prerequisites

We need to have an Azure subscription.

If you don't have an Azure subscription, you can get a trial account for one month.

OK let’s start.

Step 1

Accessing Microsoft Azure Portal.

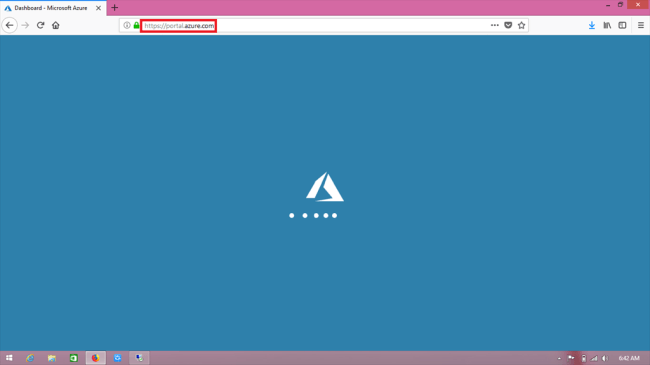

Just type in the Url http://portal.azure.com and then Enter.

This will open up the Windows Portal.

Azure

Step 2

Log in to the Azure Portal with your Microsoft Azure Account.

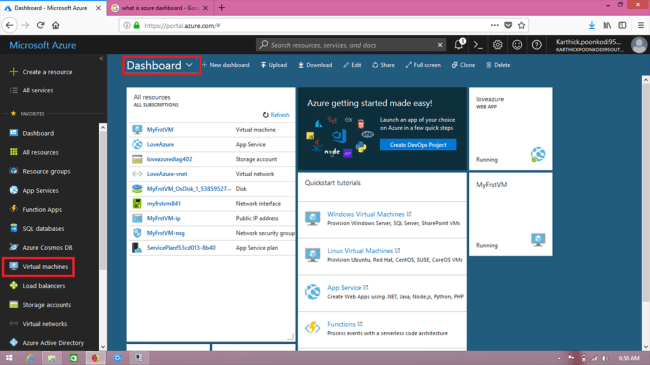

After successful login, the first thing we will notice is the Azure Dash Board.

Dashboard is a online platform where Azure cloud services users/subscribers can view and monitor status of current requests/work.

And, this menu has a lot of options to create and manage various Azure Services on the Cloud.

But, now we need to create a Windows Server Virtual Services. So, click the Virtual machine button on the menu.

Azure

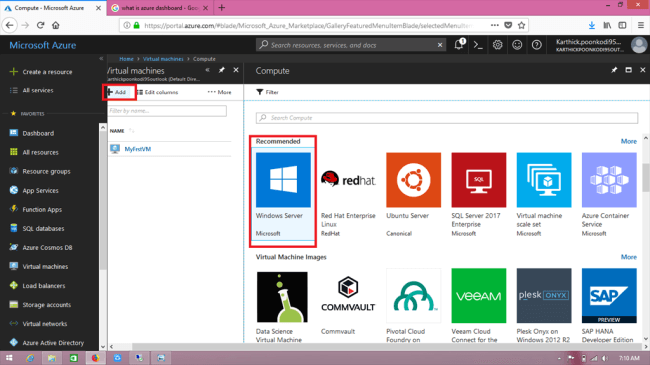

Step 3

Click the Add button.

Now we will open the Windows Server Virtual Machine gallery. Here, we can see lot of options available to create Virtual Machines.

Click on Windows Server.

Azure

Step 4

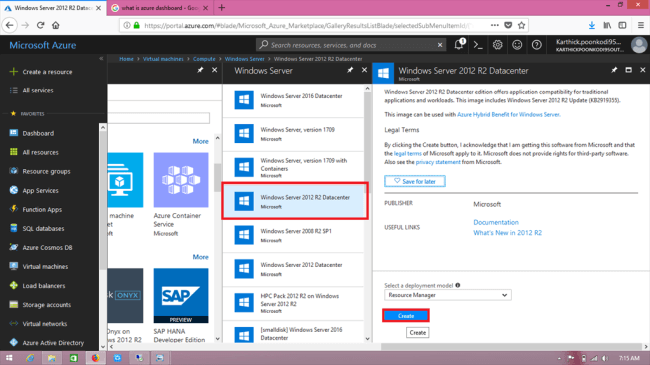

Then click Windows Server 2012 R2 Data Center Microsoft.

And, just click on create.

Azure

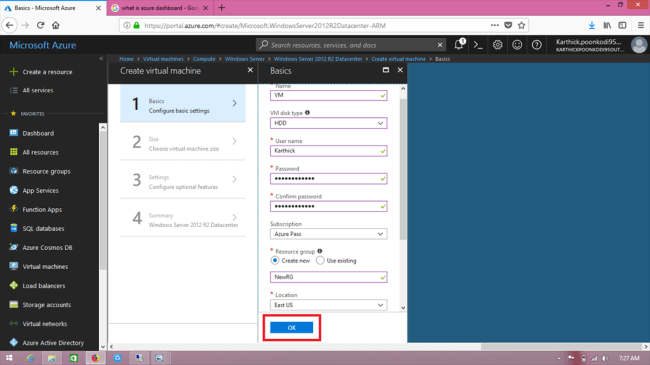

Step 5

This will open up the Create Virtual Machine option.

There are four steps to create a Virtual Machine. So first, give the basic details in the configure basic settings option.

Azure

Step 6

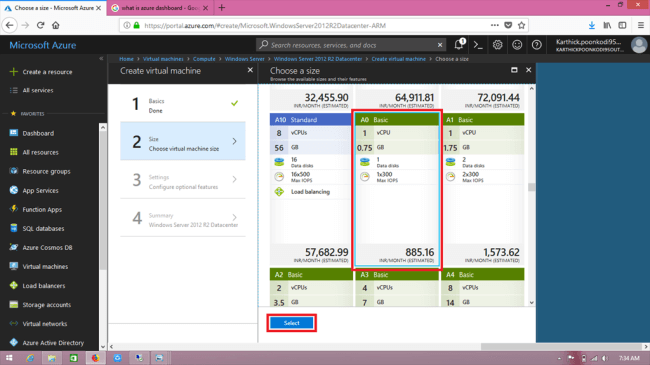

The second step is to choose the Virtual Machine’s size.

It’s an important step.

If you visit more, click View all.

Azure

This is the most basic size. So, click on that and press the Select button.

Step 7

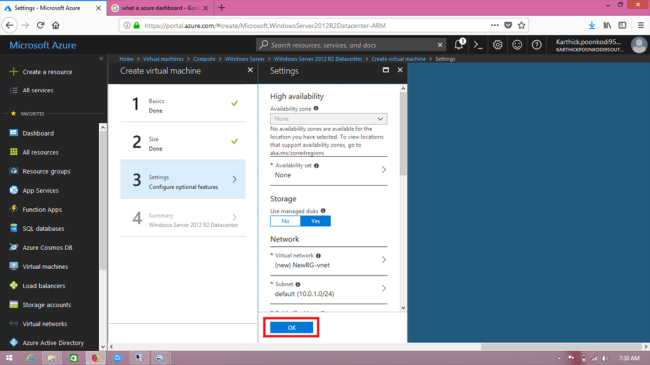

Now this will open up the third step.

In the third step you'll see a default option to configure some optional features.

So, press OK button.

Azure

Step 8

In the last step, Microsoft Azure will validate all the settings.

Once the validation is successful, you can press Create.

Step 9

Now, this will start a deployment process.

It will take a couple of minutes to deploy a virtual machine and all its related services into the cloud.

Azure

Step 10

Click OK.

Azure

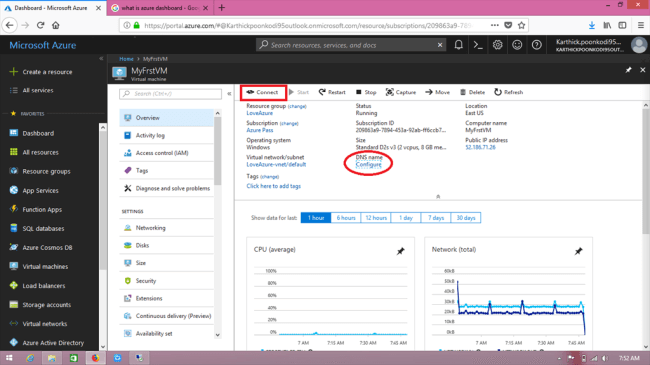

Step 11

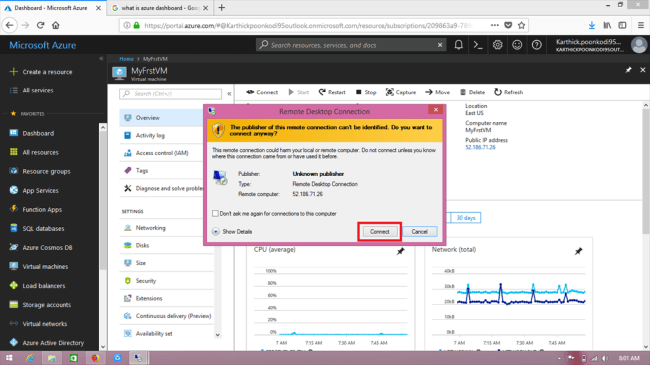

Just click on Connect.

Azure

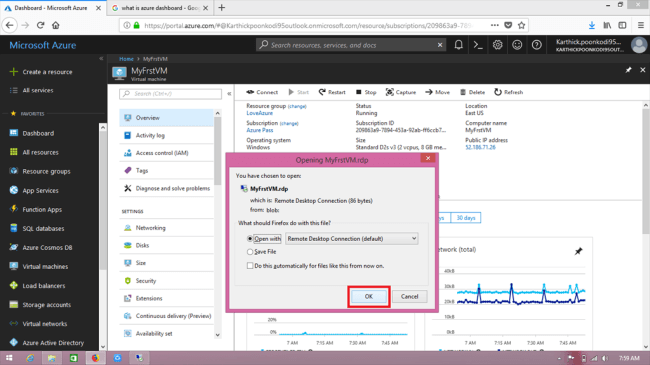

Step 12

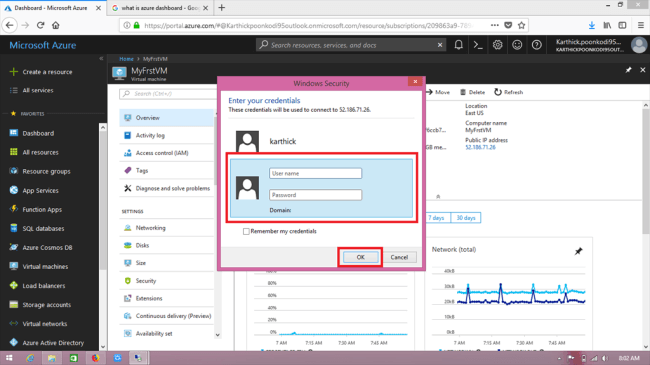

Now, give the User Name & Password here.

And then press OK.

Azure

Now we have completed creating the Virtual Machine.

Azure

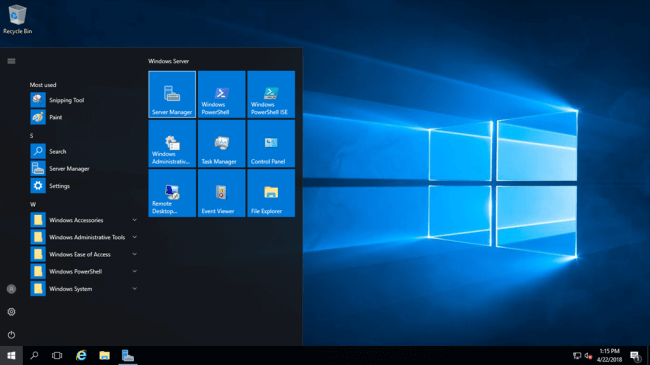

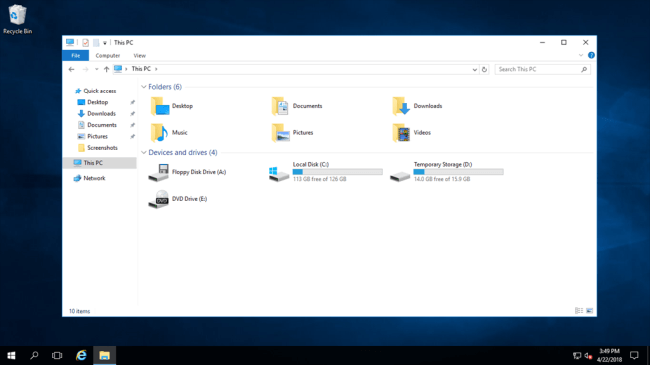

We can see the desktop now.

Azure

Summary

I hope you understood,how to create a Windows Virtual Machine in Azure. Stay tuned for more articles.
