Working With Arithmetic Operators In Android And UWP Using Xamarin.Forms

Here, we will learn the process of working with arithmetic operators like +,-,,*,/ in Android and UWP using Xamarin.Forms.

Introduction


Xamarin is a platform that allows us to create a multi-platform app for Android, Windows, and iOS through a single integrated development environment (IDE) with Xamarin.Form. The interface design for all three platforms can be accomplished within its XAML-based standard, native user-interfaces control.

Let's start.

Step 1

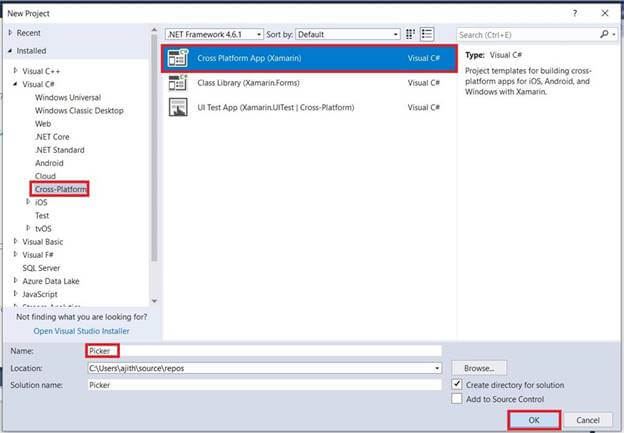

Open Visual Studio and go to New Project >> Installed>> Visual C# >> Cross-Platform.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

Select the Cross- Platform app, then give your project a name and location.

Step 2

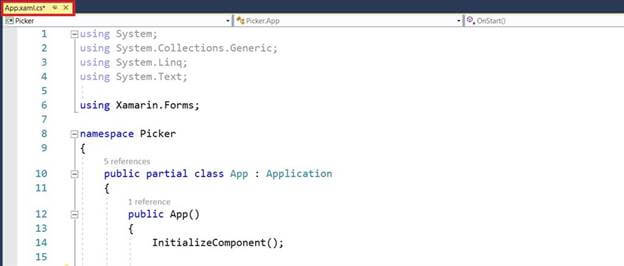

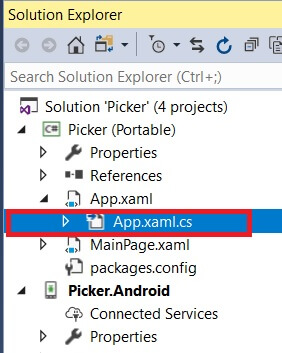

Open Solution Eplorerer >> Project Name (Portable) >> App.xaml.cs >> double-click will open the design view of this page.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

The code is given below.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

C# Code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5.
  6. using Xamarin.Forms;
  7.
  8. namespace Picker
  9. {
  10.     public partial class App : Application
  11.     {
  12.         public App()
  13.         {
  14.             InitializeComponent();
  15.
  16.             MainPage = new NavigationPage (new MainPage());
  17.         }
  18.
  19.         protected override void OnStart()
  20.         {
  21.             // Handle when your app starts
  22.         }
  23.
  24.         protected override void OnSleep()
  25.         {
  26.             // Handle when your app sleeps
  27.         }
  28.
  29.         protected override void OnResume()
  30.         {
  31.             // Handle when your app resumes
  32.         }
  33.     }
  34. }
Step 3

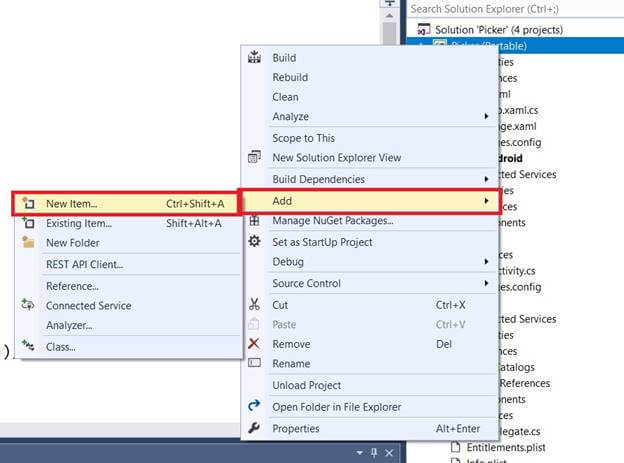

Next, open Solution Explorer >> Project Name (Portable) >>Right-Click >> Add >> New Item or Ctrl+Shift+A.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

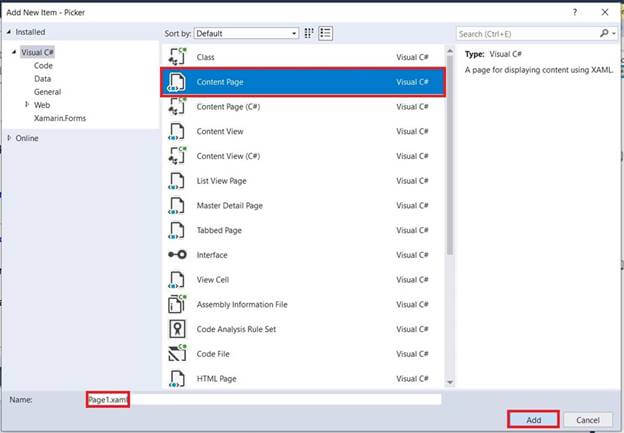

A new dialogue box will open. Now, add the XAML Page and give it a name. Click the "Add" button.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

Step 4

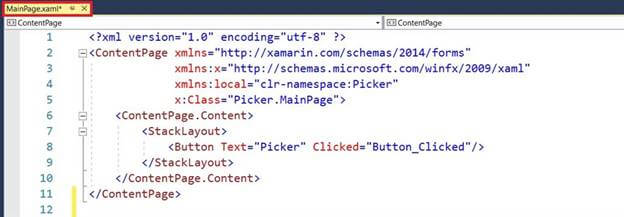

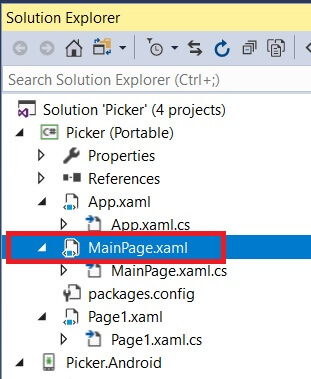

Open Solution Explorer >> Project Name >> MainPage.xaml. Open the design view of this page.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

The code is given below.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

XAML Code
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              xmlns:local="clr-namespace:Picker"
  5.              x:Class="Picker.MainPage">
  6.     <ContentPage.Content>
  7.         <StackLayout>
  8.             <Button Text="Picker" Clicked="Button_Clicked"/>
  9.         </StackLayout>
  10.     </ContentPage.Content>
  11. </ContentPage>
Step 5

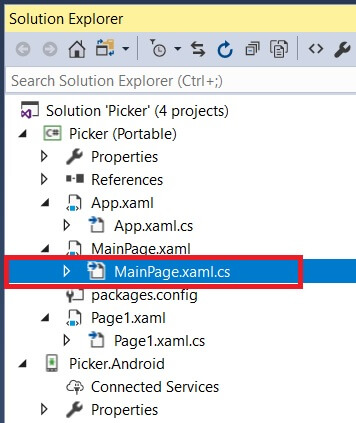

Open Solution Explorer >> Project Name >> MainPage.xaml.cs. Open the design view of this page.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

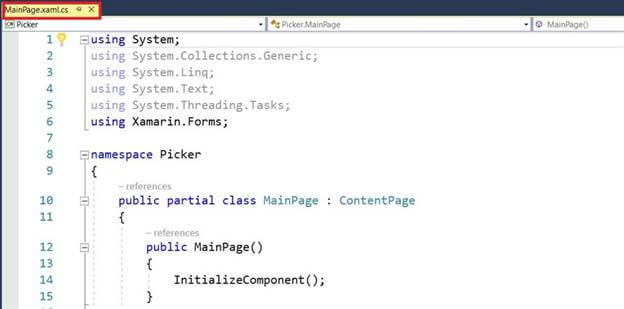

The code is given below.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

C# Code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using Xamarin.Forms;
  7.
  8. namespace Picker
  9. {
  10.     public partial class MainPage : ContentPage
  11.     {
  12.         public MainPage()
  13.         {
  14.             InitializeComponent();
  15.         }
  16.
  17.          async private void Button_Clicked(object sender, EventArgs e)
  18.         {
  19.             await Navigation.PushAsync(new Page1());
  20.         }
  21.     }
  22. }
Step 6

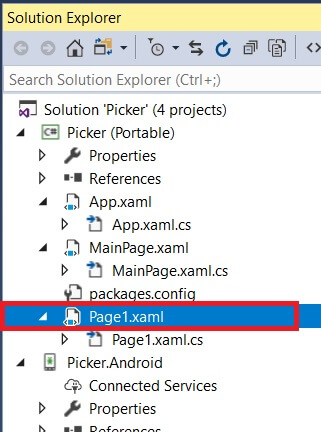

Open Solution Explorer >> Project Name >> Page1.xaml. Open the design view of this page.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

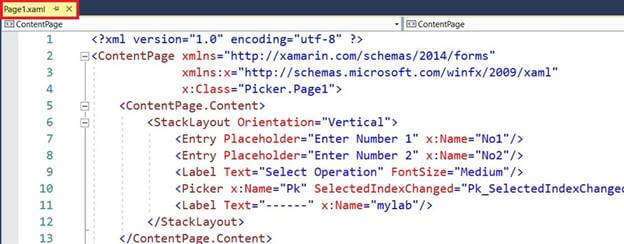

The code is given below.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

XAML Code
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              x:Class="Picker.Page1">
  5.     <ContentPage.Content>
  6.         <StackLayout Orientation="Vertical">
  7.             <Entry Placeholder="Enter Number 1" x:Name="No1"/>
  8.             <Entry Placeholder="Enter Number 2" x:Name="No2"/>
  9.             <Label Text="Select Operation" FontSize="Medium"/>
  10.             <Picker x:Name="Pk" SelectedIndexChanged="Pk_SelectedIndexChanged"/>
  11.             <Label Text="------" x:Name="mylab"/>
  12.         </StackLayout>
  13.     </ContentPage.Content>
  14. </ContentPage>
Step 7

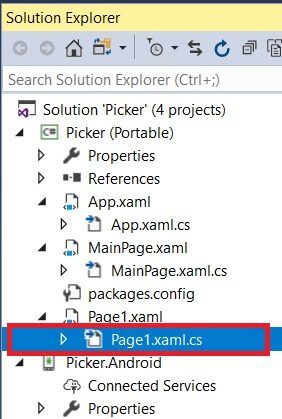

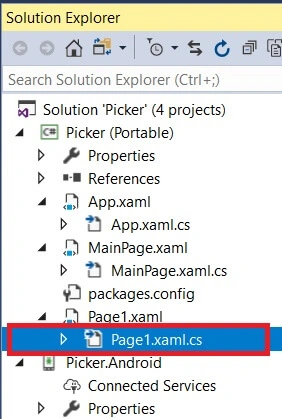

Open Solution Explorer >> Project Name >> Page.xaml.cs. Open the design view of this page.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

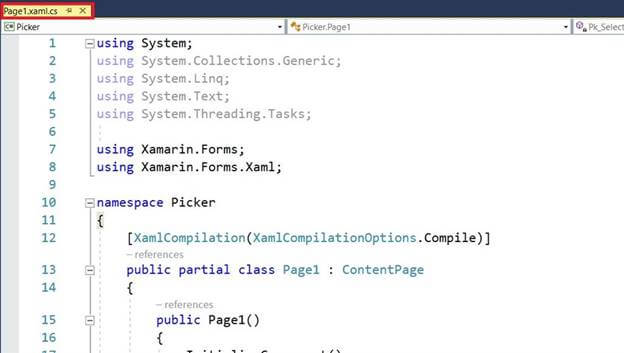

The code is given below.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

C# Code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6.
  7. using Xamarin.Forms;
  8. using Xamarin.Forms.Xaml;
  9.
  10. namespace Picker
  11. {
  12.     [XamlCompilation(XamlCompilationOptions.Compile)]
  13.     public partial class Page1 : ContentPage
  14.     {
  15.         public Page1()
  16.         {
  17.             InitializeComponent();
  18.             Pk.Items.Add("Addition");
  19.             Pk.Items.Add("Subtraction");
  20.             Pk.Items.Add("Multiplication");
  21.             Pk.Items.Add("Divition");
  22.         }
  23.
  24.         private void Pk_SelectedIndexChanged(object sender, EventArgs e)
  25.         {
  26.             string op = Pk.SelectedItem.ToString();
  27.             int n1 = Int32.Parse(No1.Text);
  28.             int n2 = Int32.Parse(No2.Text);
  29.             double res = 0;
  30.
  31.             if (op == "Addition")
  32.                 res = n1 + n2;
  33.             else if (op == "Subtraction")
  34.                 res = n1 - n2;
  35.             else if (op == "Multiplication")
  36.                 res = n1 * n2;
  37.             else if (op == "Divition")
  38.                 res = n1 / n2;
  39.
  40.             mylab.Text = res + "";
  41.         }
  42.     }
  43. }
Step 8

Next, select the "Build and Deploy" option followed by selecting from the list Android emulator and simulator. you can choose any API (Application Program Interface) level emulator or simulator to run it.

Output

After a few seconds, you will see your app working.

Android Output

You can choose the Android platform.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

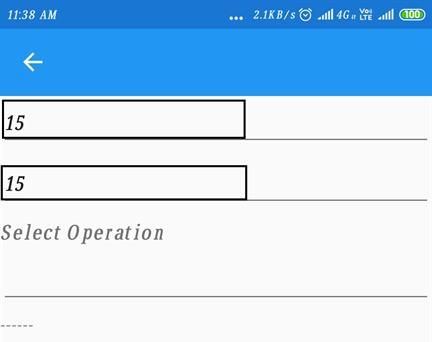

Enter the number and select the operation.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

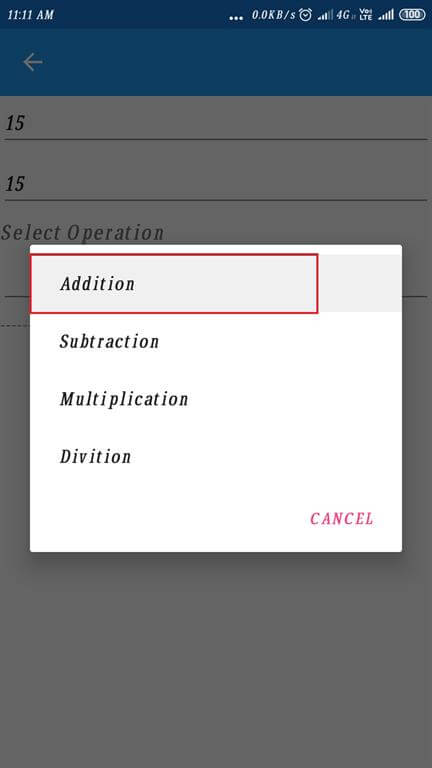

Click Addition Operation.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

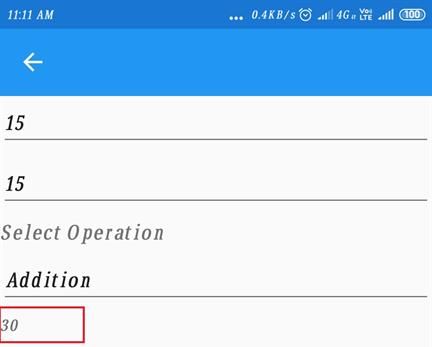

The result is displayed below.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

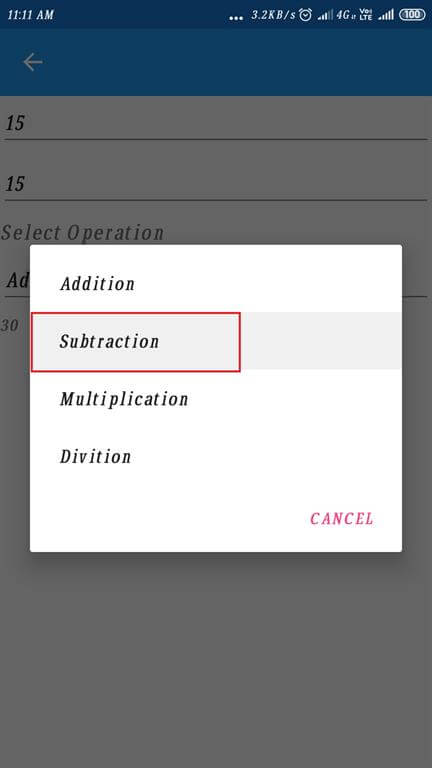

Click "Subtraction" operation.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

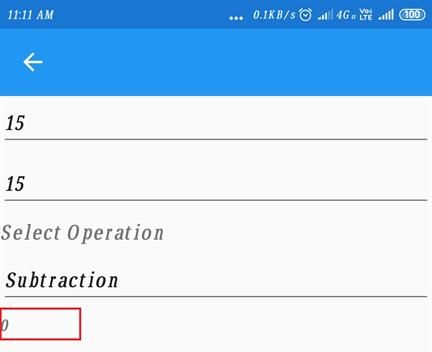

The result is displayed below.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

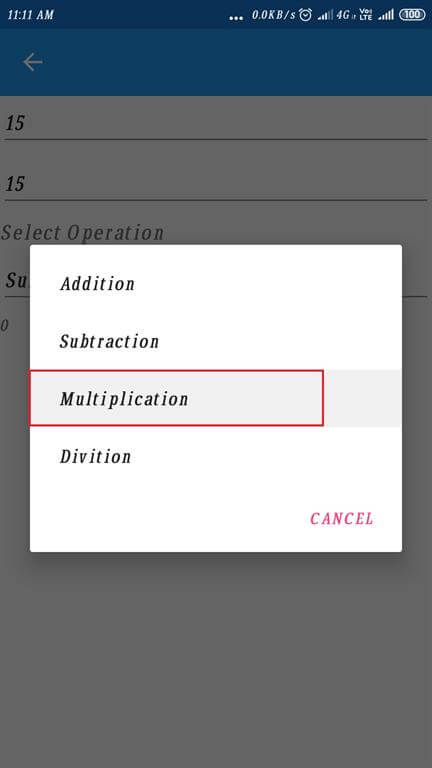

Click the "Multiplication" operation.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

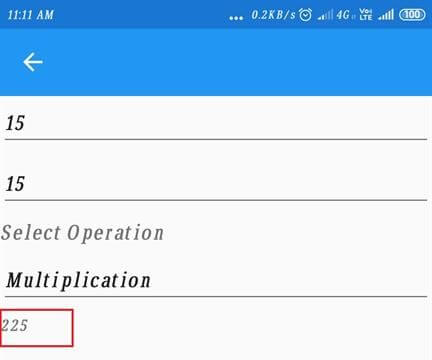

The result is displayed below.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

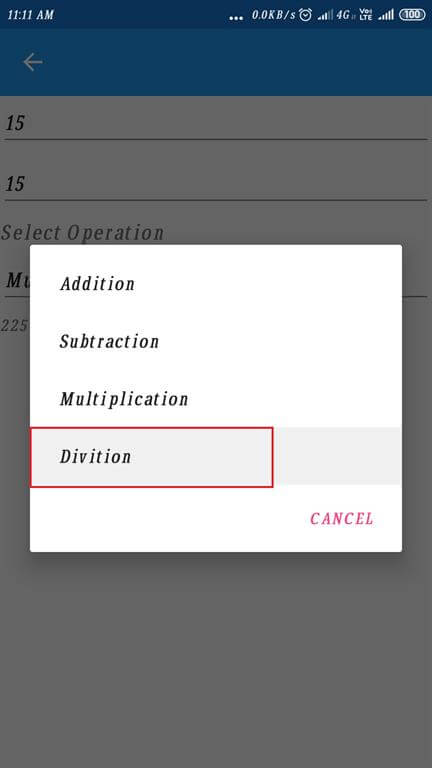

Click the "Division" operation.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

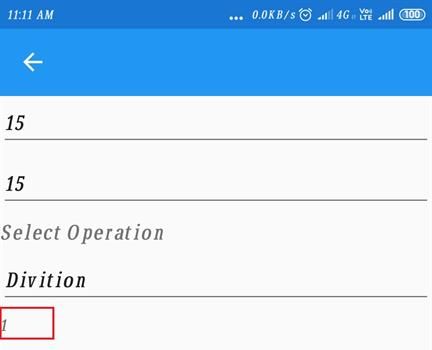

The result is displayed below.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

Windows Output

Let us now choose the UWP Platform.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

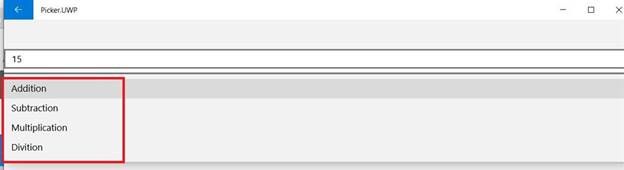

Enter the number and select the Addition operator. Show the picker and choose.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

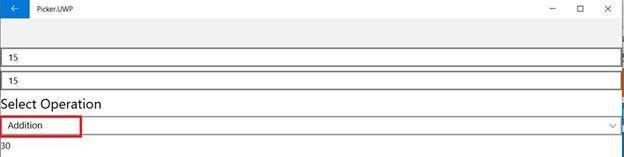

Choose the Addition operation. The result is displayed below.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

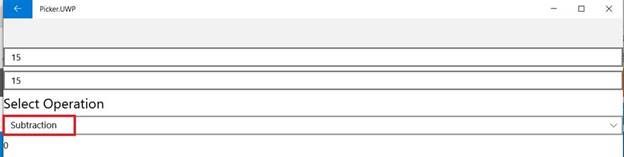

Choose the Subtraction operation. The result is displayed below.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

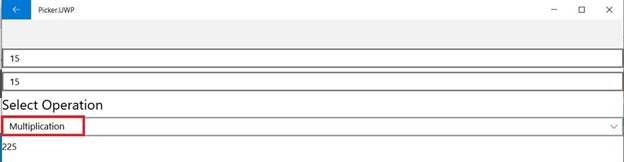

Choose the Multiplication operator. The result is displayed below.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms

Choose the Division operation. The result is displayed below.

Picker Working Arithmetic Operators Android UWP Using Xamarin.Forms


Conclusion


I hope you have learned about Arithmetic Operations in Android and UWP using Xamarin.Forms with Visual Studio and C#.
