Working With Map Control - Part Two

In this article, you will learn about UWP map control.

Before reading this article, please go through the following article.

In this article, you will learn how to use Button Control, TextBlock control, and TextBox Control in Visual C# environment. Also, you will be able to develop a simple arithmetic calculation app in Universal Windows Apps development, using XAML and Visual C#.

The following important tools are required for developing a UWP application,

  1. Windows 10 (Recommended).
  2. Visual Studio 2015 Community Edition (It is a free software available online).

Now, we can discuss the step by step App development.

If you are new to Map control component, I suggest you learn the following article.
In this article we will see about how to set a street view experience

Step 1: Open the already created project called "Mapsample" that is created and deployed in your machine or create a new Universal application by following the above link.

Step 2: Open MainPage.Xaml.cs and add the  following code as shown below for creating an Aerial.

Aerial 3D code is given below,
  1. Mapsample.Style = MapStyle.Aerial3D;
Overall code for setting aerial code is,
  1. private async void Mapsample_Loaded(object sender, RoutedEventArgs e)
  2.        {
  3.
  4.            var center =
  5.                new Geopoint(new BasicGeoposition()
  6.                {
  7.                    Latitude = 11.66509,
  8.                    Longitude = 78.154587
  9.
  10.                });
  11.
  12.
  13.            await Mapsample.TrySetSceneAsync(MapScene.CreateFromLocationAndRadius(center, 3000));
  14.
  15.            Mapsample.Center =
  16.          new Geopoint(new BasicGeoposition()
  17.          {
  18.              Latitude = 11.66509,
  19.              Longitude = 78.154587
  20.          });
  21.
  22.            Mapsample.ZoomLevel = 16;
  23.
  24.            //check for 3D support
  25.            if (Mapsample.Is3DSupported)
  26.            {
  27.                //set style to 3D
  28.                Mapsample.Style = MapStyle.Aerial3D;
  29.
  30.                //create a mapscene for lat and long
  31.                //facing East (90 deg) and pitched 45 deg
  32.                var mapScene = MapScene.CreateFromLocationAndRadius(Mapsample.Center, 500, 90, 45);
  33.                await Mapsample.TrySetSceneAsync(mapScene);
  34.            }
  35.        }
Entire code is in Xaml.cs,
  1. using System;
  2. using System.Collections.Generic;
  3. using System.IO;
  4. using System.Linq;
  5. using System.Runtime.InteropServices.WindowsRuntime;
  6. using Windows.Devices.Geolocation;
  7. using Windows.Foundation;
  8. using Windows.Foundation.Collections;
  9. using Windows.UI.Xaml;
  10. using Windows.UI.Xaml.Controls;
  11. using Windows.UI.Xaml.Controls.Maps;
  12. using Windows.UI.Xaml.Controls.Primitives;
  13. using Windows.UI.Xaml.Data;
  14. using Windows.UI.Xaml.Input;
  15. using Windows.UI.Xaml.Media;
  16. using Windows.UI.Xaml.Navigation;
  17.
  18. // The Blank Page item template is documented at http://go.microsoft.com/fwlink/?LinkId=402352&clcid=0x409
  19.
  20. namespace Mapsample
  21. {
  22.     /// <summary>
  23.     /// An empty page that can be used on its own or navigated to within a Frame.
  24.     /// </summary>
  25.     public sealed partial class MainPage : Page
  26.     {
  27.         public MainPage()
  28.         {
  29.             this.InitializeComponent();
  30.             Mapsample.Loaded += Mapsample_Loaded;
  31.         }
  32.
  33.         private async void Mapsample_Loaded(object sender, RoutedEventArgs e)
  34.         {
  35.
  36.             var center =
  37.                 new Geopoint(new BasicGeoposition()
  38.                 {
  39.                     Latitude = 11.66509,
  40.                     Longitude = 78.154587
  41.
  42.                 });
  43.
  44.
  45.             await Mapsample.TrySetSceneAsync(MapScene.CreateFromLocationAndRadius(center, 3000));
  46.
  47.             Mapsample.Center =
  48.           new Geopoint(new BasicGeoposition()
  49.           {
  50.               Latitude = 11.66509,
  51.               Longitude = 78.154587
  52.           });
  53.
  54.             Mapsample.ZoomLevel = 16;
  55.
  56.             //check for 3D support
  57.             if (Mapsample.Is3DSupported)
  58.             {
  59.                 //set style to 3D
  60.                 Mapsample.Style = MapStyle.Aerial3D;
  61.
  62.                 //create a mapscene for lat and long
  63.                 //facing East (90 deg) and pitched 45 deg
  64.                 var mapScene = MapScene.CreateFromLocationAndRadius(Mapsample.Center, 500, 90, 45);
  65.                 await Mapsample.TrySetSceneAsync(mapScene);
  66.             }
  67.         }
  68.
  69.     }
  70.
  71. }
  72.

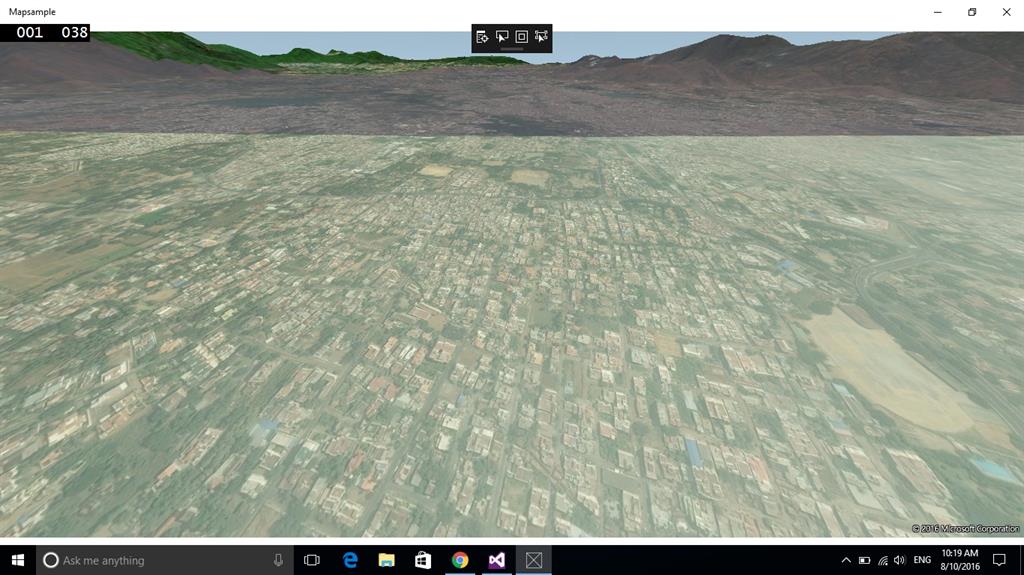

Output
