In this article you will create an SHA1 Fingerprint key for Xamarin Android Google Map App Development. Here are the steps,

Create Google Maps API v2 key through the following steps:

Create Debug Keystore for SHA1 Fingerprint Signed Key.
Create Project in Google Developer API Console
Obtaining google API KEY

Let’s start,

Create Debug Keystore for SHA1 Fingerprint Signed Key

Step 1: Go to My Computer C:\Users\Admin\AppData\Local\Xamarin\Mono and then copy debug.keystore File.

Step 2: Then Go to C:\Program Files\Java\jre1.8.0_73\bin paste copied debug.keystore file.

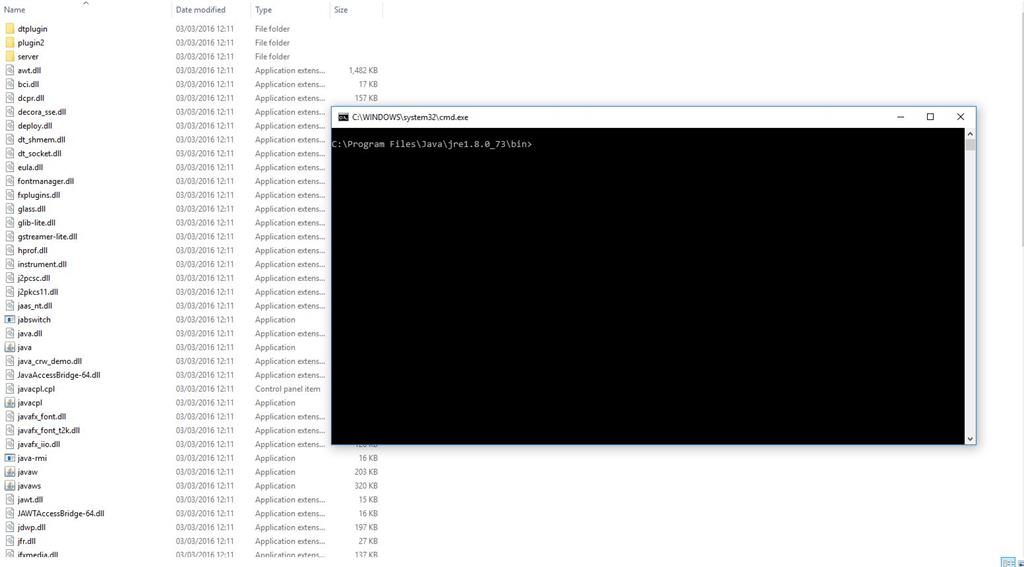

Step 3: Open Command Prompt -> Shift + Right Click + Open Command Window here

Step 4: Then type the below content in command prompt,

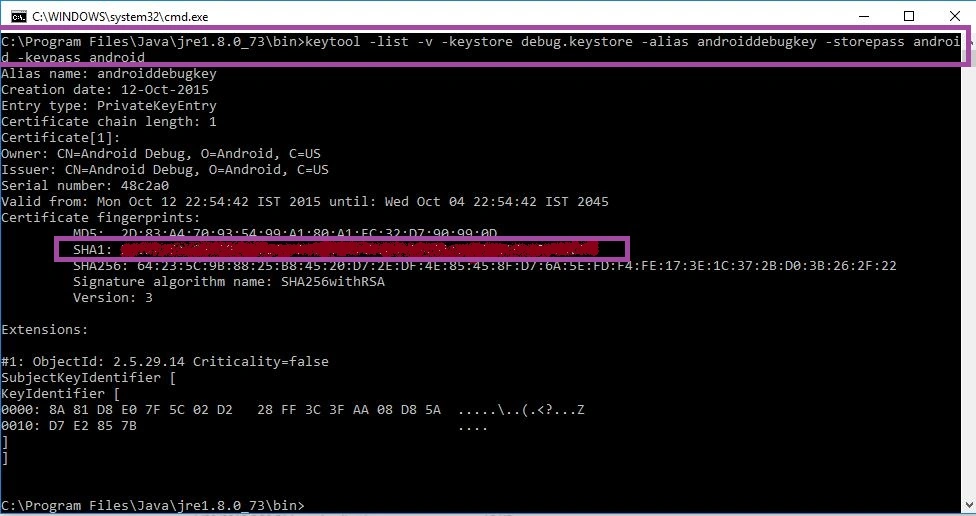

keytool -list -v -keystore debug.keystore -alias androiddebugkey -storepass android -keypass android Next to Press Enter Button that time will create SHA1 KEY,

Step 5:The Xamarin Android Debug KEY is created successfully. You can Copy SHA1 KEY next to Create project in Developer console.

Create Project in Google Developer API Console

Step 1:Go to Google Developer Console Page link.

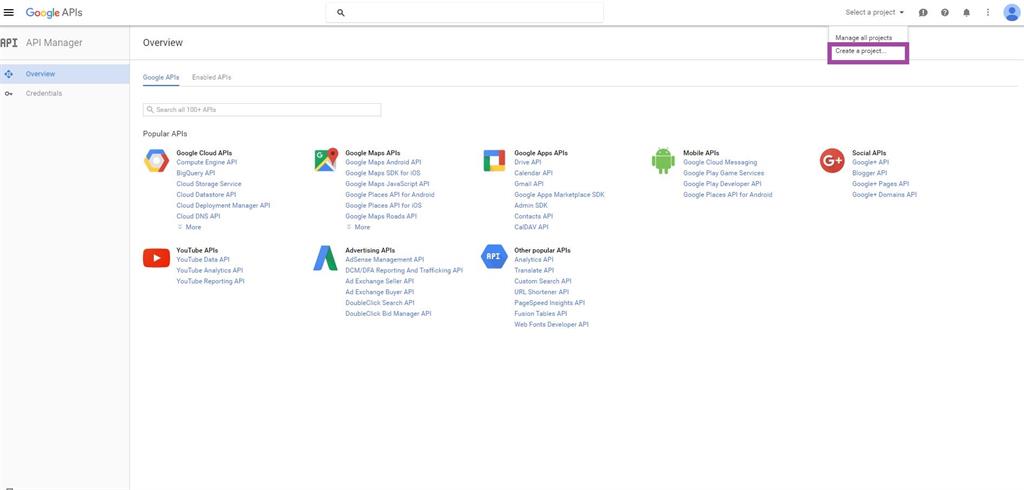

Step 2: Go to Console Page Right Side corner to Click Select a Project menu then Click create a project.

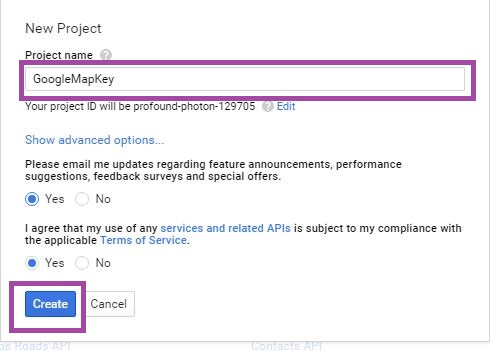

Step 3:Next it's showing New Project popup window; here give your Project Name; after that create new project.

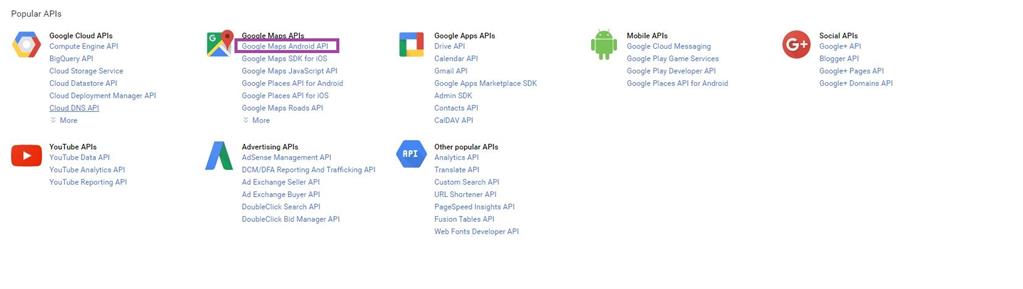

Step 4: Then Go for Google APIs select Google Maps Android API,

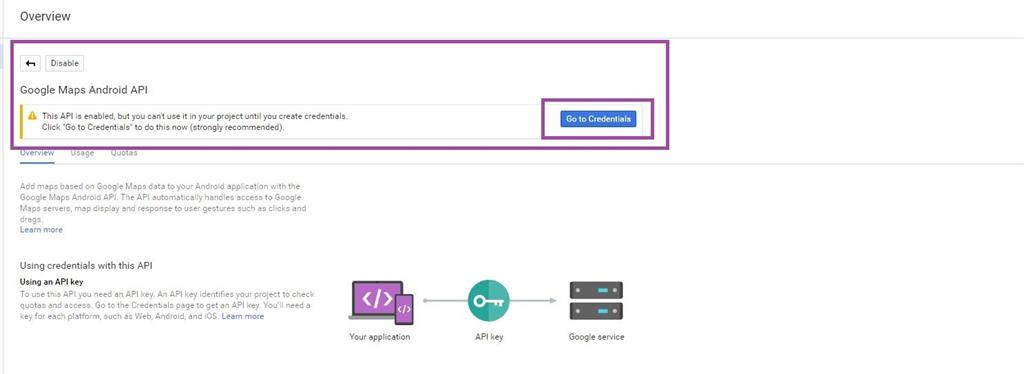

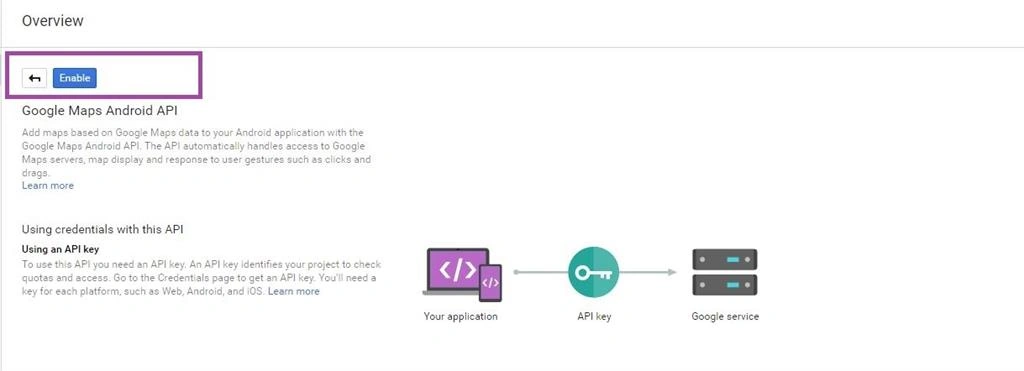

Step 5: Enable Google Android API,

Step 6: After enabling Google API go to Google API credentials page,

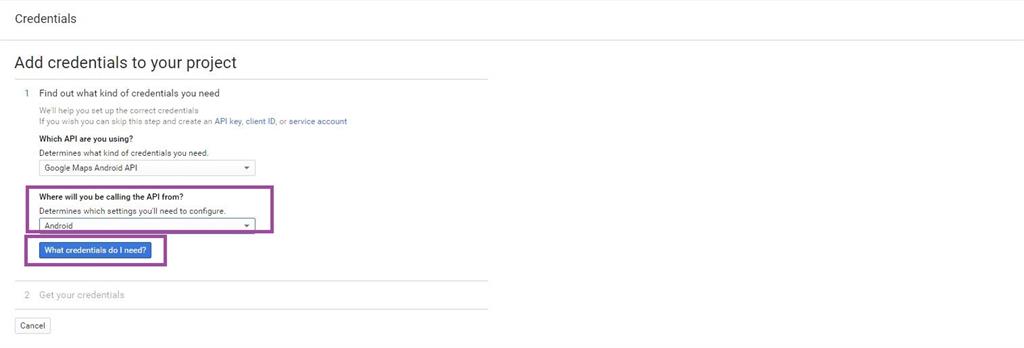

Step 7: Then Select Configure dropdown value of Android in. Next Click What credentials do I need? Button.

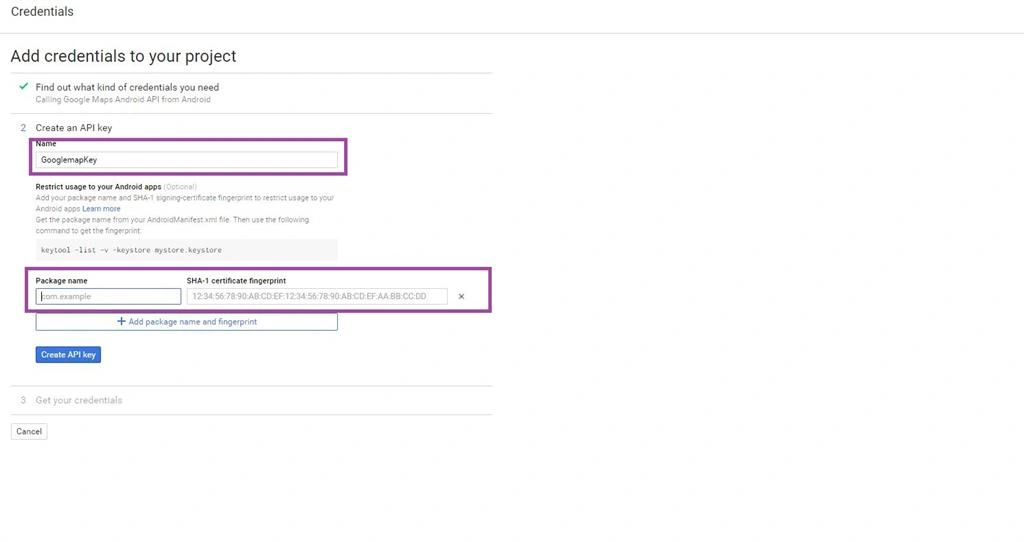

Step 8: Next Windows is showing Create as API Key to Give your Project name and Click Add Package name and fingerprint button,

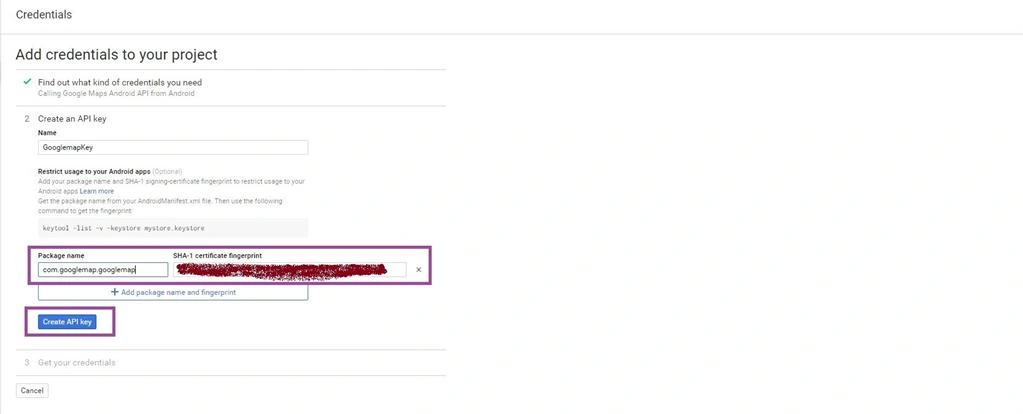

Step 9: Then give Package Name com.example.example. next to copy paste here Created SHA1 Key,

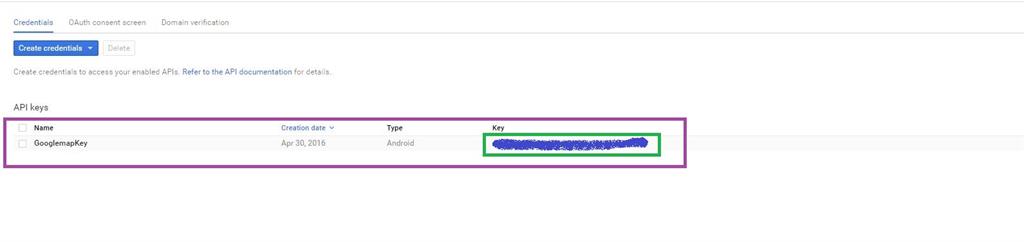

Step 10: Then Click create API Key button it returns APIs Page here will be sowing API key.

Step 11: Then in this API a key is added to the AndroidManifest.XML file of a Xamarin Android application to be add below code,

<meta-data android:name="com.google.android.maps.v2.API_KEY" android:value="YOUR API_KEY" />
<meta-data android:name="com.google.android.gms.version" android:value="@integer/google_play_services_version" /> </application>

Finally, we have successfully created Signed Fingerprint key in Xamarin Android Google map App Development.
