Xamarin.Forms - Create MVVM Data Binding Application

Xamarin Forms Platform using Create MVVM Data Binding application using xml and c# code

Introduction

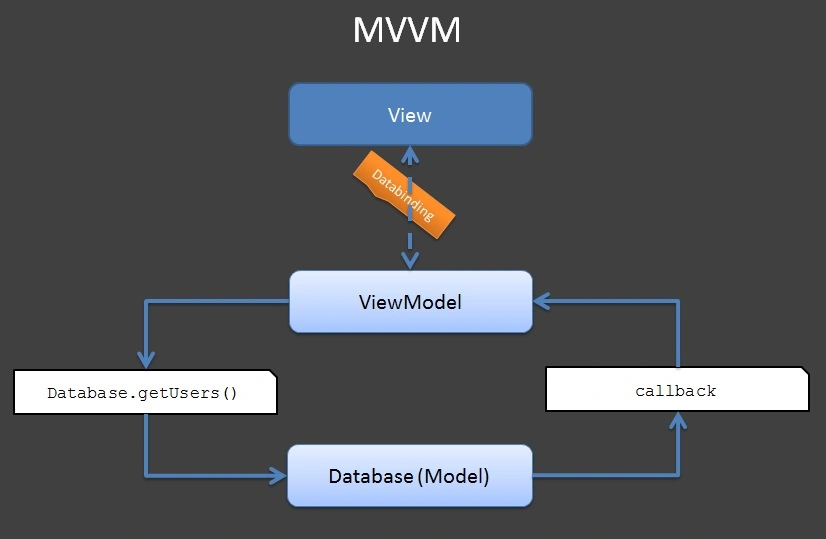

This article demonstrates how to create MVVM Data Binding Application using C# and XML in Xamarin.Forms.



Let’s start.

Step 1

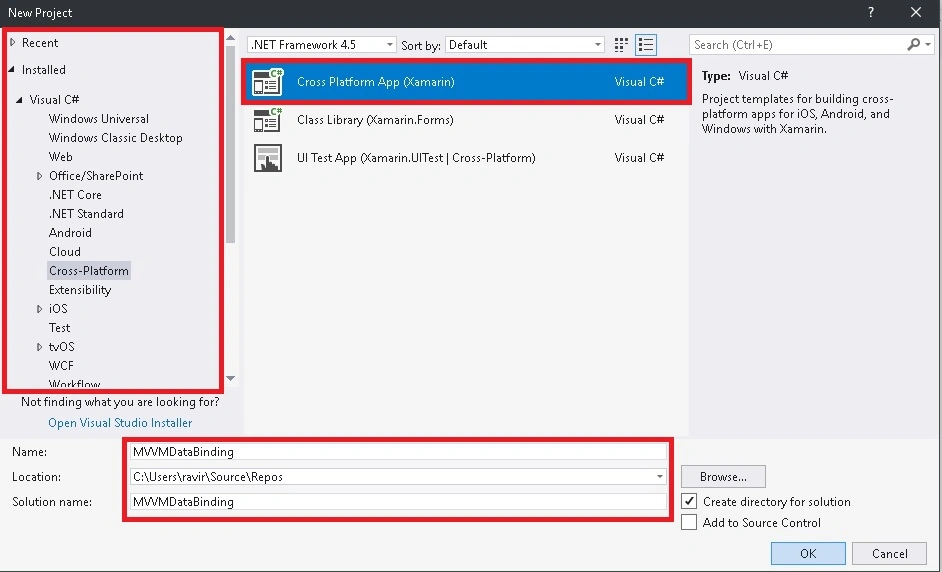

Open Visual Studio. Go to New Project >> Installed >> Visual C# >> Cross-Platforms >> Cross-Platform App (Xamarin).

Select Cross-Platform App, then give project name and project location.



Step 2

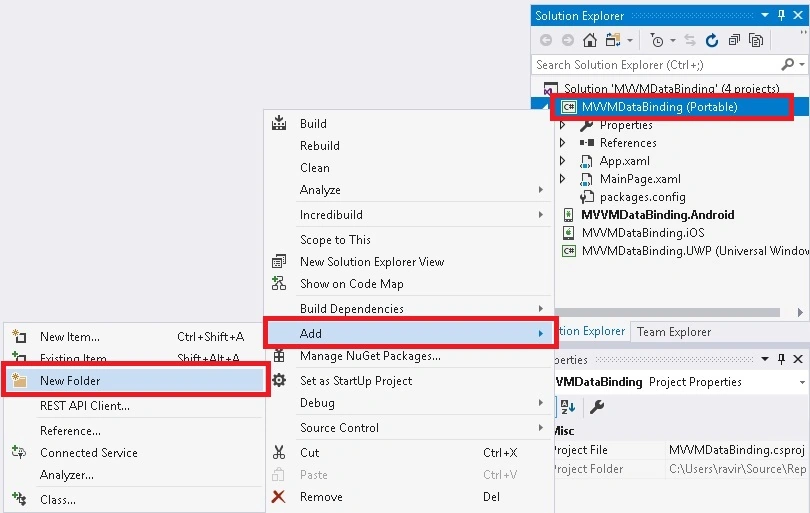

Next, go to Solution Explorer >> Project Name (Portable), then right-click to Add >> New Folder. It opens a new dialog box; give the name to your Model.

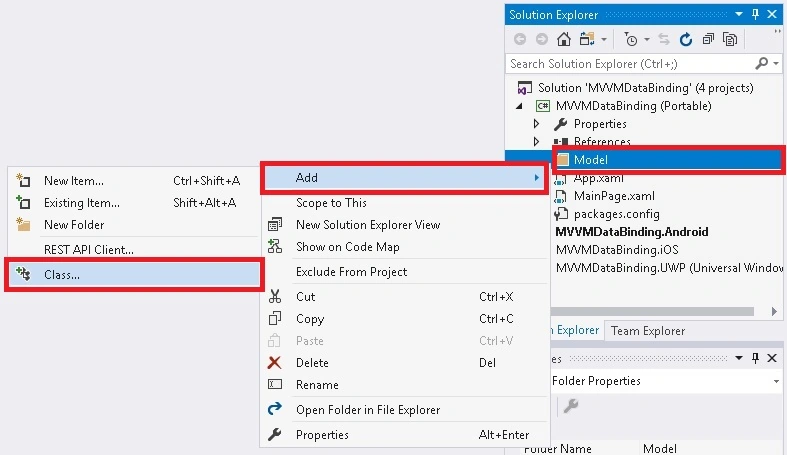

Go to Project Name >> Model. Right-click to Add >> Class. This opens a new dialog box. Give a name to TaskModel.cs.



Step 3

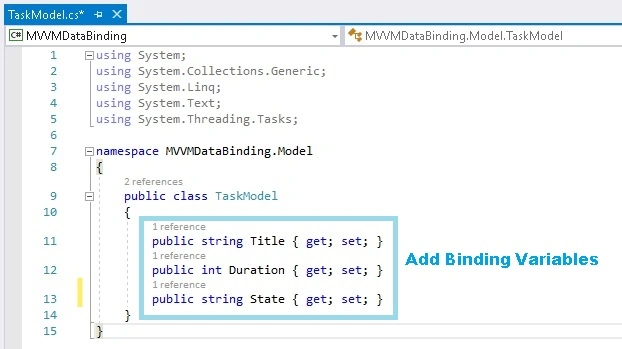

Next, open Solution Explorer >> Project Name >> Model >> TaskModel.cs. Click to open C# code. Then, give the following code.



C# Code
  1. namespace MVVMDataBinding.Model
  2. {
  3.     public class TaskModel
  4.     {
  5.         public string Title { getset; }
  6.         public int Duration { getset; }
  7.         public string State { getset; }
  8.     }
  9. }
 Step 4

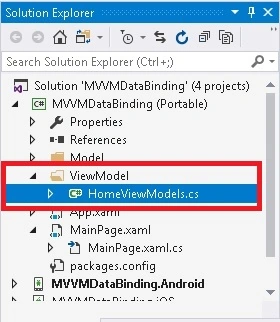

Similarly, add a new folder under Class page, then give the name for ViewModel and HomeViewModels.cs.



Step 5

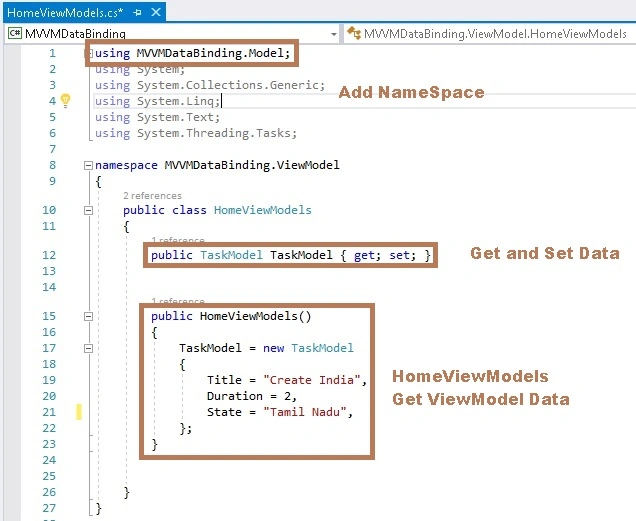

Next, open Solution Explorer >> Project Name >> ViewModel >> HomeViewModel then click open C# code. Give the following code.



C# Code
  1. using MVVMDataBinding.Model;
  2.
  3. namespace MVVMDataBinding.ViewModel
  4. {
  5. public class HomeViewModels
  6.     {
  7.         public TaskModel TaskModel { getset; }
  8.         public HomeViewModels()
  9.         {
  10.             TaskModel = new TaskModel
  11.             {
  12.                 Title = "Create India",
  13.                 Duration = 2,
  14.                 State = "Tamil Nadu",
  15.             };
  16.         }
  17.     }
  18. }
 Step 6

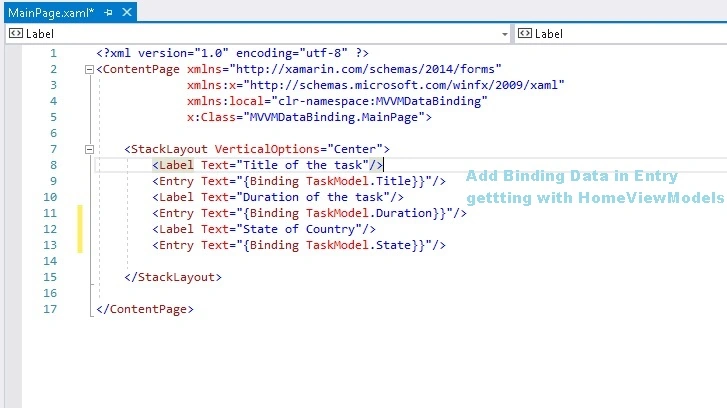

In this step, go to MainPage.xaml and open Design View. Paste the following code.



XML Code
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              xmlns:local="clr-namespace:MVVMDataBinding"
  5.              x:Class="MVVMDataBinding.MainPage">
  6.
  7.     <StackLayout VerticalOptions="Center">
  8.         <Label Text="Title of the task"/>
  9.         <Entry Text="{Binding TaskModel.Title}}"/>
  10.         <Label Text="Duration of the task"/>
  11.         <Entry Text="{Binding TaskModel.Duration}}"/>
  12.         <Label Text="State of Country"/>
  13.         <Entry Text="{Binding TaskModel.State}}"/>
  14.      </StackLayout>
  15. </ContentPage>
 Step 7

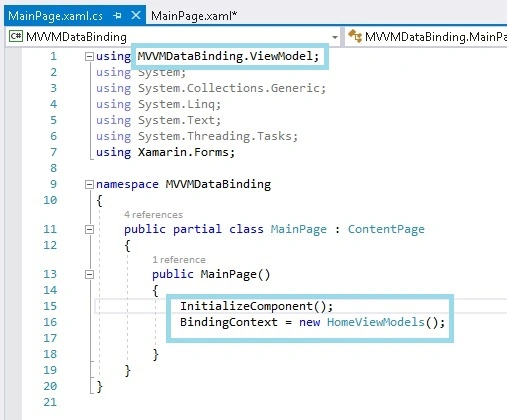

Next, open Mainpage.axml.cs Page, then add namespace MVVMDataBinding.ViewModel, and give the following C# code.



C# Code
  1. using MVVMDataBinding.ViewModel;
  2. using Xamarin.Forms;
  3.
  4. namespace MVVMDataBinding
  5. {
  6.     public partial class MainPage : ContentPage
  7.     {
  8.         public MainPage()
  9.         {
  10.             InitializeComponent();
  11.             BindingContext = new HomeViewModels();
  12.         }
  13.     }
  14. }
 Step 8

Finally, Debug and Run the app to see a working MVVMDataBindding.



Finally, we have successfully created Xamarin.Forms MVVMDataBinding application.
